JXT X 4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching
JXT-X-4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching
JXT-X-4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching
JXT-X-4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching
JXT-X-4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching
JXT-X-4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching
JXT-X-4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching

JXT X 4 Neurosurgery Operation Ophthalmic Eye Surgery Microscope with Assistant Lens & Foot Pulley Control for Surgical Teaching

Share on (1600762968355):


Price:

Quantity:


Product Overview

Description



Product Description









Super Long Working Distance

Any Directions

WF12.5X Eyepiece

180° Rotatable Head

8V/50W OSRAM halogen lamp




JXT-X-4 Serie Microscope is an universal Surgical Operating Microscope, which is easily to be used for ophthalmology, orthopedics, burn and plastic surgery, urology, reconstructive surgeries, especially the model JXT-X-4C is professionally operated for ophthalmology surgeries.





Features



---Long working distance, for any directions


---Clear imaging and strong stereo sensation


---Turning of extension hand around the axis


---WF12.5X, wide field of view, and coaxial cold light source


---Support 1/2/3 doctors multi-view simultaneously, suitable for teaching demonstrationcold light source


---Control by foot panel and fine focusing knob, flexible operation, easy to carry, and automatic balancing


1

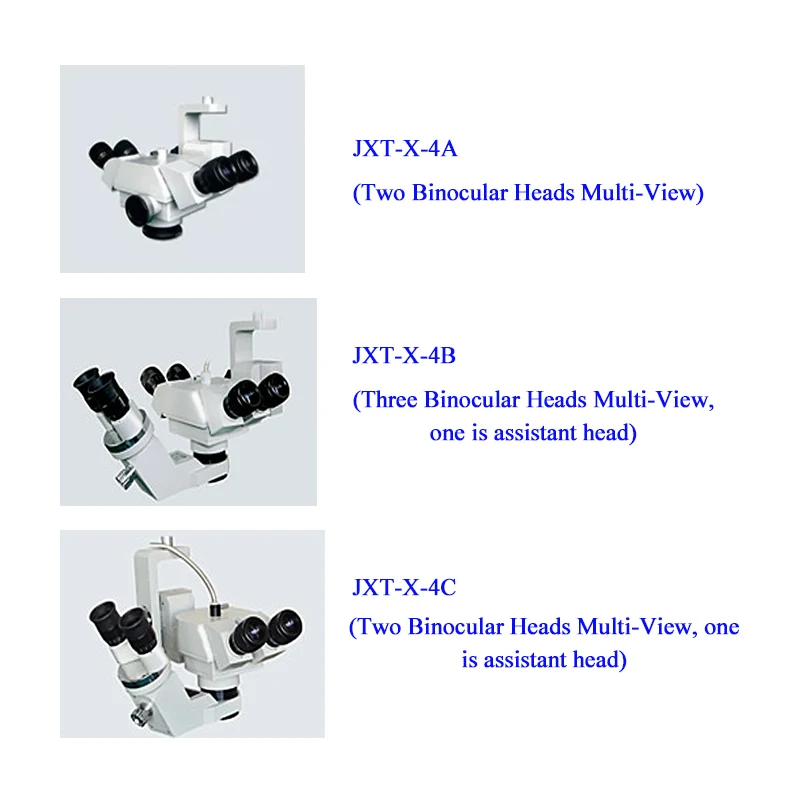

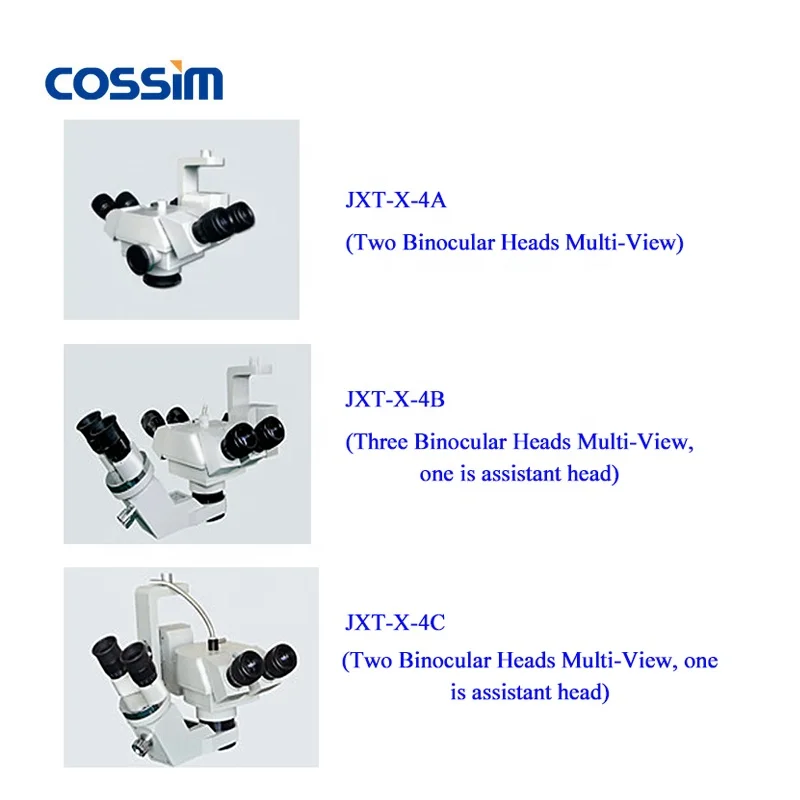

Different Microscope Heads from JXT-X-4 Series


1







JXT-X-4A Surgery Microscope


1







JXT-X-4B Surgery Microscope


1







JXT-X-4C Surgery Microscope





Specification

































































































Specification for JXT-X-4 Serie:



Item/Model



JXT-X-4A



JXT-X-4B/C



Head



180° Rotatable



Main Eyepiece



ER WF12.5X, Dioptric adjustment: ±6D;



IPD adjustment



55mm ~ 75mm



Main F.O.V



Dia.: 27.5mm



Assistant Eyepiece



/



Support



Main Objective Zoom



10X



Objective Focal Length



200mm (250mm Optional)



Assistant Objective Zoom



/



4X (4X~20X Continuous Zoom Optional)



Main F.O.V



Dia.: 27.5mm



Assistant F.O.V



/



Dia.: 52mm



Working Distance



200mm



Illuminator



coaxial cold light source, 8V/50W OSRAM halogen lamp, brightness adjustable, ≥45,000LX



Extension hand / in radius



1100mm



800mm



Frame spring arm adjustment range



/



≥300mm



Focusing Speed



≤2.5mm/s



Focusing adjusting range



≥40mm



Plain X-Y movement



Continuous zoom by knob and foot panel, range: 40*40mm



Power supply



AC 220V, ±10% 50Hz



Optional Accessory



Microscope Cameras
