Customize 5.8G 2.4G 1.5G GPS band RF Blocker Module Professional RF Power Amplifier
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen,Rongxin,Communication,Co.,Ltd
Share on:
Product Overview
Description
Product Description
Customize 5.8G 2.4G 1.5G GPS band RF Blocker Module Professional RF Power Amplifier
Rong Xin is the professional anti drone equipment factory in the Shenzhen city, China.We offer the exquisite 100% aging test of the spectrum analyzer before warehousing and delivery. Our anti drone module is of high-end PCBA board with exact frequency range and the required output power. The frequency is customized as 433MHz, 868&915MHz, GPSL2 1.2G, GPSL1 1.5G, WIFI2.4G, WIFI5.8G.
Product details
Origin:Guangdong, China Brand :Rongxin
Name: Anti drone module MHZ: Customize,1.5G,2.4G,5.8G,GPS
Power: Customize,5W,10W,20W30W,50W,100W Range: 10-1000m
Quality Warranty:12 months Key word:Anti drone system
Name: Anti drone module MHZ: Customize,1.5G,2.4G,5.8G,GPS
Power: Customize,5W,10W,20W30W,50W,100W Range: 10-1000m
Quality Warranty:12 months Key word:Anti drone system
Main performance index
Index | Numerical value | Unit | Note | ||||||
Min | Typical | Max | |||||||
Signal Jammer frequency | 5700 | 5900 | MHz | ||||||
Output power | 465 | 47 | 47.5 | dBm | |||||
Band flatness | 1 | dB | |||||||
Work current | 3.8 | A | |||||||
Work voltage | 28 | 32 | V | ||||||
Work efficiency | 45 | % | |||||||
Thermally offset of upper band | 8 | MHz | Module surface temperature: 85°C | ||||||
Thermally offset of bottom band | 8 | MHz | Module surface temperature: 85°C | ||||||
Weight | 0.22kg | ||||||||

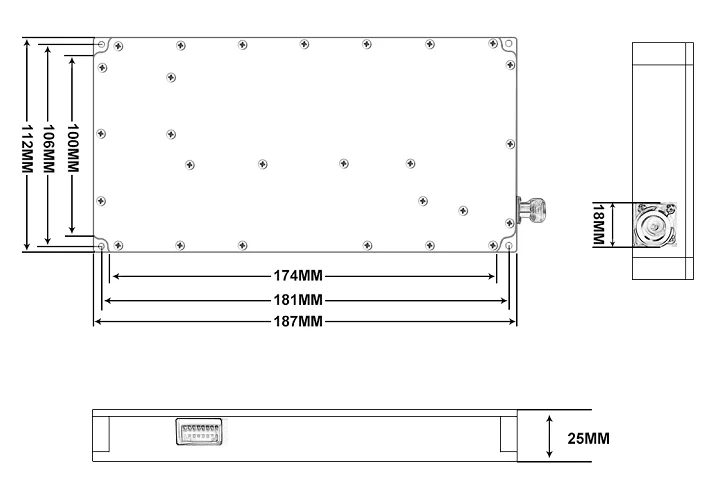

Dimension | 205*112*25 mm | ||||||||
