Best Price Candy Bar Chocolate Line Granola Bar Machine Cereal Bar Pressing And Cutting Machine
- Category: >>>
- Supplier: Zhengzhou Inber Machinery Co. Ltd.
Share on (1600763069878):
Product Overview
Description
Product Description

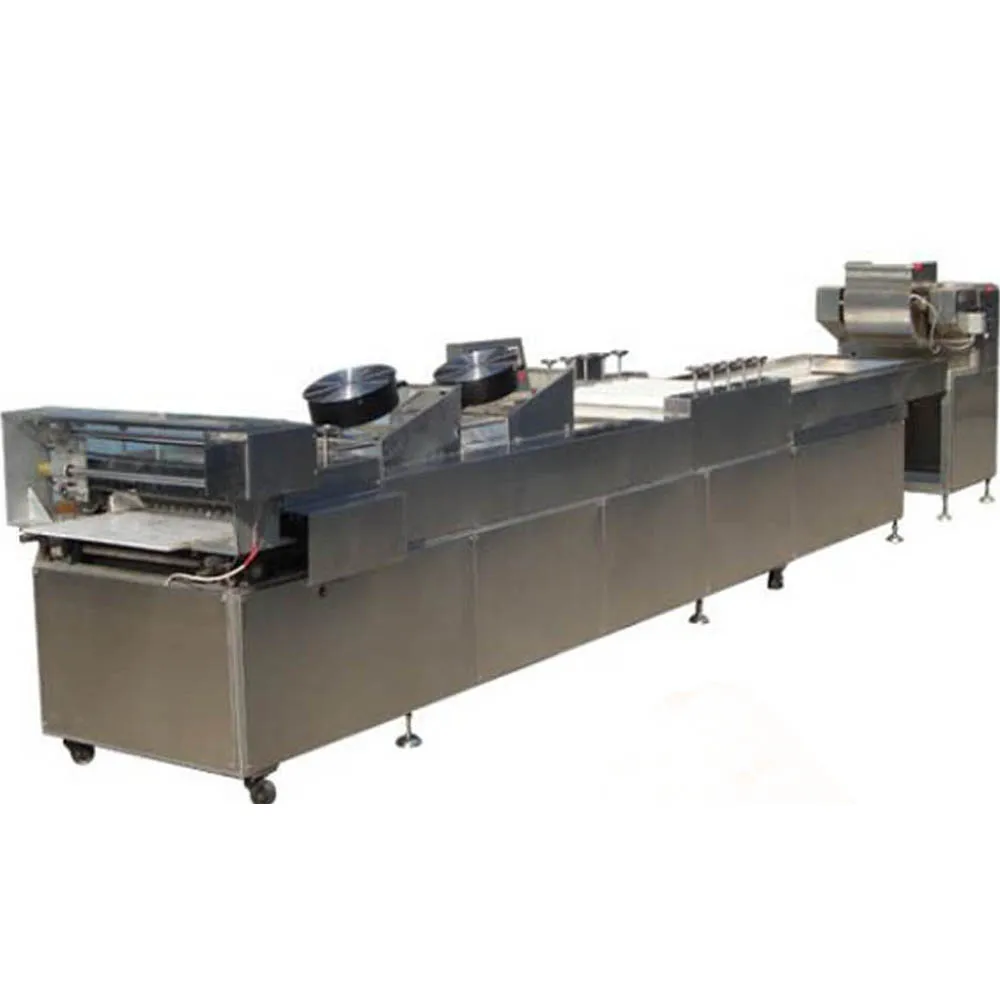

Best Price Candy Bar Chocolate Line Granola Bar Machine Cereal Bar Pressing And Cutting Machine
The peanut brittle production line needs six machines, which are baking machine, piffing machine, sugar boiling machine, mixer, roller molding machine, cutter machine and pillow packing machine.You can make delicious peanut cakes, millet cakes, sesame chips and so on. Complete set of production equipment is equipped with frequency conversion speed regulation control, reasonable structure, simple operation, easy maintenance, with the advantages of good block forming, adjustable length, large production, etc., is the ideal equipment for food manufacturers to produce peanut sugar, rice flower sugar, sesame sugar.
Peanut sugar making process:
Roasting→ boil sugar → mixing → flating → cutting → cooling → packaging.
Roasting→ boil sugar → mixing → flating → cutting → cooling → packaging.
Rice candy production process:
Puffing → boil sugar → mixing → flating → cutting → cooling → packaging.
Puffing → boil sugar → mixing → flating → cutting → cooling → packaging.
Sesame sugar production process:
Cleaning and peeling → boil sugar → mixing → flating → cutting → cooling → packaging.
Cleaning and peeling → boil sugar → mixing → flating → cutting → cooling → packaging.
Detailed Images

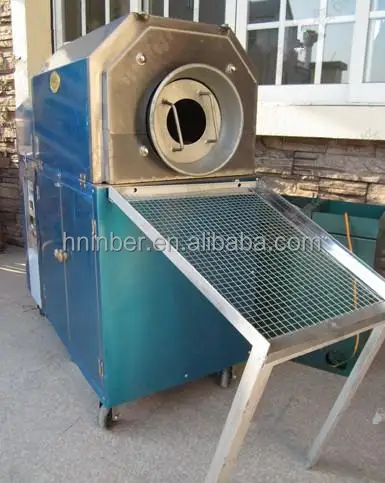

roasting machine
The roasting machine can be used toroasting peanuts, almonds, pine nuts, walnuts, rice, hazelnut, sesame seeds,coffee bean, melon seeds.
name | voltage | power | capacity | Heating Method |
roaster machine | 220/380v | 0.37kw | 12.5kg | electric |

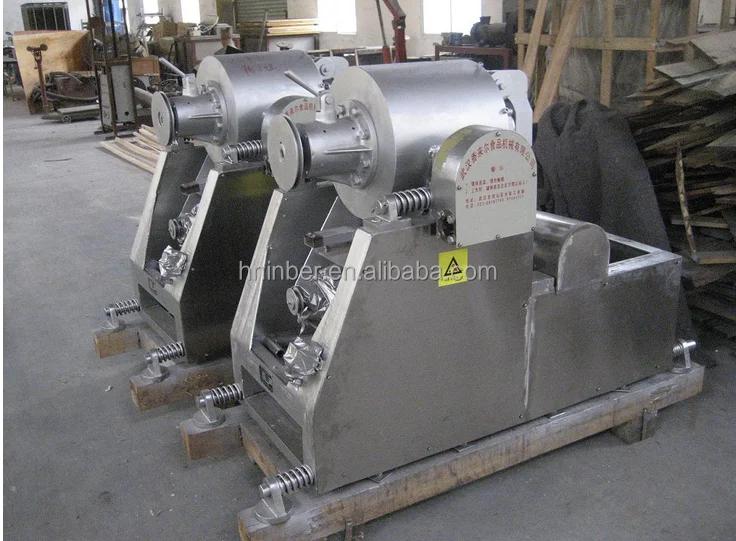

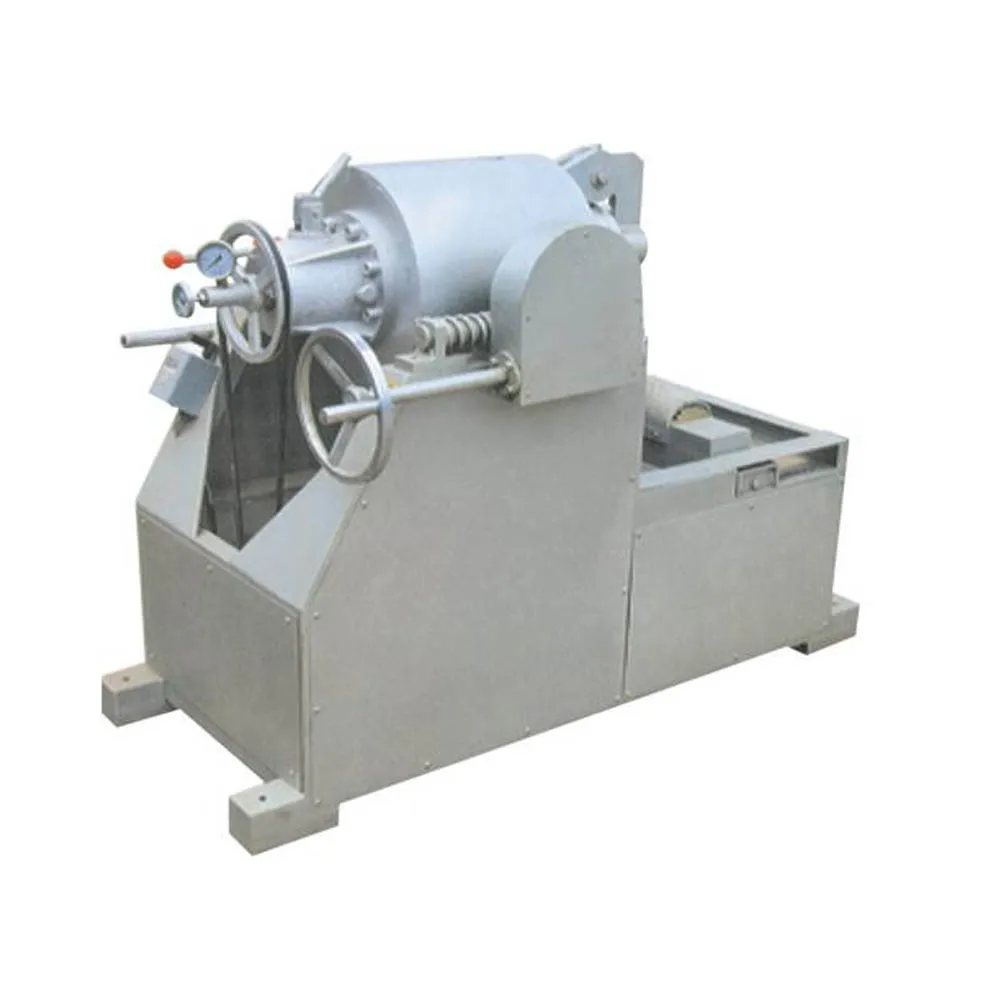

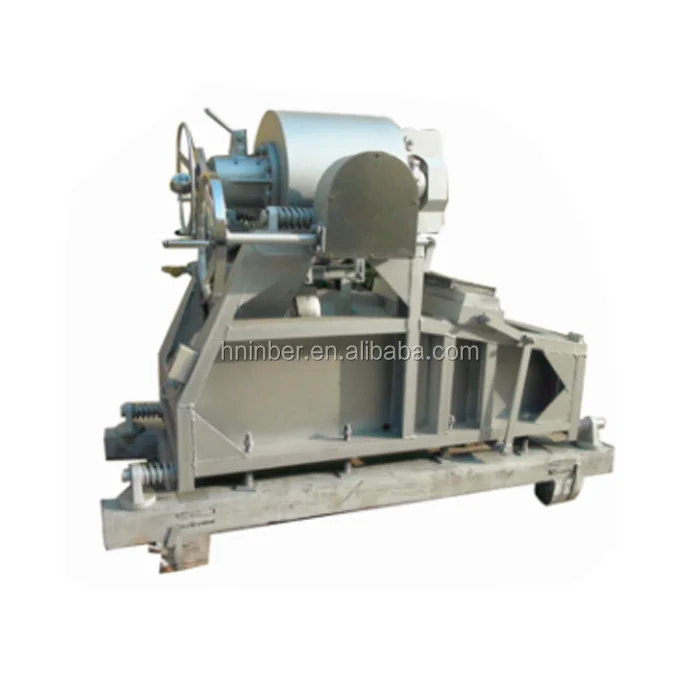

puffing machine
It adopted liquefaction spirit for heating, the main puffing object are:
Soybean, corn, rice, wheat etc. It has the merit such as higher production, lower power consumption, strictly test was performed before leaving factory, higher safety coefficient, those merits leading a best-sold machine in foodstuff factory.
capacity:50-70kg/h
power:0.75kw
volume:8-10kg

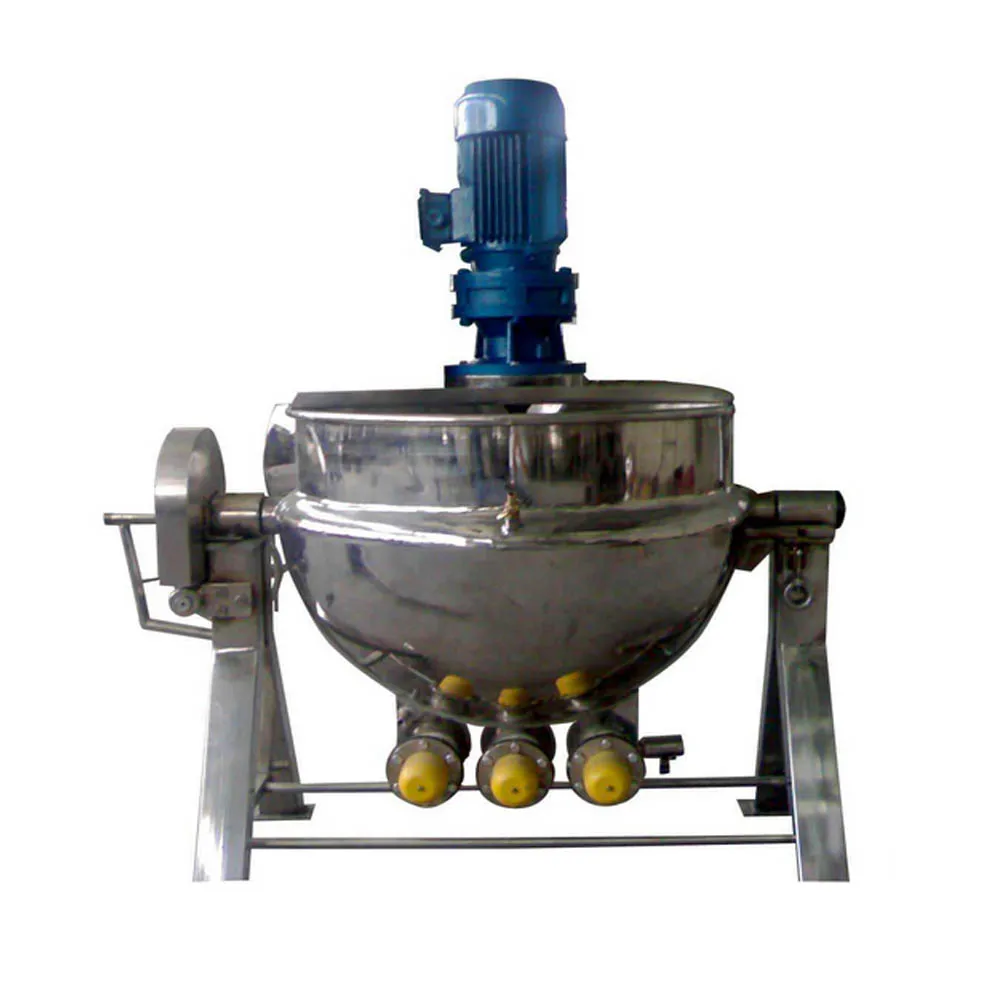

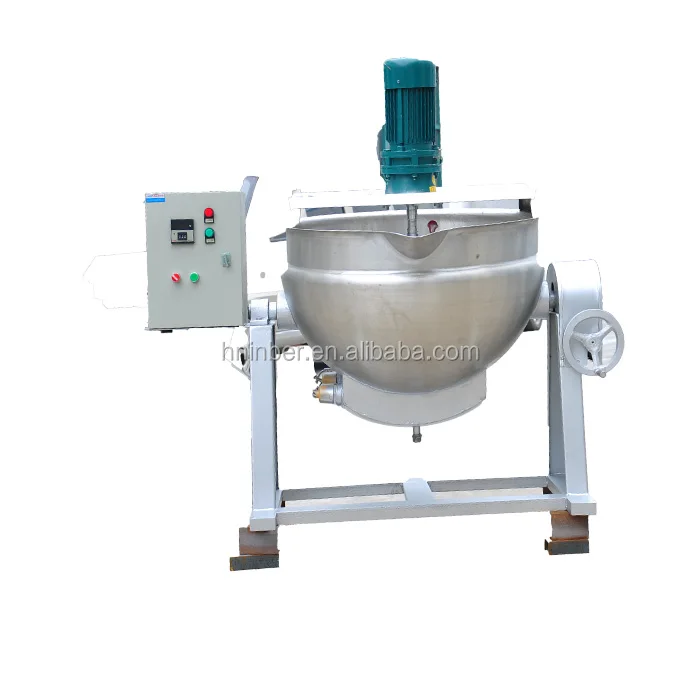

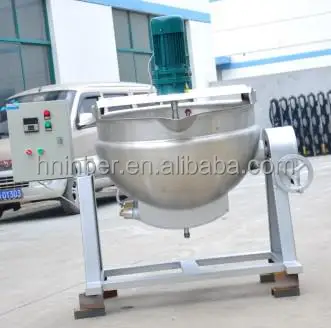

sugar boiled pot
Proposal:we advice using two set boiled pots.
It can alternate use, improve efficiency.
Left:gas heating type,right:electric heating type.
Device parameters
Volume:200L
Inside Diameter：∮840mm
Size：1470*905*990mm
Equipment Introduction
The surface is stainless
Heat Method: gas heating or electrical heating The temperature can reach 150℃,easy control
It can alternate use, improve efficiency.
Left:gas heating type,right:electric heating type.
Device parameters
Volume:200L
Inside Diameter：∮840mm
Size：1470*905*990mm
Equipment Introduction
The surface is stainless
Heat Method: gas heating or electrical heating The temperature can reach 150℃,easy control

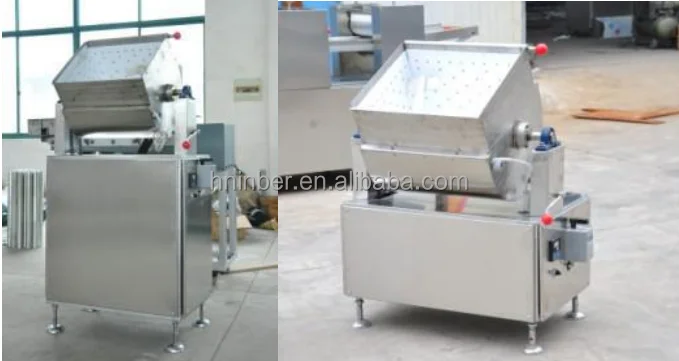

Mixing machine
Device parameters
Equipment Introduction The surface is stainless It use double-deck,has heat preservation effect
Power：1.1kw
Voltage：380V/50HZ
Size：800*900*1400mm
Capacity：20KG/once
Voltage：380V/50HZ
Size：800*900*1400mm
Capacity：20KG/once

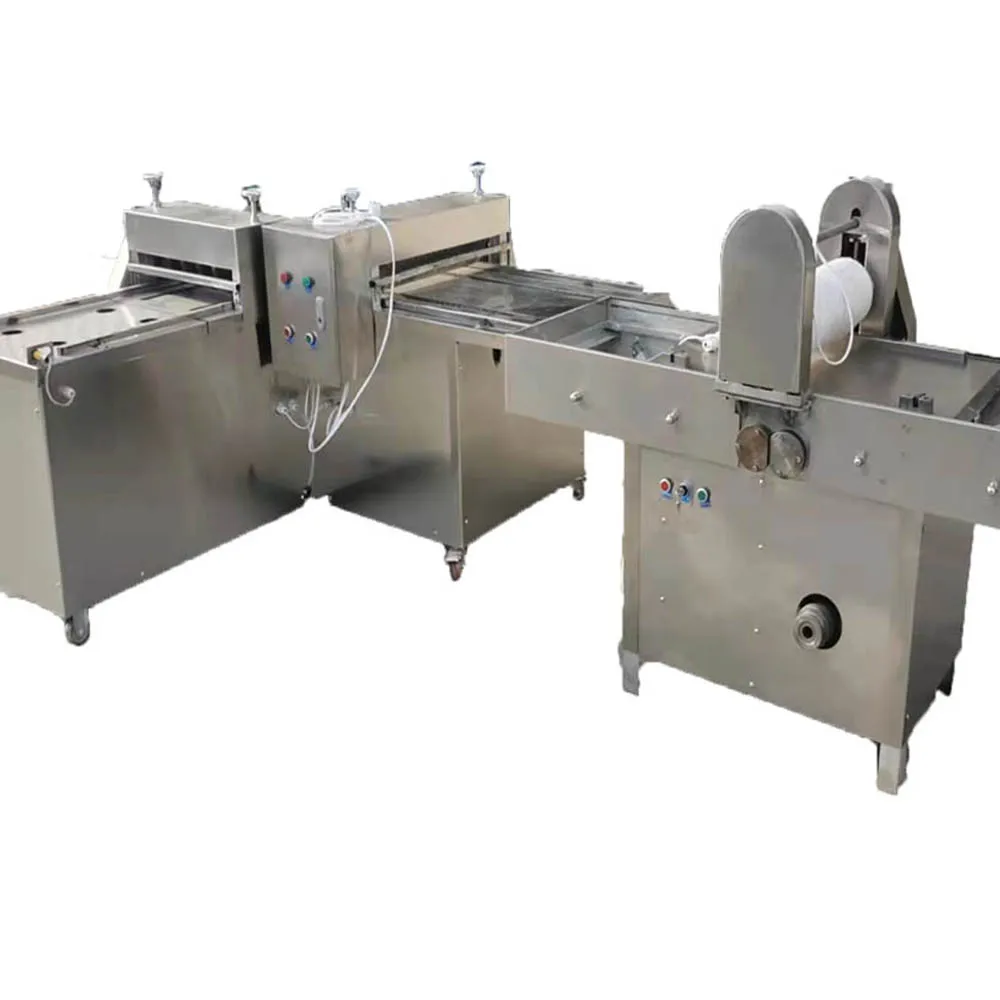

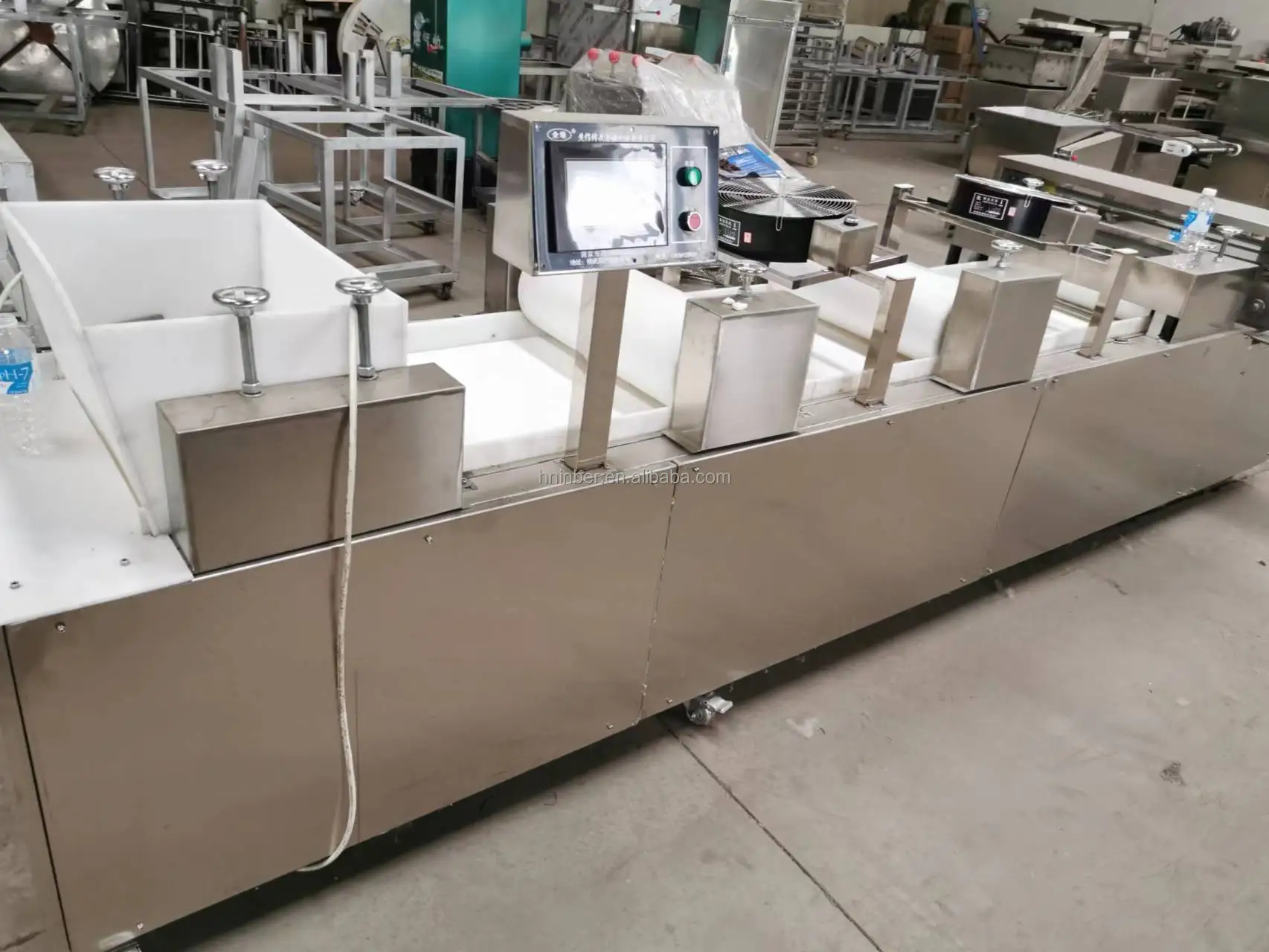

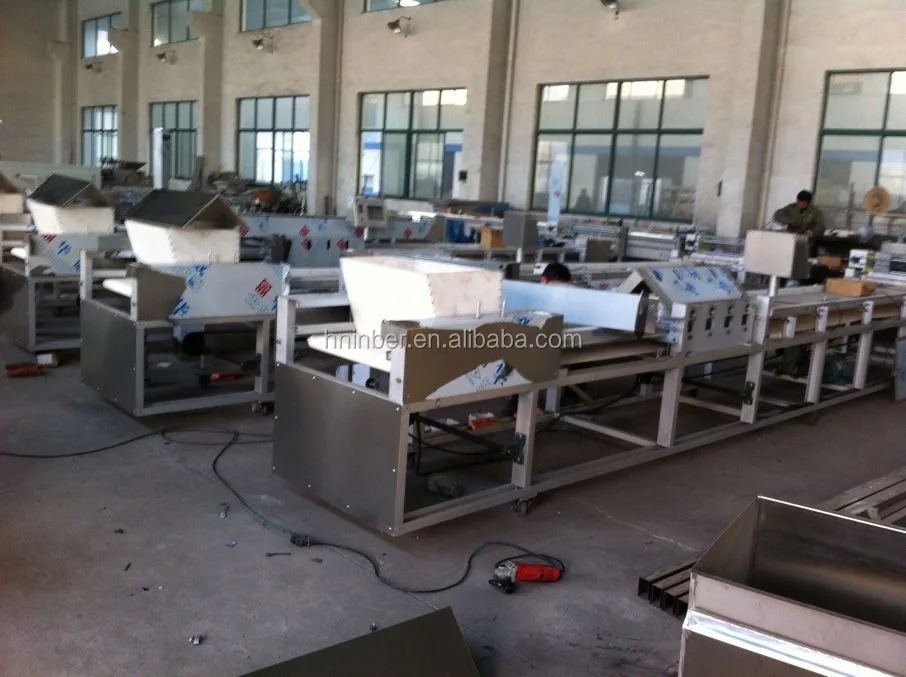

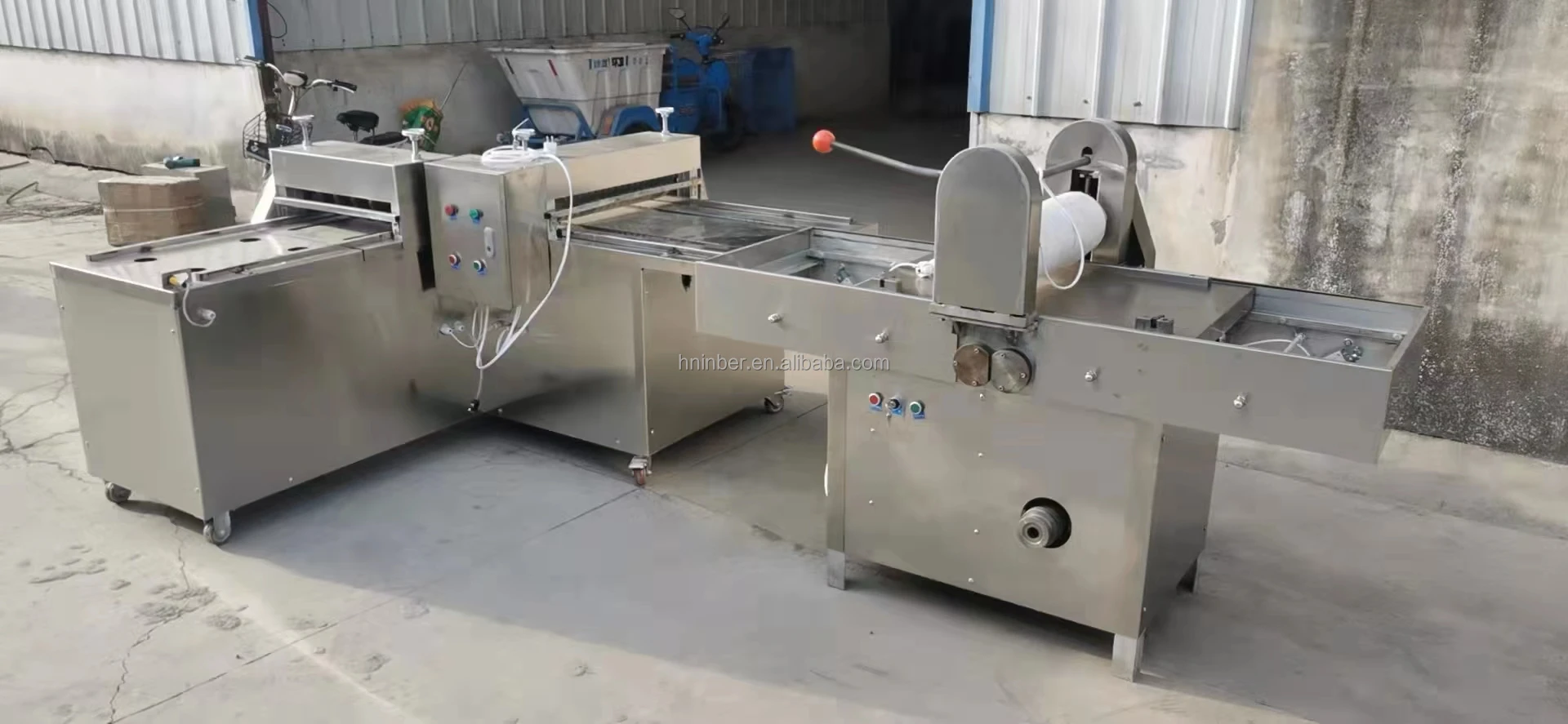

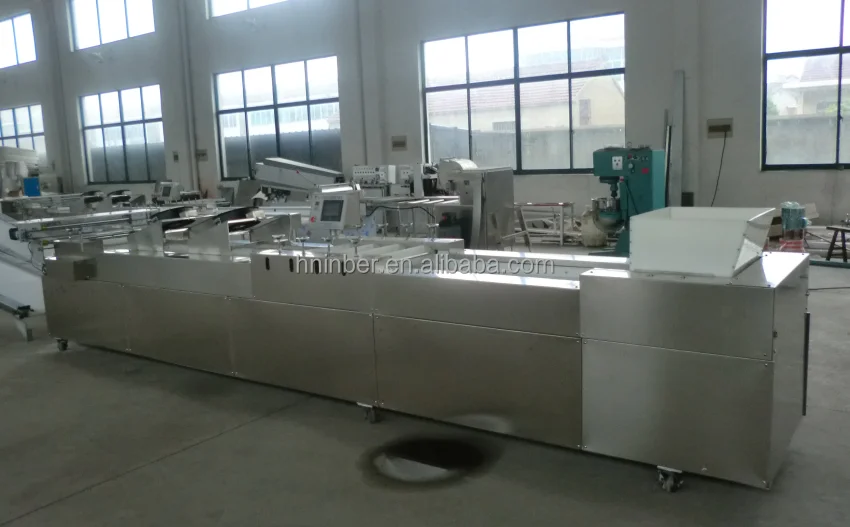

Automatic cutting and forming machine
Automatic laying material,pressing flat,cooling,cutting,forming
The conveyor belt speed can be adjusted
About the same width product,can adjust length and thickness.
About the other width product,just change the knife shaft.
The conveyor belt speed can be adjusted
About the same width product,can adjust length and thickness.
About the other width product,just change the knife shaft.
Device parameters
Power：2.2kw
Voltage：380V/50HZ
Size：6000*1200*1200mm
Capacity：2-8t/8h
Power：2.2kw
Voltage：380V/50HZ
Size：6000*1200*1200mm
Capacity：2-8t/8h

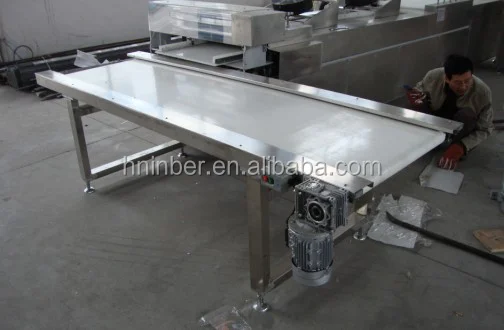

Cooling conveyor
Device parameters
Power：0.37kw
Voltage：380V/50HZ
Size：2500*820*720mm(according to your requirement)
Power：0.37kw
Voltage：380V/50HZ
Size：2500*820*720mm(according to your requirement)

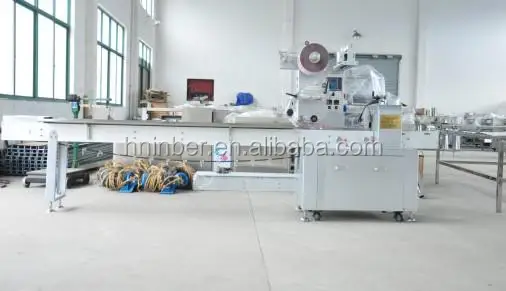

packing machine
voltage：220V
power：2.5kw
packing speed：50-300pcs/min
Packing length：50-300mm
Packing width:50-310mm
Packing height ：5-60mm
size：3800*780*1500mm
power：2.5kw
packing speed：50-300pcs/min
Packing length：50-300mm
Packing width:50-310mm
Packing height ：5-60mm
size：3800*780*1500mm
After Sales Service
Best Price Candy Bar Chocolate Line Granola Bar Machine Cereal Bar Pressing And Cutting Machine
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
Final product

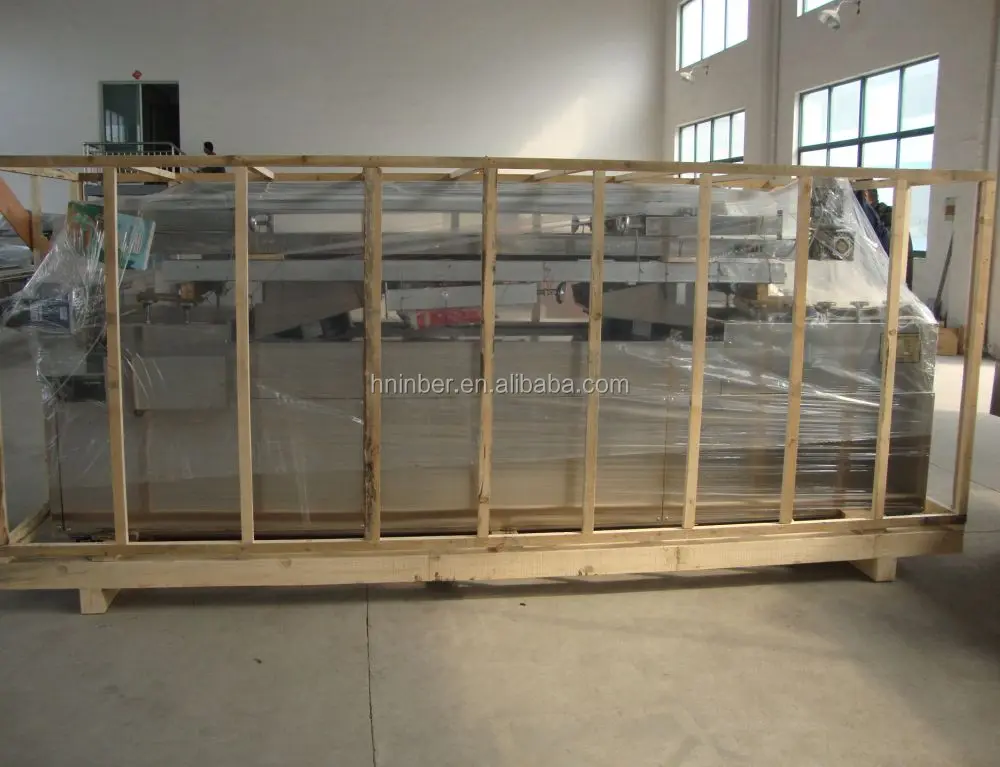

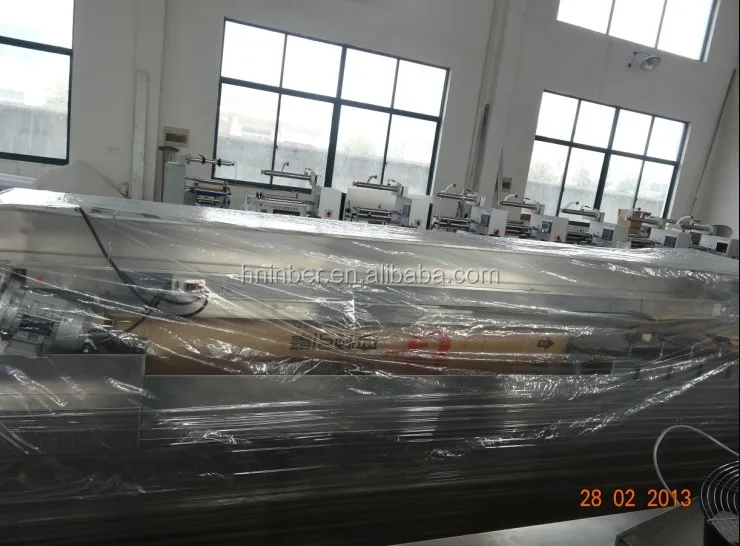

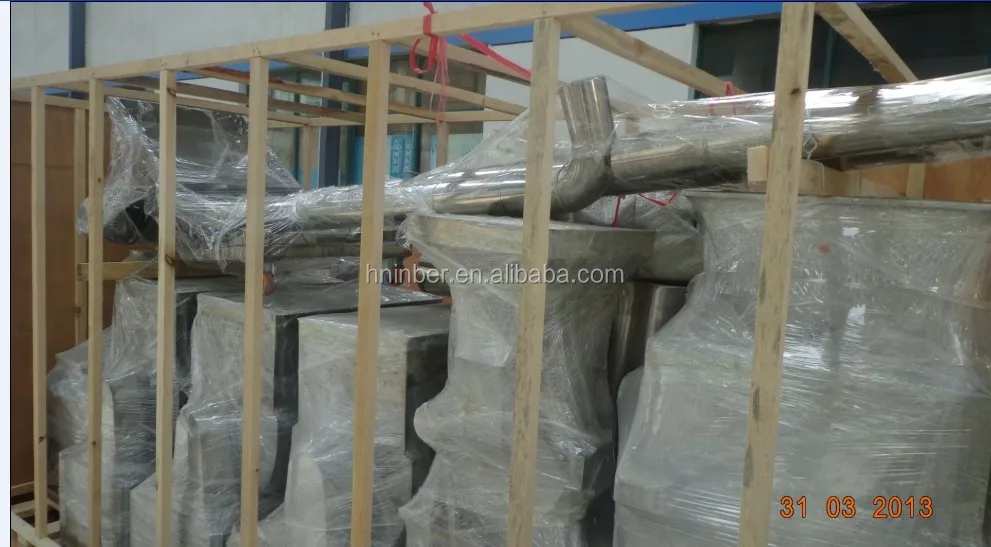

Packing&Shipping
Best Price Candy Bar Chocolate Line Granola Bar Machine Cereal Bar Pressing And Cutting Machine
We could arrange shippment by sea, by air, by express.If by express, could directly to your home. shipping time:3-5days
If by air, could ship to your destination airport,shipping time:5-7days
If by sea, could ship to your nearest seaport, shipping time is different based on your port details.
