Car Spray Booth Pick up truck Paint Room Polishing Painting with Baking Oven
- Category: >>>
- Supplier: Yantai Target Electromechanical Equipment Co. Ltd.
Share on (1600763138375):
Product Overview
Description
Product Description
Our Qualifications:
As experienced factory of spray booths,TARGET has been in this area for more than 15 years,exporting our paint booths to Australia,America,Germany,Asia,Africa and many other europe countries.
Our automotive paint booths are constructed of quality materials and manufactured to exacting standards,designed for extended service and meet high production requirements while providing the best environment for a quality finish.
We hold true to the product quality first, customer-focused purpose and dedication to provide quality services to our clients all the time,and our paint booths are highly appraised by our cuntomers.
There are many different styles and options for you.If you have any questions, please no hesitate to contact us!

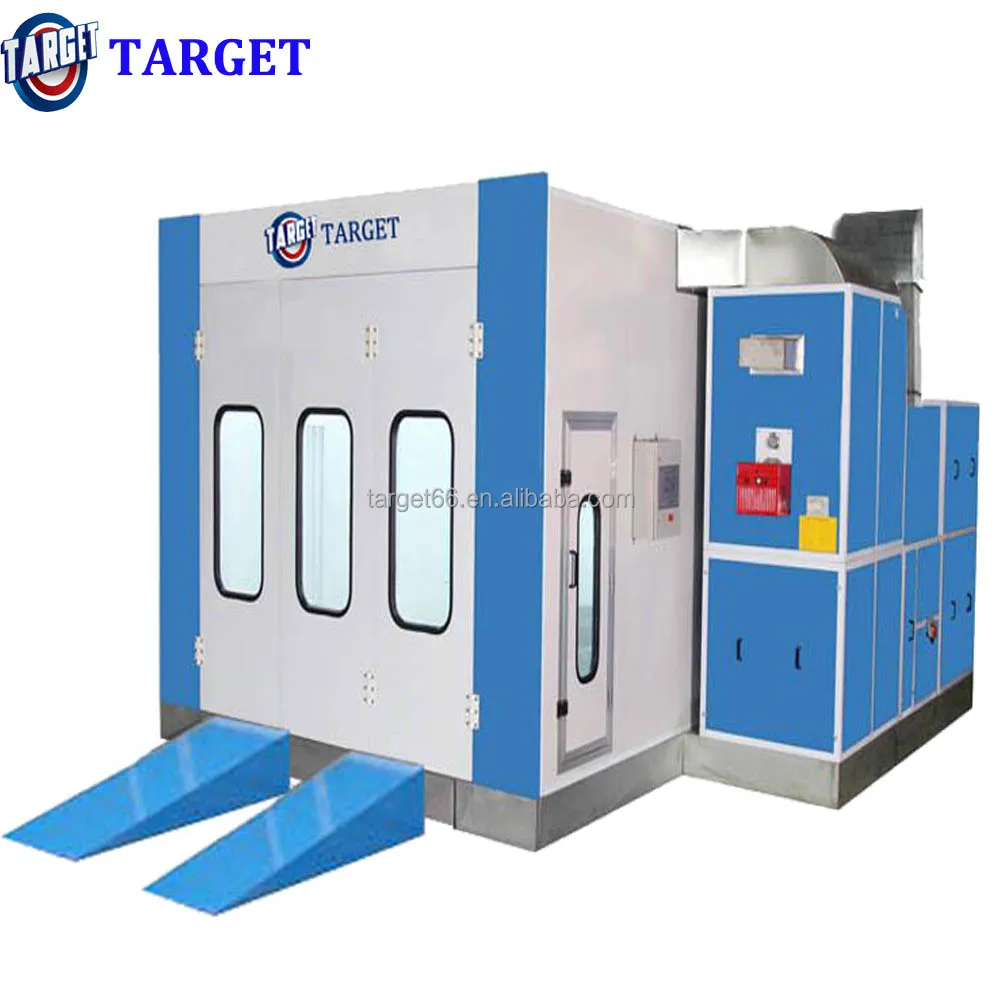

Diesel Burner Spray Booth | |||||||
Overall Size (mm) | 7050*5400*3500 (LxWxH) | Entry Door Size (mm) | 3000*2700(W×H) | ||||
Inner Size (mm) | 6900*3900*2800 (LxWxH) | Personnel Door (mm) | 750 x 2000(W×H) | ||||

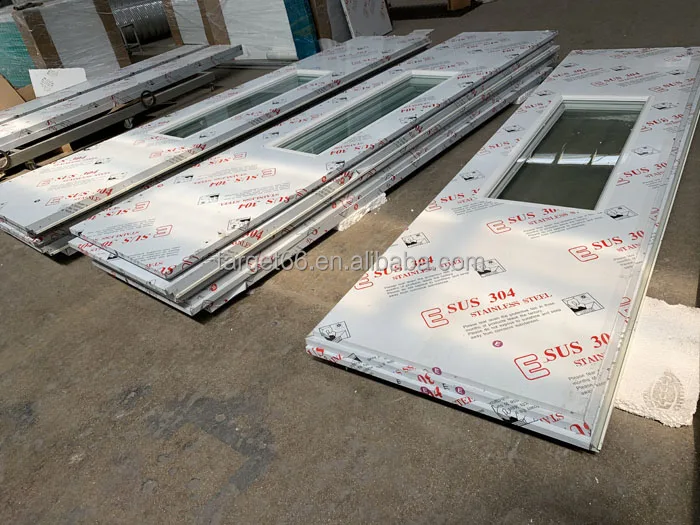

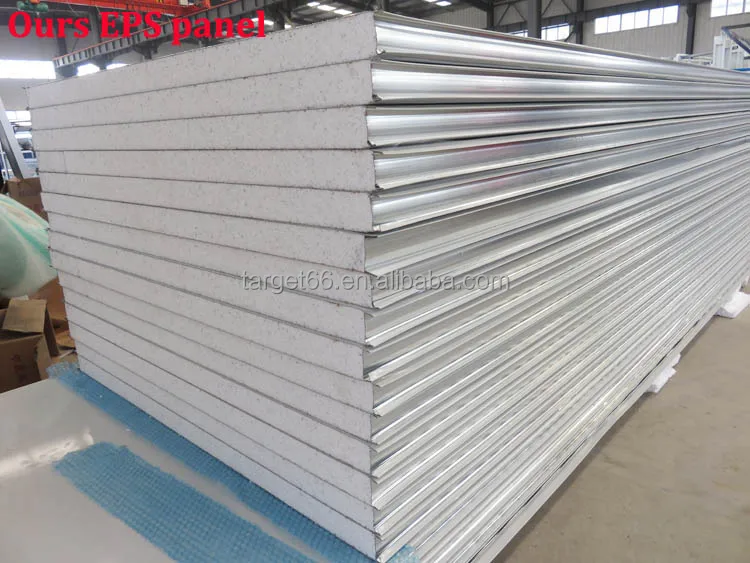

Wallboard | Two sides with steel plates, inner with EPS (epispastics polystyrene) . 50/75mm thick for EPS Galvanized steel roof panel. | ||||||
Basement | 300mm depth ,Galvanized steel sheet and square steel pipe assembling, 2 rows of grid plates made by flat bar and round steel, 3 rows of diamond plates, galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/pc | ||||||
Air Speed | 0.3m/s | ||||||
Temperature Rate | Room temp.-----80℃ | ||||||

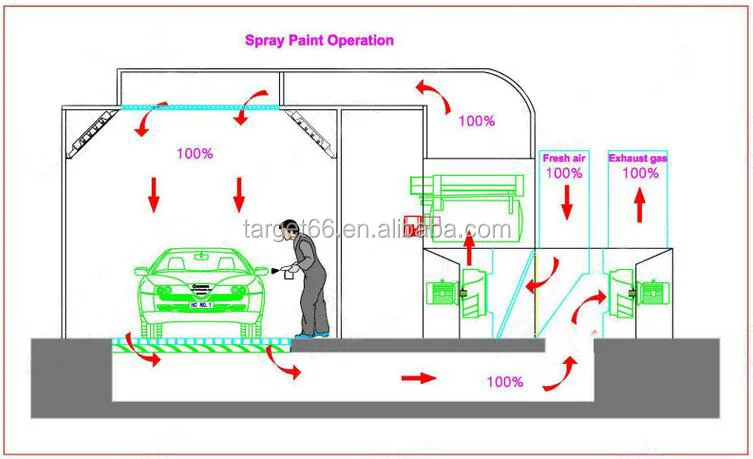

Motor fan system | 2 sets *4kw centrifugal fans for air inlet , air Capacity:25000m³/h | ||||||
1 set *5.5kw centrifugal fans for air inlet , air Capacity:15000m³/h | |||||||

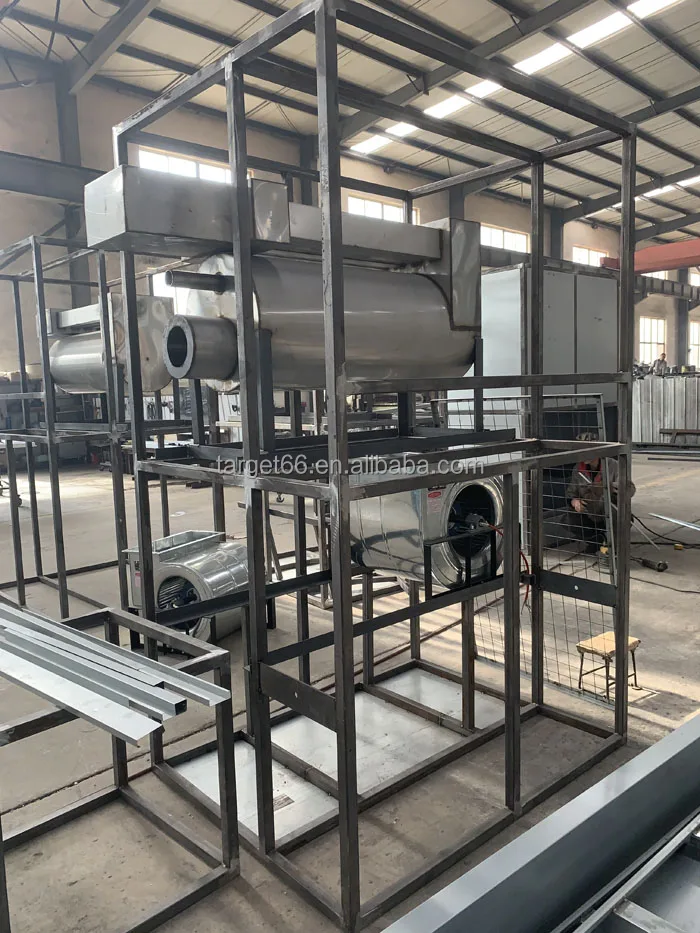

Heating system | Italy Riello G20 Diesel Burner, 200000Kcal/h. SUS304 Stainless steel heat exchanger ,argon arc welding. | ||||||
Air Filtration Efficiency | ≥98% | ||||||
Noise:dB(A) | ≤80 | ||||||
Total Power | 14kw , Noise < 80db | ||||||
Optional Color | Blue, red, white, orange, or other | ||||||

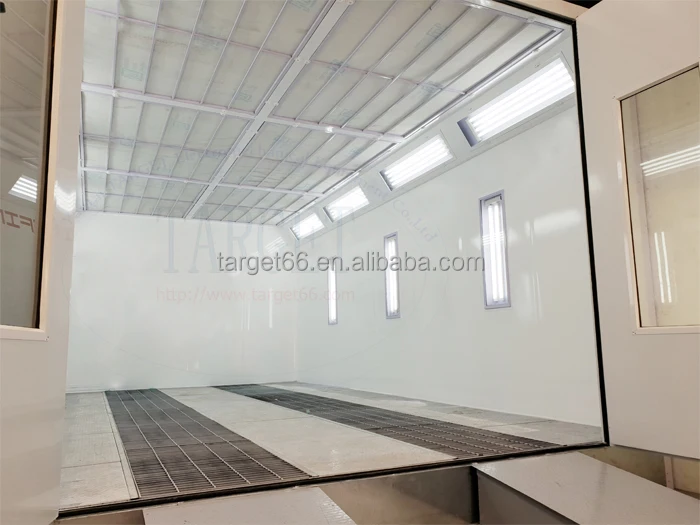

Lightings | Ceiling lights :8Units×4Pcs=32Pcs×18W LED Side lights : 6Units×4Pcs=24Pcs ×18W LED | ||||||

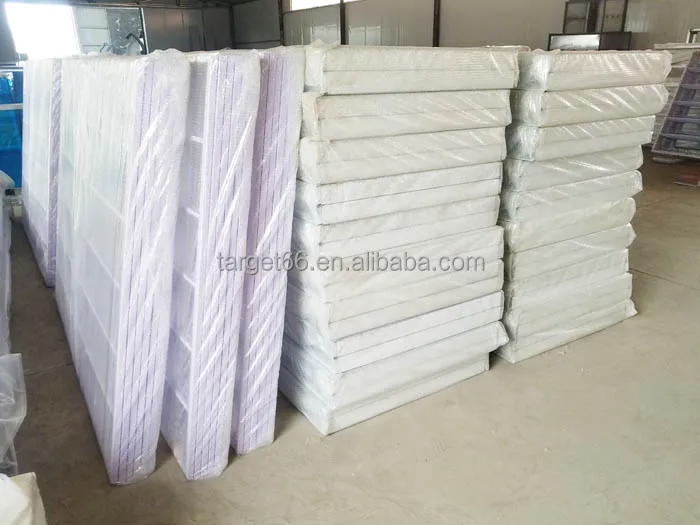

Filters | Prep filter , 600G high efficiency filter, Glass filter | ||||||
Heating Cabinet Position | Left, right, back side of the booth | ||||||
Power Supply | 220/380/400/415V , 3Phase, 50/60HZ | ||||||

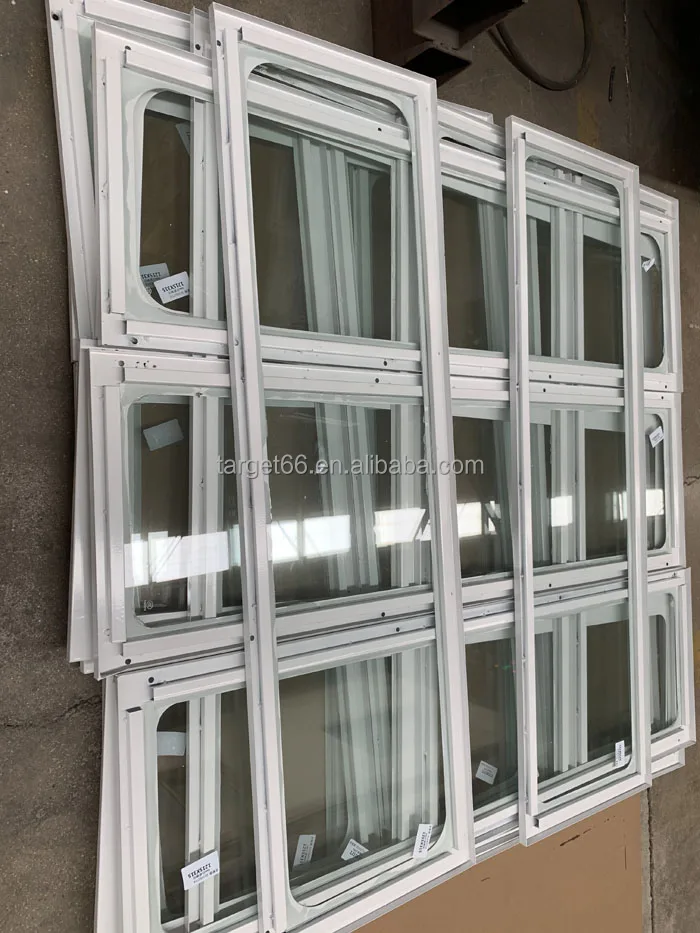

Doors can be optional
2. Three Pcs folding doors with big glass
3. Three Pcs folding doors with round glass
4. Three Pcs folding doors with square glass
Four Pcs folding doors with big glass
Three Pcs folding doors with big glass
Three Pcs folding doors with round glass
Three Pcs folding doors with square glass
Main Features:
1) 2 years warranty
2) Effective filter system
3) Original Italian RIELLO Burner,hot wind recycling system with SUS304 heat exchanger
4) Multi-Layer Fiberglasses Filter and active-carbon ensure a qualified exhaust according to the relevant state standards
5) 15 years experienced working team
6) Customized service
7) Life long technical support service
Certifications

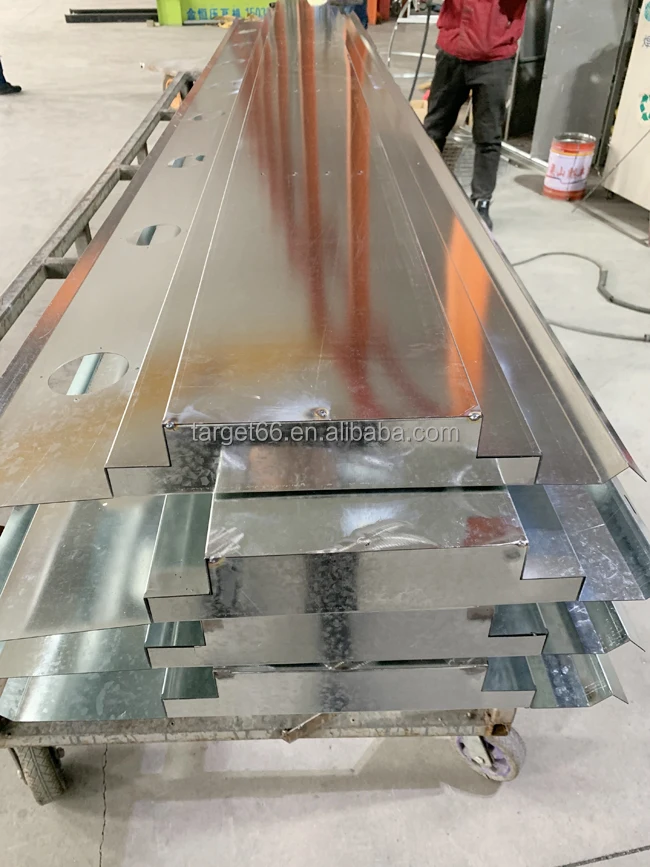

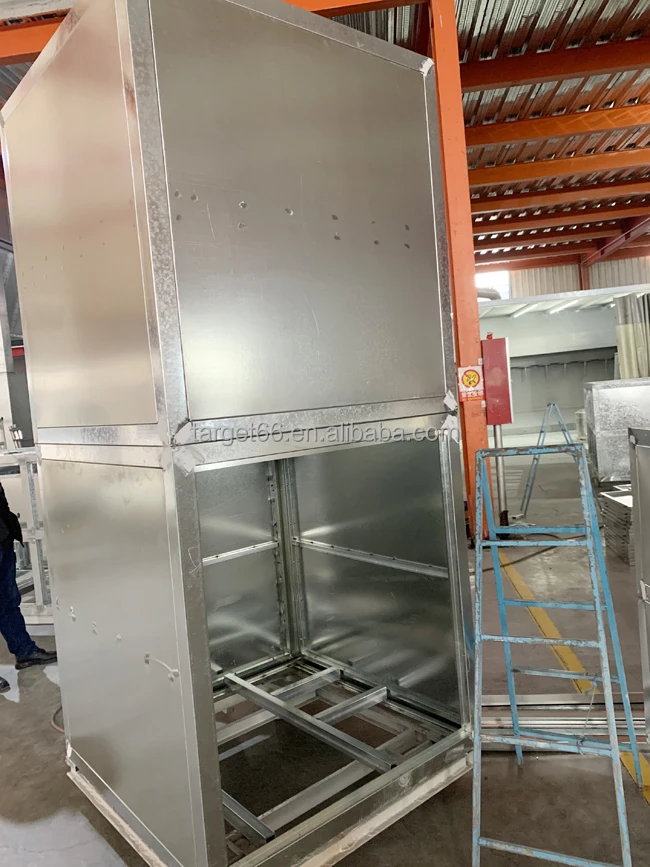

Detailed Images
Our Service
1. OEM ODM service.
2. Customized service: The color and size of the product can be customized.
3. Two Years Quality warrant service, during the period spare part supplied free if you pay for shipping.
4. Professional team supply service for life long time. Oversea service if need.
Why Choose TARGET Equipment :
1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !
2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
6. Oversea service will supply if need.
Payment:
1. T/T 30% deposit, 70% balance before shipping.
2. Western Union,
3. Money Gram ,
4. Alibaba Trade Assurance
5. other
Packing & Delivery
Our Company
Yantai TARGET Equipment is a professional Auto Repair Equipment and Environmental Equipment manufacturer in China. Have 15 years' experiences service team for customers , more than 10 engineers support for oversea services.Our main equipments include: Car Body Repair Equipment, Truck Repair Frame Machine, Car Spray Booth, Truck Spray Booth,Powder Coating Spray Booth, Powder Coating Curing Oven, Powder Coating Line , Sand Blast Unit .etc.
