In big stock wholesale price MV185WHB N20 BOE original 18.5 inch super OC LCD Panel GLASS 1366*768 IPS LCD open cell
- Category: >>>
- Supplier: Guangzhou Xianheng Techonology Co. Ltd.
Share on (1600763346779):
Product Overview
Description
Products Description
China Top LCD module kits supply
In big stock wholesale price MV185WHB-N20 BOE original 18.5 inch super OC LCD Panel GLASS 1366*768 IPS LCD open cell

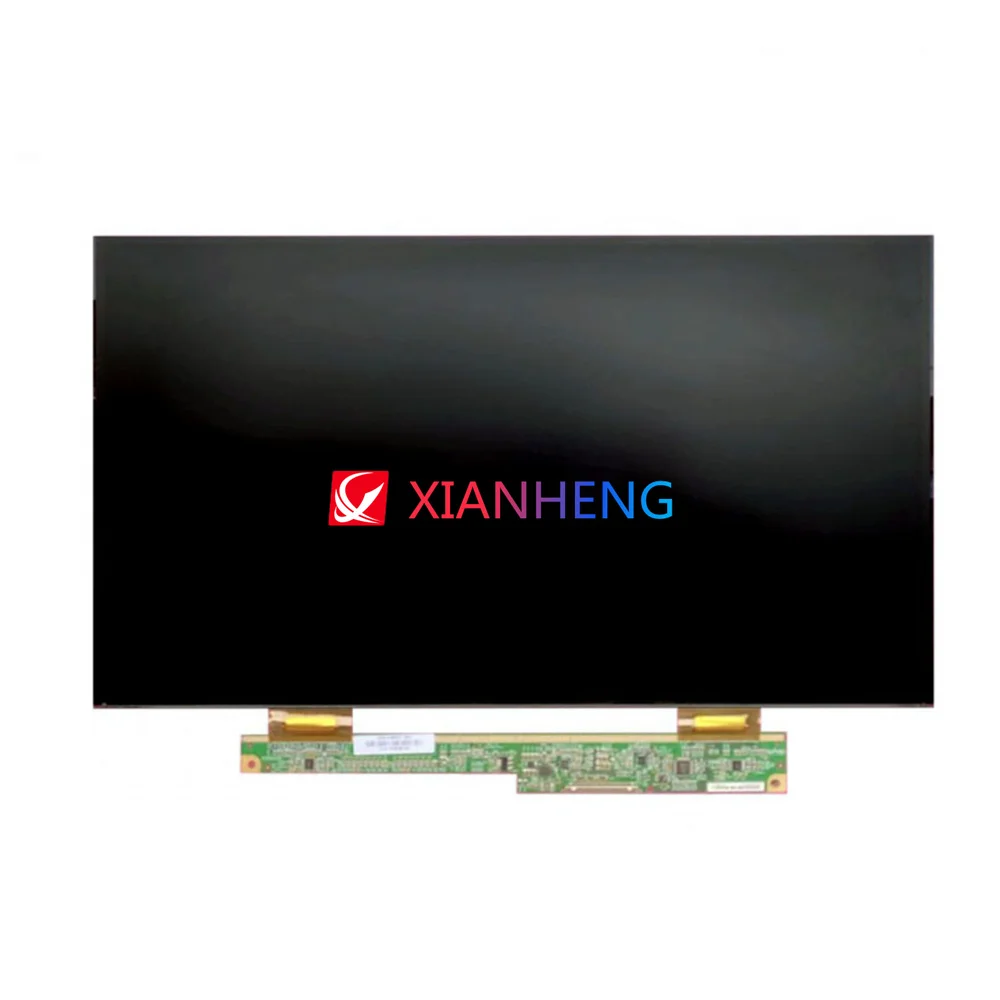

Front View
BOE MV185WHB-N20 OC

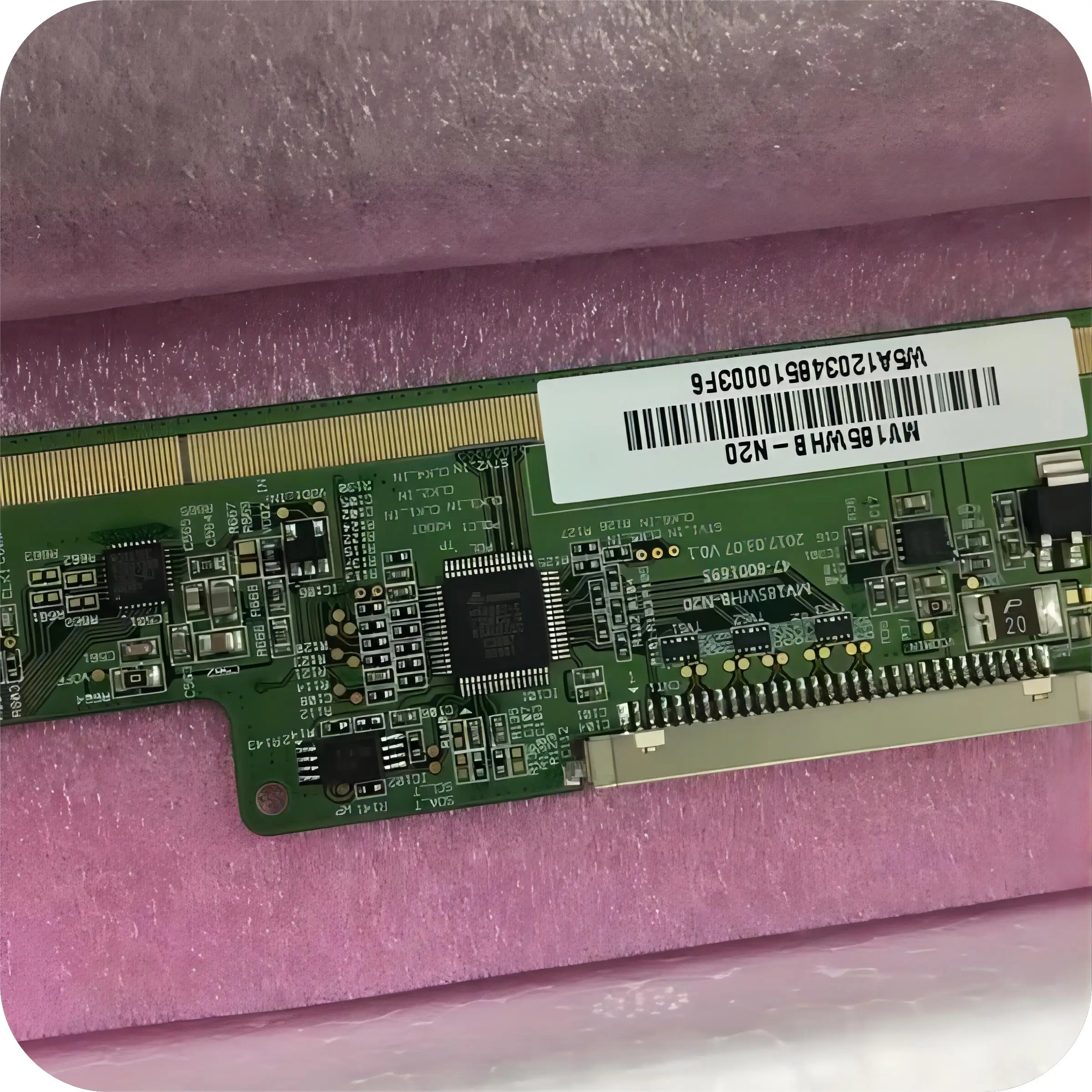

Detail
BOE MV185WHB-N20 OC
Detail
BOE MV185WHB-N20 OC
Brand | BOE |
Model | MV185WHB-N20 |
Diagonal Size | 18.5 inch |
Type | a-Si TFT-LCD, CELL |
Pixel Format | 1366(RGB)×768 [WXGA] 84PPI |
Configuration | RGB Vertical Stripe |
Active Area | 409.8(H)×230.4(V) mm |
Outline Dim. | 422.2(H)×244.1(V) ×1.32(D) mm |
Bezel Area | - |
Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 0 cd/m² |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 14 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
Operating Mode | HADS, Normally Black, Transmissive |
Plate Thickness | 0.50+0.50 mm |
Mass | 327g (Typ.) |
Support Color | 16.7M 72% NTSC |
Light Source | Without |
Designed For | Desktop Monitor |
Frame Rate | 60Hz |
Touch Panel | Without |
D-IC Detail | COF Built-in 2 source chips |
Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
Power Supply | 5.0V (Typ.) |
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Hot Models

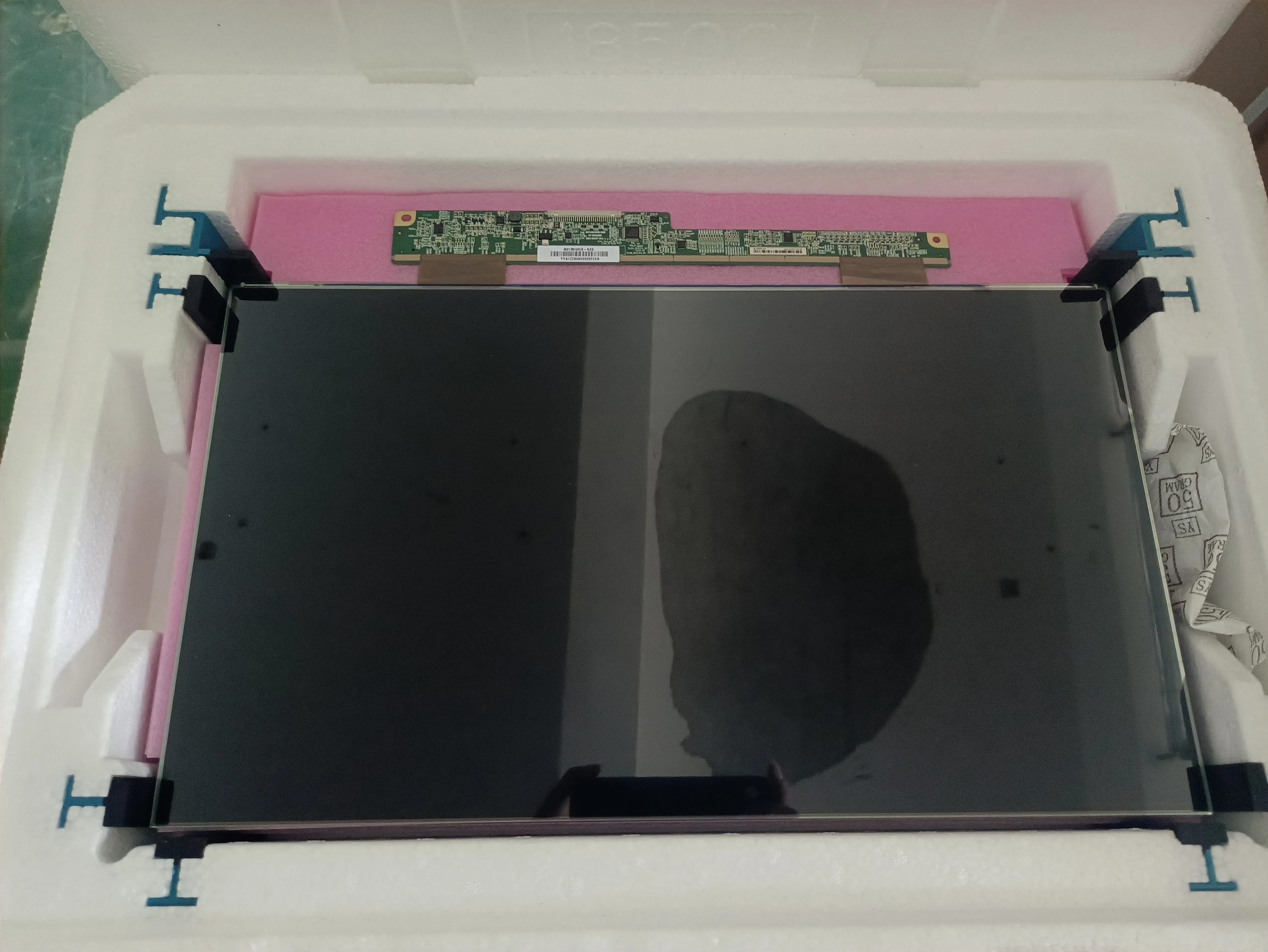

Product packaging
PACKAGE
Standard export carton packing.
DELIVERY TIME
3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
