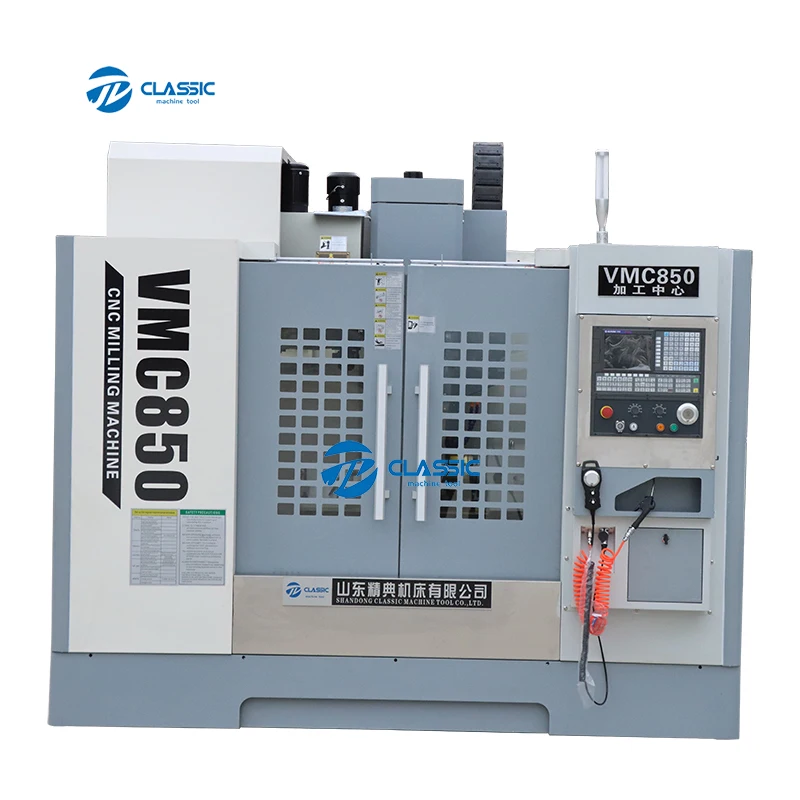

Supply VMC850 milling machine processing center multifunctional metal milling machine CNC milling machine price discount
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600763397113):
Product Overview
Description
Products Description
Product Application
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Specificatioin | VMC850 |
X-axis travel | 800mm |
Y-axis travel | 500mm |
Z-axis travel | 500mm |
Spindl nose to table surface | 150-650mm |
Spindle center to column surface | 550mm |
Table size | 1000×500mm |
Max.loading | 500kg |
T-slot width | 18mm |
T-slot quantity | 5 |
Spindle taper | BT40 |
Spindle speed | 8000rpm |
Spindle motor | 7.5kw |
Max.tool dia | φ80/φ150mm |
Max.tool length | 200mm |
Max.tool weight | 8kg |
X、Y axis rapid feed | 24000mm |
Z axis rapid feed | 20000mm |
Cutting feed | 1-10000mm/min |
Position accuracy | ±0.01mm |
Repeat positioning accuracy | ±0.003/300mm |
Power device capacity | 15KVA |
Coolant system capacity | 200L |
Cooling pump power | 120W |
Cooling pump flow | 50L/min |
Coolant system rated head | 10m |
Using air pressure | 0.6MPa |
Dimensions | 2750×2300×2300mm |
Net weight | 5200Kg |
Standard Accessories:
Serial number | Name | Specifications or markings | Quantity |
1 | Spring chuck handle | MAS BT40-ER32-100L | 1 |
2 | Spring chuck | 1 | |
3 | Rivet | P40T-1-MAS403 | 1 |
4 | Hook wrench | 1 | |
5 | Allen wrenches | 1 | |
6 | Adjustable horn and bolts | 4 |
The functional parts table:
Serial number | Name | model | Origin | Quantity |

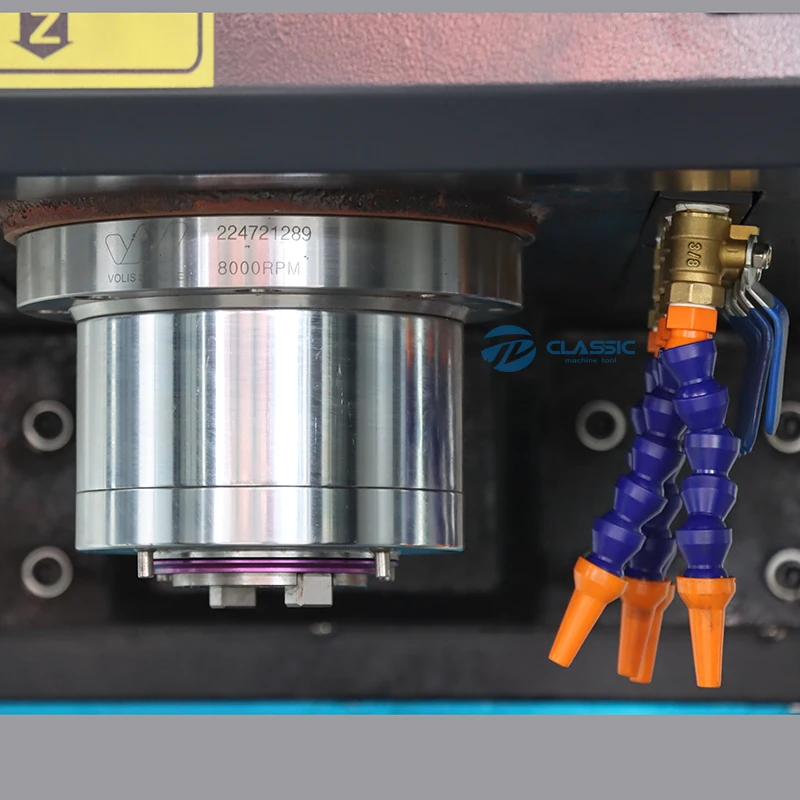

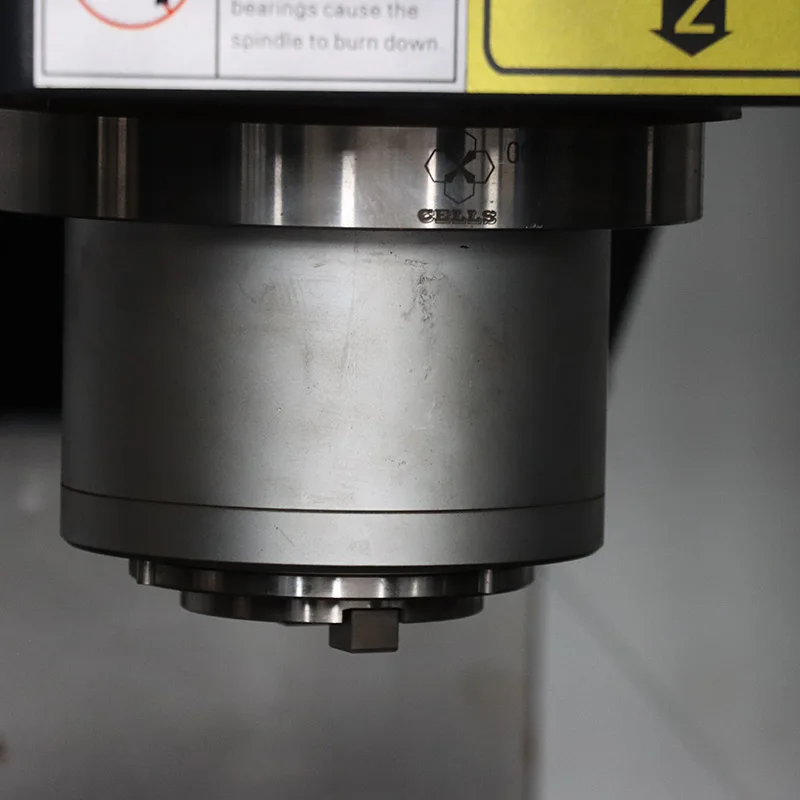

1 | Spindle unit | BT40 | Taiwan posn | 1 |
2 | Pressed cylinder | Taiwan Haocheng | 1 | |

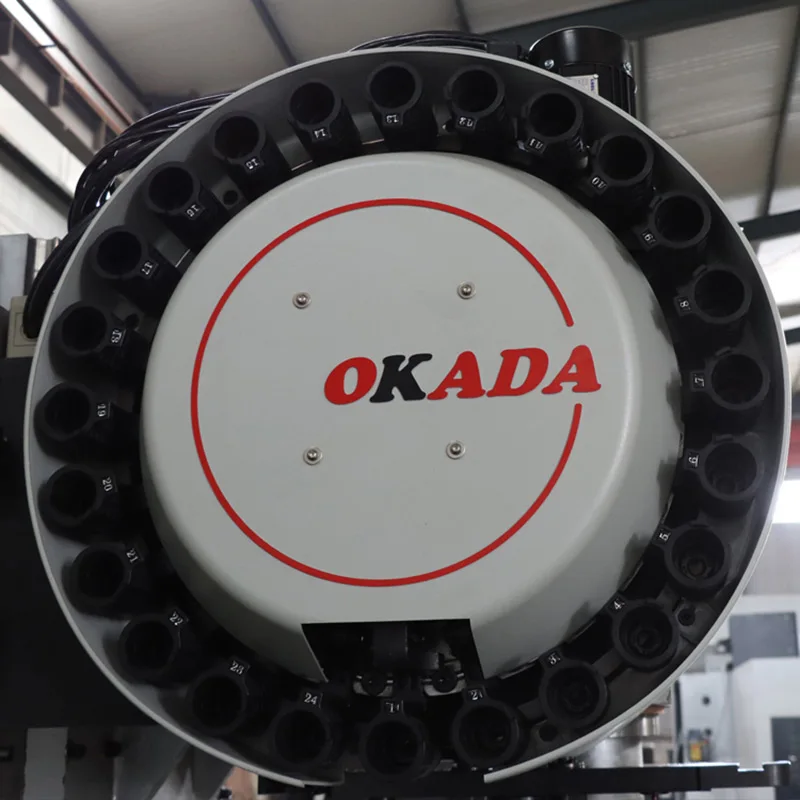

3 | ATC | 16 | Taiwan okada | 1 |
4 | X Ball Screws | Taiwan Hiwin | 1 | |
5 | y Ball Screws | Taiwan Hiwin | 1 | |
6 | Z Ball Screws | Taiwan Hiwin | 1 | |
7 | Screw bearings | china | 3 | |
8 | guide | X, Y,Z all is ball line | Taiwan Hiwin | 3 |
9 | control system | Knd/gsk | 1 | |

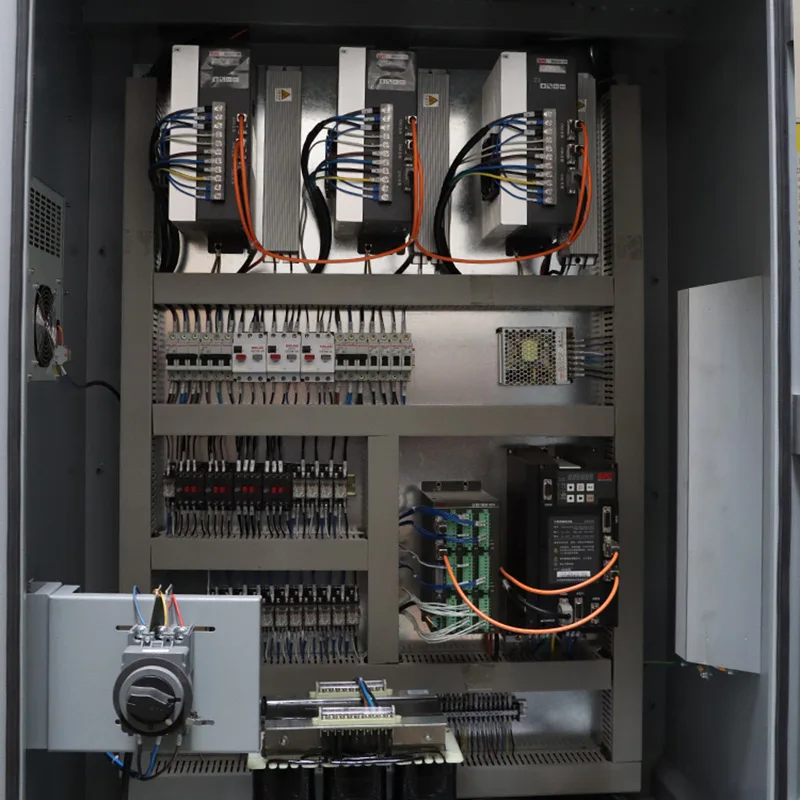

10 | Three axes Motor and drive | MAXSINE | 1 | |
11 | Cooling the pump | PMY-25-5 | china | 1 |
12 | Lubrication system | Single wire damping | Taiwan Hurun | 1 |
13 | Pneumatic system | Taiwan Airtac | 1 |
Detailed Images
Details Display
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

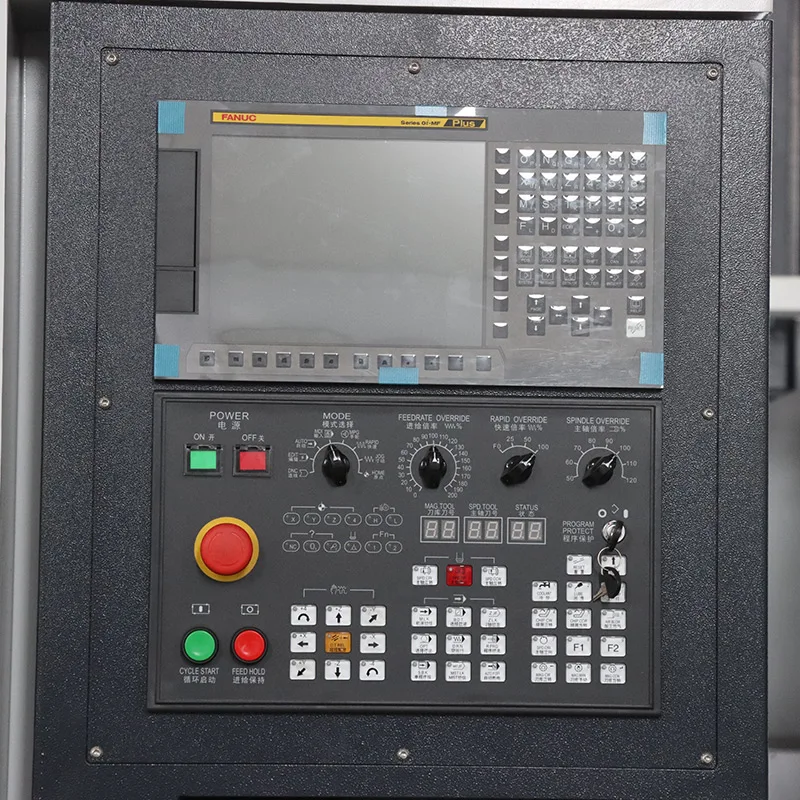

2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
