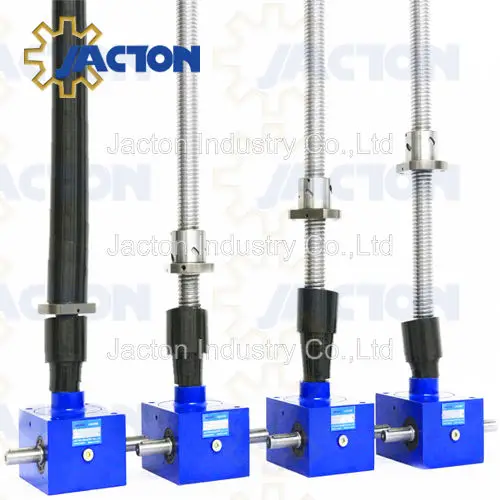

150kN Cubic Ball Screw Jack

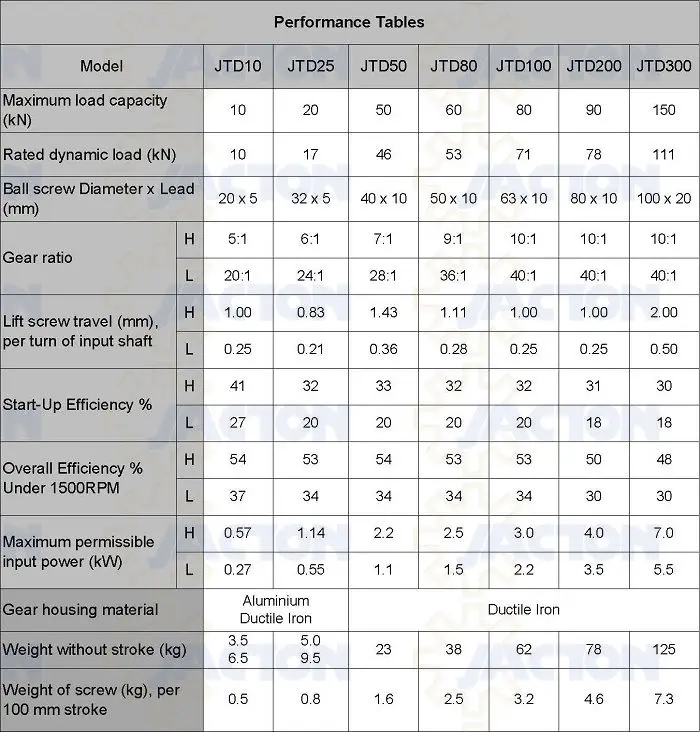

1. Maximum lifting capacities 150 kN
2. Lifting ball screw diameter 100mm, lead 20mm.
3. Worm gear units ratios 10:1, 40:1

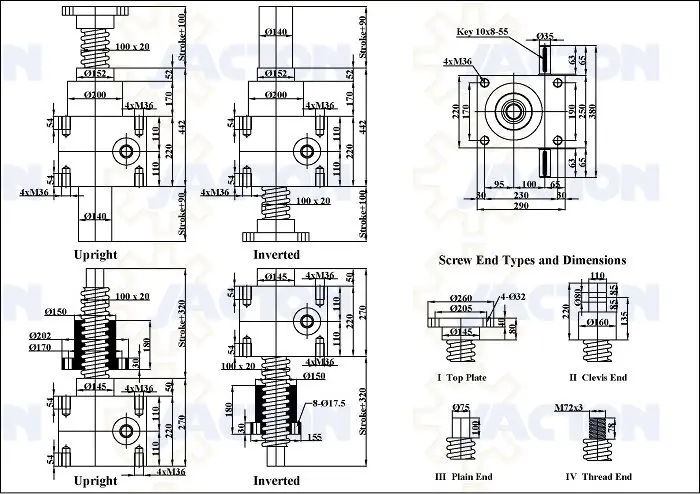

4. Custom made travel length 5-5500mm

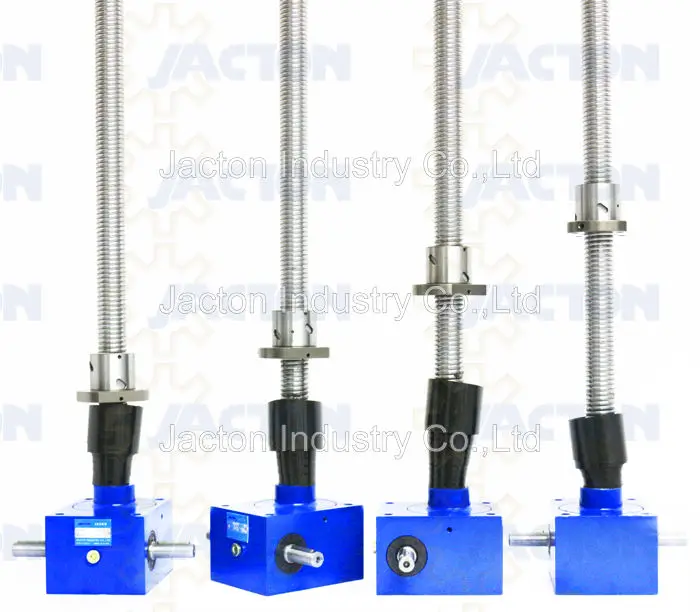

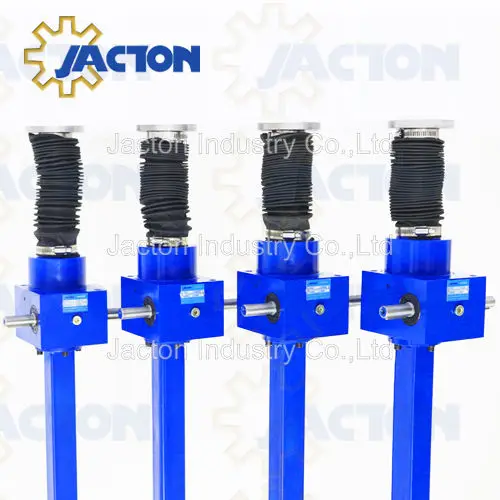

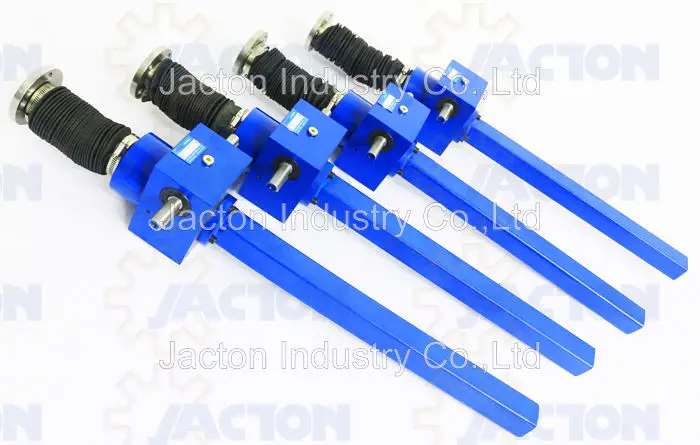

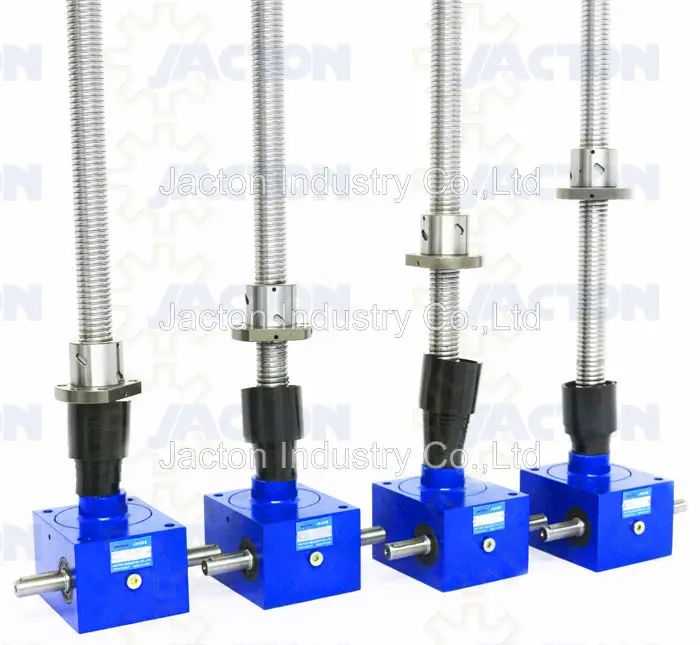

5. End fittings: top plate, clevis end, threaded end, plain end, forked head and rod end
6. Screw designs: translating screw, anti-rotation screw, rotation screw design
7. Power source: manual operation (hand wheel) or electric drive (motor or geared motor)
8. Single unit or multiple units 150kN Cubic Ball Screw Jack lifting system arrangements

150kN Cubic Ball Screw Jack main components with international standard materials: The main components are high precision ball screws and nuts, worm and worm gear units, thrust bearings, grease seals and gear housing with ductile iron.

About 2D Autocad dwg, dxf assembly drawings, and 3D stp, step, model, igs, prt or catpart assembly drawings, please contact Jacton Industry directly.

Shipping:
1. Ocean freight: seaport to seaport, price terms CIF, FOB, EXW, CFR etc.
2. Air freight: airport to airport, price terms EXW, CRF etc.
3. Air courier: DHL, FEDEX, UPS, TNT door to door shipment, price terms DDU, CPT etc.
Packing:
100% standard exporting plywood cases.

Note: International Exporting Standard Wooden Material with Free Fumigation.
