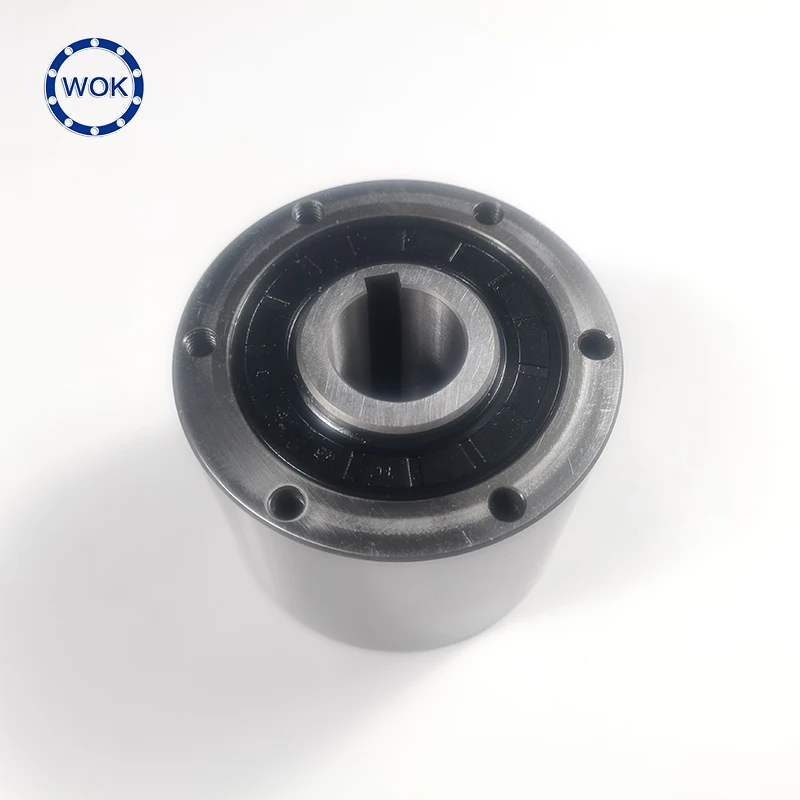

MG900 backstop clutch bearing MG, MI series CAM CLUTCH bearing MG MODELS MG300 TO MG1300/MI300 TO MI1300

1. MG Series Cam Clutch is used for inner race
overrunning applications.
2. Highly accurate indexing transmission type.
3. Best suited for low-speed indexing and the
short transmission distance transmission case
4. Overruning function

Installation and Usage

1. Sprag type freewheel MG is the same construction as MZ, it shielded b shield beaings on both ends, packed with a special grease, and ready for use. No additional lubricant is required.

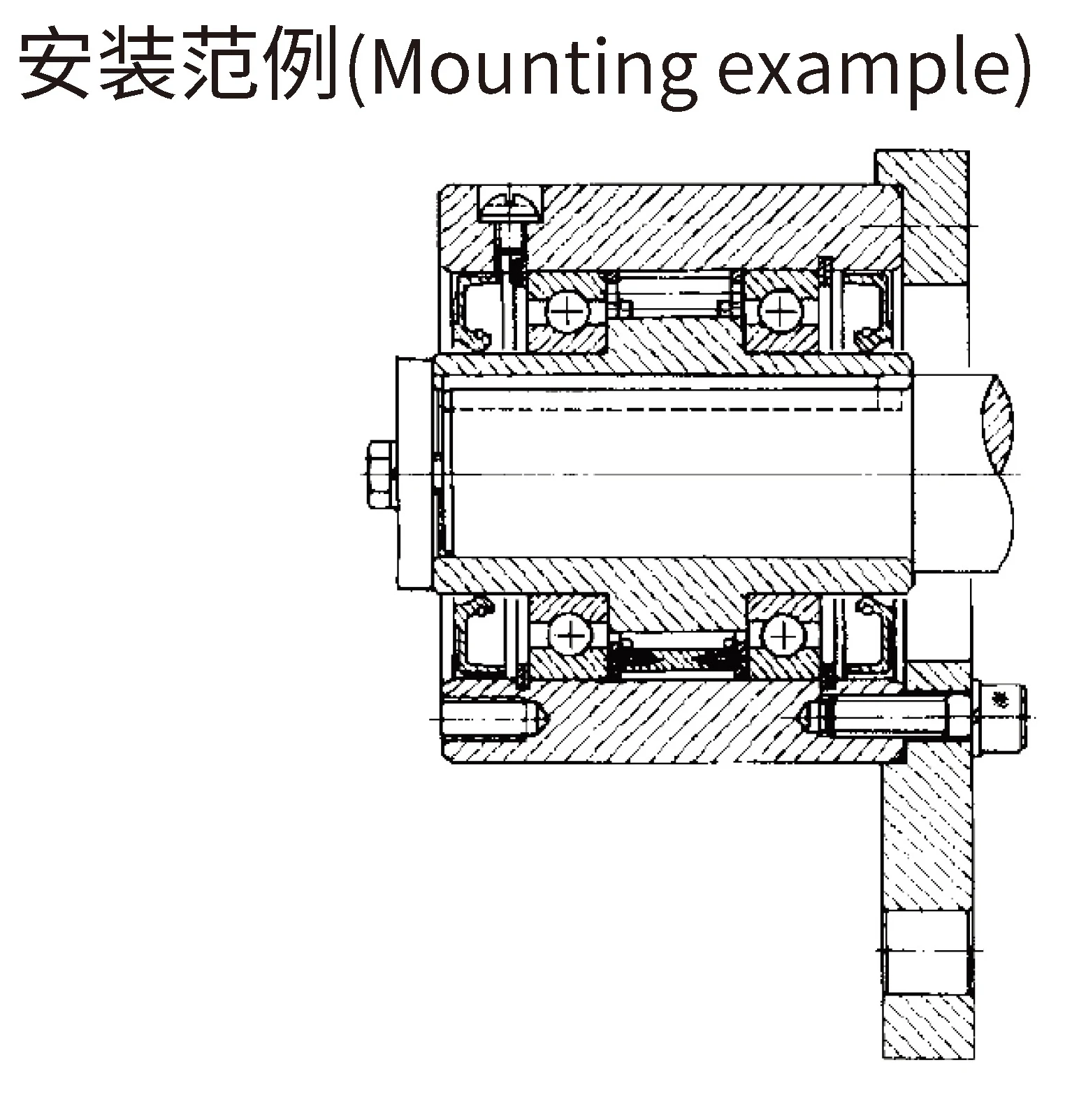

2. For attaching pulleys, gears or sprockets to the clutches, insert hubs along the inner surface of the outer race and screw the bolts (high tension) into the tapped holes on the clutch end.
3. Recommended shaft tolerances are shown in the table on the lower left.
4. External thrust load should be supported by other devices, not by the Cam Clutch.
5. Use only a parallel key to secure the clutch to the shaft. Do not use a tapered key.
6. For vertical mounting, please consult Ding Hao Precision machine.
7. Ambient temperature range is -5℃ to +40℃.
8. Key to be used should be in accordance with ISO R773.
9. Use 2 # lithium grease 30% + Engine oil 70% , Stirring evenly. The grease required temperature range -40 ℃ ~ + 150 ℃. Plus grease once for every month.
