Euro 5 CE EPA 25hp Diesel crawler loader mini skid steer loader with bucket for construction site/home use/lease machinery
- Category: >>>
- Supplier: Shandong,Hightop,Group
Share on:
Product Overview
Description
Product Description
SPECIFICATIONS FOR HT-850 diesel mini loader | ||
Engine
| Engine model | Kub0ta engine diesel |
No. of cylinders | 3 cylinder | |
Net Power | 18.2kw | |

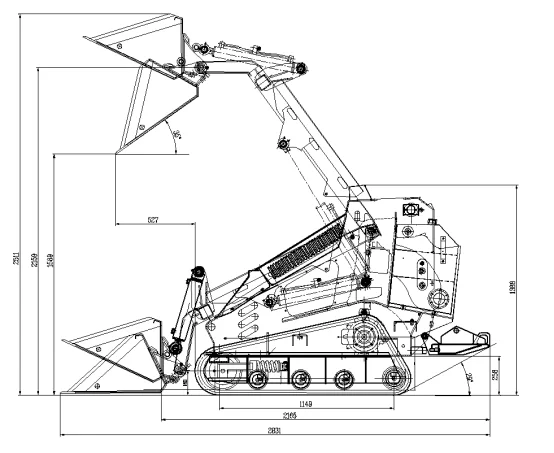

Dimensions
| Operating height | 2511mm |
Height to bucket hinge pin | 2150mm | |
Height to top | 1388mm | |
Overall length with GP bucket | 2831mm | |
Overall length without bucket | 2165mm | |
Wheelbase | 1149mm | |
Overall width | 1070mm | |
Mini ground clearance | 258mm | |
Angle of departure | 29° | |
Rated loading capacity | 400kgs | |
Machine weight | 1330kgs | |
Hydraulic system
| working system pressure | 250 bar |
working system Flow rate | 62.4 L/min | |
Driving System pressure | 250 bar | |
Driving system Flow rate | 62.4 L/min | |
