Brightsail rice cacao garlic cinnamon seeds herb powder grinder machine chilly flour mill
- Category: >>>
- Supplier: Jiangyin Brightsail Machinery Co. Ltd.
Share on (1600763947432):
Product Overview
Description
Product Description
Product Application
BSP Series Ultra Fine Pulverizer is used to make fine powders from 50-1000 mesh.
This pulverizer has no screen, the different output sizes can be obtained by adjusting the grinding speed.
It's suitable for grinding materials in pharmaceutical, food, chemical and other industries.
For food industry, it can crush grain, peas, spices, ginger, turmeric, garlic, cinnamon, onion, sugar, herbs, leaves, root,
seaweed, flowers, mushroom, vegatable, cocoa, coffee beans, rice, wheat, cassava and chickpea and other materials.
Working method:

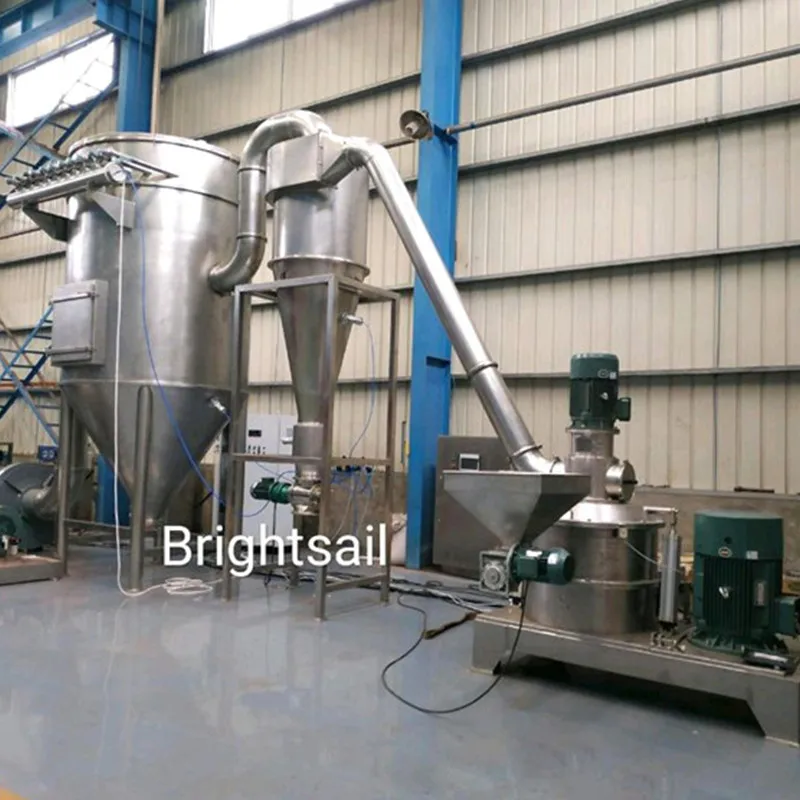

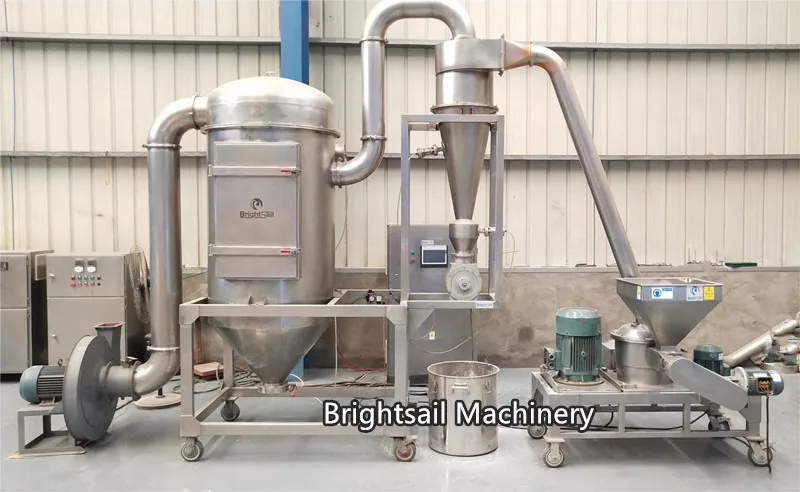

BSP Ultra Fine Pulverizer is composed of pulverizing host, cyclone separator, pulse dust collector, blower, electric control box,frame and pipes.
After materials are sent to the milling chamber, it will be sheared and crushed by the blade of high speed rotation. The powders will pass through the guide ring and enter the classifying chamber. Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.
BSP Ultra Fine Pulverizer is composed of pulverizing host, cyclone separator, pulse dust collector, blower, electric control box,frame and pipes.
After materials are sent to the milling chamber, it will be sheared and crushed by the blade of high speed rotation. The powders will pass through the guide ring and enter the classifying chamber. Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.
Advantages:
No screen, the finished product is very fine and even(smooth), uniform particle size, big capacity, continuous production, no dust fly, power saving,wide application and so on.
No screen, the finished product is very fine and even(smooth), uniform particle size, big capacity, continuous production, no dust fly, power saving,wide application and so on.

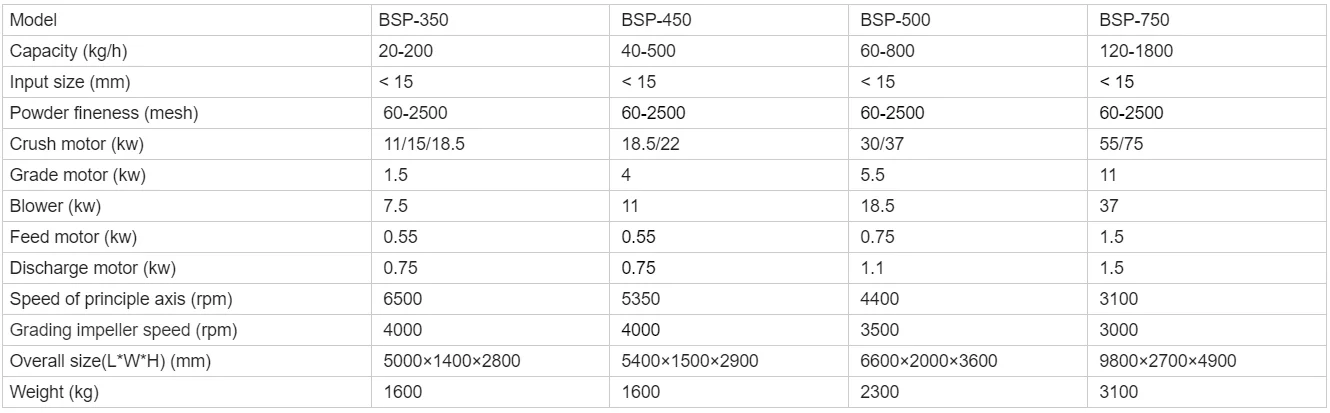

Technical data:

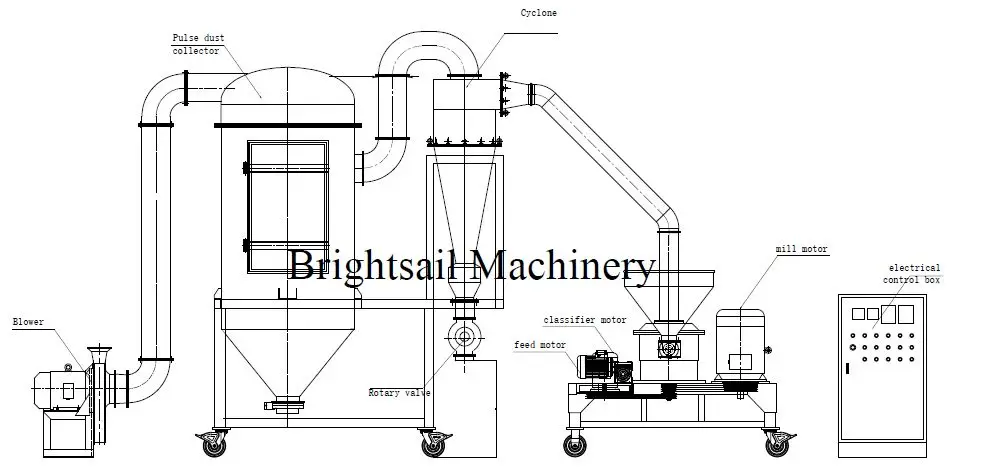

Main Structure:
BSP ACM mill unit (micron pulverizer) consists of 6 parts:
1.Crusher part (crusher, cutter inside mill chamber, water cooling jacket)
2.Cyclone part (cyclone,rotary valve and air hammer)
3.Pulse dust collecting box (dust collecting box, pulse,dust collecting bags with disassembled frames)
4.Blower
5.Electric cabinet (Standard type is button switch, but PLC can be optional)
6. Connecting pipes and brackets
1.Crusher part (crusher, cutter inside mill chamber, water cooling jacket)
2.Cyclone part (cyclone,rotary valve and air hammer)
3.Pulse dust collecting box (dust collecting box, pulse,dust collecting bags with disassembled frames)
4.Blower
5.Electric cabinet (Standard type is button switch, but PLC can be optional)
6. Connecting pipes and brackets

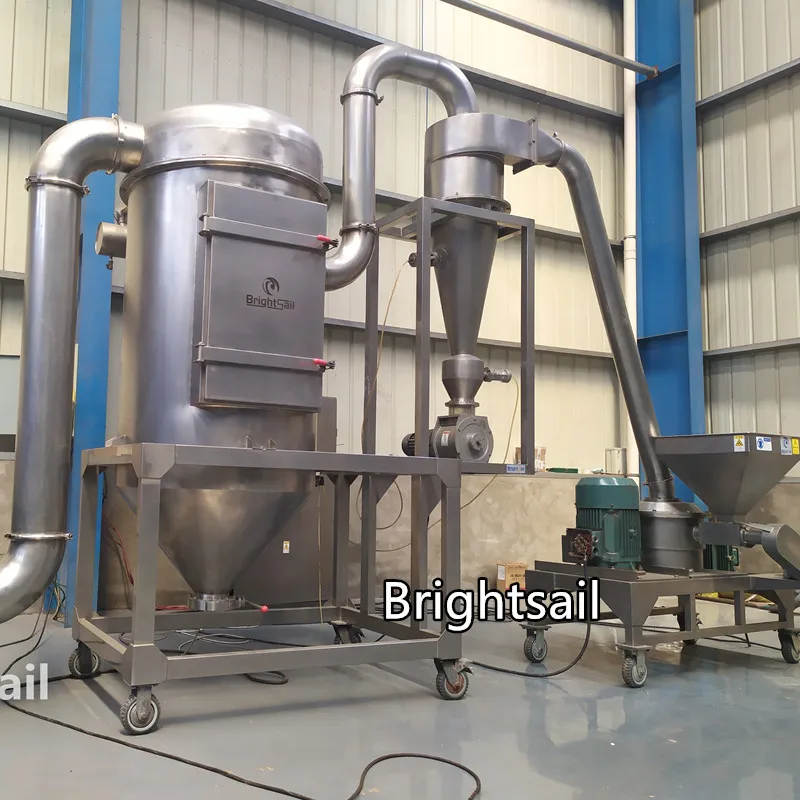

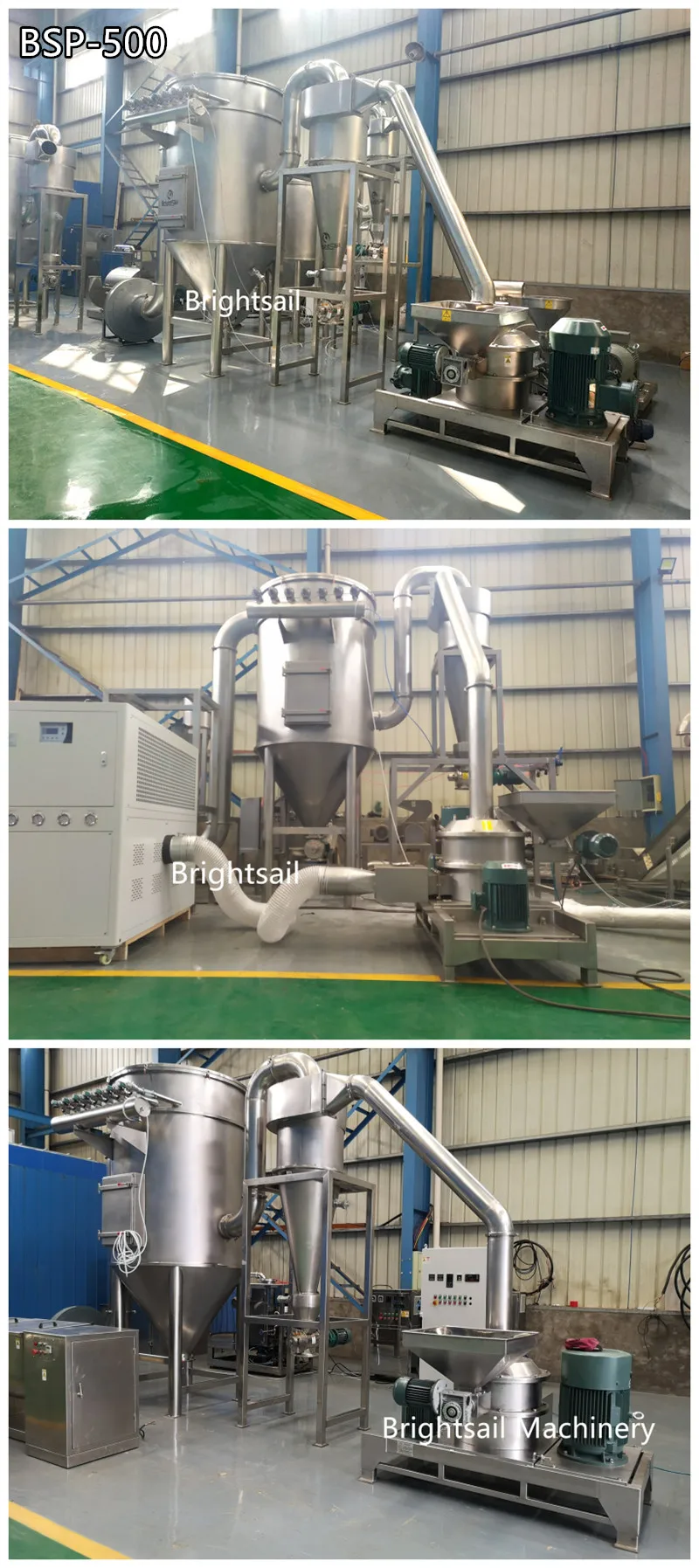

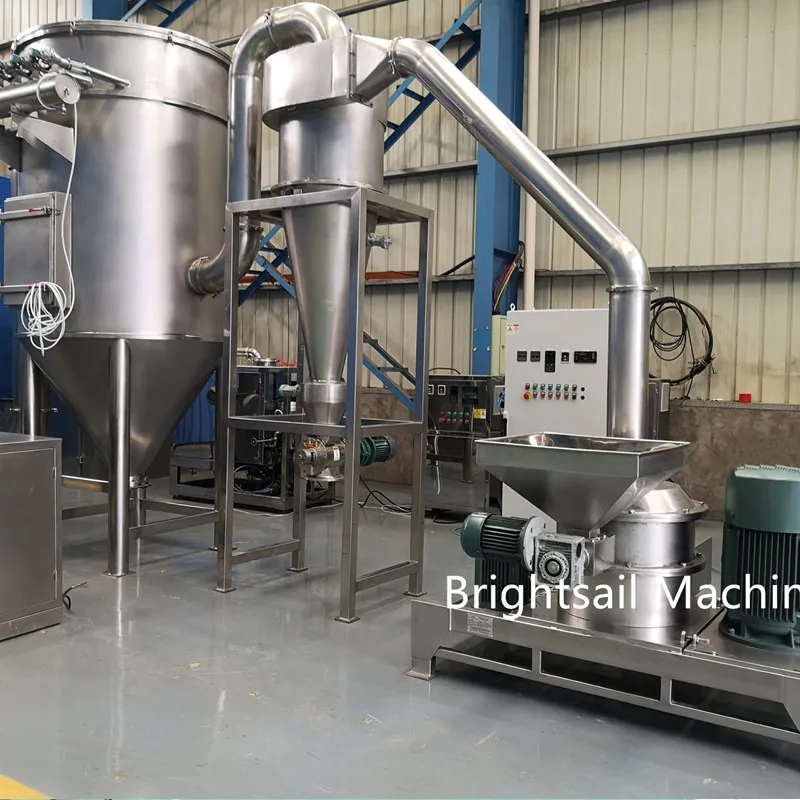

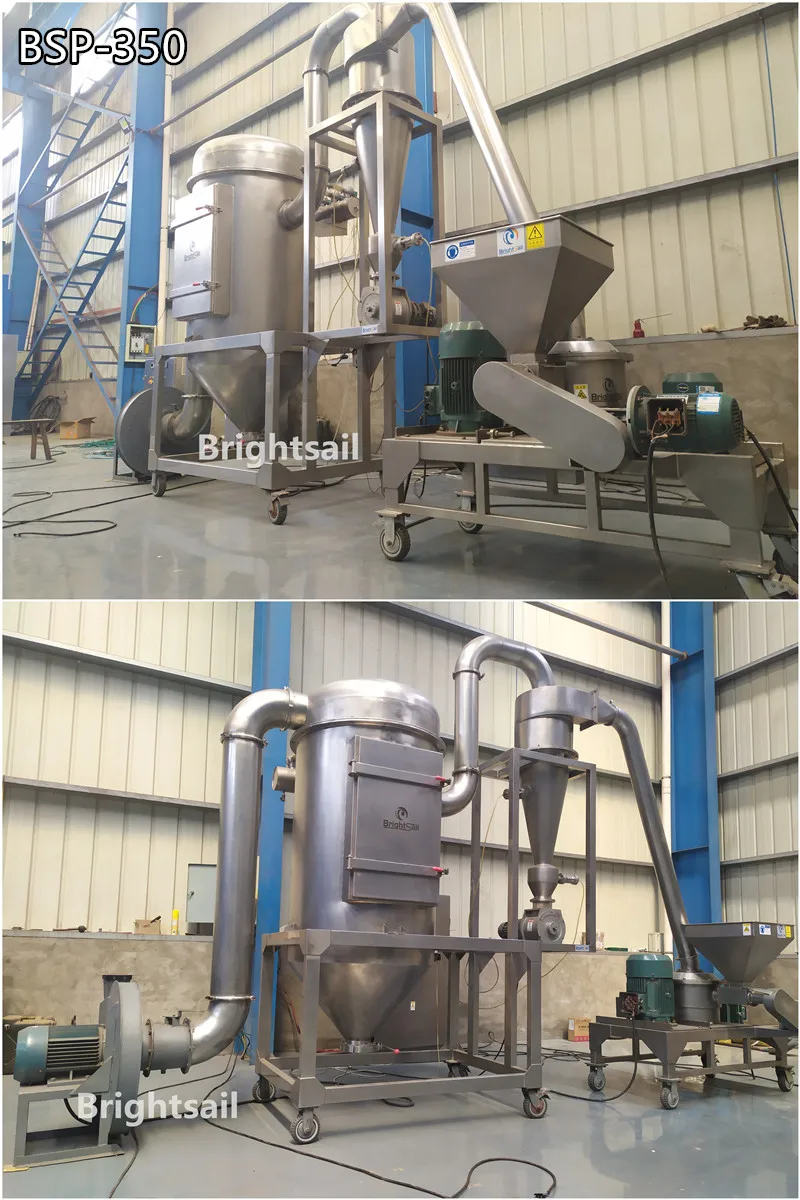

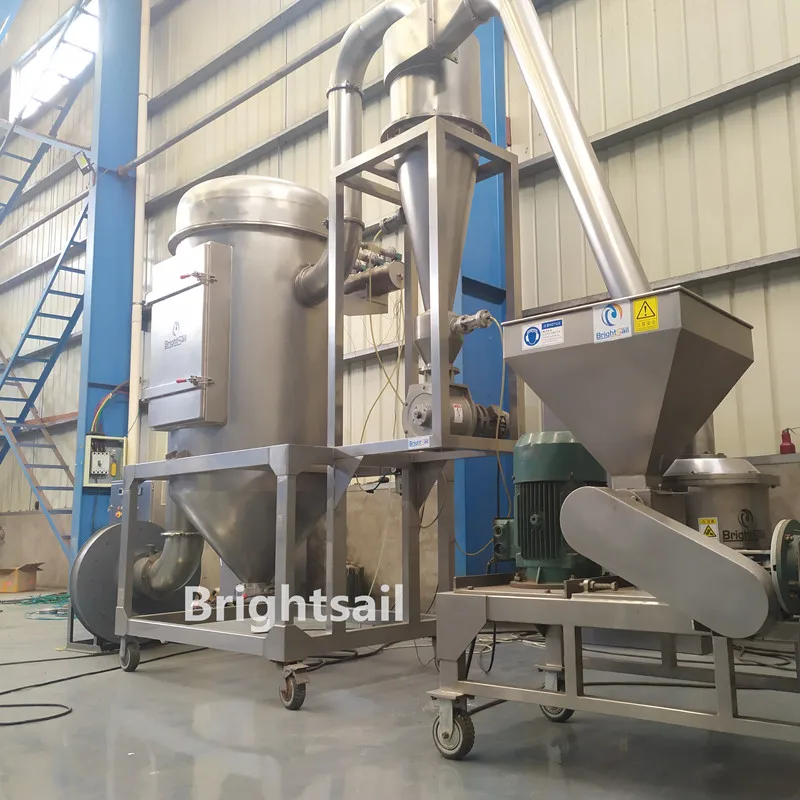

Product pictures:

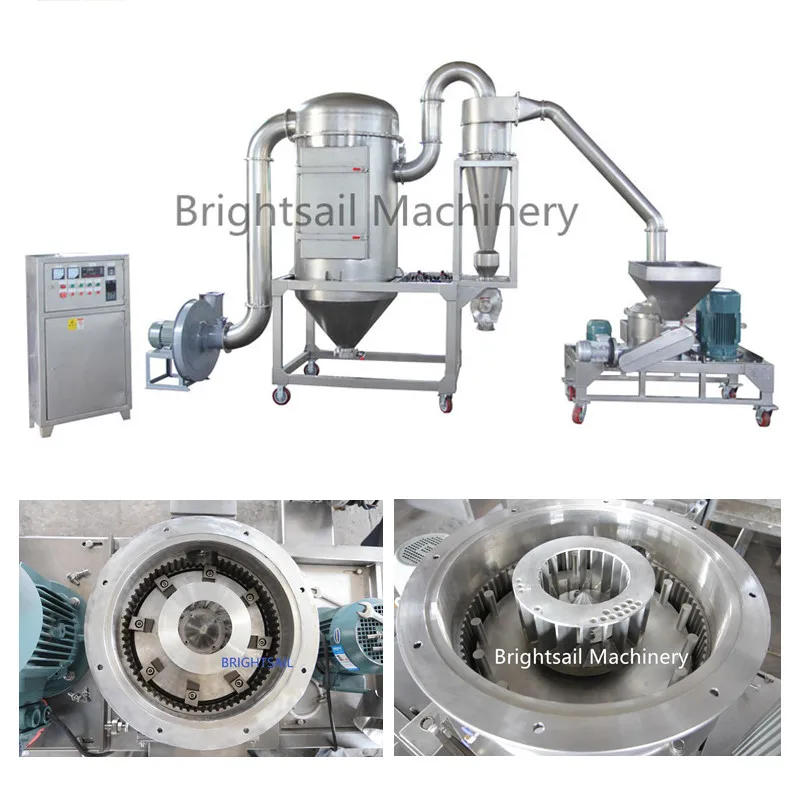

Detailed Images

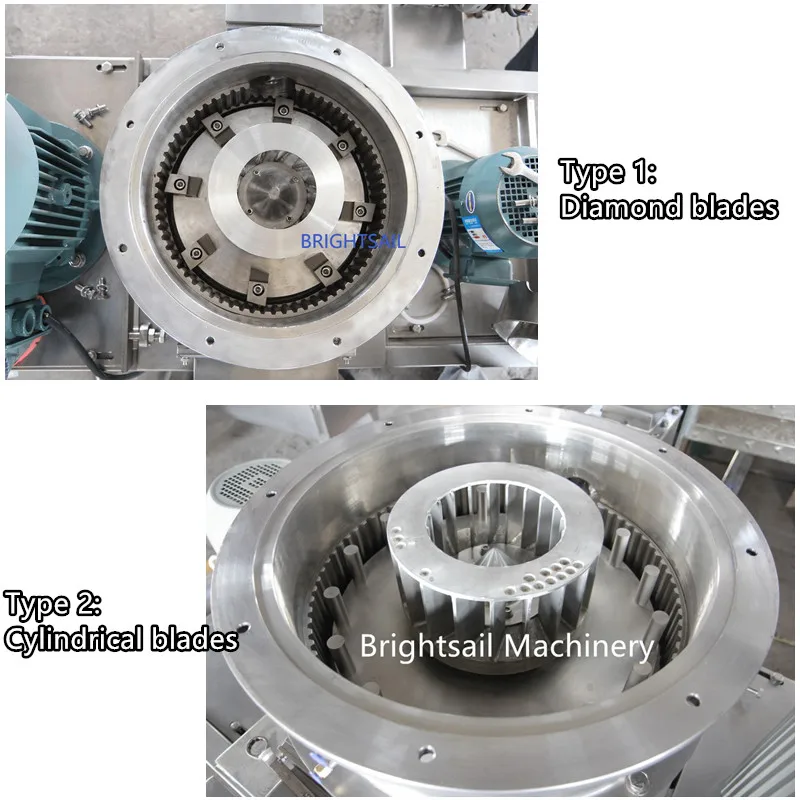

Two types of grinding blades.
We will recommend suitable grinding blades according to the materials and the fineness requirements of customers.
Our Service
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging Details:
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
Our Company

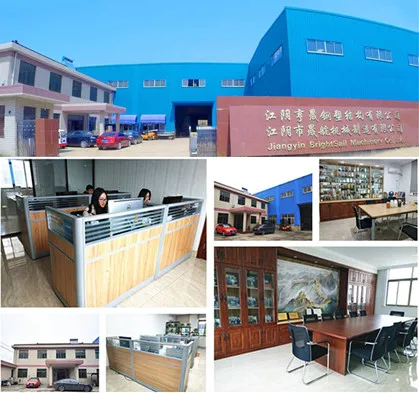

Company Introduction:
Jiangyin Brightsail Machinery Co.,Ltd, Brightsail Industries Group Co.,Ltd. (the trade dept) and Jiangyin Hengsheng Steel Structure Co.Ltd which is established in 2002.
With our own factory, more than 20 years' experience, 70+ workers, 6 professional engineers, more than 10 years' experienced technicians, advanced equipment, CE, ISO9001 and material certificates, 1 hour reach Shanghai port; this is how we ensure superior quality, competitive offers and high efficiency for global valued customers.
We provide professional powder processing overall solution, grinder, mixer,packing machine, sifting machine, conveyor machine, welding service, welding machine...etc.
We have sold our products to more than 80 countries around the world for now.
Our products are well received by customers at home and abroad.
With our own factory, more than 20 years' experience, 70+ workers, 6 professional engineers, more than 10 years' experienced technicians, advanced equipment, CE, ISO9001 and material certificates, 1 hour reach Shanghai port; this is how we ensure superior quality, competitive offers and high efficiency for global valued customers.
We provide professional powder processing overall solution, grinder, mixer,packing machine, sifting machine, conveyor machine, welding service, welding machine...etc.
We have sold our products to more than 80 countries around the world for now.
Our products are well received by customers at home and abroad.

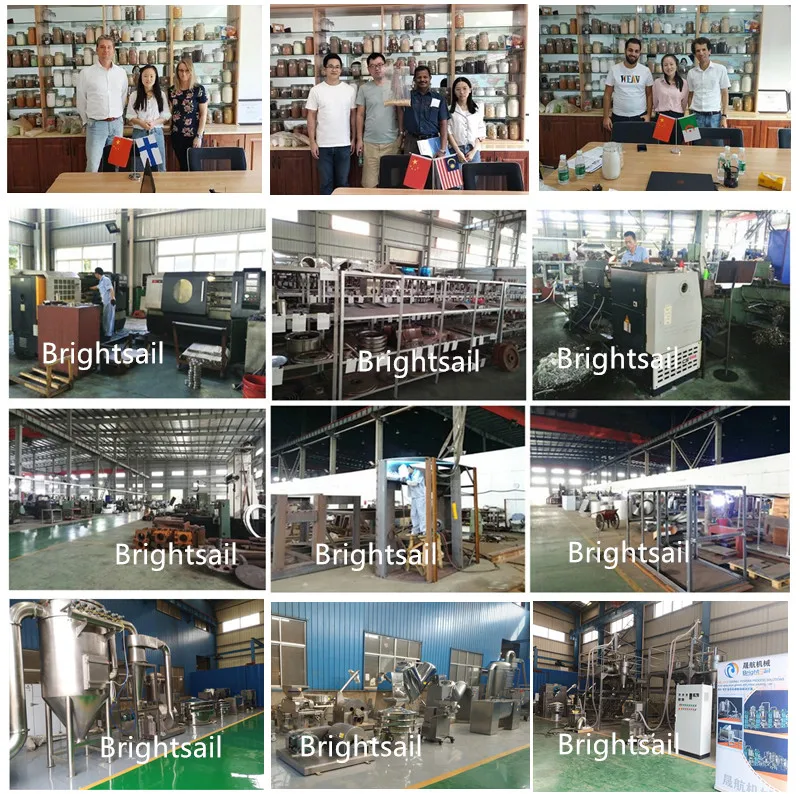

Our Factory:
