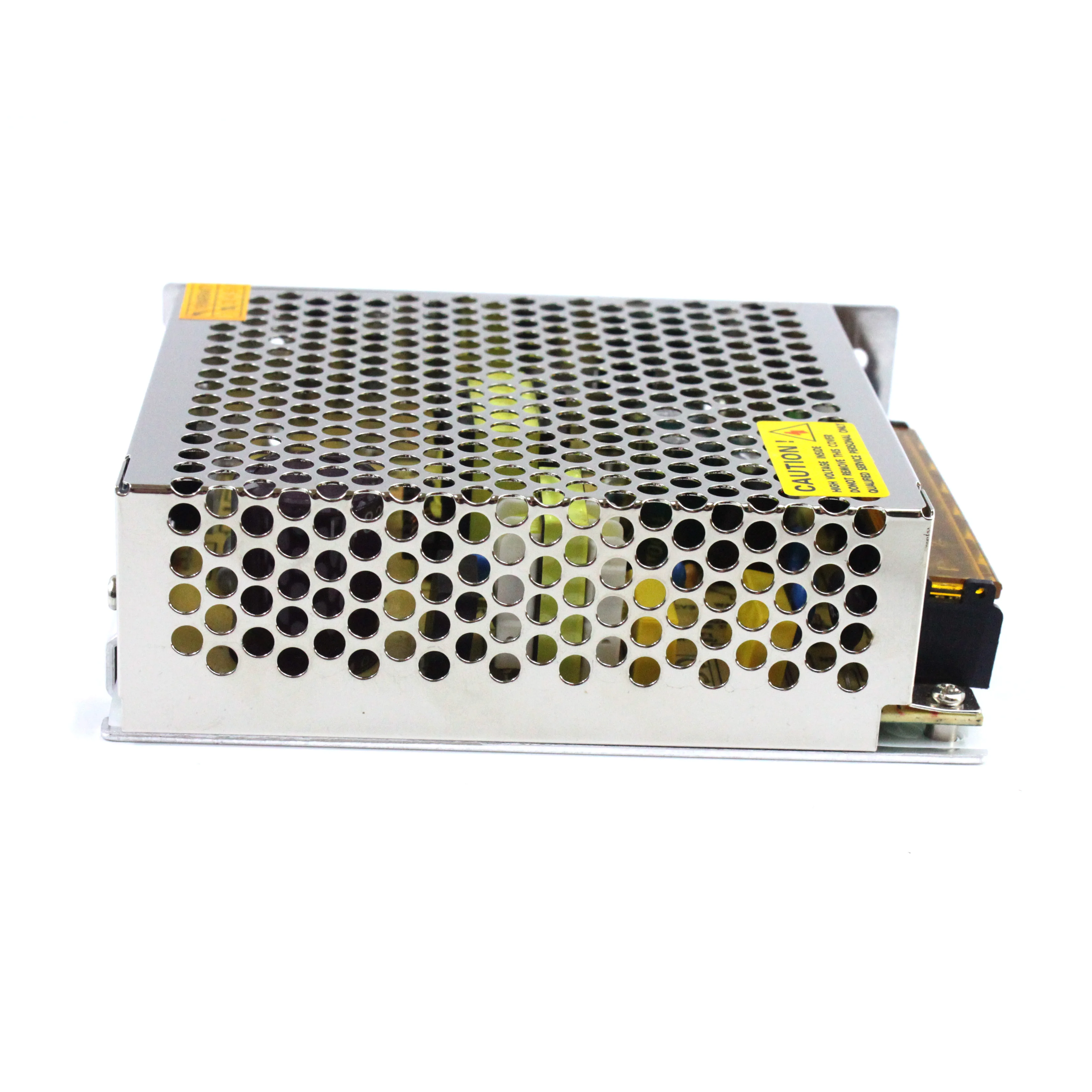

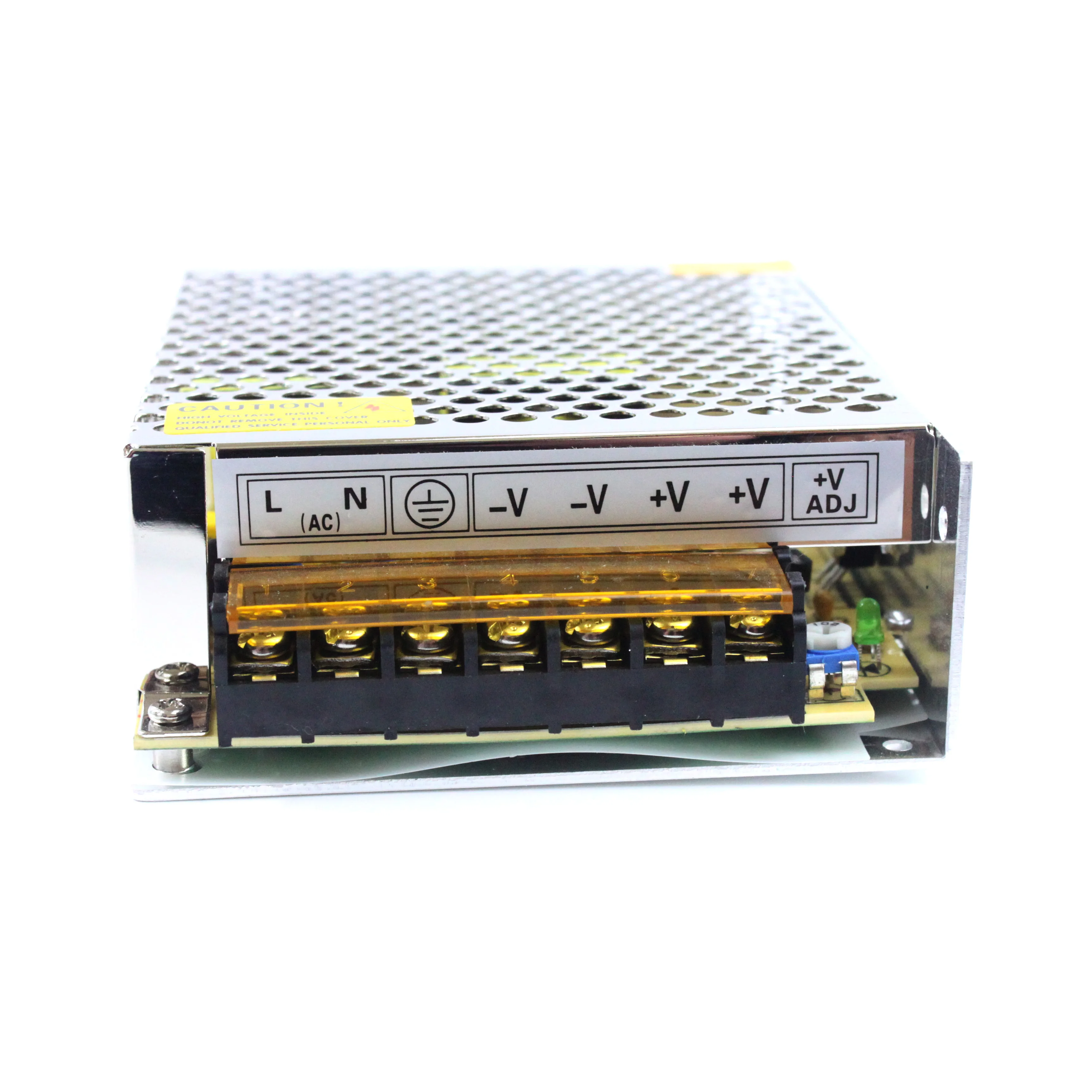

Hot sell cheap price power supply output 110vdc 12v 5a led pcb driver 60w transformer switching power supply for cctv
- Category: Industrial Power Supplies >>>
- Supplier: Shenzhen,Gofern,Electronic,Co.,Ltd.
Share on:
Product Overview
Description
Hot sell cheap price power supply output 110vdc 12v 5a led pcb driver 60w transformer switching power supply for cctv
Product Description
Features:
Low power consumption, high reliability,compact size
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
Protections: Short circuit/Over load/Over voltage
Cooling by free air convection
2year warranty
| MODEL | GF60-1H-DM | |||||
| OUTPUT | DC VOLTAGE | 12V | ||||
| OUTPUT POWER | 60W | |||||
| CURRENT RANGE | 0-5A | |||||
| RIPPLE & NOISE(max.) | 120mVp-p | |||||
| VOLTAGE ADJ. RANGE | ±18% | |||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±2.0% | |||||
| VOLTAGE TOLERANCE | ±2.0% | |||||
| SETUP,RISE TIME | 800ms, 50ms at full load | |||||
| HOLD UP TIME | 60ms | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC | ||||
| AC CURRENT(Typ.) | 2A/ 115VAC 1A/ 240VAC | |||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 80% | |||||
| INRUSH CURRENT(Typ.) | COLD START 15A/115VAC 30A/230VAC | |||||
| LEAKAGE CURRENT | <2.0mA/240VAC | |||||
| PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hicuup shut down,auto recovery | ||||
| OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protecion | |||||
| Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||||
| SHORT CIRCUIT | voltage off and reset input for recovers | |||||
| ENVIRONMENT | WORKING TEMP. | -10℃ ~ +45℃ (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP.,HUMIDITY | -20℃ ~ +85℃ 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.05%/℃ | |||||
| COOLING METHOD | BY FREE AIR CONVECTION | |||||
| SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||||
| EMI CONDUCTION | Compliance to EN55022 | |||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||||
| EMS IMMUNITY | Compliance to EN55024 | |||||
| OTHERS | DIMENSION | L111*W78*H38MM | ||||
| WEIGHT | 0.28Kg,75PCS/Carton | |||||
| SHELL MATERIAL | Chassis:1.5mm thickness aluminium;Cover:0.7mm thickness iron(silver plating) | |||||
