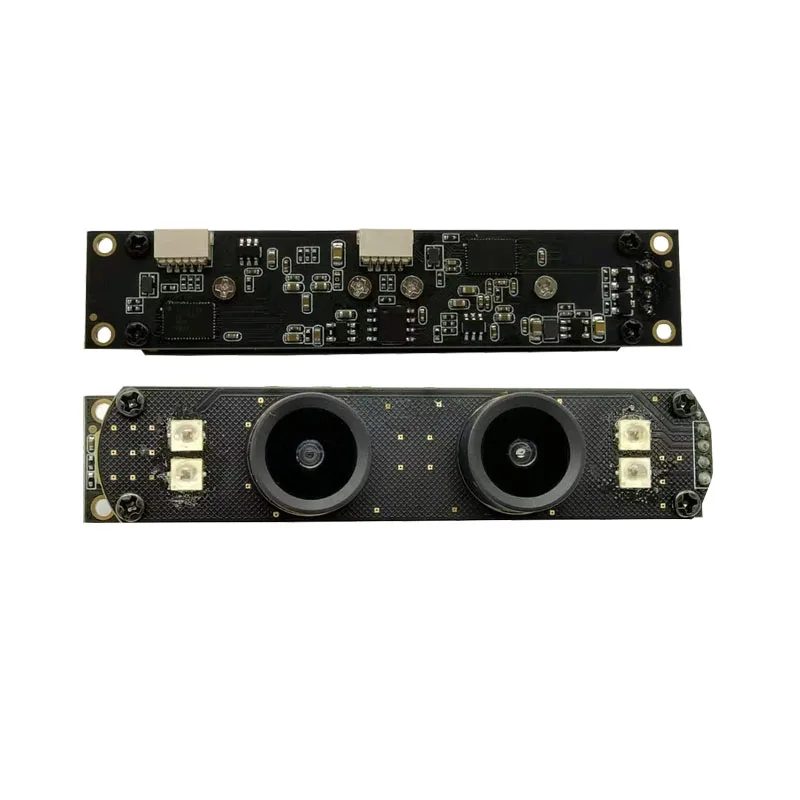

1080P 2mp cmos sensor binocular camera module USB UVC HD 3D face recognition with night vision infrared light
- Category: Electronic Data Systems >>>
- Supplier: Shenzhen Brilliant Cmos Technology Co. Ltd.
Share on (1600763969280):
Product Overview
Description
Product Description
Product Name | AR0230 CMOS Sensor Dual Lens USB2.0 UVC Camera Module | Aptina AR0230 120dB 1080P USB2.0 UVC Camera Module | |
Sensor | 1/2.7” CMOS Aptina AR0230 | 1/2.7” CMOS Sensor | |
Resolution | 1920×1080@30FPS | 1920×1080@30FPS | |
Compression format | MJPEG / YUV2 (YUYV) | MJPEG / YUV2 (YUYV) | |
FOV（Diagonal） | 110° (LENS can be optional) | 110° (LENS can be optional) | |
Focus type | Fixed Focus | Fixed Focus | |
Night Vision | 650mm Daytime,Color Imaging | 850mm Night Vision, Black&White Imaging | |
Shutter Type | Electronic Rolling Shutter | Electronic Rolling Shutter | |
Max Dynamic Range | 110dB | 110dB | |
S/N ratio | 39dB | 39dB | |
Cable Length | 1 meter | 1 meter | |
Dimension | 76mm*16mm | 76mm*16mm | |
UVC compliant | USB Video Class（UVC | USB Video Class（UVC） | |
Support OS | WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi | WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi | |
Support SDK | NO | YES | |
Key Features:

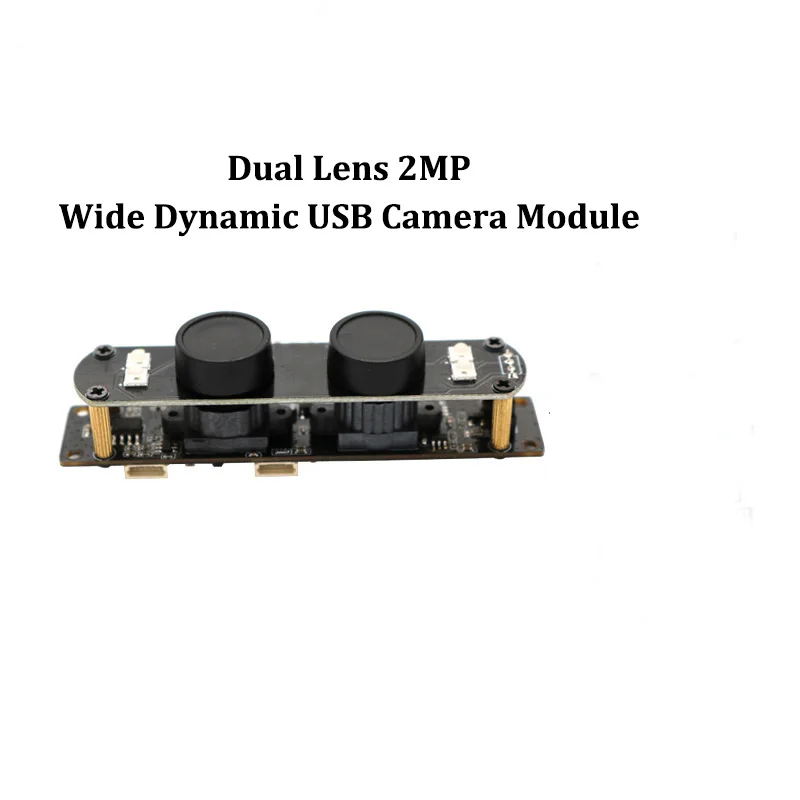

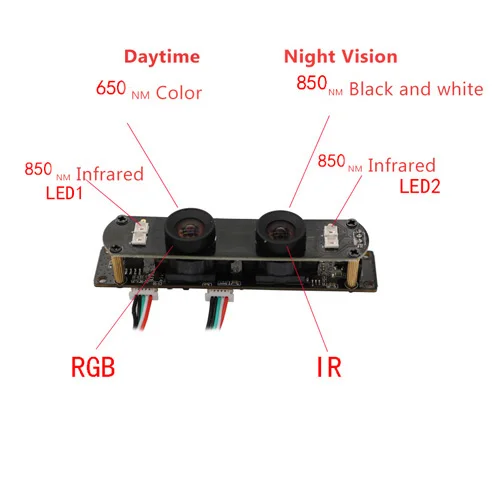

1. Dual Lens : RGB Lens + IR Lens
650nm Daytime,Color Imaging + 850mm Night Vision, Black and White Imaging
2. FOV: 110° (diagonal) super wide-angle NO distortion
3. Super Wide dynamic range 110dB, No black capture under strong light.
4. Most effective pixels is 1920(H) x 1080(V)@30FPS USB2.0 Camera Module.
5. Fixed focus,UVC compliant, plug and play interface standard.
6. Object Distance: 20Cm to infinity
2. FOV: 110° (diagonal) super wide-angle NO distortion
3. Super Wide dynamic range 110dB, No black capture under strong light.
4. Most effective pixels is 1920(H) x 1080(V)@30FPS USB2.0 Camera Module.
5. Fixed focus,UVC compliant, plug and play interface standard.
6. Object Distance: 20Cm to infinity

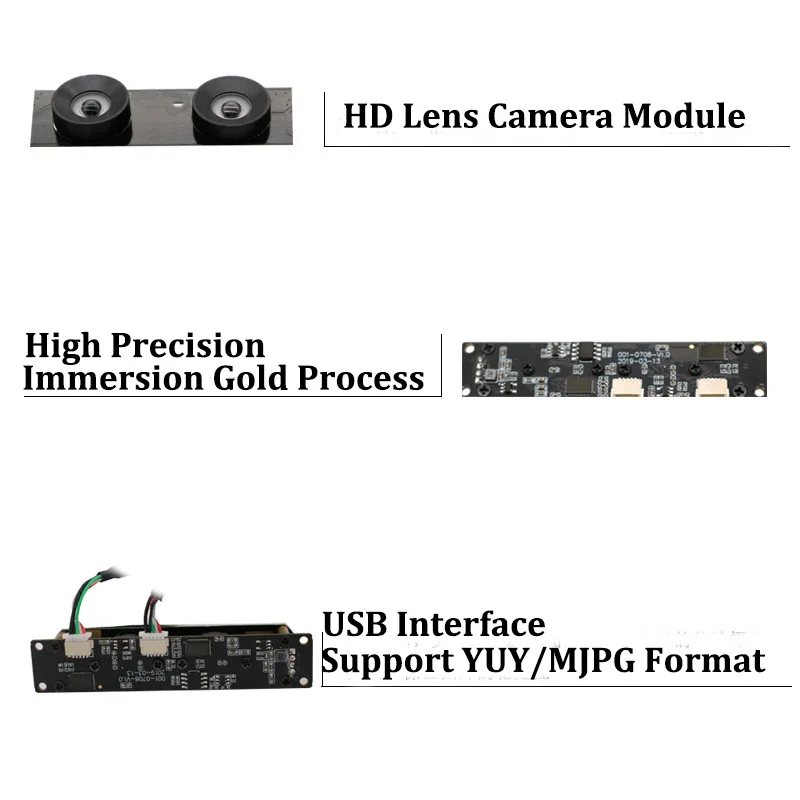

Details Images

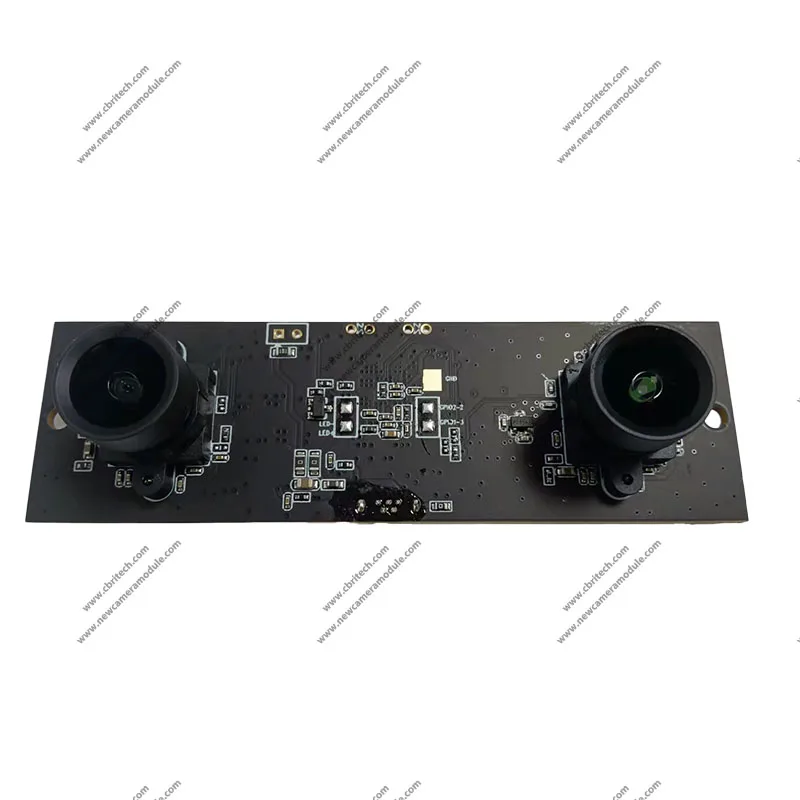

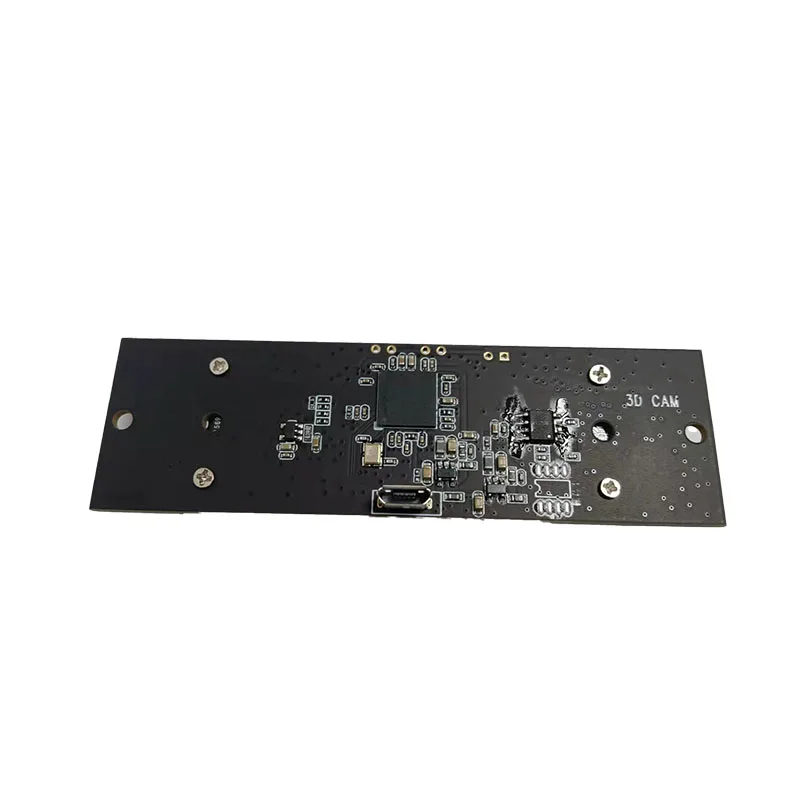

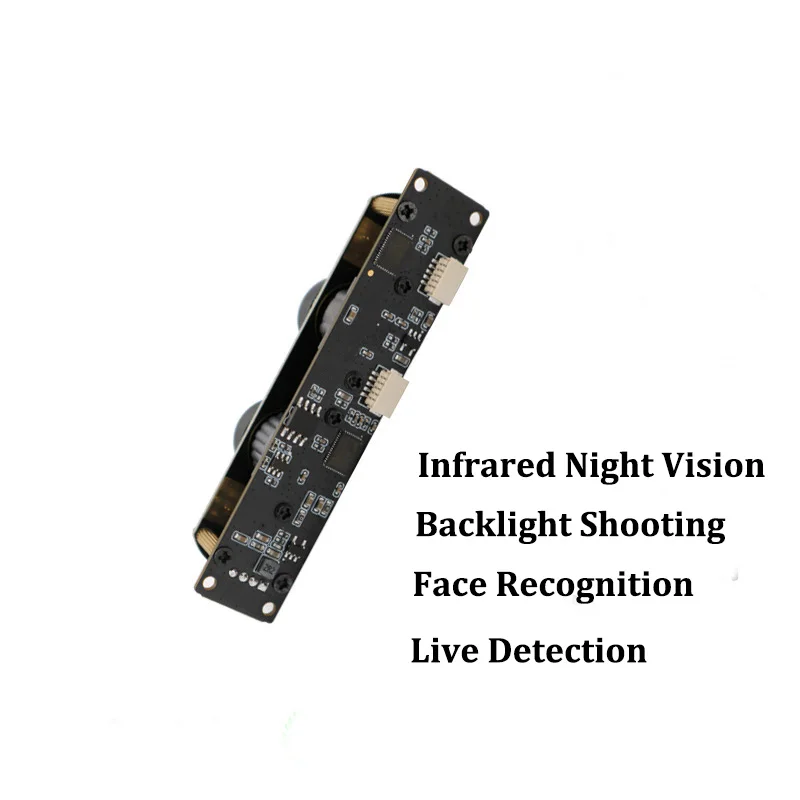

This mainly uses CMOS Aptina AR0230 Sensor’s Dual Lens USB2.0 camera module with 650nm & 850nm lens, UVC standard protocol, spport WinXP/Vista/Win7/Win8; Linux with UVC (above linux-2.6.26); MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC. USB drive-free, plug and play. High Frame Rate 30FPS, Widely used in Live detection, access control, face recognition, ID cards, biometrics, etc.
Standard USB Cable length is 1meter. If you want to longer or shorter, kindly tell us.
UVC standard,support WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later);Android 4.0 or above with UVC, raspberry pi

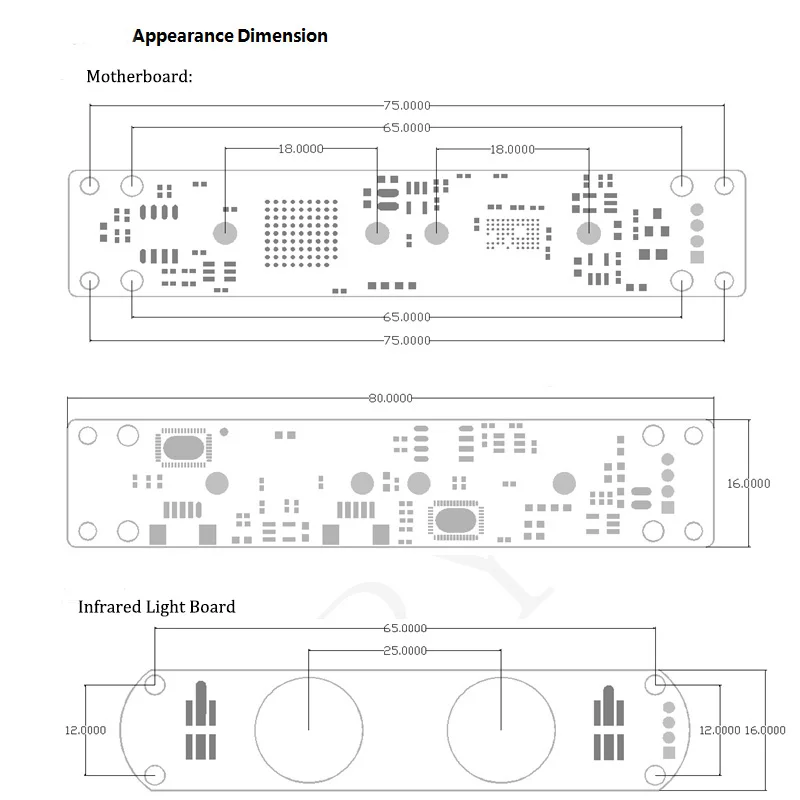

76mm*16mm. UVC standard. 110dB Wide dynamic face recognition / Live detectioncamera module
Recommend Products
Product Application
Packing&Shipping
1000pcs per carton
Company Introduction
Shenzhen Brilliant CMOS Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
Class 1K Workshop
Our Services & Strength
R&D Department: 5 people, we can support SDK for USB Camera module
Lable: Different styles lable for your choice
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
