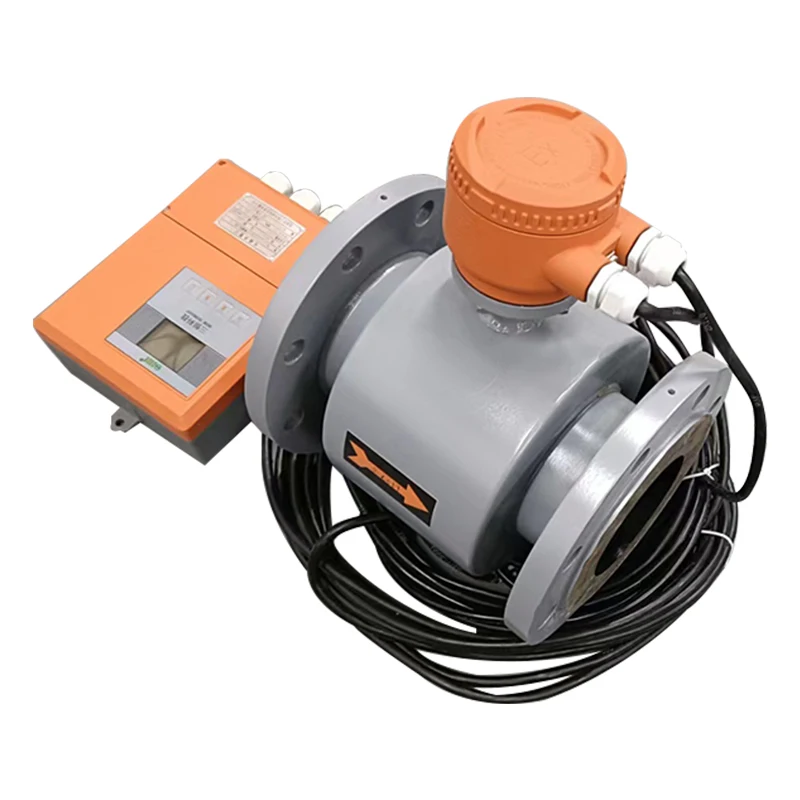

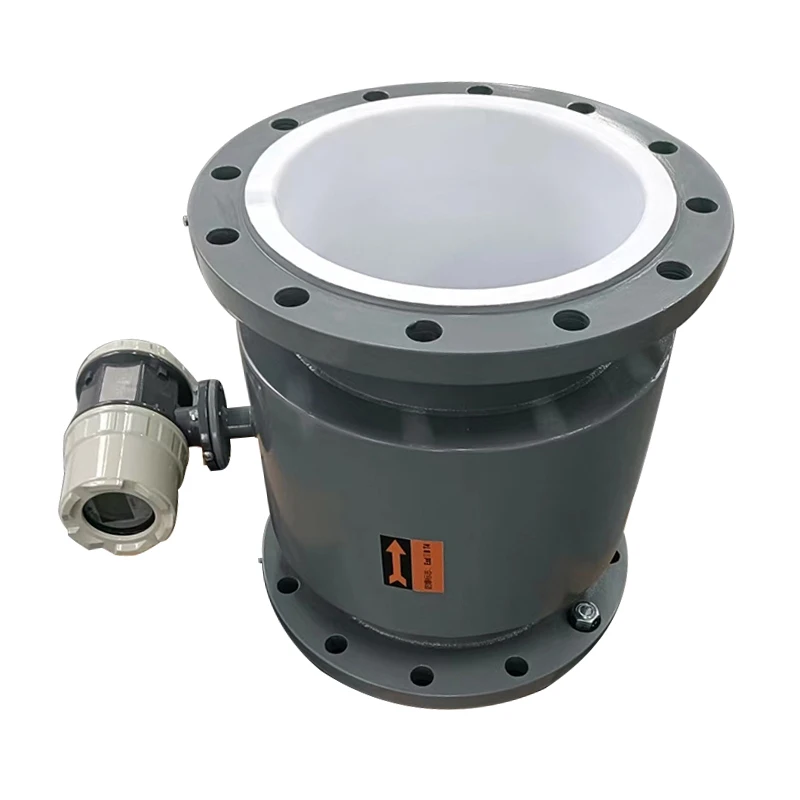

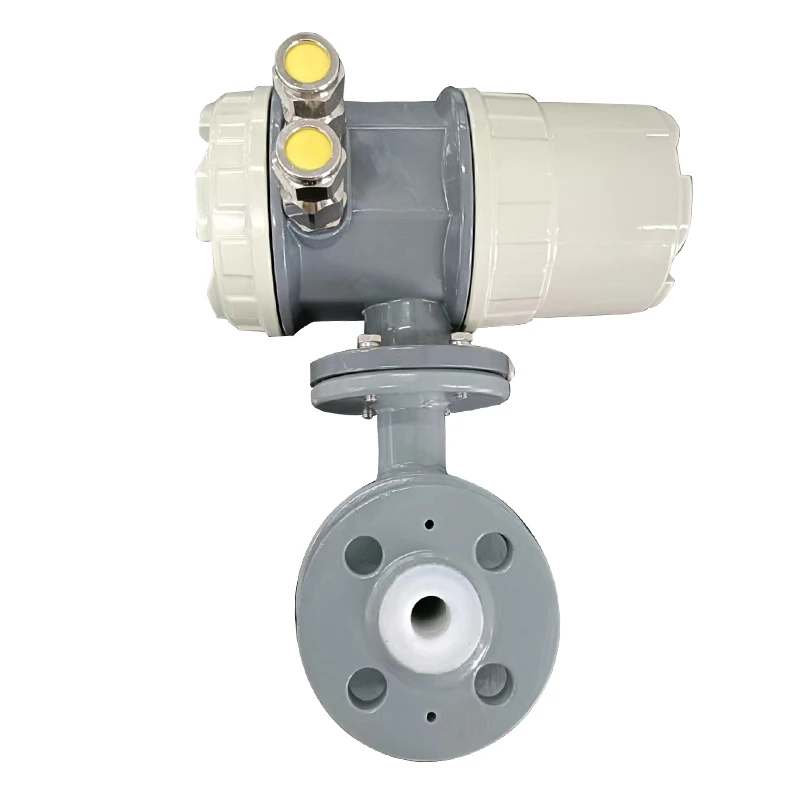

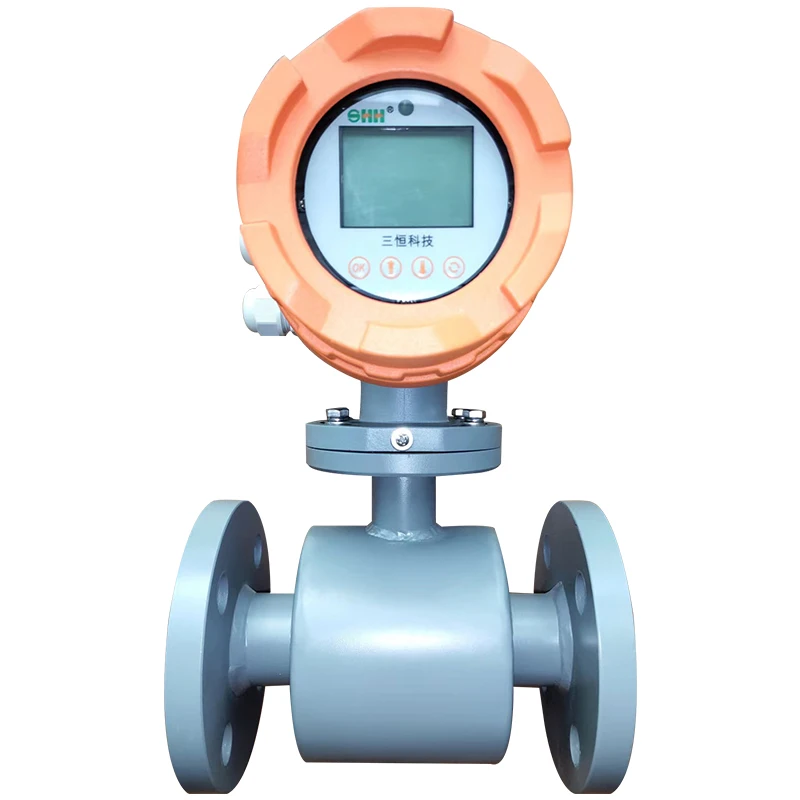

  • Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter
Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter

Tianxiang IP65, IP67, IP68 (optional) flow meters Integrated sewage treatment electromagnetic flowmeter

Share on (1600763972009):


Price:$280.00 - $360.00

Quantity:


Product Overview

Description



Product Description


 Electromagnetic flowmeter specification
Technical characteristics:
1. Diameter range from DN6 to DN2400
2.A variety of lining materials are available for food, sewage, chemicals and solid containing media
3.A variety of electrode materials are available for measurement of different corrosive media
4.Minimum front and rear straight pipe sections or no front and rear straight pipe sections are required
5. The product can provide three structures of flange, clamp and Thread
6.The product has self inspection and self diagnosis functions such as signal waveform, signal voltage, restart record, abnormal value record, etc
7. No loss of data in case of power failure
² Optional wireless signal transmission function


Specification


Product model
LES10
Diameter (mm)
6～2400
Measuring flow rate range
≤8m/s
Accuracy
±0.5% 、±1.0%
Repeatability
±0.1%
Conductivity
50 μ S/cm (conductivity of tap water: 270)
Pressure rating
1.0、1.6、2.5、4.0MPa （DN10 ～ DN600）
0.6MPa、1.0MPa（DN700 ～ DN2400）
Electrode material
316L
Hastelloy
Titanium
Tantalum
Platinum iridium alloy
Lining material
Natural rubber, neoprene rubber, polyurethane rubber
PTFE、F46、PFA
Flange standard
ANSI、JIS、GB、DIN、HG
Medium temperature
0 ℃～+180 ℃ (see lining material selection)
Ambient temperature
-25℃ ～ +60℃
Degree of protection
IP65, IP67, IP68 (optional)
Electrical connection
M20×1.5 、 1/2 NPT、G1/2
Output signal
4-20mA, pulse output, RS485
Supply voltage
24V DC/220V AC

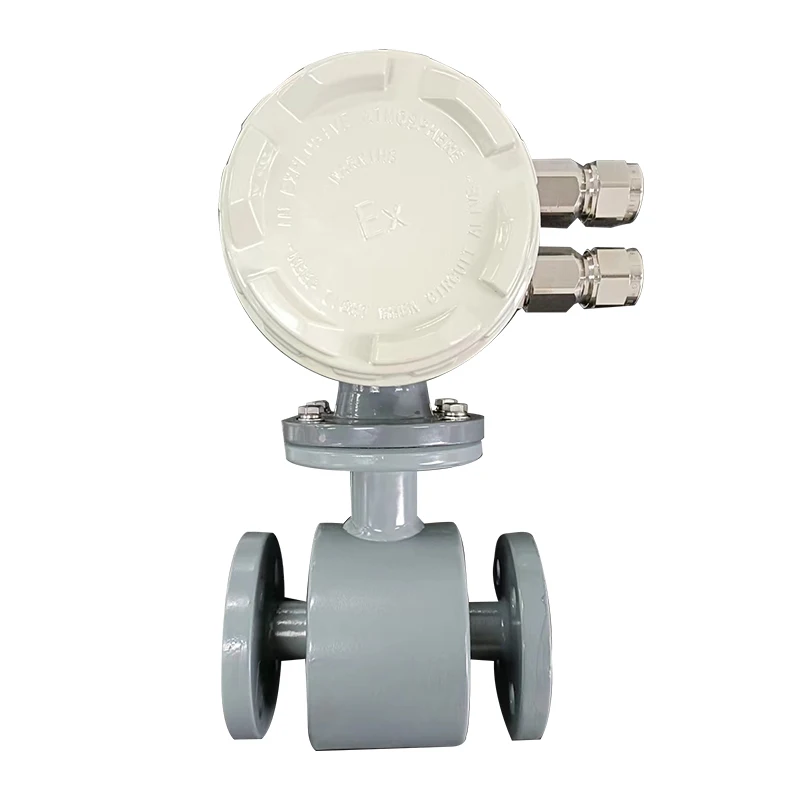

Explosion proof grade
Ex d ib mb IIC T6 Gb

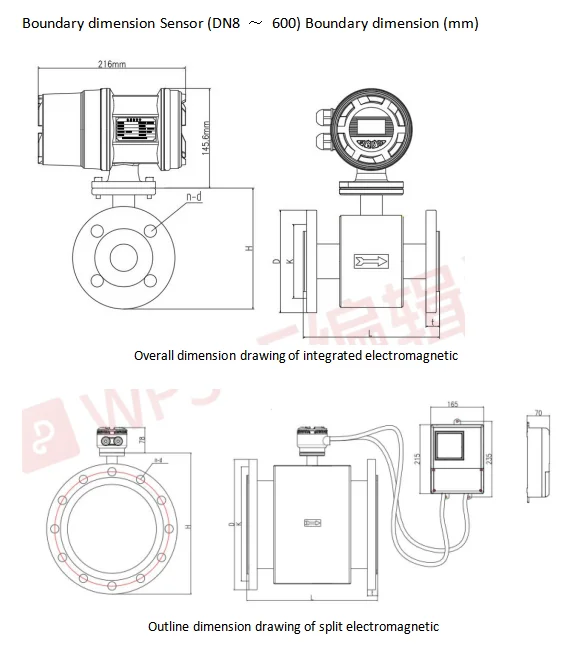

Overall dimensions




Electromagnetic flowmeter - model selection
Project
Parameter
Code
Code description
Model
TXLES10
Standard aluminum housing
Form
Separator
--

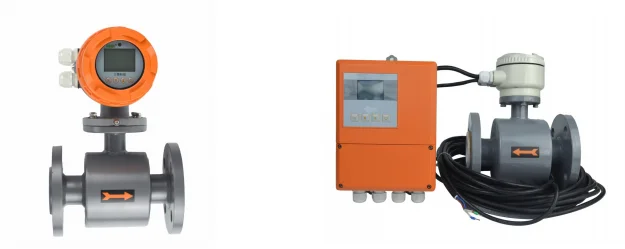

Structural style
A
Integrated
B
Split type (10 meters of sensor standard cable)
Sensor
Separator
--
The following are specific specifications
Caliber
006
Diameter DN6
008
Diameter DN8
010
Diameter DN10
015
Diameter DN15
020
Diameter DN20
025
Diameter DN25
032
Diameter DN32
040
Diameter DN40
050
Diameter DN50
065
Diameter DN65
080
Diameter DN85
100
Diameter DN100
125
Diameter DN125
150
Diameter DN150
200
Diameter DN200
250
Diameter DN250
300
Diameter DN300
350
Diameter DN350
400
Diameter DN400
450
Diameter DN450
500
Diameter DN500
600
Diameter DN600
700
Diameter DN700
800
Diameter DN800
900
Diameter DN900
102
Diameter DN1000
122
Diameter DN1200
142
Diameter DN1400
162
Diameter DN1600
182
Diameter DN1800
202
Diameter DN2000
222
Diameter DN2200
242
Diameter DN2400
Pressure rating
6
0.6MPa (applicable diameter DN700 -- DN2000)
10
1.0MPa (applicable diameter DN200 -- DN1000)
16
1.6MPa (applicable diameter DN15-DN600)
40
4.0MPa (applicable diameter DN6 -- DN150)
X
Special customization
Lining material
1
Polytetrafluoroethylene (PTFE) (applicable diameter DN15-DN1000)
2
Neoprene rubber (applicable diameter DN65 -- DN2400)
3
Polyurethane (applicable diameter DN15-DN600)
4
Perfluoroethylene propylene (F46) (applicable diameter DN15-DN300)
5
PFA (applicable diameter DN6 -- DN250)
X
Special customization
Electrode material
1
316L
2
HB (Hastelloy B)
3
HC (Hastelloy C)
4
Titanium
5
Platinum iridium alloy
6
Tantalum
X
Special customization
Body material
1
Carbon steel (surface painting)
2
304 stainless steel (polished surface)
3
304 stainless steel (surface sandblasting)
4
316 stainless steel (polished surface)
5
316 stainless steel (surface sandblasting)
X
Special customization
Degree of protection
Separator
--
Degree of protection
A
IP68 (sensor)+IP56 (converter) (only for split structure)
B
IP67 (sensor)+IP56 (converter) (only for split structure)
C
IP65 (integrated structure only)
X
Special customization
Explosion proof grade
Separator
--
Explosion proof grade
0
No explosion-proof requirements
1
EXd ib mb IIC T6 Gb (flameproof and intrinsically safe) (only for integrated structure)
Electrical connection
Separator
--
The following are specific specifications
Electrical connection
T1
Two outlet internal threads M20 * 1.5, (orange grey) (applicable to integrated non explosion-proof) PVC
Quality, applicable wire diameter 6-8mm, protection grade IP65
T2
Four outlet internal threads M20 * 1.5, (orange grey) (applicable to split type) PVC material, suitable for
Wire diameter 6-8mm, protection grade IP56
R1
One end is equipped with M20 * 1.5 waterproof joint, the other end is equipped with a plug, made of PVC, with a suitable wire
diameter of 6-8mm and a protection grade of IP65
R2
Explosion proof configuration, external thread 1/2NPT at both ends, stainless steel explosion-proof stuffing box, applicable wire
diameter
6-8mm, protection grade IP65
R3
Explosion proof configuration, external thread M20 * 1.5 at both ends, explosion-proof stuffing box made of stainless steel,
applicable line
Diameter 6-8mm, protection grade IP65
Power supply/output party
type
Separator
--
Power supply
A
AC 220 V
D
DC 24 V
X
Special customization
Signal output party
type
F
4～20mA
H
4～20mA+HART
R
4～20mA + Modbus-RTU/RS485
A
Modbus-RTU/RS485
B
Pulse signal+switch signal
A
Wireless signal (ordering remarks)
X
Special customization
Process connection
Separator
--
The following are specific specifications
Process connection selection
Choose
HO1
HG/T 20592-2009 DN15PN10~PN40 Raised face Flange
HO2
HG/T 20592-2009 DN20PN10~PN40 Raised Face Flange
J
Clamping type (remarks on ordering accessories, provided by the customer by default)
HX
Other customer requirements
Additional Options
Separator
--
Process connection installation
Assembly parts
/J1
Liquid receiving ring-316 (screw installation)
/J2
Liquid receiving ring-316
/J3
Liquid ring - HC
/J4
Liquid ring - HB
/J5
Liquid receiving ring - titanium
/J6
Liquid receiving ring tantalum
/X
Special customization


Instrument installation






Caliber
End face length/L
Flange outer diameter/D
Height/H
Diameter of bolt hole center circle/K
Number of bolt holes/n
Bolt hole diameter/d
Flange thickness/t
6
150
95
144
65
4
14
14
8
150
95
144
65
4
14
14
10
150
90
144
60
4
14
14
15
150
95
144
65
4
14
14
20
200
105
144.5
75
4
14
16
25
200
115
149.5
85
4
14
16
32
200
140
167
100
4
18
18
40
200
150
182.5
110
4
18
18
50
200
165
197
125
4
18
18
65
200
185
214.5
145
4
18
18
80
200
200
233
160
8
18
18
100
250
220
245
180
8
18
18
125
250
250
279
210
8
18
18
150
302
285
312
240
8
22
22
200
356
340
368
295
12
22
22
250
406
405
400.5
355
12
26
26
300
456
460
450.5
410
12
26
26
350
500
520
553
470
16
22
30
400
500
580
608
525
16
26
32
450
550
640
665
585
20
26
36
500
550
715
727
650
20
26
38
600
600
840
840
770
20
30
42
700
700
895
895
840
24
30
50
800
800
1015
1002
950
24
33
56
900
900
1115
1107
1050
28
33
62
1000
1000
1230
1222
1150
28
36
70
1200
1200
1405
1437
1340
32
33
60
1400
1400
1630
1663
1560
36
36
72
1600
1600
1830
1863
1760
40
36
80
1800
1800
2045
2072
1970
44
39
88
2000
2000
2265
2282
2180
48
42
96


Points for attention
1. Measuring conductive liquid, not pure water and distilled water
2. Pay attention that there shall be no negative pressure in the pipeline, which may easily cause the lining to fall off
3. Ensure that the medium is filled with the pipeline during operation to avoid measurement error

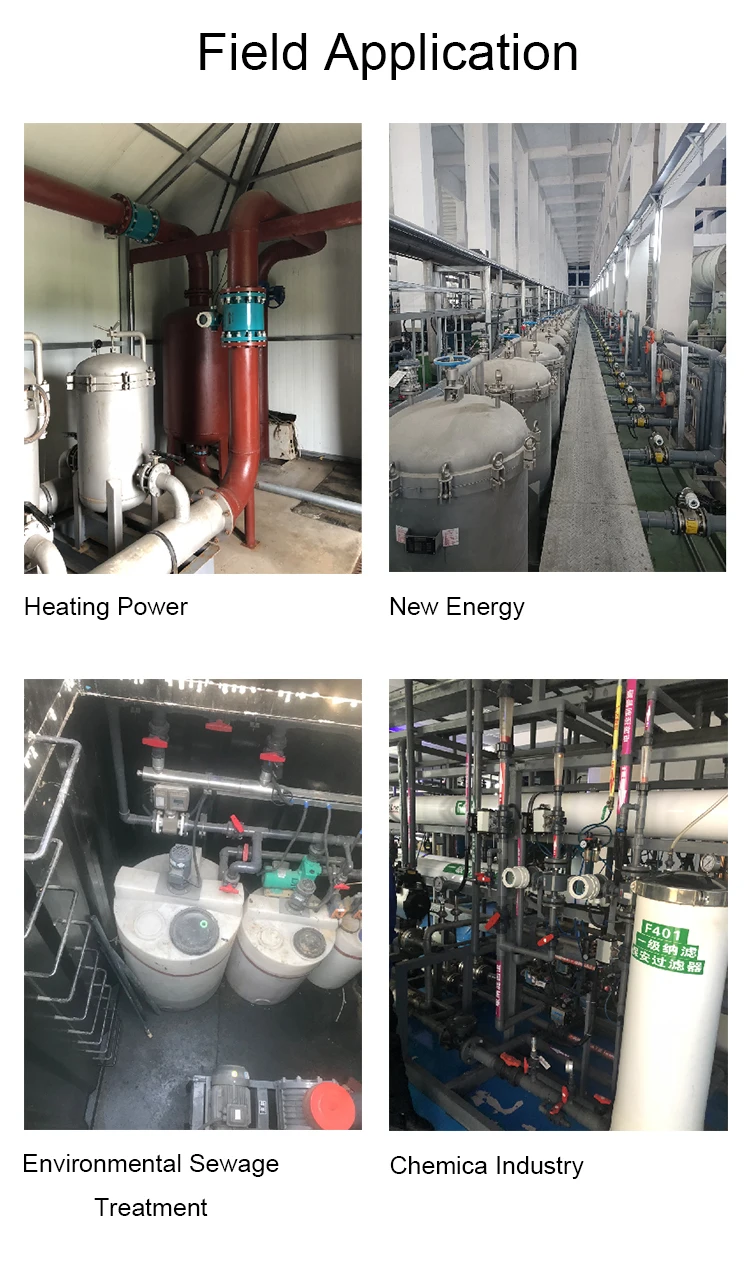

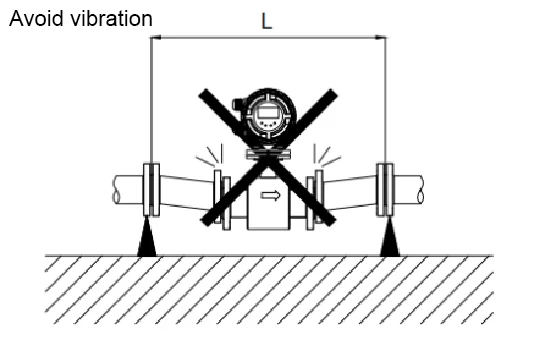

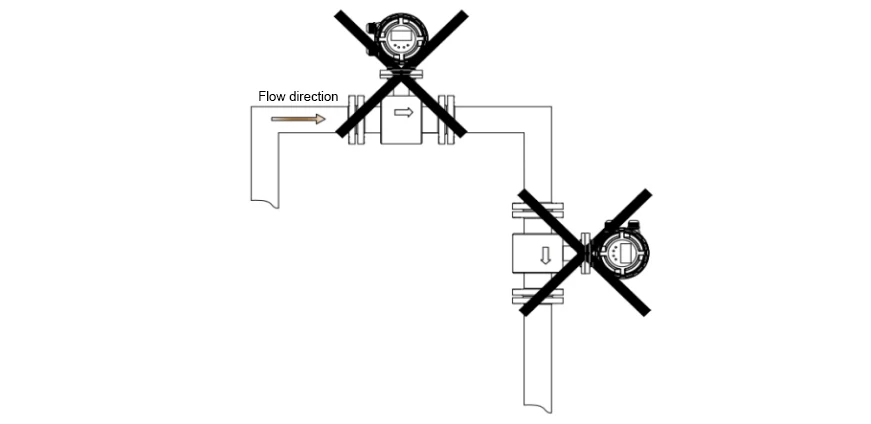

4. Can not be installed directly
