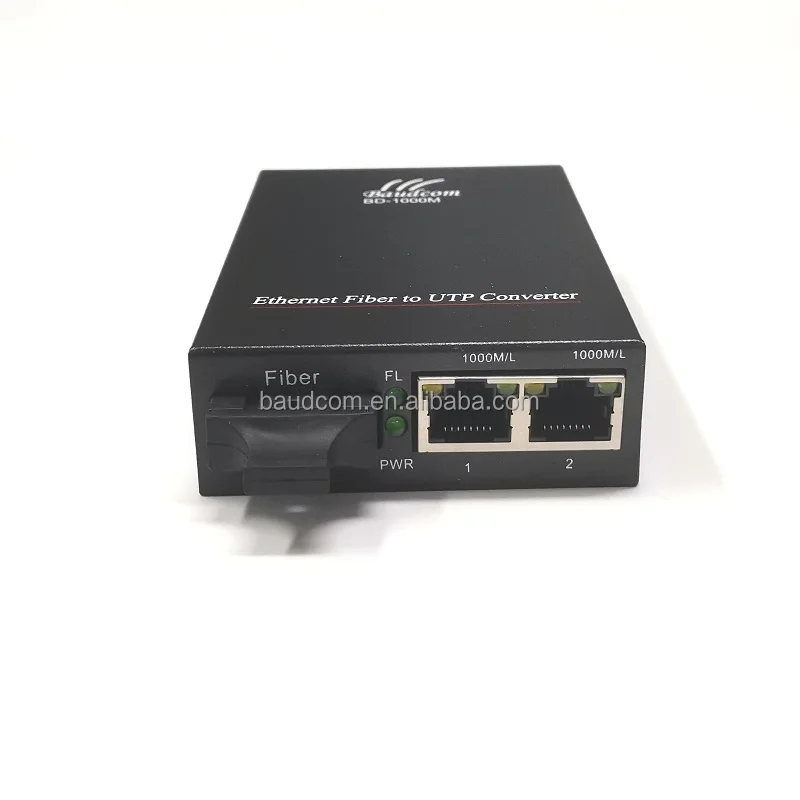

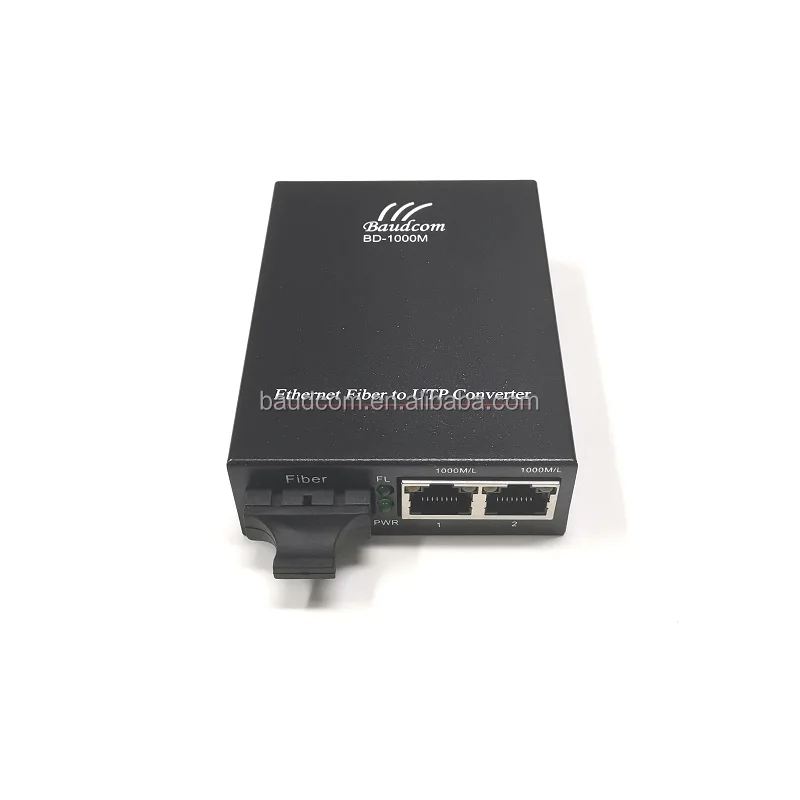

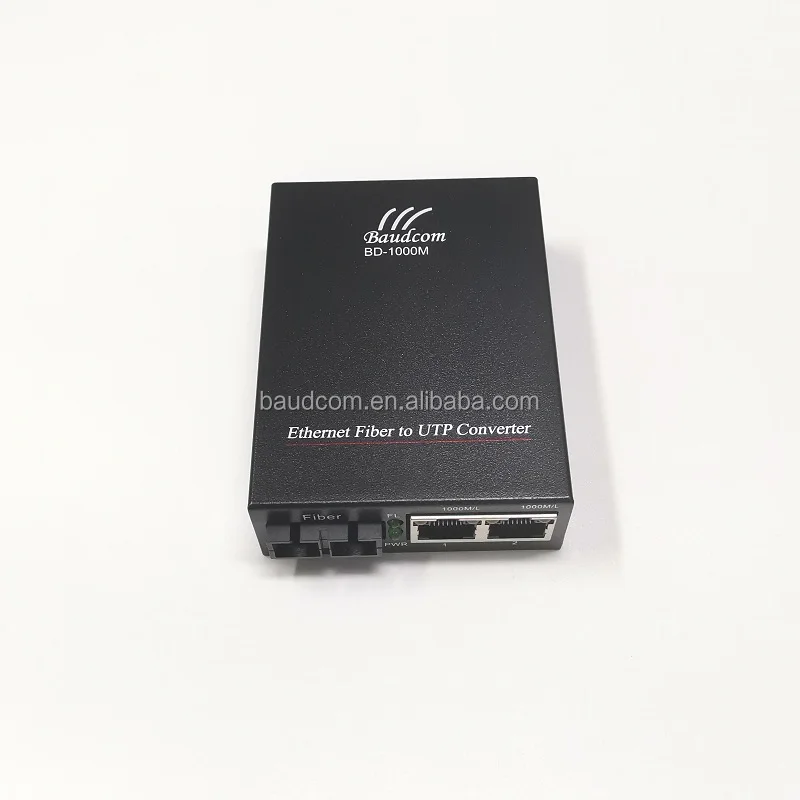

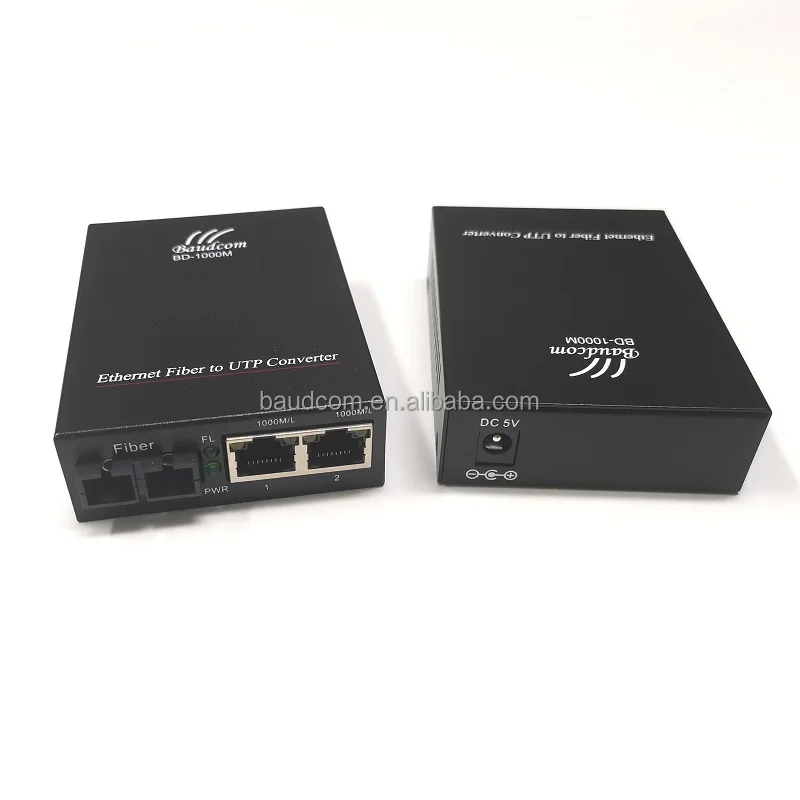

2Ports 1000M Ethernet Fiber Media Converter Gigabit

Functions:

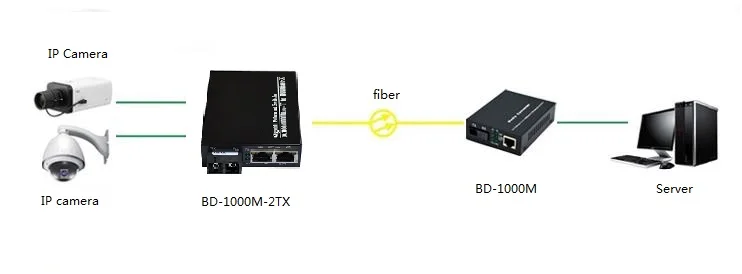

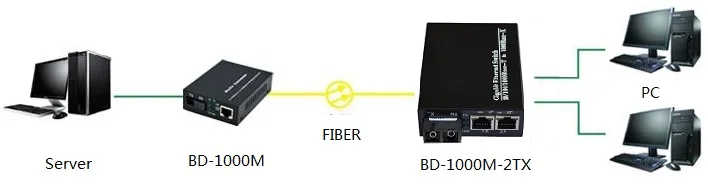

Fiber media converter can interconvert the electric signal of 10M/100M/1000M twisted pair and the optical signal of 1000Base-FX/LX. It extends the network transmission range from 100m to 80Km (single mode optical fiber).

Fiber media converter conforms to IEEE802.3, IEEE802.3u (10Base-T, 100Base-TX, 100BaseT-FX) international standard;

Two 10/100/1000M electrical ethernet ports,one fiber port;

Brings1M buffer, supports 2KMAC address;

Isolates network conflict and broadcasting package effectively, has the function of preventing broadcasting storm;

Supports 802.1Q and 16 groups of VLAN;

Multi- mode connection: transmitting range can reach 550 meters as farthest;

Single-mode connection: transmitting range can reach 80 kilometers.

Supports VLAN(optional);

1000Base-FX/LX Optical interface:

SC-PC/FC-PC

Optical fiber category:

1000Base-FX/LX:

62.5/125μm multi-mode fiber, can reach 550 meters

9/125μm single-mode fiber, can reach 10-80Km

10/100/1000Base-TX

International standard:

IEEE802.3z, 1000Base-SX/LX

IEEE802.3ab 1000Base-T;

Ethernet 10/100/1000M auto-adaptable;

Interface:  10/100/1000Base-T:  RJ45

Power supply

working voltage range wide, good

anti-disturb and Isolation, work stable.

option I – DC-48V,range DC-36V~DC-72C

option II – AC220V,range AC96V~AC240V
Power Consumption:    <=3 Watts

environment condition

Operating temperature:  -20C~+60 C

Storage temperature:   -20 C~+70 C

Relative temperature:95% (uncondensed)

Dimension

95mm(L)

70mm(L)

26mm(L)

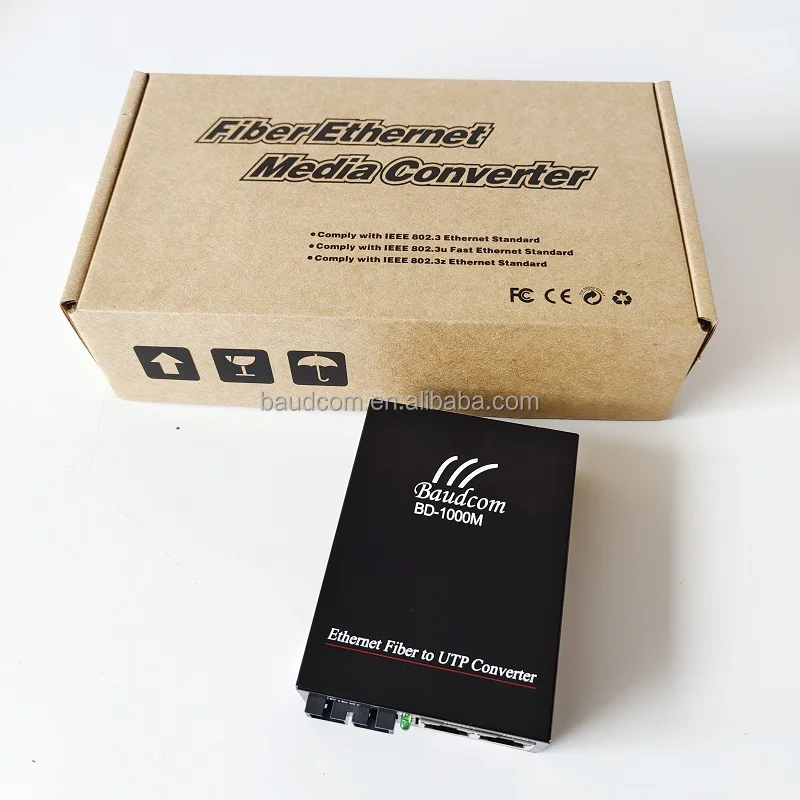

PACKAGING

Specific Product Specific Packaging

• Inner Package: The interior contains foam or other shockproof material inside to protect the goods from damage.


• Outer Package: Neutral Brown Cartons.

SHIPPING

For Transportation Cost Consideration

• When the product is less than 30 kg, it will be delivered through international courier companies, such as TNT, DHL, FEDEX, UPS, etc.


• When the product is between 30 kg and 50 kg, it will be delivered by air.


• When the product is large, more than 50 kg, it will be shipped by sea.

ABOUT US

What are the Adavantagesof Baudcom?

1. Baudcom has been working hard in supplying various Communication equipment products for 15 years

2. Getting trusted by more and more customers home and abroad

3. One of the most reliable Communication equipment distributors for brands like  Finsar brocade etc in China

4. Stable channel ensures the products quality and competitive pricing

5. Regularly 20K sets of Communication equipment inventory available for the instant delivery anytime when necessary

6. Professional team provides you with excellent buying experience, help you sort out all the concerns through out this process

We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted services!

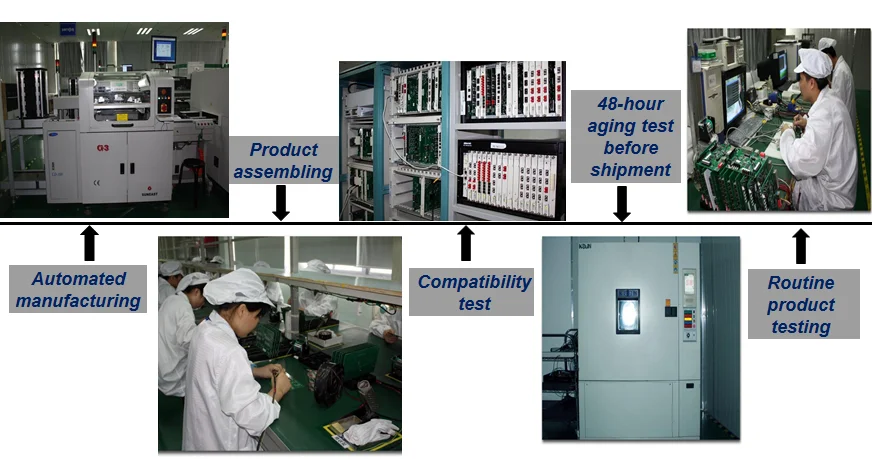

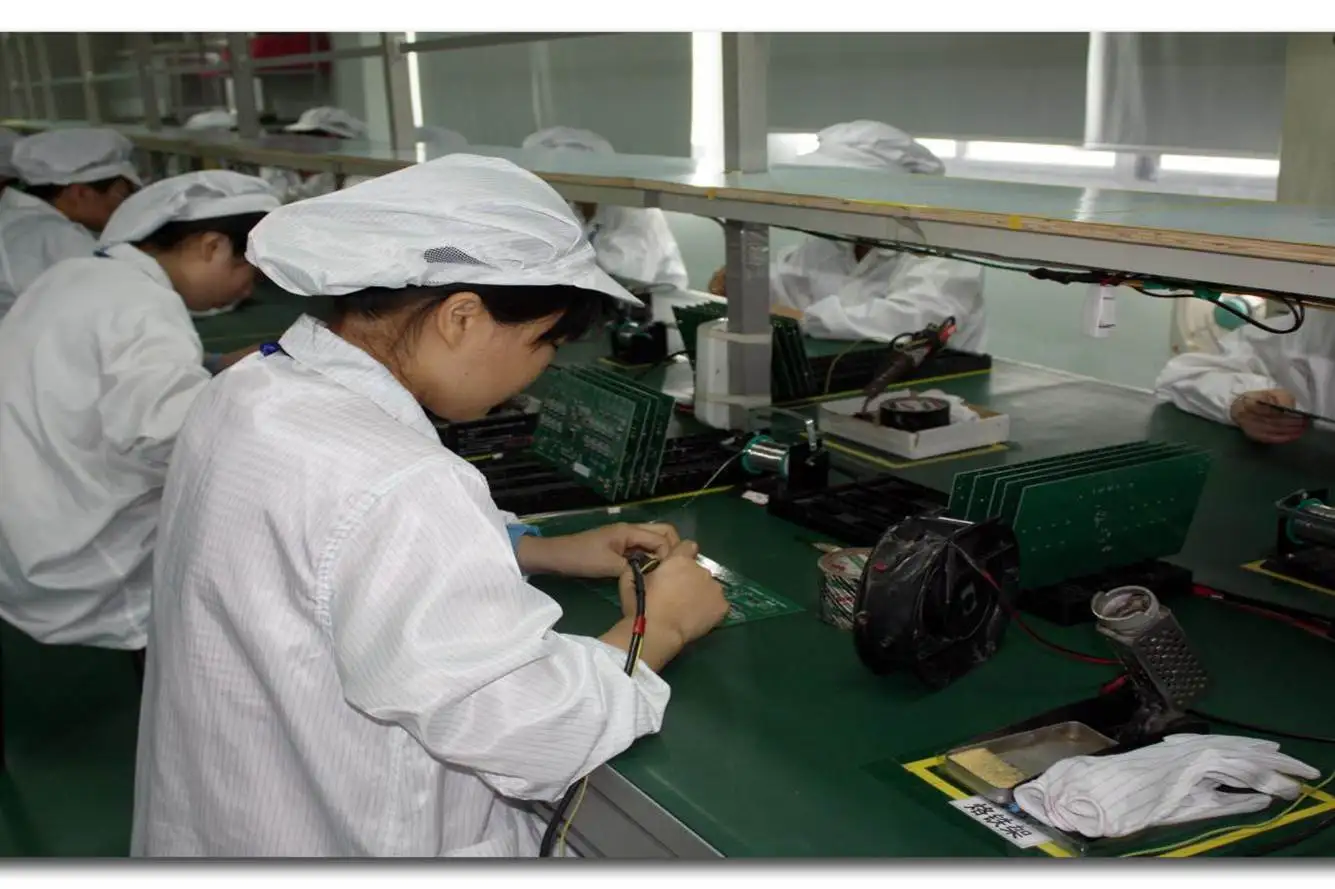

MANUFACTURE
