gwinstek GSP 9300B 9kHz ~ 3 GHz Spectrum Analyzer Function model Technical indicators
- Category: Spectrum Analyzers >>>
- Supplier: Nanjing Daoce Electronics Co. Ltd.
Share on (1600764016504):
Product Overview
Description
Product Description
Practical, Affordable and Never Careless

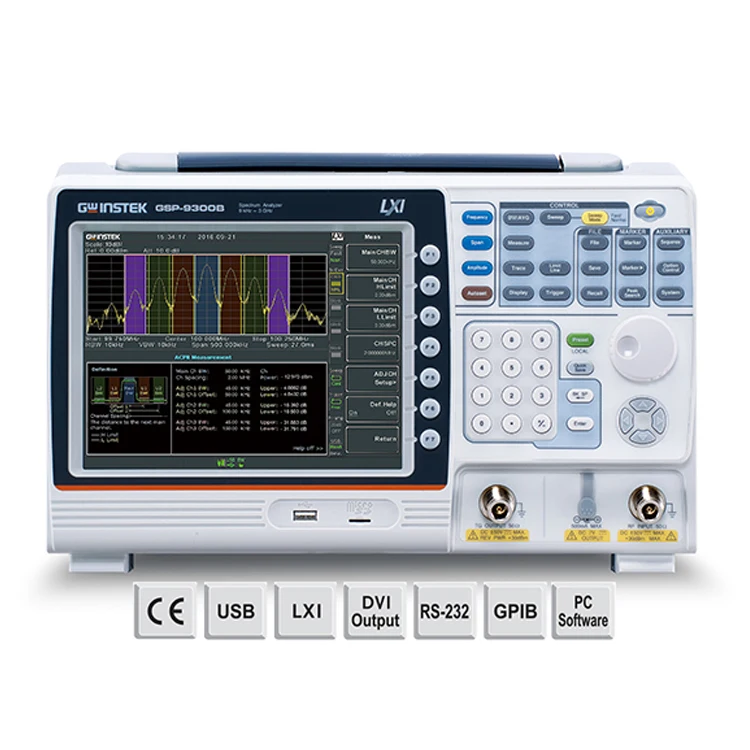

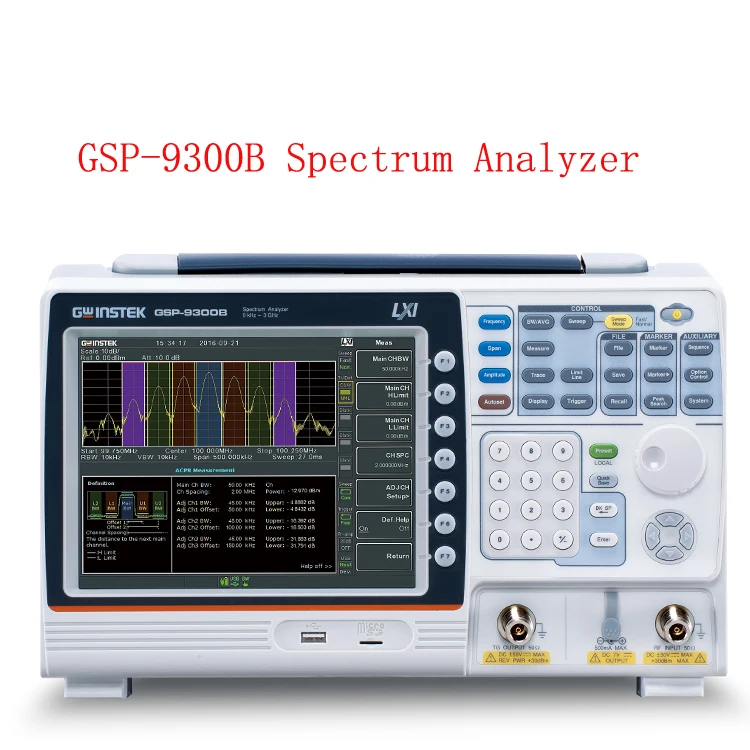

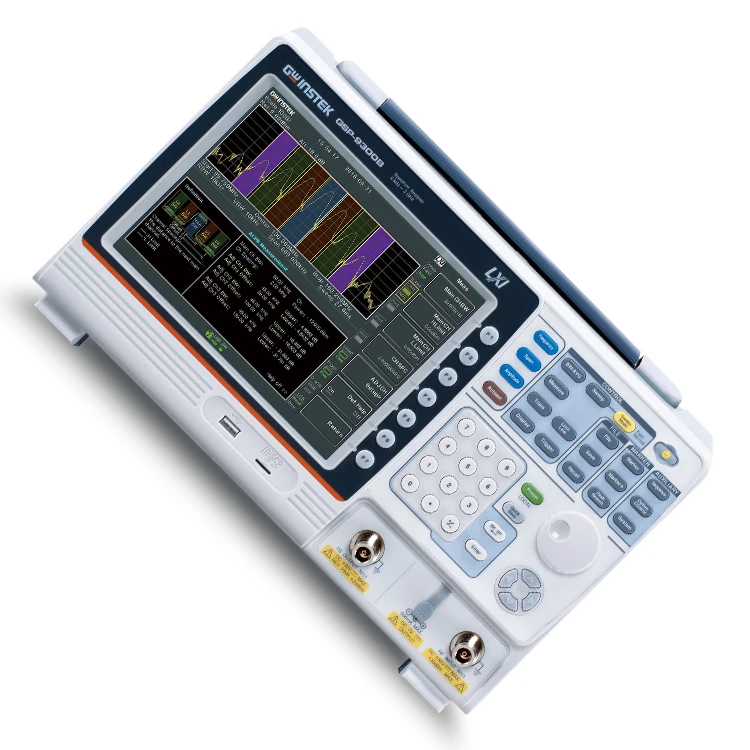

GSP-9300B is a 3GHz spectrum analyzer to meet basic RF measurement requirements. It provides the frequency stability of 0.025ppm;
the aging rate of 1ppm/year; a built-in preamplifier; the base noise of -149dBm/Hz, and more than 20 measurement applications,
including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test. While collocating with TG option,
GSP-9300B can conduct frequency response or power linearity tests for components.
For monitoring signals, GSP-9300B provides Topographic display mode, which is capable of distinguishing continuous or random
signals by using color temperature. Spectrogram mode provides a time axis on spectrum display that allows users to observe signal
variations based upon the reference of time. Split window mode allows different parameter settings for each display window.
Additionally, GSP-9300B also provides user-friendly user interfaces such as display mode, help, multi-languages, and fast data

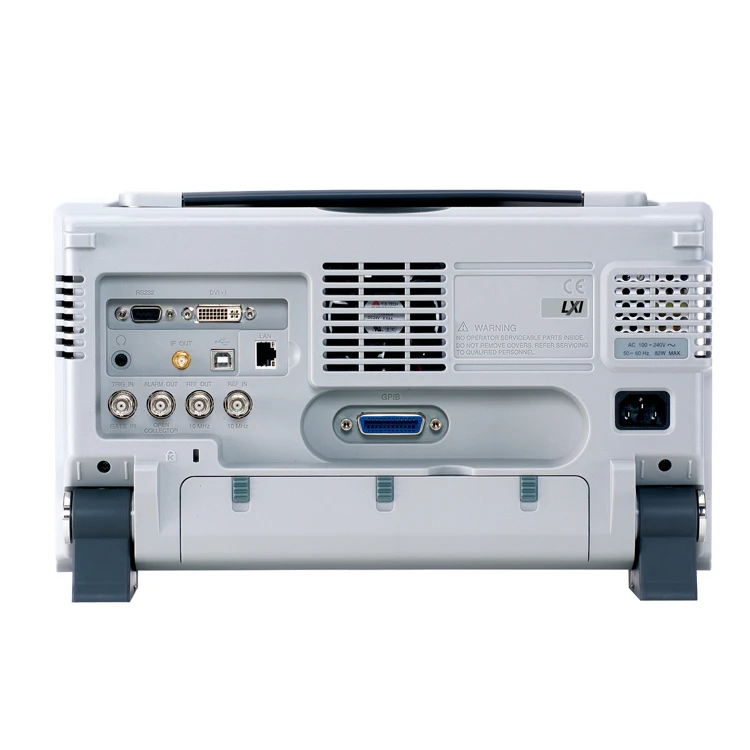

logging, etc. Interfaces and software include USB/RS-232/LXI/MicroSD/GPIB (option)/DVI output and dedicated PC software IVI
Driver.
GSP-9300B, with its unique features, including auto wake-Up, sequence function, and limit line testing, is specially designed to
meet the requirements of production lines. The patent design of heat conduction allows GSP-9300B to substantially reduce the
warm-up time so as to expedite production processes. Options include tracking generator, carrying bag, battery module, EMI antenna
set and rack accessories. The compact design of GSP-9300B satisfies either field testing or the integration of automatic testing
systems.
To sum up, GSP-9300B is a stable, light and all-purpose test equipment, which is the most ideal choice for the educational market,
production line, and general signal monitoring applications, etc. Most important, the pricing of GSP-9300B is beyond your
imagination and it is the number one choice for users with budget considerations.
the aging rate of 1ppm/year; a built-in preamplifier; the base noise of -149dBm/Hz, and more than 20 measurement applications,
including AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test. While collocating with TG option,
GSP-9300B can conduct frequency response or power linearity tests for components.
For monitoring signals, GSP-9300B provides Topographic display mode, which is capable of distinguishing continuous or random
signals by using color temperature. Spectrogram mode provides a time axis on spectrum display that allows users to observe signal
variations based upon the reference of time. Split window mode allows different parameter settings for each display window.
Additionally, GSP-9300B also provides user-friendly user interfaces such as display mode, help, multi-languages, and fast data
logging, etc. Interfaces and software include USB/RS-232/LXI/MicroSD/GPIB (option)/DVI output and dedicated PC software IVI
Driver.
GSP-9300B, with its unique features, including auto wake-Up, sequence function, and limit line testing, is specially designed to
meet the requirements of production lines. The patent design of heat conduction allows GSP-9300B to substantially reduce the
warm-up time so as to expedite production processes. Options include tracking generator, carrying bag, battery module, EMI antenna
set and rack accessories. The compact design of GSP-9300B satisfies either field testing or the integration of automatic testing
systems.
To sum up, GSP-9300B is a stable, light and all-purpose test equipment, which is the most ideal choice for the educational market,
production line, and general signal monitoring applications, etc. Most important, the pricing of GSP-9300B is beyond your
imagination and it is the number one choice for users with budget considerations.
Specification
Model | GSP-9300B |
Name | Spectrum Analyzer |
Brand | gwinstek |
Series | GSP |
* Frequency Range: 9kHz ~ 3 GHz | * 0.025ppm Frequency Stability and 1ppm aging Rate | * Built-in Preamplifier, 50dB Attenuator, and Sequence Function | * RBW: 1Hz ~ 1MHz |
* Sensitivity: -149dBm/Hz (@PreAmp on) | * Built-in AM/FM Demodulation & Analysis | * Built-in P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep | * Built-in Spectrogram, Topographic and Dual-View Display Modes |
* Remote Control Interface: LAN, USB, RS-232 | * Options: Tracking Generator, GPIB Interface | Power Cord, Certificate of Calibration, CD-ROM (with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver) Optional Accessories GSC-009, Soft Carrying Case GRA-415, Rack Adapter Panel | GSP-9300B |
