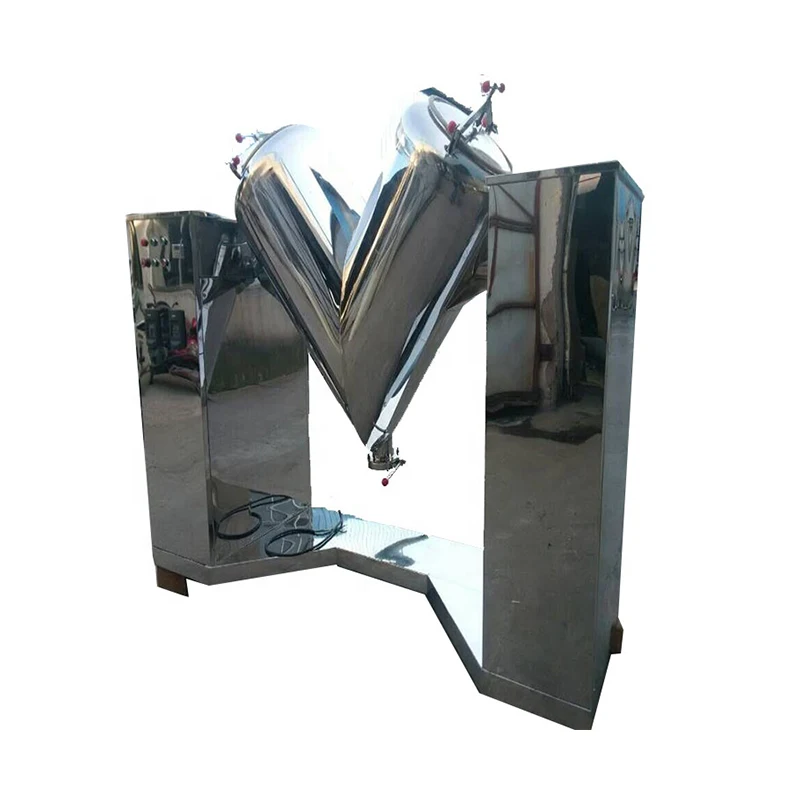

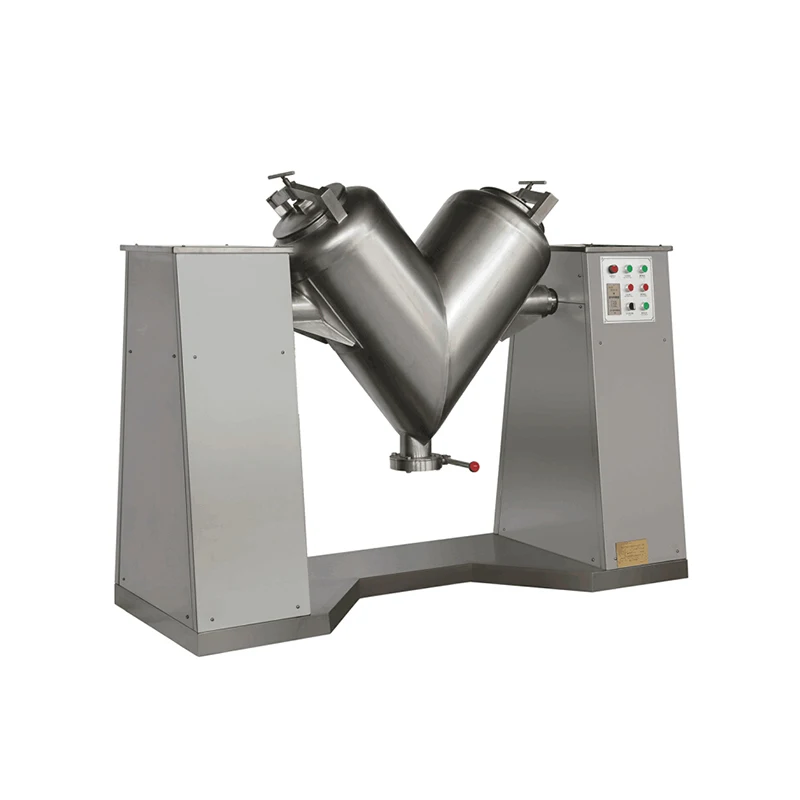

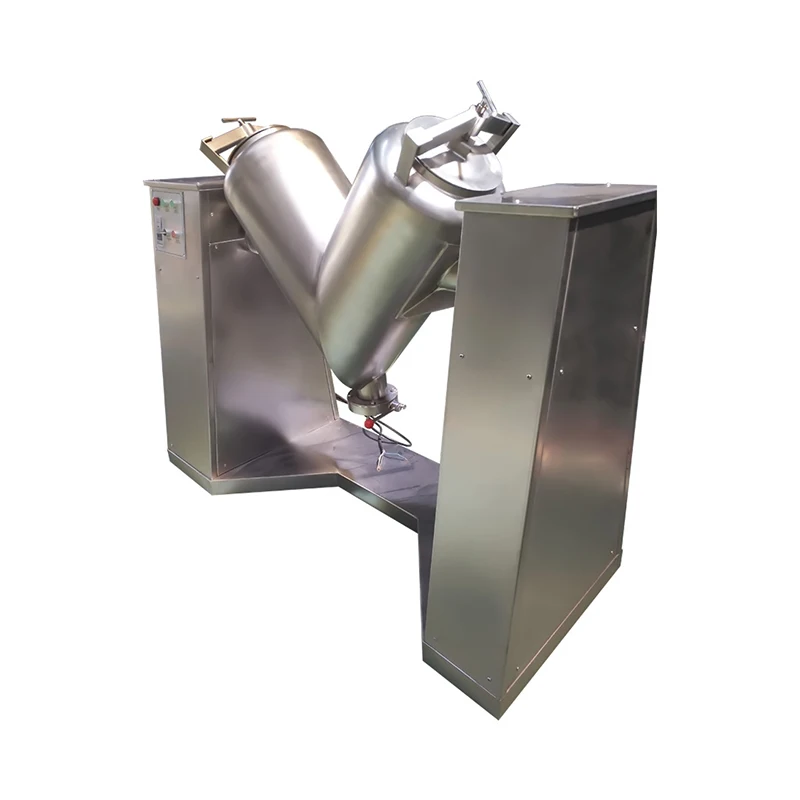

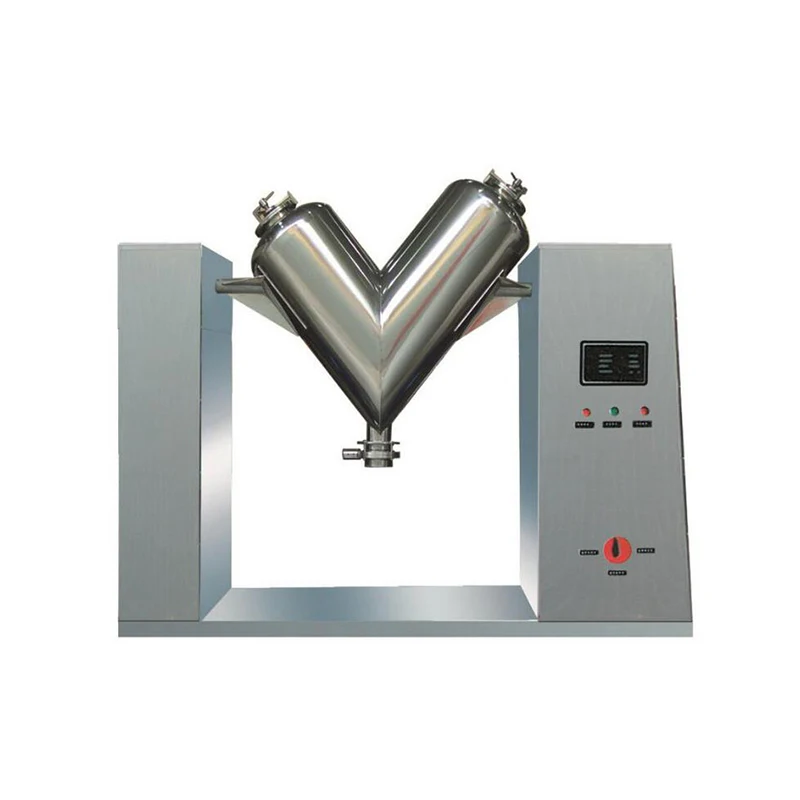

Cw Laboratory Small V Cone Food Protein Mixture Mini Industrial Dry Mixing Machine V Shape Powder Mixer
- Category: >>>
- Supplier: Liaoyang Xianglong International Machinery Trading Co. LTD
Share on (1600764020199):
Product Overview
Description
Product Description
V-type mixer series products for high efficiency asymmetric mixer, it is suitable for chemical, food, medicine, feed, ceramics, metallurgy and other industries of powder or grain material mixing. The machine structure is reasonable, simple, closed operation, convenient in and out of the material, (manual or vacuum feeding) cylinder made of stainless steel material, easy to clean, is one of the enterprise's basic equipment.
V-type mixer is widely used for mixture of powder and granule in kinds of industries,such as
agriculture,chemical,medicine,feed,coating, cosmetics and so on. The V-type mixer has features of evenly mixing, high efficiency and avoid the materials axxumulation. The fully enclosed structure also guarantee no leakage of materials during mixing process.
The V-type mixer is one kind of basic mixing equipment in many industries.

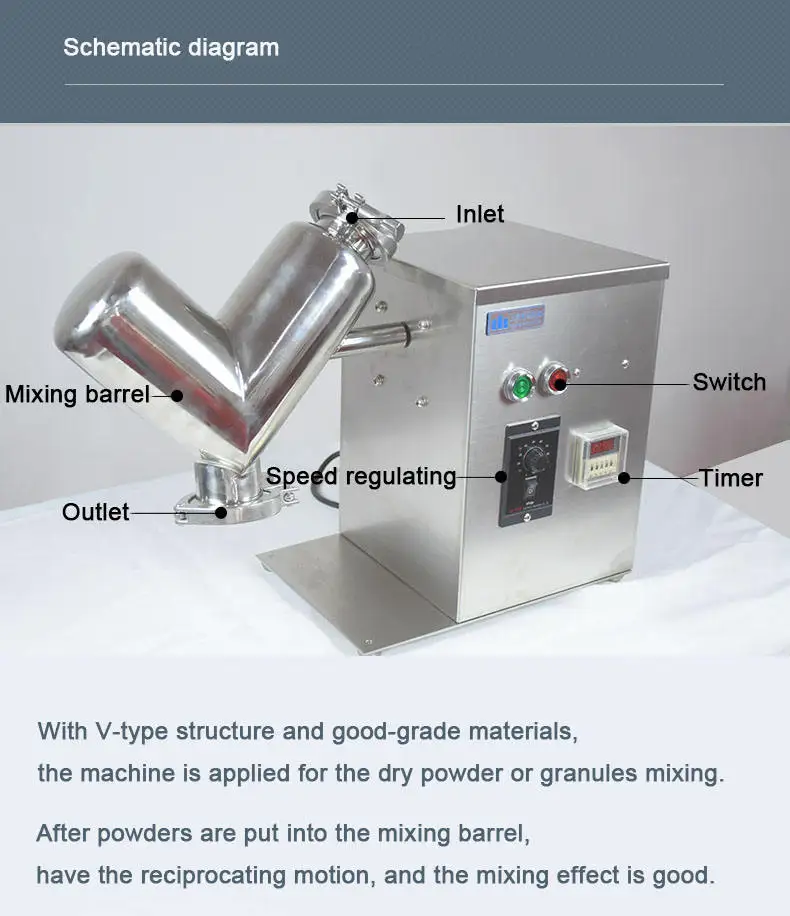

The V type mixer are equipped with one motor and one reducer. The motor will be connect with the reducer with one belt. When the motor is power on, it will drive the running of reducer. Then coupled with the reducer, V-shaped barrel will start running to mix the inside materials up, down, left and right.
agriculture,chemical,medicine,feed,coating, cosmetics and so on. The V-type mixer has features of evenly mixing, high efficiency and avoid the materials axxumulation. The fully enclosed structure also guarantee no leakage of materials during mixing process.
The V-type mixer is one kind of basic mixing equipment in many industries.
The V type mixer are equipped with one motor and one reducer. The motor will be connect with the reducer with one belt. When the motor is power on, it will drive the running of reducer. Then coupled with the reducer, V-shaped barrel will start running to mix the inside materials up, down, left and right.

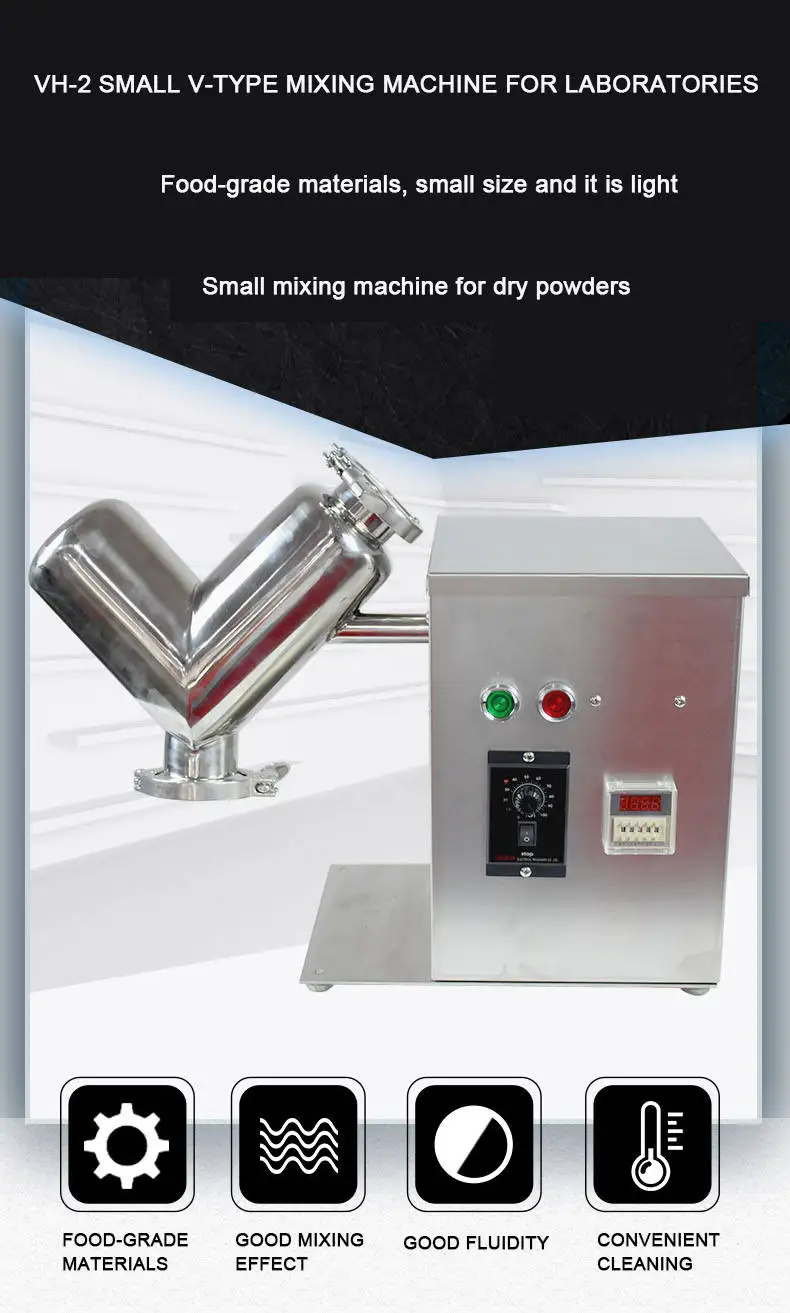

Items | VH-2 | VH-5 | VH-8 | VH-10 |
Barrel volume, L | 2 | 5 | 8 | 14 |
Best mixing volume, L | 0.6 | 2 | 3.2 | 5.6 |
Motor power, Kw | 0.25 | 0.55 | 0.55 | 0.55 |
Rotary speed, rpm | 24 | 24 | 24 | 20 |
Machine size, mm | 450×230×450 | 560×360×560 | 660×360×630 | 925×360×800 |
Max. loading, Kg | 1 | 2.5 | 4 | 7 |
Machine weight, Kg | 20 | 55 | 60 | 90 |
Specification
Features & Benefits
* Evently mixing, high efficiency and can avoid the materials accumulation
* Compact structure, operation simple and maintenance convenience.
* Using stainless steel material, prevent the mixing materials from being polluted.
* No dead angle, no accumulation of materials, high speed, short mixing time and high uniform mixing.
* Running steady and lower noise;
* Equipped with a timing device, it can set mixing time to realize automatic stop.

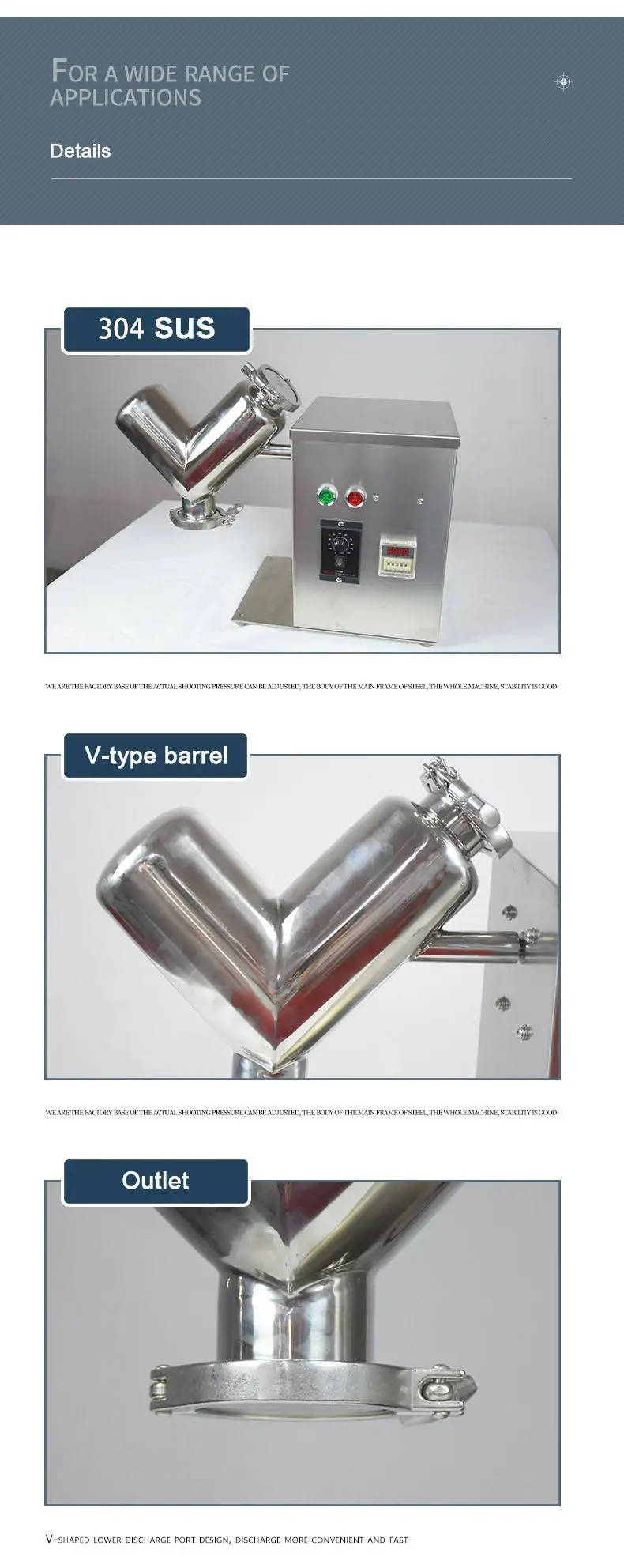

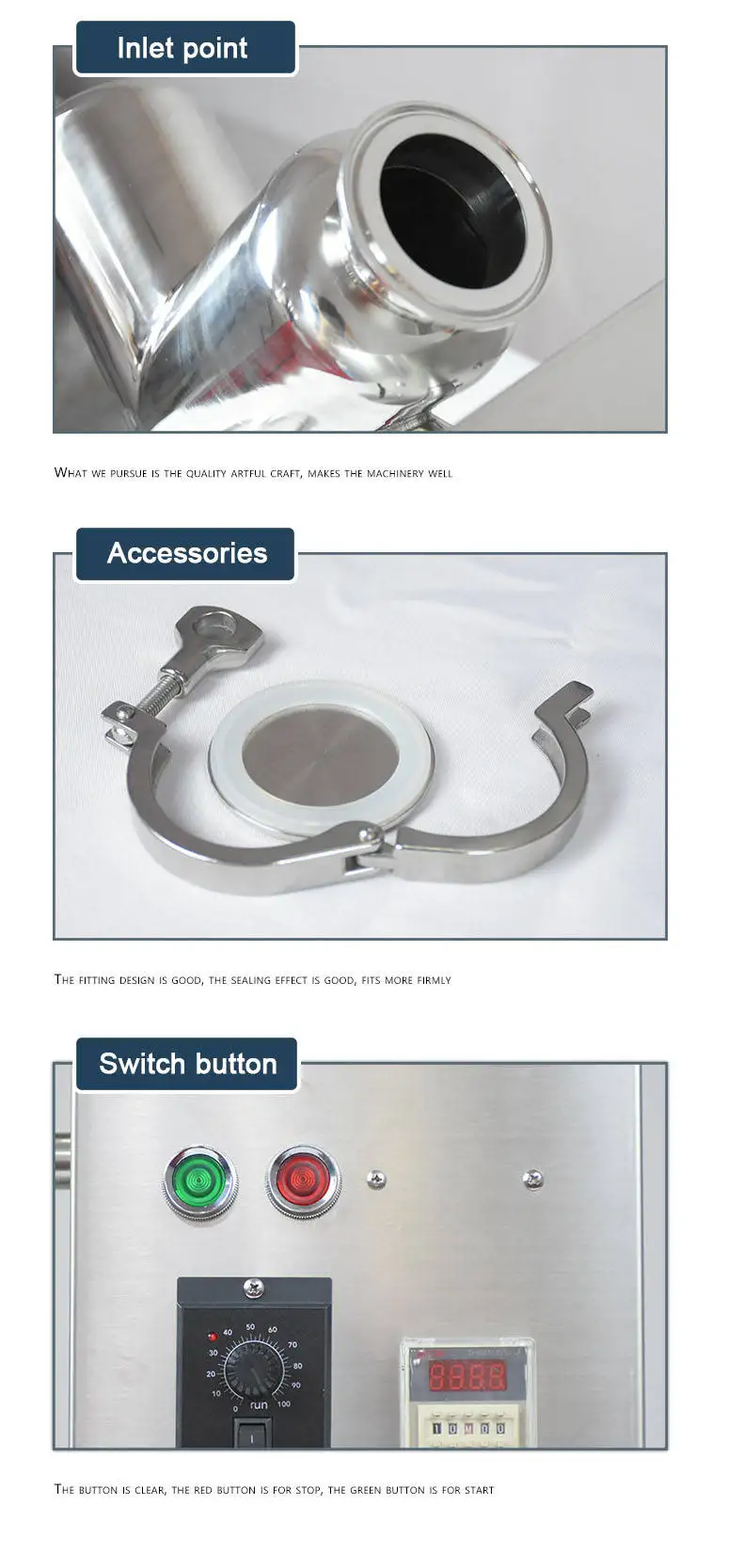

Detailed data of V Type Mixer Machine
* Evently mixing, high efficiency and can avoid the materials accumulation
* Compact structure, operation simple and maintenance convenience.
* Using stainless steel material, prevent the mixing materials from being polluted.
* No dead angle, no accumulation of materials, high speed, short mixing time and high uniform mixing.
* Running steady and lower noise;
* Equipped with a timing device, it can set mixing time to realize automatic stop.
Detailed data of V Type Mixer Machine
Packing & Delivery
Export Wooden Packing
Company Profile
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has
reasonable demand, out machine can be customized.
reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced processing technologies and professional workers, we are confident for our machines quality. And before any machine is delivered, will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS & ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal
between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed? A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5.Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
