Manufacturer Price Automatic Meat Vacuum Packaging Machine In Tanzania price
- Category: >>>
- Supplier: Changzhou City Caihua Packaging Machinery Factory
Share on (1600764072027):
Product Overview
Description
Product Description
Application：
This machine is used for vacuum packaging of ton bag products. For plastic bags, aluminum-plastic bags, paper-plastic bags, etc. can be vacuum-sealed well. Commonly used in vacuum packaging of food materials, medicine, plastic particles, nylon chips, lithium battery powder and other products.

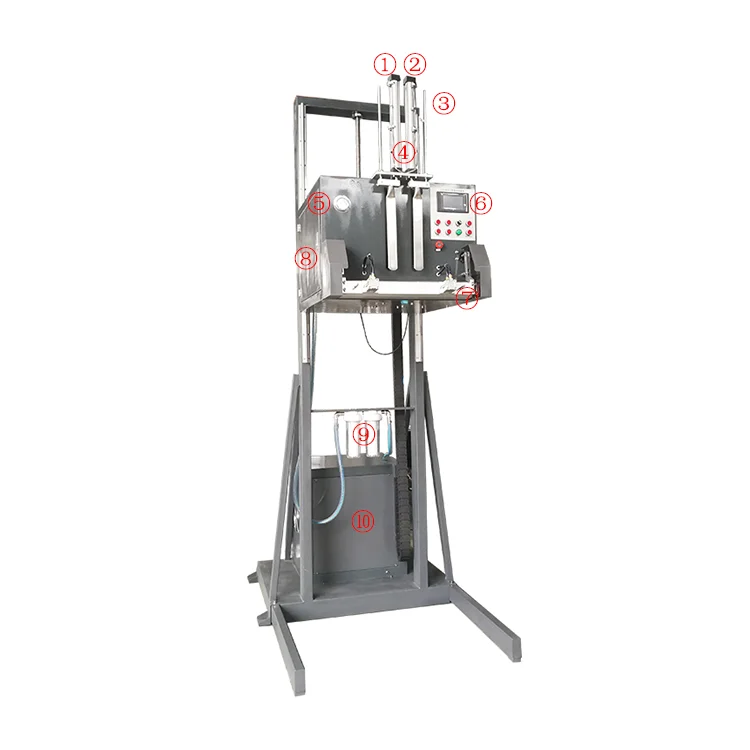

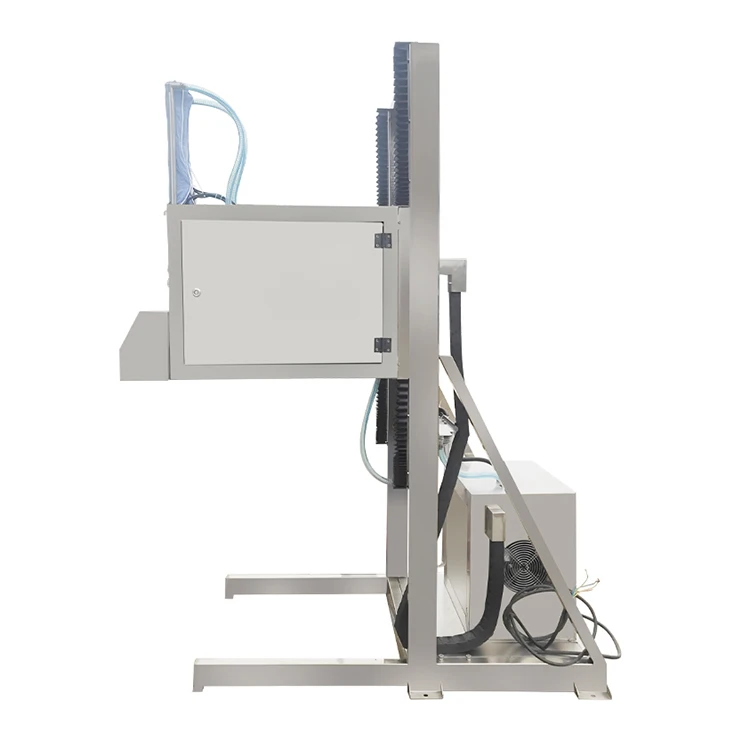

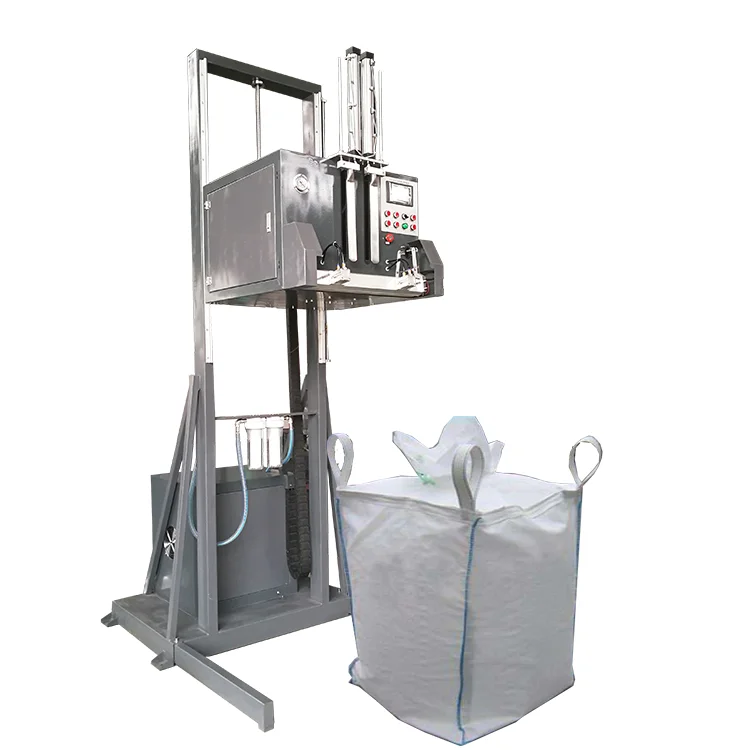

Machine structure

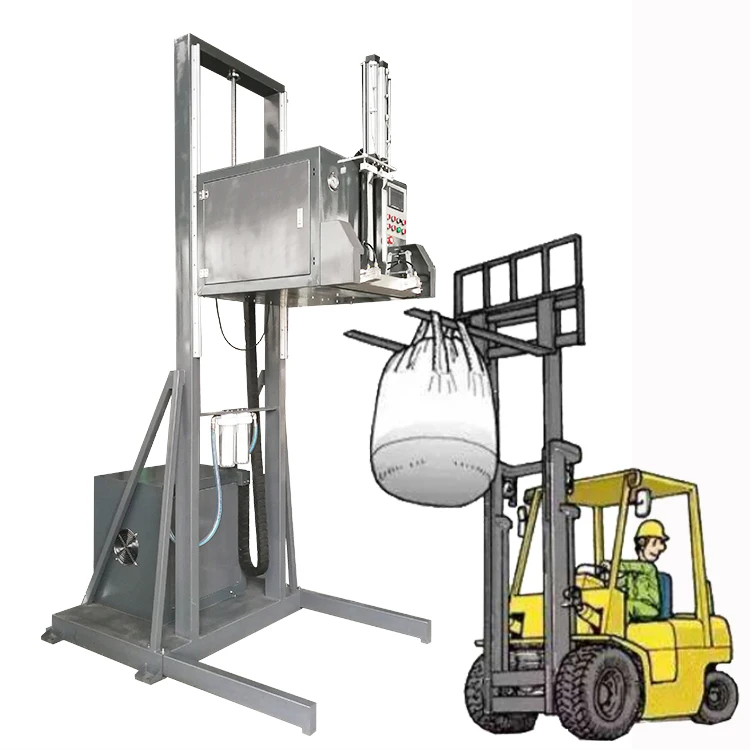

This machine is mainly used for vacuum packaging of large ton bags of large and heavy products.
1: Traction cylinder with left suction nozzle
2: Right suction nozzle traction cylinder
3: The left and right suction nozzles are raised into position
4: Left and right suction nozzle lower limit sensor
5: vacuum gauge
6: Control panel
7: Active bead
8: Cantilever head box
9: Suction filter
10: Vacuum pump box
Carbon steel material
Carbon steel material
Stainless steel
Machine size | L1470*W1450*H3200mm | Sealing length | 600mm（customized） | ||
Voltage | 380V50HZ | Sealing Width | 10mm（customized） | ||
Heating method | Instant heating, double heating | Sealing Height | 1200-2000 mm（customized） | ||
Air pressure | 0.5MPA | Exhaust nozzle stroke | 400mm | ||
Power | 3.5KW | Filter | Level 3 filtration | ||
Working time | 24 hours of continuous operation | ||||

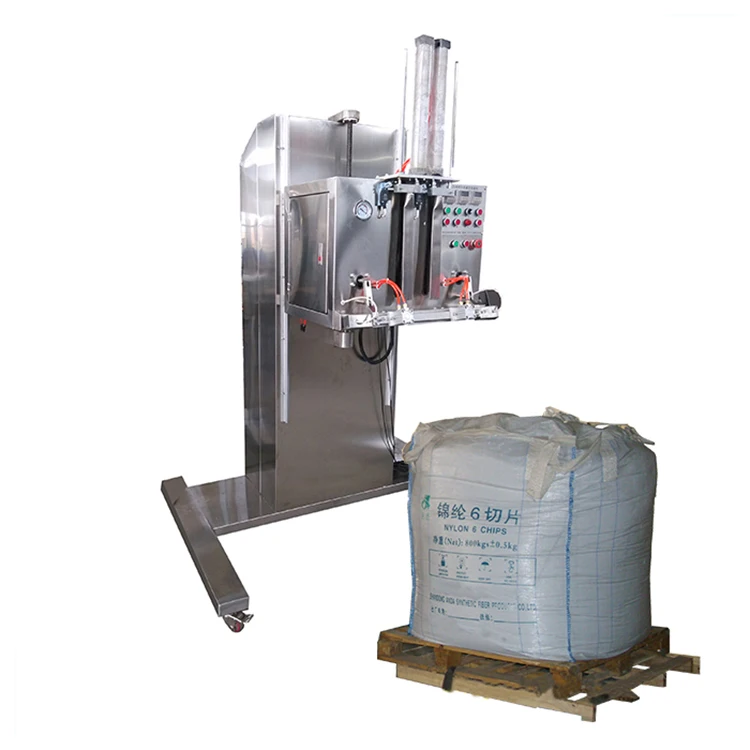

Different models
Different models
Main Features
GOOD QUALITY COMES FROM DETAILS
We are confident about our product quality because of the Quality Assurance System backed by technical capabilities and production capacity. We believe “all steps in production are quality control processes”.
PLC Control panel
Electrical box
Machine head

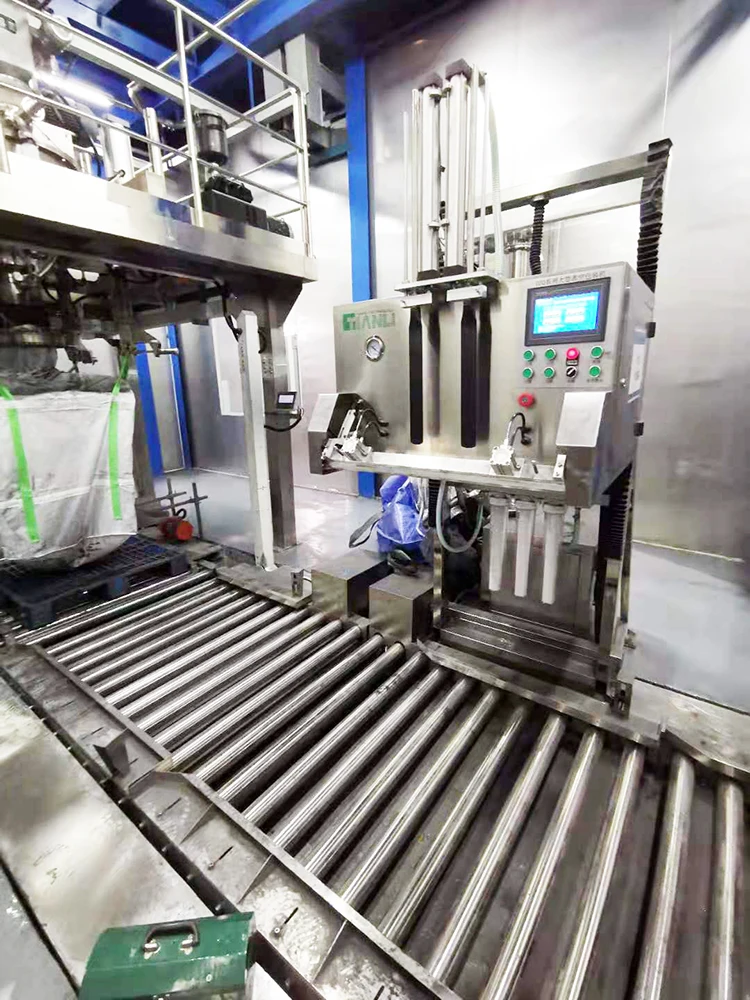

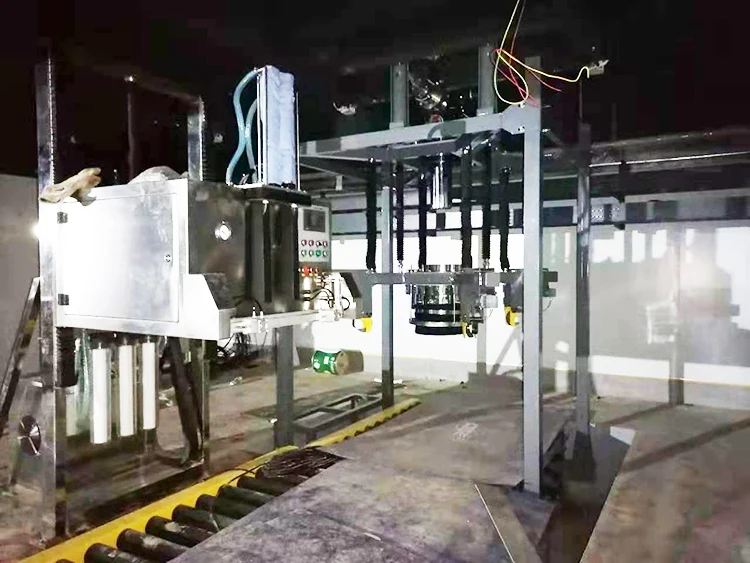

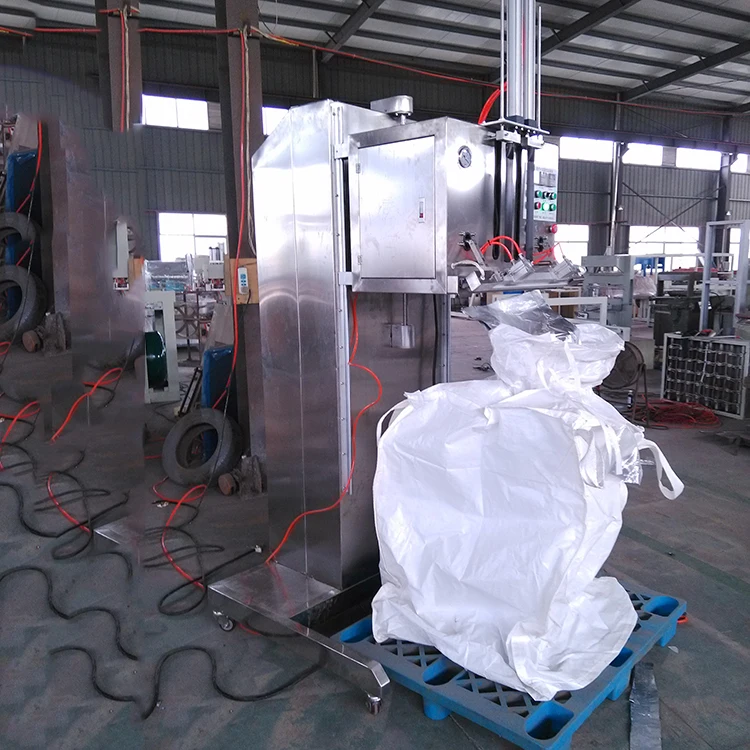

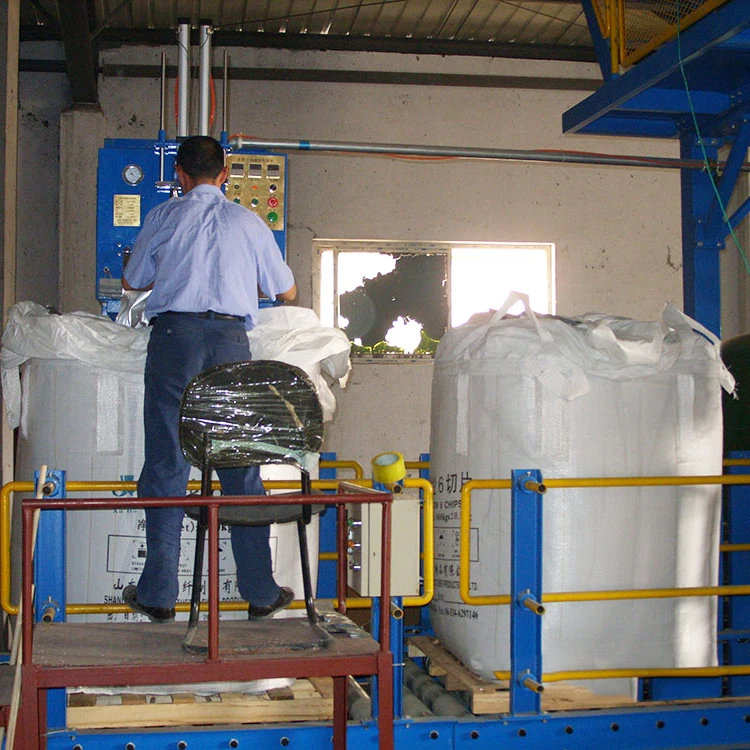

Application
Application
Application
1.Filtration method: 5 micron dust two-stage filtration
2.Head height adjustment method: hand wheel manual adjustment
3.Vacuuming method: external pumping, 2 pumping nozzles, vacuum pump pumping directly.
4.Heating method: double-sided heating, instant heating, with repeated heating function, used to seal particularly thick bags
5.Power mode: pneumatic, air pressure is 0.5MPA, 2 air nozzle telescopic cylinders, 2 bag opening compression cylinders, 4 sealing compression cylinders. (The air compressor is prepared by the user).
3.Vacuuming method: external pumping, 2 pumping nozzles, vacuum pump pumping directly.
4.Heating method: double-sided heating, instant heating, with repeated heating function, used to seal particularly thick bags
5.Power mode: pneumatic, air pressure is 0.5MPA, 2 air nozzle telescopic cylinders, 2 bag opening compression cylinders, 4 sealing compression cylinders. (The air compressor is prepared by the user).
Different materials, sizes, functions have different prices, the price is for reference .Please contact with customer service and let us know your needs.
Working Principle
Heat-sealing: Direct heat-sealing function activates the button switch (only works when both the left and right suction nozzles are in place)
Vacuum heat-sealing: Vacuum first and then heat-sealing function to start the button switch (the left and right suction nozzles drop and come off when they rise to the sensor).
Vacuum heat-sealing: Vacuum first and then heat-sealing function to start the button switch (the left and right suction nozzles drop and come off when they rise to the sensor).
Sample
Company Introduction
Customer Feedback
Packing&Shipping
Can be packed as required
Not include packaging costs
Different models have different sizes
FAQ
HOW TO FIND CAIHUA MACHINE?
* Search Alibaba, Made in China, Google, Youtube and find suppliers and manufacture and not traders.
* Visit exhibition in different countries.
* Send CAIHUA Machine an request and tell your basic inquiry.
* CAIHUA Machine sales manager will reply you in short time and add instant chatting tool .
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
* If we can full fill your request and you interested in our products, you may pay a visit to CAIHUA Machine site.
* The meaning of visiting supplier, because seeing is believing, CAIHUA Machine with own manufacture and developed& research
team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
* Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to
buy.
* By letter of credit, you can lock the delivery time easily.
* After the factory visit, You can ensure the facticity of our bank account.
SEE CAIHUA MACHINE HOW TO ENSURE THE QUALITY!
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
* Each component before assembly needs strictly control by inspecting personnel.
* Each assembly is in charged by a master who has working experience for more than 5 years.
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours
to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF CAIHUA MACHINE!
* After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or
instant tools.
* After the commissioning, we will package the equipment by standard export package for shipment .
* According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
* Engineers, sales managers
* Search Alibaba, Made in China, Google, Youtube and find suppliers and manufacture and not traders.
* Visit exhibition in different countries.
* Send CAIHUA Machine an request and tell your basic inquiry.
* CAIHUA Machine sales manager will reply you in short time and add instant chatting tool .
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
* If we can full fill your request and you interested in our products, you may pay a visit to CAIHUA Machine site.
* The meaning of visiting supplier, because seeing is believing, CAIHUA Machine with own manufacture and developed& research
team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
* Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to
buy.
* By letter of credit, you can lock the delivery time easily.
* After the factory visit, You can ensure the facticity of our bank account.
SEE CAIHUA MACHINE HOW TO ENSURE THE QUALITY!
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have
accumulated professional processing methods over the past years.
* Each component before assembly needs strictly control by inspecting personnel.
* Each assembly is in charged by a master who has working experience for more than 5 years.
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours
to ensure the stable running in customers' factory.
THE AFTER-SALE SERVICE OF CAIHUA MACHINE!
* After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or
instant tools.
* After the commissioning, we will package the equipment by standard export package for shipment .
* According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
* Engineers, sales managers
