3KVA 2400W 220VAV Pure Sine Wave Online UPS no break power supply ups built in battery
- Category: >>>
- Supplier: Shenzhen Zhongyuan Chuangda Technology Co. Ltd.Shenzhen Ltd.
Share on (1600764079040):
Product Overview
Description
Product Description
3KVA 2400W pure sine wave online UPS
Online UPS Function & Characteristic;
- AVR,
- DSP technology,
- True online UPS,
- LCD status display,
- Overload and short circuit protection,
Online UPS Specification:
| CT SERIES ONLINE HIGH FREQUENCY UPS (1-3KVA) | |||||||
| Model | CT1K | CT1KS | CT2K | CT2KS | CT3K | CT3KS | |
| Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | ||||
| Input | Voltage | 115- 300Vac | |||||
| CUrrent | 6A(max) | 12A(max) | 16A(max) | ||||
| Frequency | 50Hz±5% | ||||||
| COSΦ | According EN60555-2(≥0.95) | ||||||
| Output | Voltage | 220Vac ±3% | |||||
| Current | 4.55A | 9.1A | 13.6A | ||||
| Frequency | 50Hz±0.2% (battery mode) | ||||||
| COSΦ | 0.8(lag) | ||||||
| Waveform | Sine wave | ||||||
| WaveForm distortion | Linear load<3% | ||||||
| Non linear load<6% | Non linear load<5% | ||||||
| Overload protection | >130%→200ms >150%→10ms | ||||||
| Transfer time | 0ms | ||||||
| Battery | Sealed lead acid maintenance-free battery | ||||||
| External battery voltage | 12V7AH*3PCS | 36Vdc | 12V7AH*6PCS | 72Vdc | 12V7AH*8PCS | 96Vdc | |
| Ambient | Temperature | 0 - 40oC | |||||
| Humidity | 0 -95% | ||||||
| Communication | 9Pin D type connector (RS232) | ||||||
| Size (WxDxH) mm | 350*144*236 | 425*190*336 | 425*190*337 | ||||
| Weight(kg) | 12 | 5.7 | 22.2 | 10 | 26.3 | 10 | |

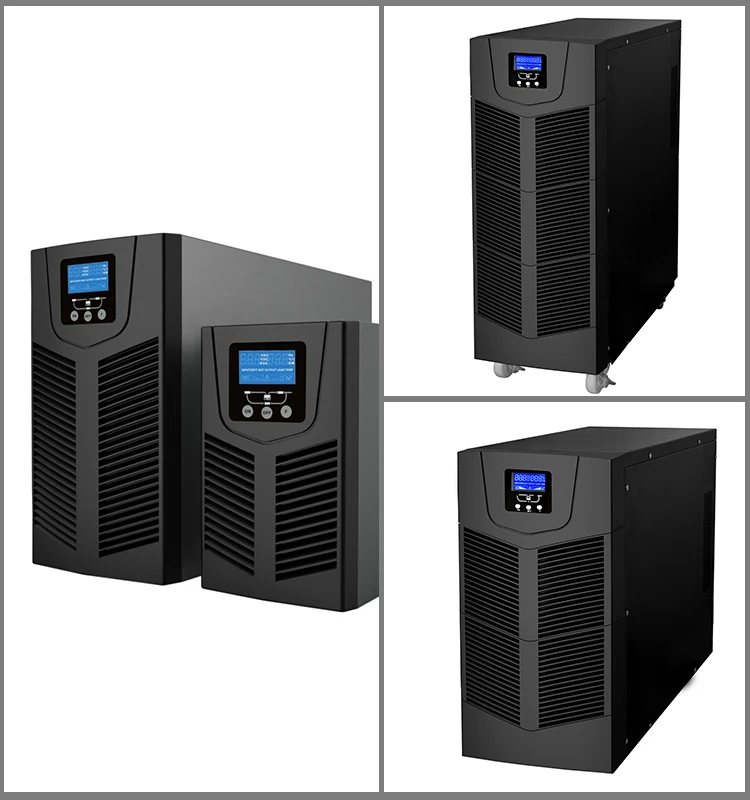

Online UPS Photos
Packaging & Shipping
- Payment T/T,L/C, western union and money gram,
- T/T 30% deposit, balance in full before shipment,
- Packing Color box+plastic bags+carton / as customer request,
- Warranty 1 year.
Our Services
1.We are Alibaba Assessed 5 years Gold Supplier;
2.We are a factory manufacturing UPS power,inverter and battery. best production capability ,best quality control, Best Service;
3.Inspected by the Inspection Institution of China Quality Certification Centre;
4.100% QC inspection Before Shippment;
5. CE/ISO listed,competitve price.
FAQ
Q 1. If you offer the installation help?
A. coz oversea far away distance, the installation fee is expensive. so we always offer the installation design diagram, the clients set by themselves according to the drawing. And we will offer the help timely whenever you needed.
Q 2. if this item has isolated transformer ?
A. online high frequency ups without isolated transformer.
online low frequency ups built-in isolated tranformer.
Q 3. How to maintenance when ups didn't work?
A. please strictly do accordance with the user manual , and do not excessive discharge . usually our UPS with lower maintenance. but you can contact us when any troubles happen, our engineer will give you advice asap.
Q 4.Would you accept to use our logo ?
A.it absolute no problem to do OEM ( print your logo on UPS).
Certifications
Company Information
Shenzhen Zhongyuan Chuangda Technology Co. Ltd (ZYUPS), with our brand IWELL,was founded in 1997. we are a professional high-tech high precision and high quality enterprise with international trade experience specialized in the development manufacture sale and after-sales service of UPS (Uninterrupted Power System), solar inverter and Storage Lead Acid Battery.
