CNC 12 Inch Milling Vise Precision GT300 gad tongs Modular Clamping Vise
- Category: >>>
- Supplier: Linyi Reyok Electronic Co. Ltd
Share on (1600764120397):
Product Overview
Description
Product name:
CNC 12 Inch Milling Vise Precision GT300 gad tongs Modular Clamping Vise
ADVANTAGE:

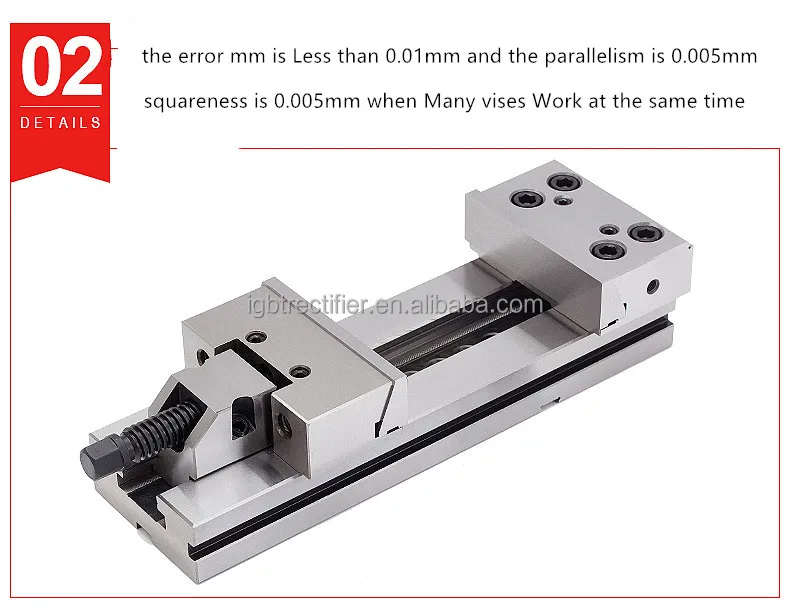

1.the error mm is Less than 0.01mm and the parallelism is 0.005mm/100mm,squareness is 0.005mm when Many vises Work at the same time

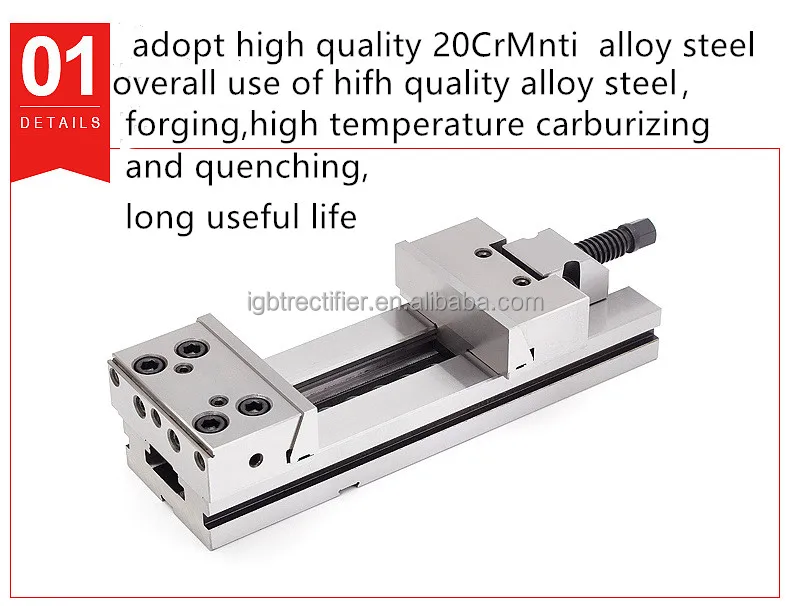

2.adopt high quality 20CrMnti alloy steel,polishing treatment, overall use of hifh quality alloy steel ,forging,high temperature carburizing and quenching,long useful life

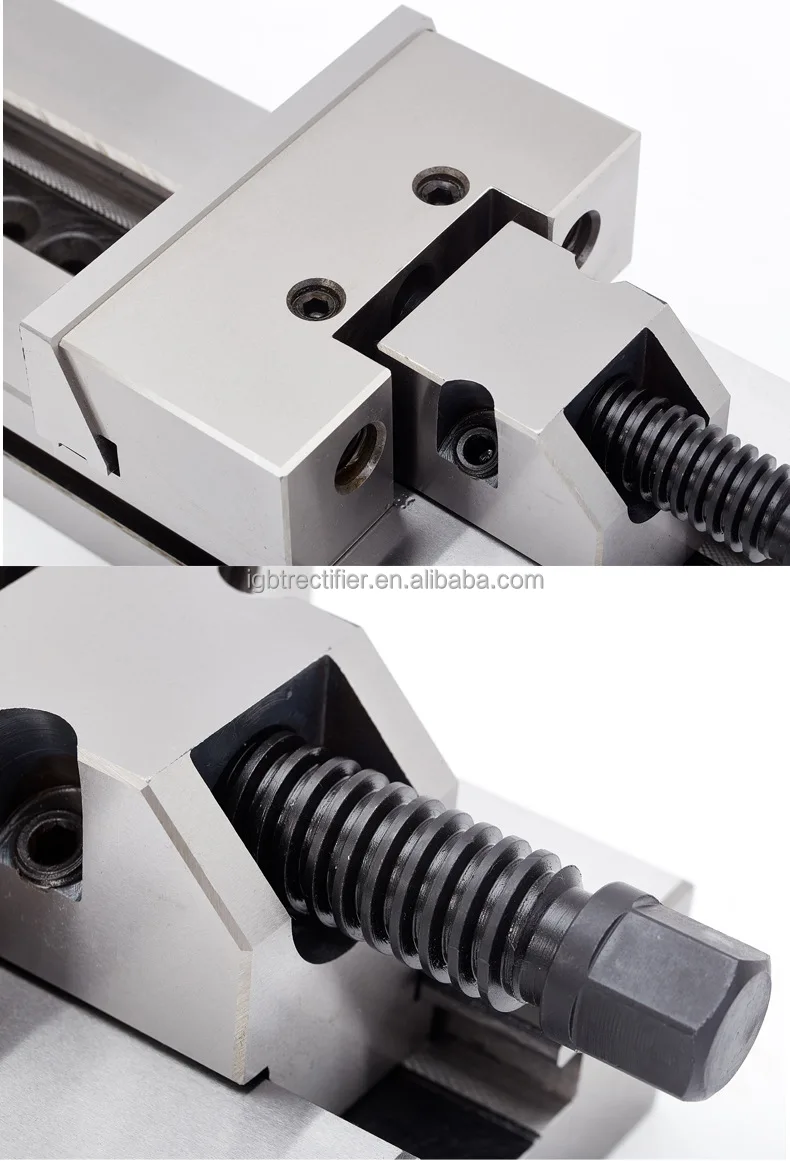

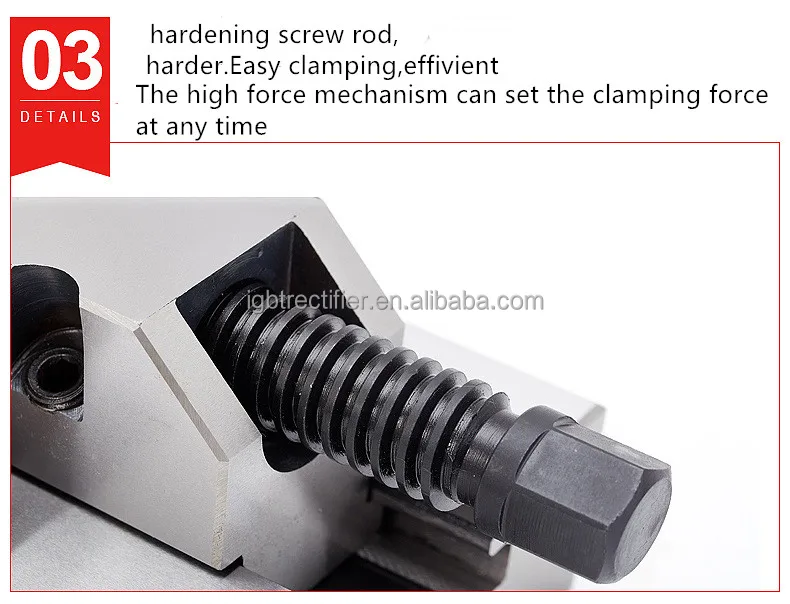

3.High-temperature quenching, carburizing and hardening screw rod, harder.Easy clamping,effivient and labor-saving,can reduce the labor intensity of employees.
The high force mechanism can set the clamping force at any time,and repeated use many times to maintain a considerable clamping force,and consistent accuracy,and designed to have clamping force overloadprotection device

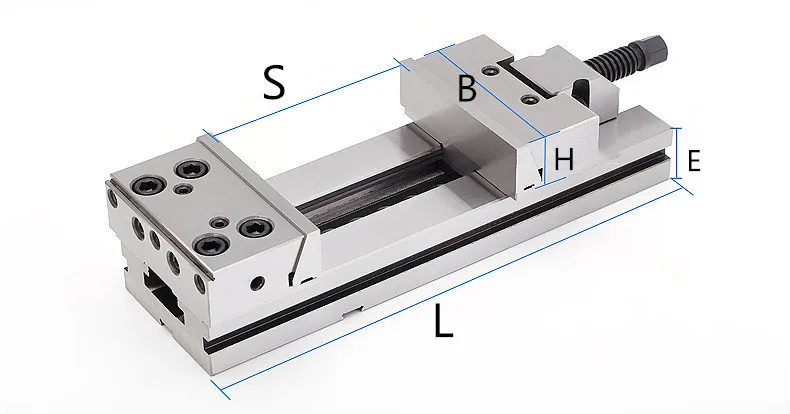

VISE Specification
| MODEL | SIZE | B | E | H | S | L | Clamping force(KGS) |
| GT100 | 100*100 | 100 | 30 | 30 | 100 | 270 | 3000 |
| GT125 | 125*150 | 125 | 40 | 40 | 150 | 345 | 3000 |
| GT150A | 150*200 | 150 | 50 | 50 | 200 | 420 | 5000 |
| GT150B | 150*300 | 150 | 50 | 50 | 300 | 520 | 5000 |
| GT175A | 175*200 | 175 | 58 | 60 | 200 | 455 | 6000 |
| GT175B | 175*300 | 175 | 58 | 60 | 300 | 555 | 6000 |
| GT175C | 175*400 | 175 | 58 | 60 | 400 | 655 | 6000 |
| GT200A | 200*200 | 200 | 70 | 65 | 200 | 495 | 10000 |
| GT200B | 200*300 | 200 | 70 | 65 | 300 | 595 | 10000 |
| GT200C | 200*400 | 200 | 70 | 65 | 400 | 695 | 10000 |
| GT200D | 200*500 | 200 | 70 | 65 | 500 | 795 | 10000 |
| GT200E | 200*600 | 200 | 70 | 65 | 600 | 895 | 10000 |
| GT300A | 300*200 | 300 | 78 | 80 | 200 | 535 | 12000 |
| GT300B | 300*300 | 300 | 78 | 80 | 300 | 635 | 12000 |
| GT300C | 300*400 | 300 | 78 | 80 | 400 | 735 | 12000 |
| GT300D | 300*500 | 300 | 78 | 80 | 500 | 835 | 12000 |
| GT300E | 300*600 | 300 | 78 | 80 | 600 | 935 | 12000 |

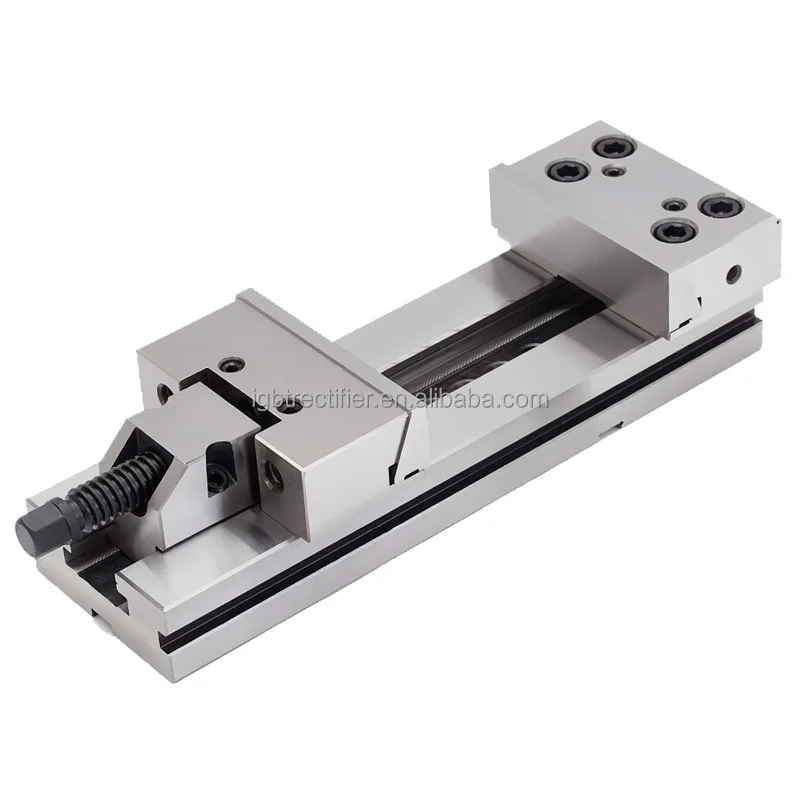

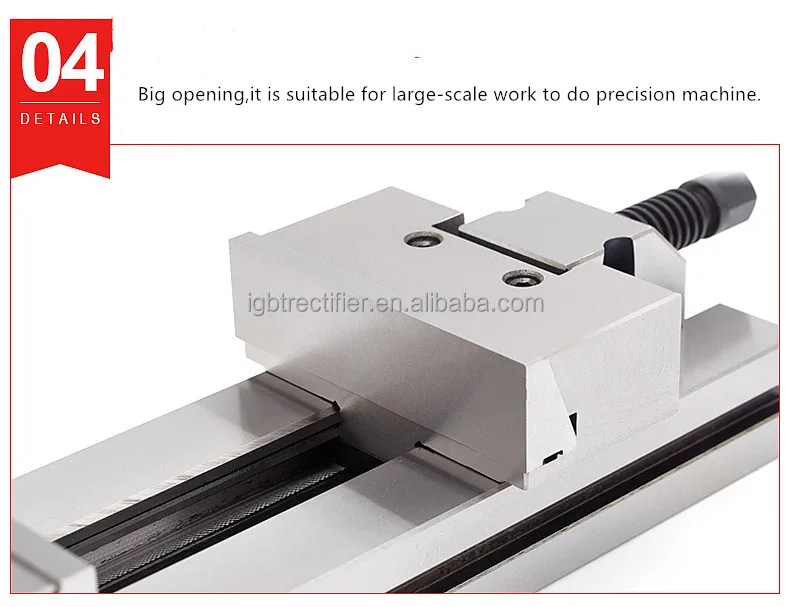

VIse details
VISE PACKAGE
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 50 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
