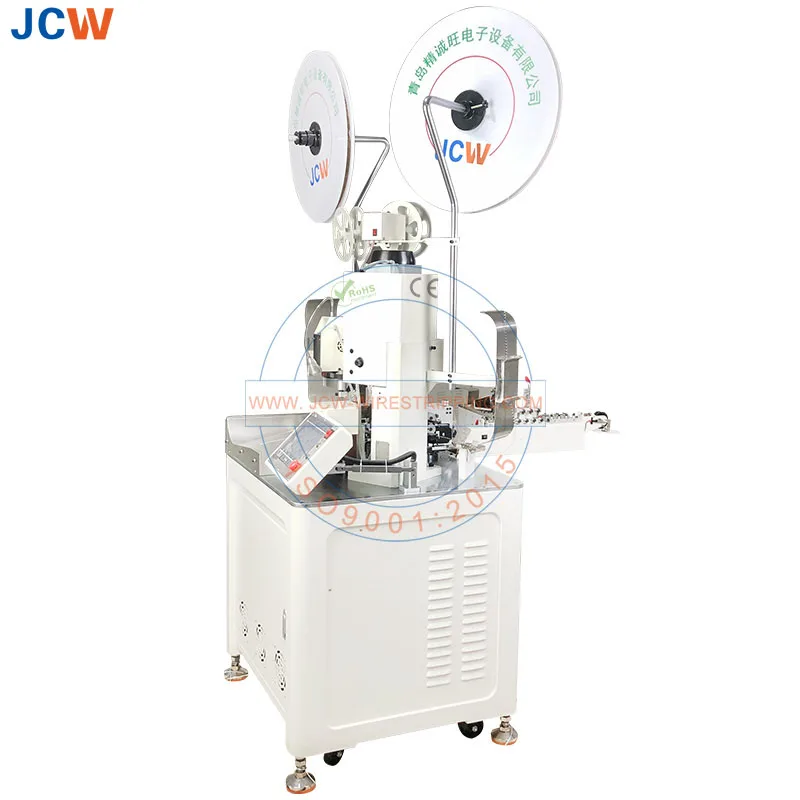

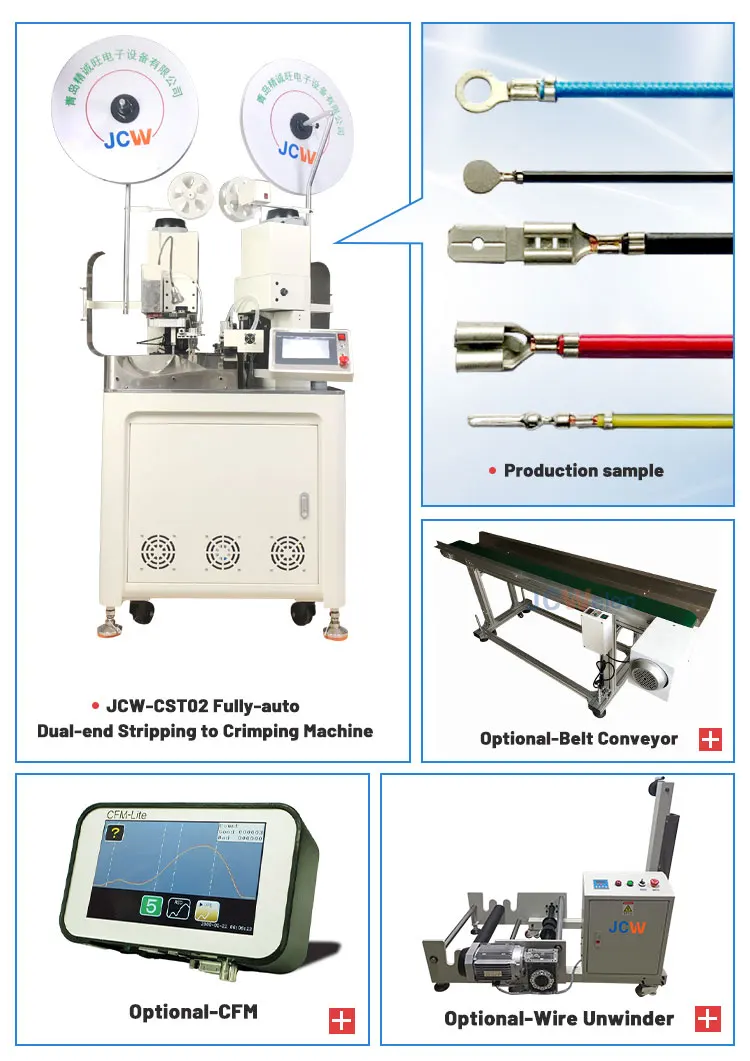

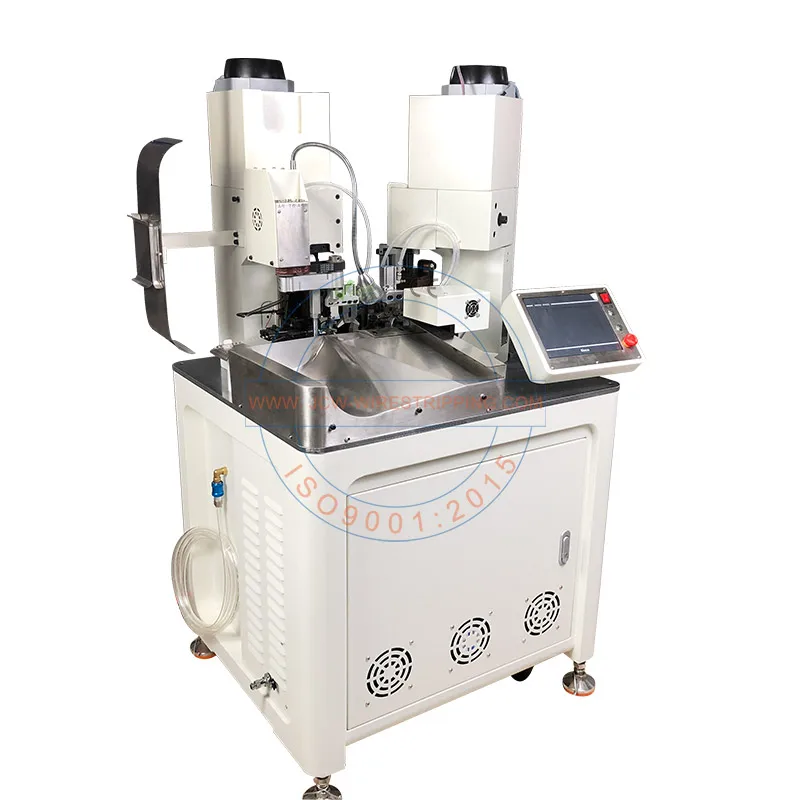

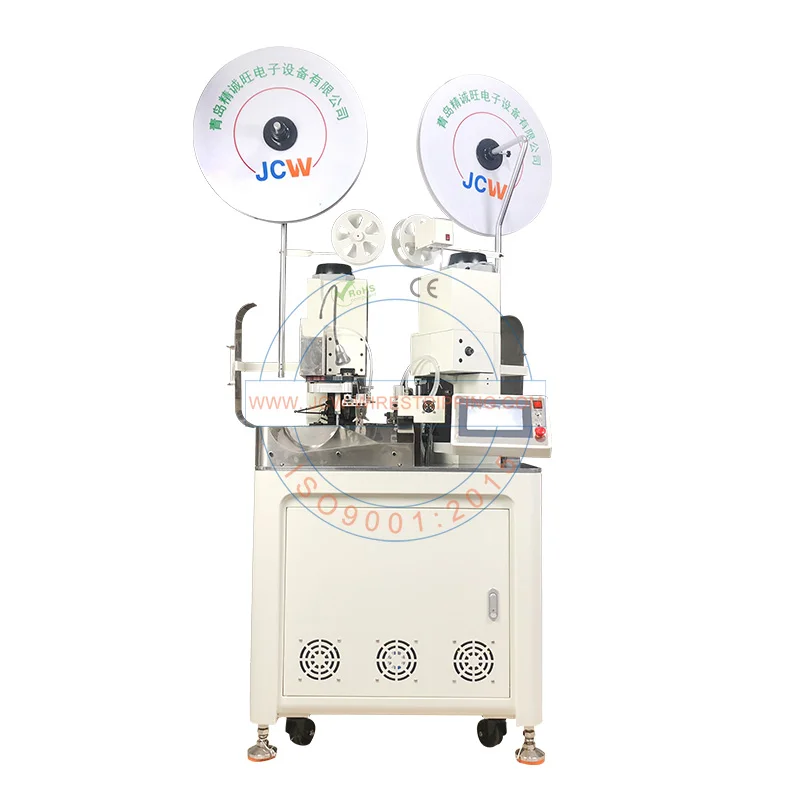

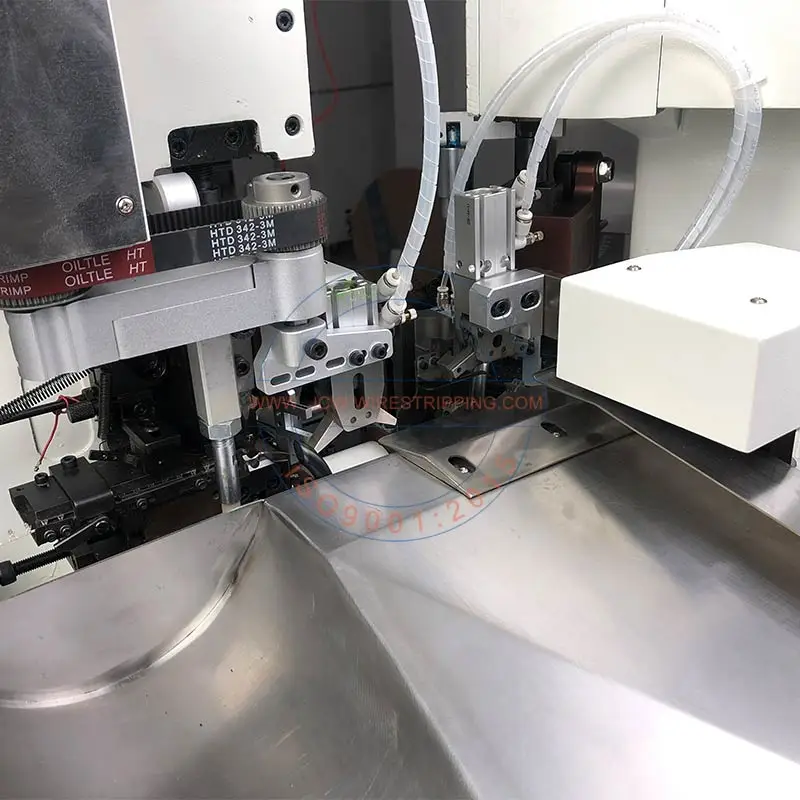

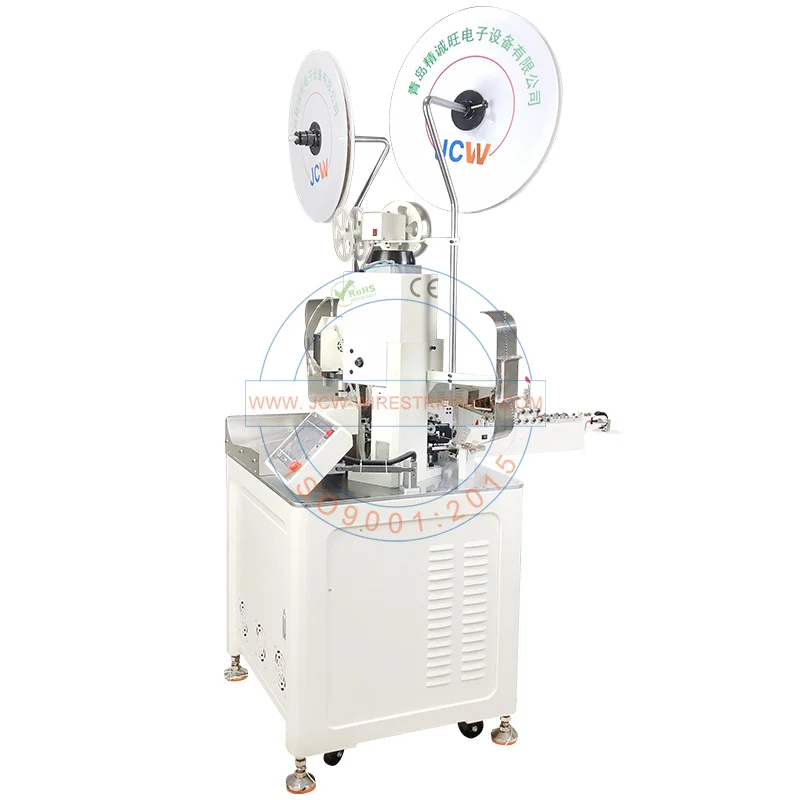

JCW CST02 Fully automatic wire cutting and crimping cable stripping two sides terminal pressing USB machine

Function

Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Strip length

Wire cross-section

AWG 32 -18

Strip length

0.1 - 15 mm

Cut length ( L )

10 - 9999 mm

Crimp force

18 KN [ 1.8 tons ]

Detector

Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]

Production rate

4500 pcs/h by 100 mm wire length

Data library

100 programs

Display

7" touch screen, English / Chinese  [other languages on request]

Power supply

AC 220V ± 10%, 50 / 60 Hz [ 110V on request ]

Air supply

0.4 - 0.6 MPa [ Clean and dry air ]

Dimensions

L 780 x W 650 x H 1380mm

Weight

290 KG
