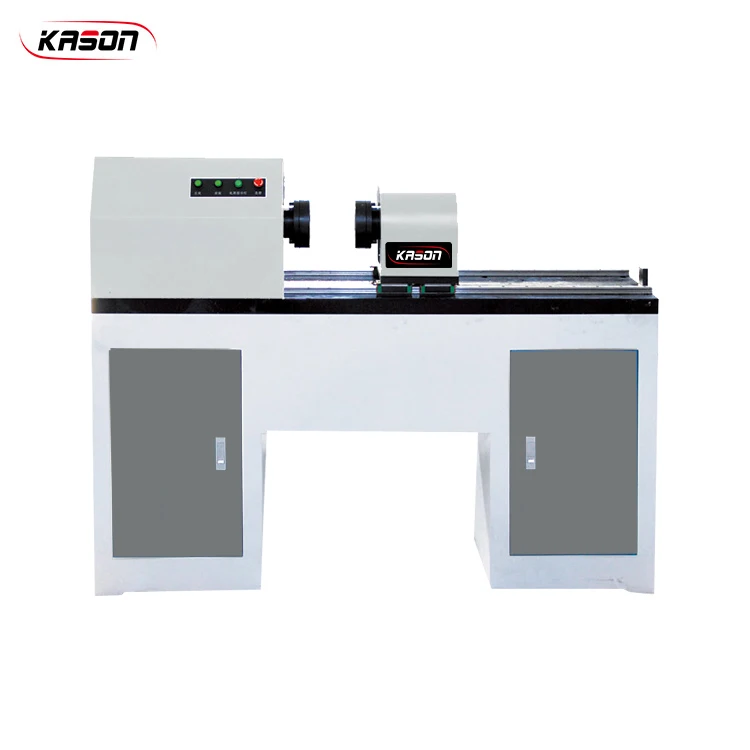

Chinese factory NDS 500 digital display metal material torsion testing machine price
- Category: >>>
- Supplier: Jinan Kason Testing Equipment Co. Ltd.
Share on (1600764196161):
Product Overview
Description

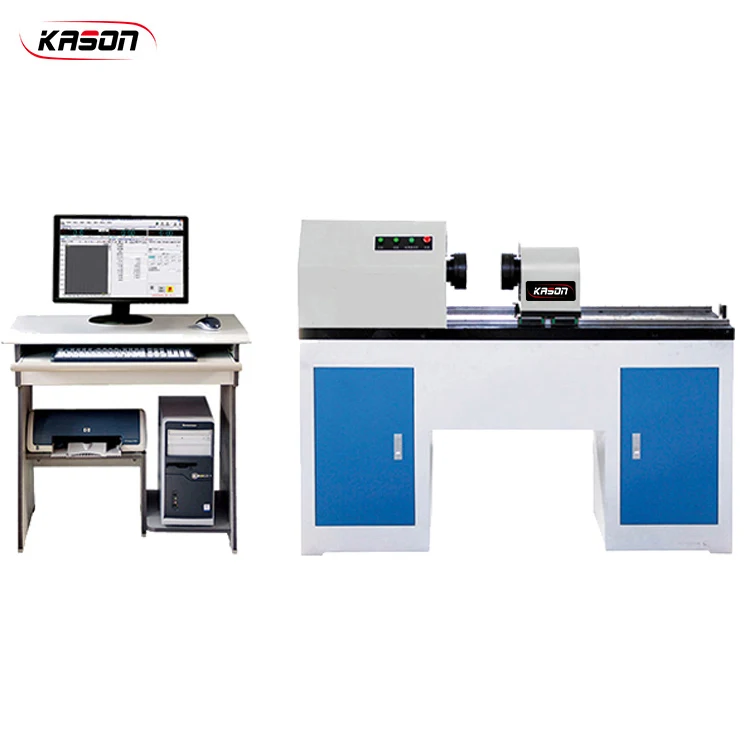

high quality wire cable computer control bending and torsion testing machine
Product Description
1. Application
This series materials torsion testing machine is used for torsion test of metal materials, nonmetallic materials, composite
materials and components.
2. Standard
GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”
This series materials torsion testing machine is used for torsion test of metal materials, nonmetallic materials, composite
materials and components.
2. Standard
GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”
Specification
Model | NDS-200 | NDS-500 | NDS-1000 | NDS-2000 | NDS-3000 | NDS-5000 | |||||
Max torque (N/m) | 200 | 500 | 1000 | 20000 | 3000 | 5000 | |||||
Test class | 1 class | ||||||||||
Control method | single chip control | ||||||||||
Torque test range(F·S) | 2%-100%F·S | ||||||||||
Torque value accuracy | ≤±1 | ||||||||||
Torque display resolution | 1/5000 | ||||||||||
Angle value accuracy (%) | ≤±1 | ||||||||||
Angledisplay resolution(°) | 0.01 | ||||||||||
Max torque angle | 99999° | ||||||||||
Torque angular rate control rang(°/min) | 0.05-800 | ||||||||||
Effective distance between chucks (mm) | 600 | ||||||||||
Test rotating direction | Two ways | ||||||||||
Power | 220V±10%, 50Hz | ||||||||||
