Marcespe airless UHS SPEED Russian TTO E50 editing QR code on screen directly Thermal Transfer Overprinter no need computer
- Category: >>>
- Supplier: Beijing Marcespe Machinery Equipment Co. Ltd.
Share on (1600764239158):
Product Overview
Description
Product Description

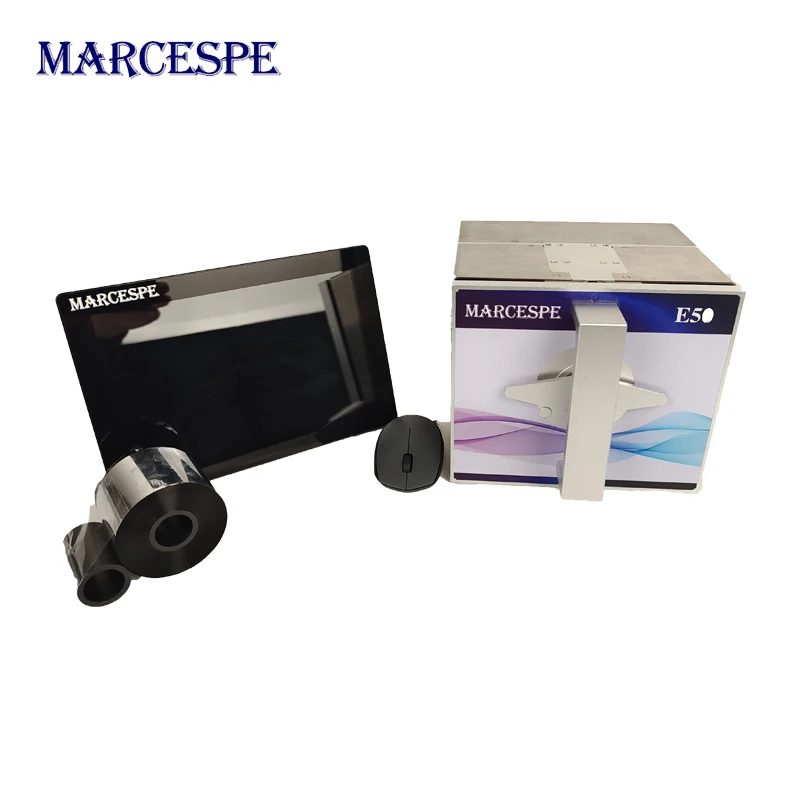

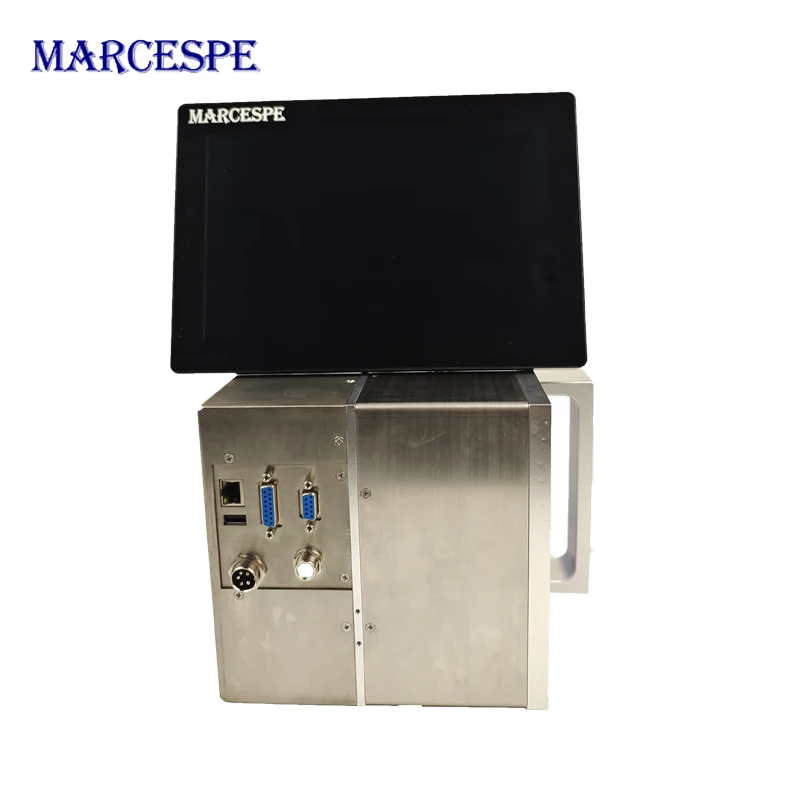

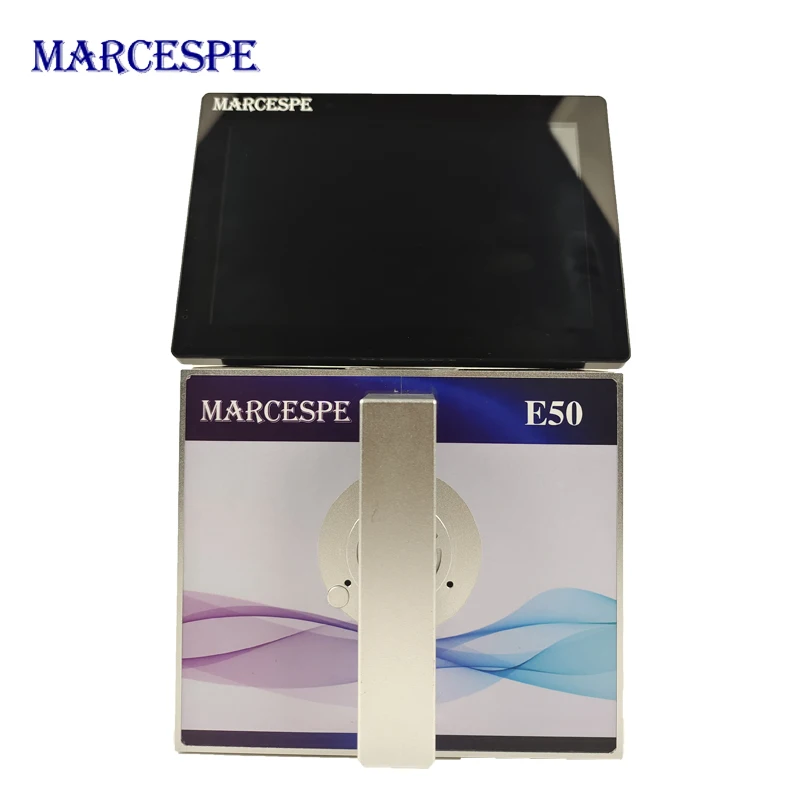

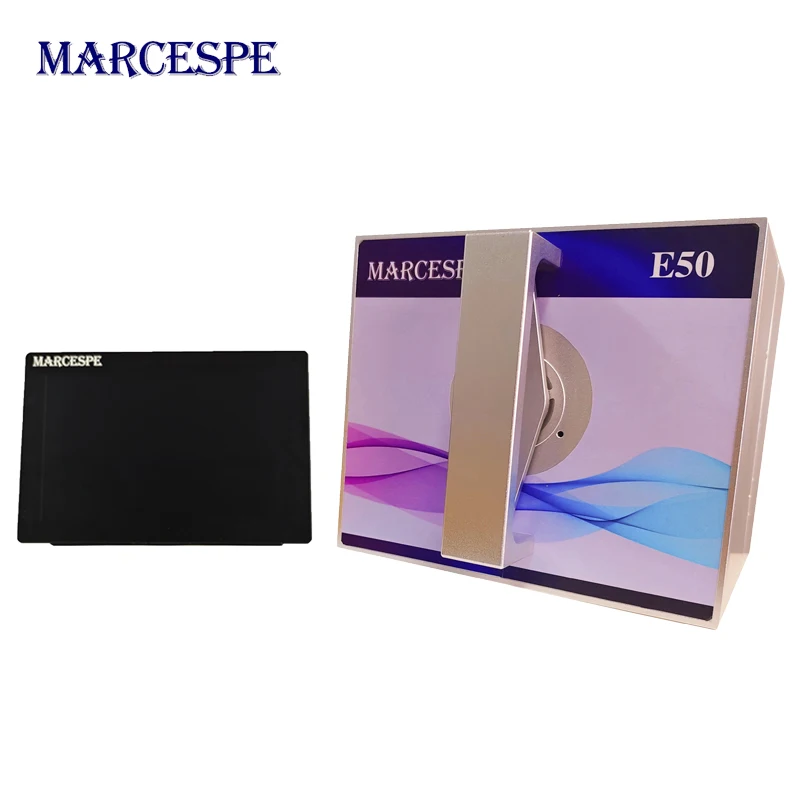

Marcespe High speed large area airless themal transfer overprinter (E30&E50)

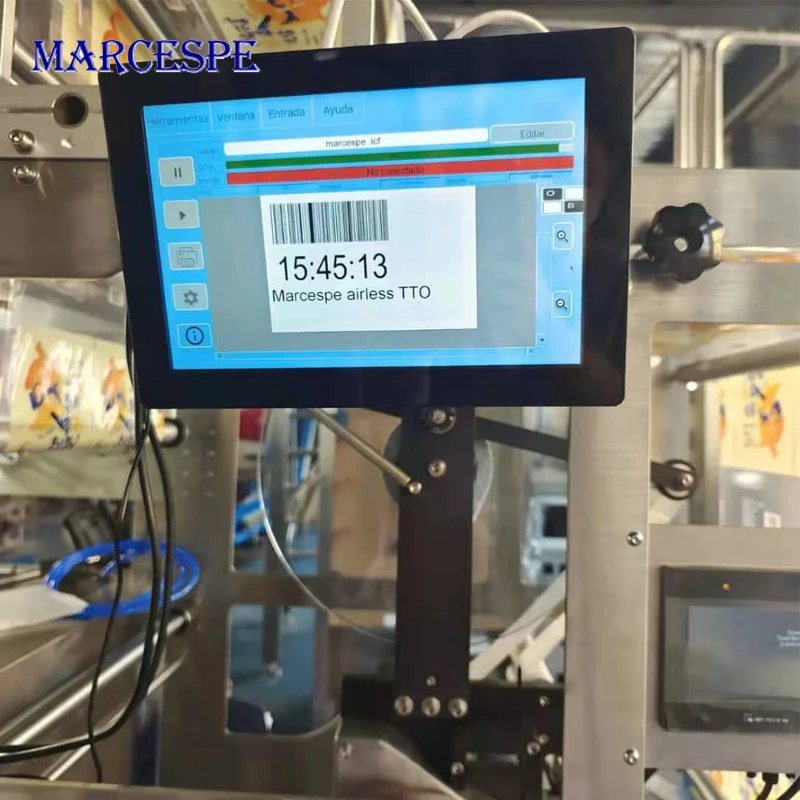

Marcespe E series thermal transfer overprinter is an intelligent coding machine with no airsource, 450 times high-speed , computer send to printer message directly with internet .Automatic calibration of the print head,large printing area 200mm, and edite directly on printer screen directly to print.We provide users with a full range of coding solutions. It can be widely used in various flexible packaging fields such as snack food, instant food, baked food, candy, frozen and refrigerated food, health food, medicine, tissue paper, cosmetics and so on
Specification
E30 | E50 | ||
Print head | 32mm 300dpi | 53mm 300dpi | |
One botton to make the print head automatically aligns and start to print without shims or tools | |||
Intermittent: 32mm x 75mm | Intermittent: 53mm x75mm | ||
Continuous: 32mm x 200mm | Continuous: 53mm x 200mm | ||
Intermittent: 2-30 m/min | |||
Continuous: 0.5 - 36 m/min | |||
Intermittent: 350 times/min | |||
Continuous: 450 times/min | |||
Language | Your mother language software system | Your mother language software system | |
keyboard | Your mother language keyboard | Your mother language keyboard | |
Ribbon length | 800m(out) | 800m(out) | |
Ribbon width | 22-33mm | 33-55mm | |
Capable content | Dat&Time, Variable Info, Image, Table Info, Barcode, QR Code, Serial Info, etc. | ||
Barcode, QR Code | Codel 28(GS1), EANX, Codel 1, QRcode(GSI), C25matrix, C25inter, C25iata, Upca,UDI, | ||
Touch screen controller | Upce, EAN 128, PDF417, DataMatrix(GSI), and other variable code types. | ||
Touch screen controller | Hot plugging supported，computer screen (wifi, blueteeth) write directly on screen(by hands or by mouse) | ||
Text font | Supports true type fonts, including non-Roman characters and symbols | ||
Storage | Print Unit （512MB)，Screen controller (16GB) | ||
Capable function | Controller, Code sending print, Multiple controlling programs with data exchange protocol | ||
Communication | RS232, Ethernet, Window supported data exchange protocol.Blue teeth | ||
Interface language | English, Spanish, Portuguese, French, Arabic, German, Russian, Simplified/Traditional Chinese, etc. | ||
Calender type | Gregorian calendar, Persia calendar, Islam calendar | ||
Saving/Assisting mode | Ribbon Saving Mode, Radial Print Mode, Equal Spaced Mode, etc. (Multi-appliaction available) | ||
Dimension (Print Unit) | 210mm x 170mm x 180mm | 210mm x 190mm x 180mm | |
Weight (Print Unit) | 7.8KG | 8.0KG | |
Dimension (Controller) | 240mm*15mm*120mm (7inch) | 260mm*30mm*180mm(10inch) | |
Weight (Controller) | 0.75 kg | ||
Power supply | AC100-240V,50/60Hz | ||
Power | 200W | ||
Operation Env. | Temperature: 0-40°C Humidity: 10-90% (Non-condensing) | ||
Operation Air Pressure | No need (we are aireless tto ) | ||
Packing & Delivery
Usually shipped
1) By express,TNT,UPS,EMS,FEDEX,etc.
2) By air
3) By sea
Delievery time is within 5-7 working days after get boarded
1) By express,TNT,UPS,EMS,FEDEX,etc.
2) By air
3) By sea
Delievery time is within 5-7 working days after get boarded

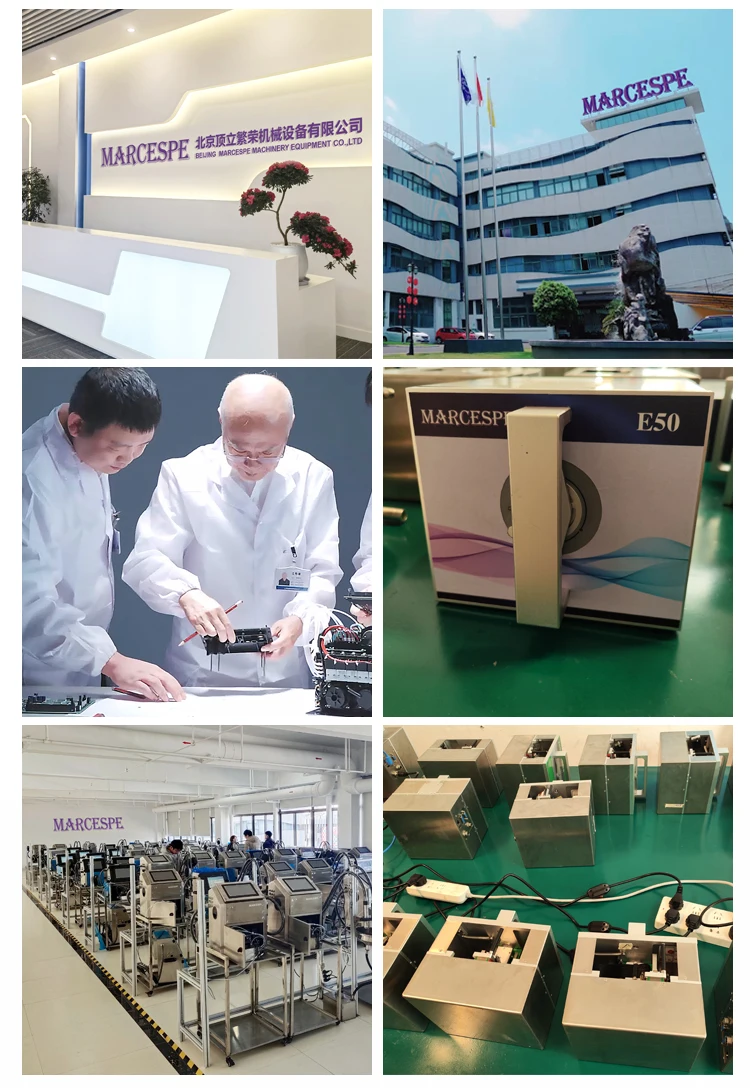

Company Profile
Beijing Marcespe Machinery Equipment Co.,Ltd,have worked industriously and chartered new territories in the field of small character inkjet printer ,Thermal transfer overprinter, laser printer and Tij printer printing and labelling.
We From R&D, production and manufacturing, to quality control,So far, the company has established unique labs for CIJ and airlss TTO equipment in the CIJ and TTO sector,
We make a good software help customer edite directly on screen of TTO.And our speed could upgrade 450times per minute and also could 200mm large pringting area.Use any keyboard from computer on screen and very professional to print UDI DM code directoy to supply service for pharmaceutical factory without computer help.
The company presents the first CIJ cloud service system called Scloud in the sector,using an original system, the“Clairvoyant System”to continuously monitor and track the CIJ parameters.With this system, one could check the on-site machines as needed through remote assistance function.
Marcespe would like to work hand in hand with our major customers to create glories and a promising future.
Welcome to join us group !
We From R&D, production and manufacturing, to quality control,So far, the company has established unique labs for CIJ and airlss TTO equipment in the CIJ and TTO sector,
We make a good software help customer edite directly on screen of TTO.And our speed could upgrade 450times per minute and also could 200mm large pringting area.Use any keyboard from computer on screen and very professional to print UDI DM code directoy to supply service for pharmaceutical factory without computer help.
The company presents the first CIJ cloud service system called Scloud in the sector,using an original system, the“Clairvoyant System”to continuously monitor and track the CIJ parameters.With this system, one could check the on-site machines as needed through remote assistance function.
Marcespe would like to work hand in hand with our major customers to create glories and a promising future.
Welcome to join us group !
