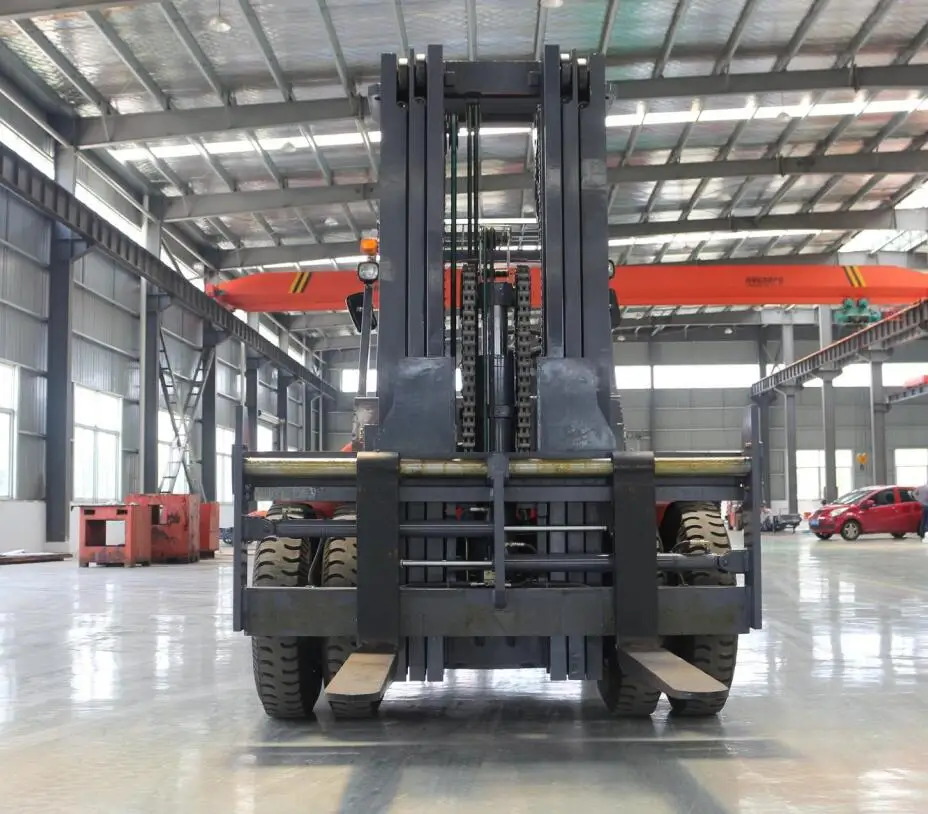

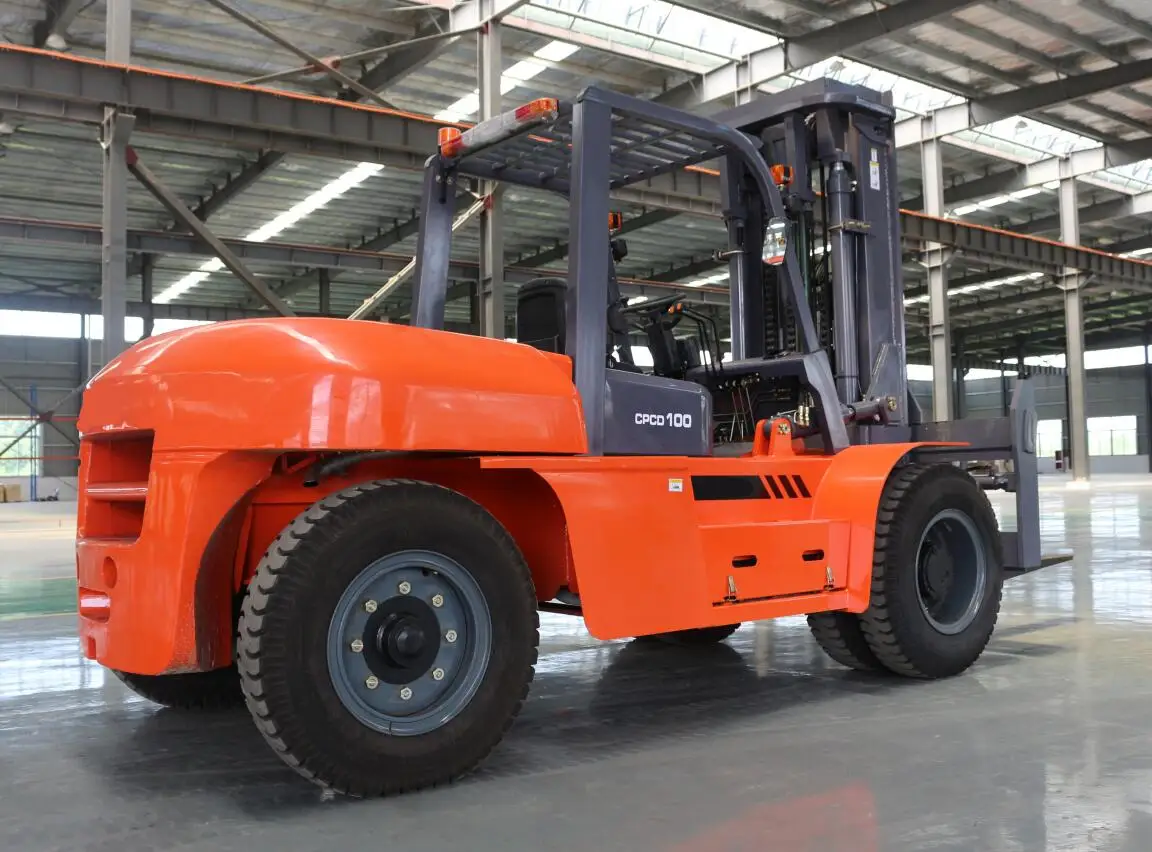

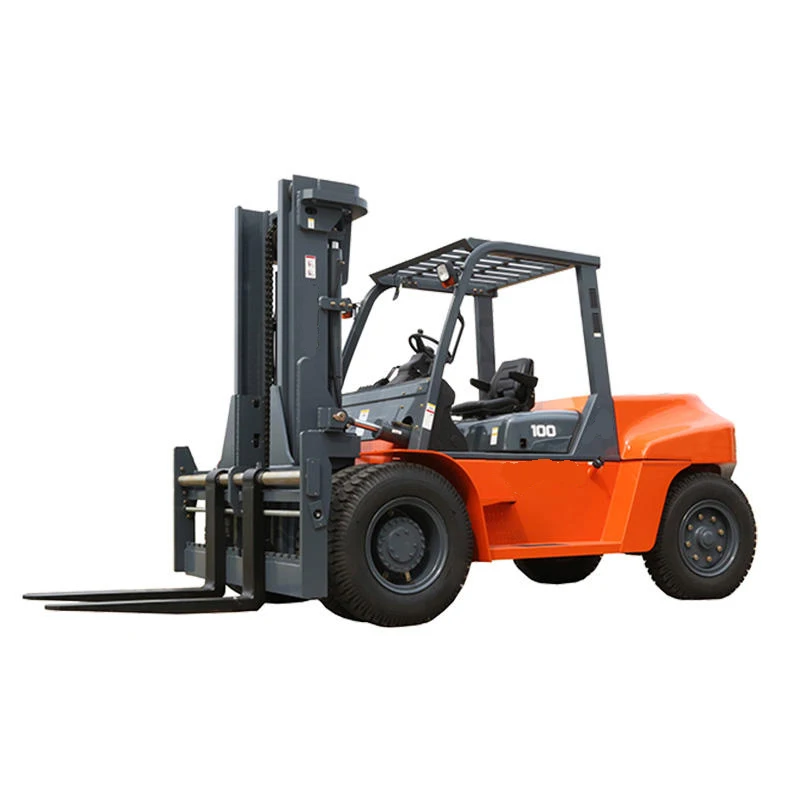

10 ton diesel fork lift truck 10t 10ton 12 ton 15 ton 10 ton diesel forklift for sale
- Category: >>>
- Supplier: Anhui Changjing Electromechanical Technology Co. Ltd.
Share on (1600764239507):
Product Overview
Description
Features
* Automatic electric hydraulic transmission by TCM technology

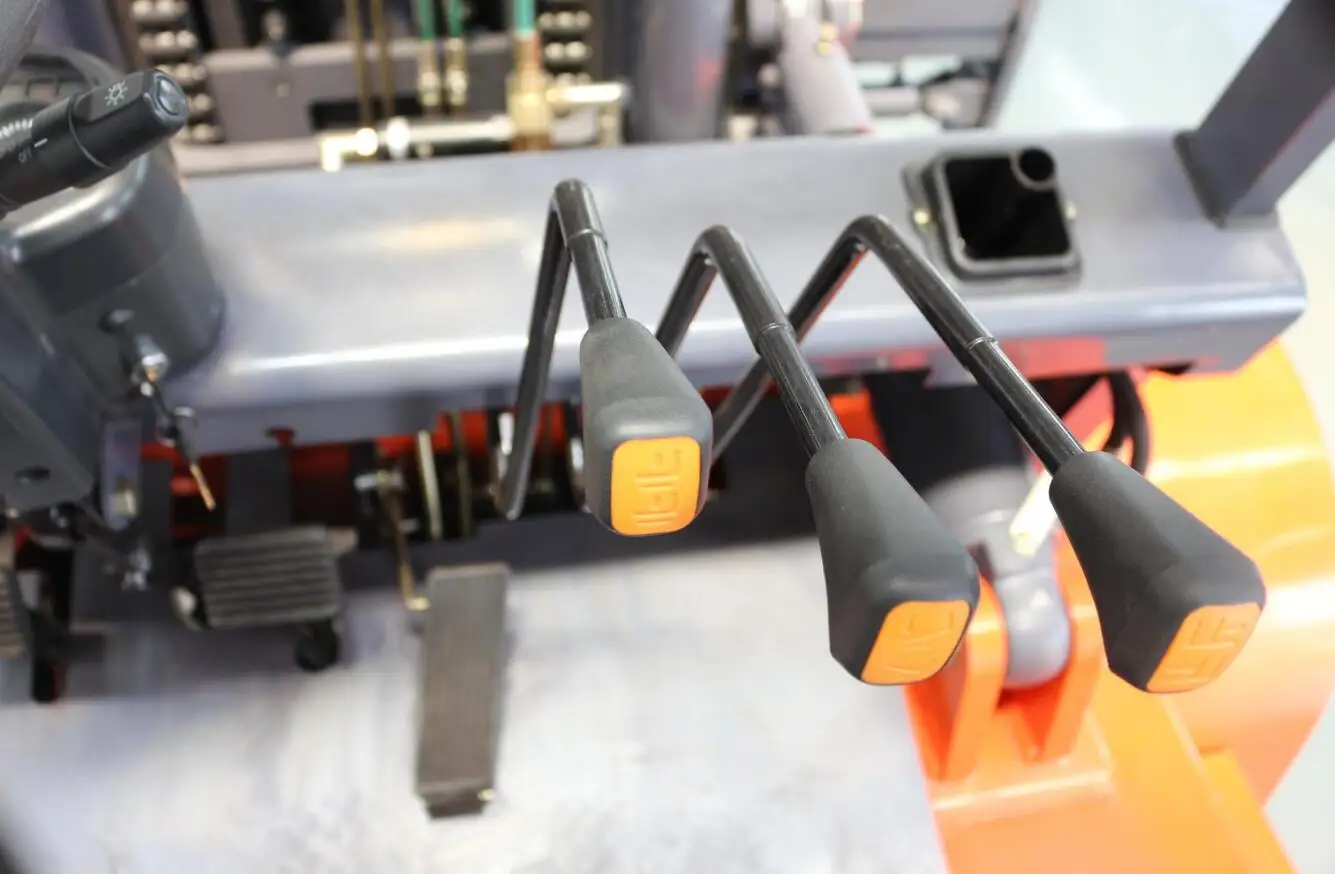

* With reliable control lever for the forklift's forward and backward
* Very high-effective and comfortable operation
* Original imported American EATON redirector
* Original imported Japanese hydraulic system
* Enlarged fuel tank
* Very high-effective and comfortable operation
* Original imported American EATON redirector
* Original imported Japanese hydraulic system
* Enlarged fuel tank
Product Paramenters
CPCD60 with the capacity of 3500kgs with China engine 490 and ISUZU Yanmar Mitsubishi engine optional
1) Engine optional: China Xinchai Quanchai 490/ 498, optional Euro 3 standard; Japan Isuzu C240/4JG2, Mitsubishi S4S,Yanmar,TNE92/TNE98, Cummins, etc.;
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..
1) Engine optional: China Xinchai Quanchai 490/ 498, optional Euro 3 standard; Japan Isuzu C240/4JG2, Mitsubishi S4S,Yanmar,TNE92/TNE98, Cummins, etc.;
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..
Manufacturer | CJLIFT | CJLIFT | ||||

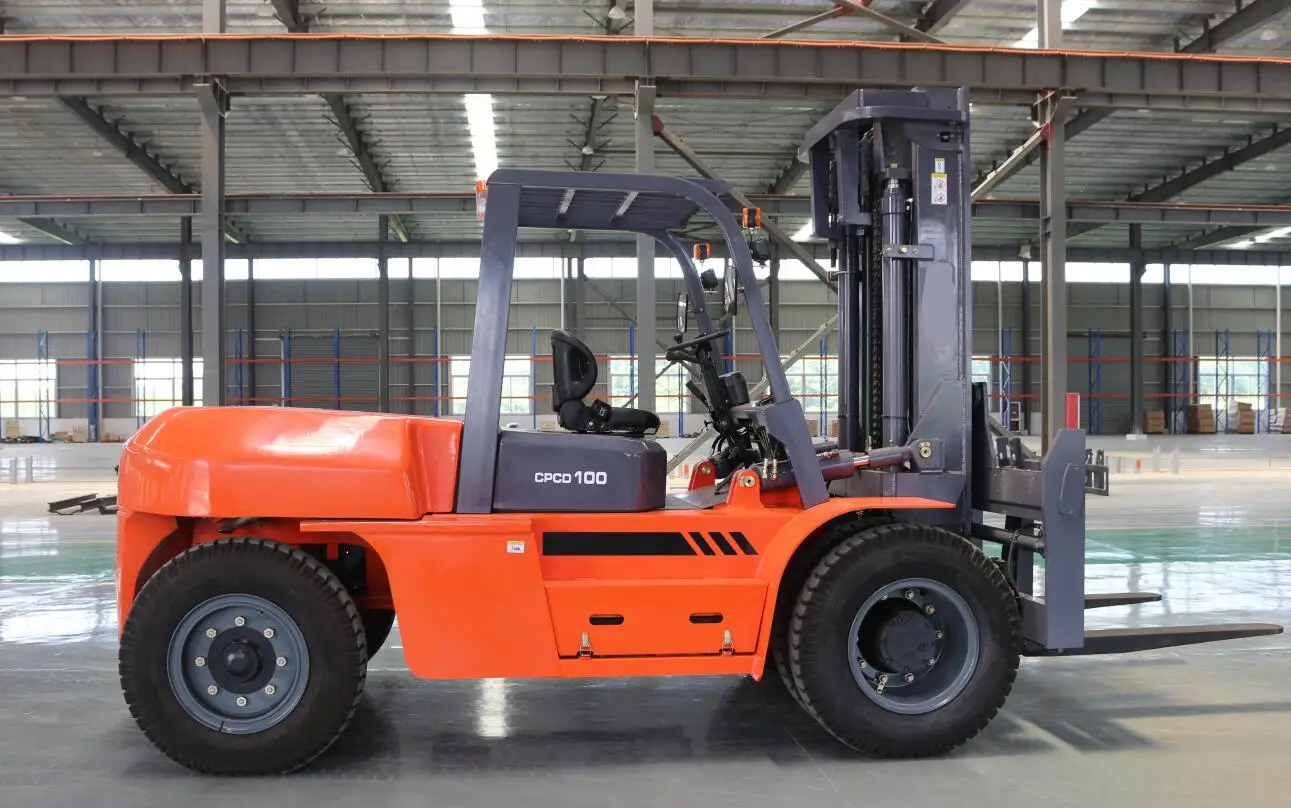

Model | unit | CPCD70 | CPCD80 | CPCD100 | ||
Power type | Diesel | |||||
Rated capacity | kg | 7000 | 8000 | 10000 | ||
Load center | mm | 600 | ||||
Operator type | Drive in seat | |||||
Max. lift height of mast with Load-backrest | mm | 4380 | 4380 | 4320 | ||
Max.lift height of fork | mm | 3000 | 3000 | 3000 | ||
Height of mast | mm | 2500 | 2500 | 2840 | ||
Free lift height | mm | 205 | 205 | 100 | ||
Height of Load-backrest | mm | 1372 | 1372 | 1015 | ||
Distance from seat to overhead guard | mm | 1045 | 1045 | 1080 | ||
overhead guard height | mm | 2450 | 2450 | 2560 | ||
Length without fork | mm | 3440 | 3600 | 4270 | ||
Overall width | mm | 590 | 590 | 720 | ||
Fork size | mm | 1220*150*70 | 1220*150*75 | 1220*175*80 | ||
Max.Drive speeds(with/without full load) | km/h | 26/28 | 26/28 | 20/22 | ||
Lifting speeds (with load) | mm/s | 500 | 480 | 340 | ||
Lowering speeds(with /without full load) | mm/s | 600/300 | 600/300 | 600/300 | ||
Max. tractive force | KN | 65 | 65 | 58 | ||
Max.grade ability (with/without full load) | % | 30/18 | 28/18 | 22 | ||
Total weight | kg | 9340 | 9850 | 12860 | ||
Weight Distribution full load (front/ rear) | kg | 14560/1780 | 14880/1970 | 20480/2170 | ||
Weight Distribution zero load(front / rear) | kg | 3860/5500 | 4070/5800 | 5770/6880 | ||
Engine Model | Xinchai 6110 | |||||
Engine Rated output | kw/rpm | 83/2000 | ||||
Engine Rated torque | N.m/rpm | 450/1450 | ||||
Engine No.of cylinder | 6/100*125 | |||||
Engine Displacement | L | 7.13 | ||||
Engine:
Engine China 490 | Engine power | Kw/rpm | 40/2650 |
No. of cylinders | Kw/rpm | 4-90x105 | |
Rated torque | n.m/rpm | 160/1800-1900 | |
Engine Japan ISUZU C240 | Engine power | Kw/rpm | 35.4/2500 |
No. of cylinders | Kw/rpm | 4-86x102 | |
Rated torque | n.m/rpm | 137.7/1800 | |
Engine Japan Mitsubishi S4S | Engine power | Kw/rpm | 35.3/2250 |
No. of cylinders | Kw/rpm | 4-94x120 | |
Rated torque | n.m/rpm | 165/1700 | |
Engine Japan Kubota V2403-E3B | Engine power | Kw/rpm | |
No. of cylinders | Kw/rpm | ||
Rated torque | n.m/rpm | ||
Engine U.S.A Kohler KDI1903TCR | Engine power | Kw/rpm | |
No. of cylinders | Kw/rpm | ||
Rated torque | n.m/rpm | ||
Engine Japan Yanmar 4TNE94 | Engine power | Kw/rpm | 42.1/2300 |
No. of cylinders | Kw/rpm | 4-98×110 | |
Rated torque | n.m/rpm | 186/1700 | |
Engine U.S.A Cummins QSF4.5 | Engine power | Kw/rpm | 82/2200 |
No. of cylinders | Kw/rpm | 488/1500 | |
Rated torque | n.m/rpm |
Power system
Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported ISUZU,Mitsubishi and
Yanmar engine are optional.
Yanmar engine are optional.
Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
Lighting system
Equipped with full set of LED lamps,which are brighter and energy saving.
Reliable lifting system
Wide-view mast design,providing superior vision,making the operation more security.
High performance hydraulic system
Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.
Comfortable driving space
Lengthened wheelbase design,reasonable functional layout,super comfortable and larger ddriving space.
Q: How do you guarantee the quality of your forklift and equipment?
A:Our forklifts and equipment are with advanced technology design and we assemble it with high quality and famous brand parts. Strictly inspection before delivery
Q:How to solve and maintain once some problems happened?
A:Our engineer and sales team offer 24hrs full time service. We can give the best suitable solution to solve your problems as soon as possible. At the same time you also can ask your operators to come to our site for learning or we train you on your site
Q:What will benefit us if we become your exclusive distributor in promissory area?
A:We can invest professional exhibition supporting and give potential clients information from B2B website to you for developing. We will provide you with the newest information and development tendency in the fields. A abundant bonus will be offered if you can finish target sales volume.
Q: Is customized solution available?
A: Yes, we can provide different customized solution.
Q: Can you provide OEM service?
A: Yes.
Q:How long is the warranty of your forklift?
A:One year or 2000hrs which come first
A:Our forklifts and equipment are with advanced technology design and we assemble it with high quality and famous brand parts. Strictly inspection before delivery
Q:How to solve and maintain once some problems happened?
A:Our engineer and sales team offer 24hrs full time service. We can give the best suitable solution to solve your problems as soon as possible. At the same time you also can ask your operators to come to our site for learning or we train you on your site
Q:What will benefit us if we become your exclusive distributor in promissory area?
A:We can invest professional exhibition supporting and give potential clients information from B2B website to you for developing. We will provide you with the newest information and development tendency in the fields. A abundant bonus will be offered if you can finish target sales volume.
Q: Is customized solution available?
A: Yes, we can provide different customized solution.
Q: Can you provide OEM service?
A: Yes.
Q:How long is the warranty of your forklift?
A:One year or 2000hrs which come first
