Extend Signal 120M 4K 1080P 3D HDMI Lan KVM USB Extender Over IP Ethernet Cat5e Cat6 With IR Transmitter and Receiver

1

Support HD MI 1.4/HDCP1.4

2

Support local loop-out

3

Support 120m long distance transmission

4

Low power consumption, low temperature and high safety

5

Both the TX and RX support 3.5MM left and right audio output

6

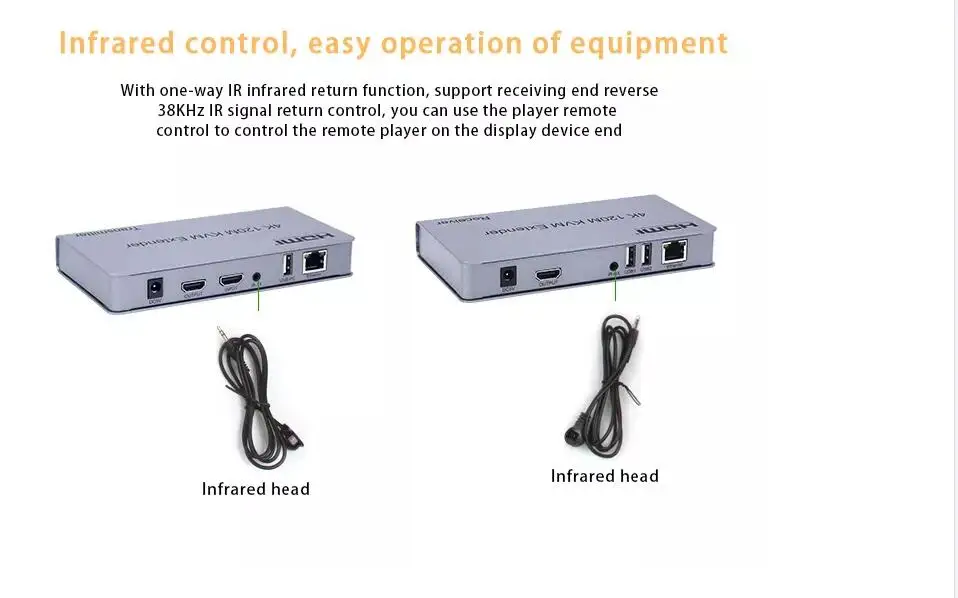

Support IR control

7

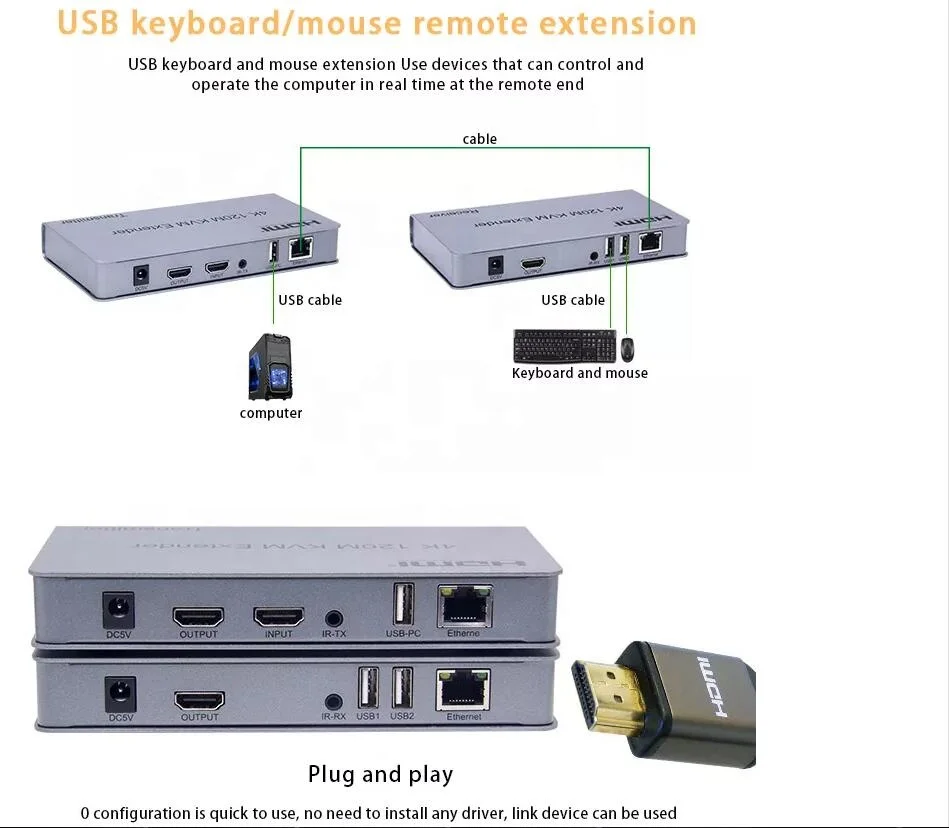

Support USB mouse and keyboard extension

8

Support USB port touch screen function

Length of CAT-6/CAT-5E cable  between Rx and TX

Up to 120 meters

HD MI Input

4K/1080p/1080i/720p/576p/576i/480p/480i

HD MI Output

4K/1080p/1080i/720p/576p/576i/480p/480i

Max bandwidth

340MHz

Input video signal

0.5~1.5Volts p-p

Output DDC signal

5Volts p-p (TTL)

Input HD MI cable distance

≤10m AWG26 HD MI standard cable

Output HD MI cable distance

≤10m AWG26 HD MI standard cable

working current

300mA

Power adapter format

DC5V/1A

Operating Temperature range

 (-15 to +45℃)

Operating Humidity range

 5 to 90%RH (No Condensation)

Dimension (L x W x H)

107x105x27.3 (mm)

TX Weight

 499g

RX Weight

499g
