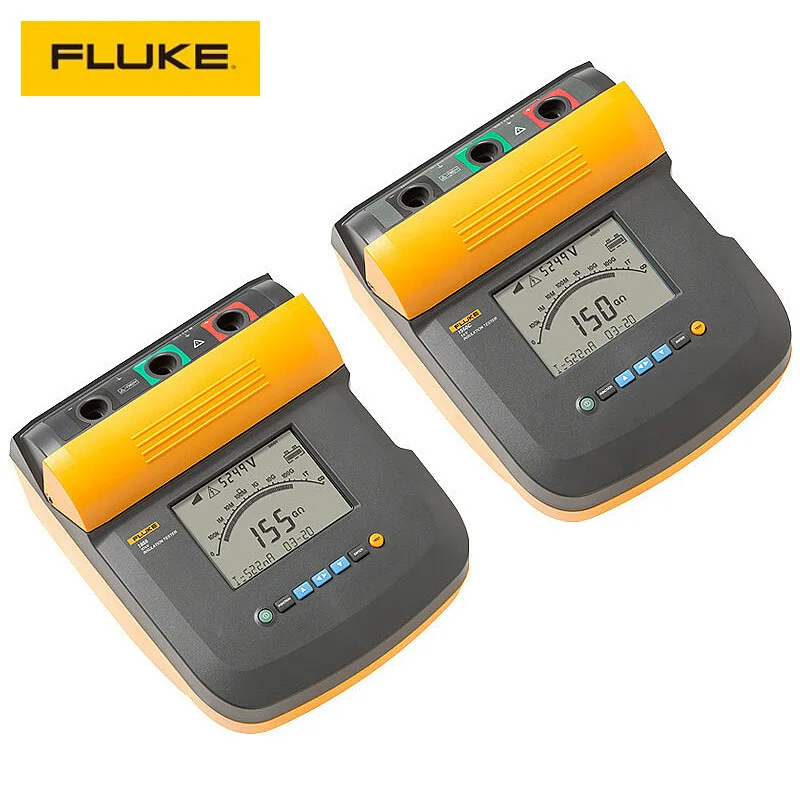

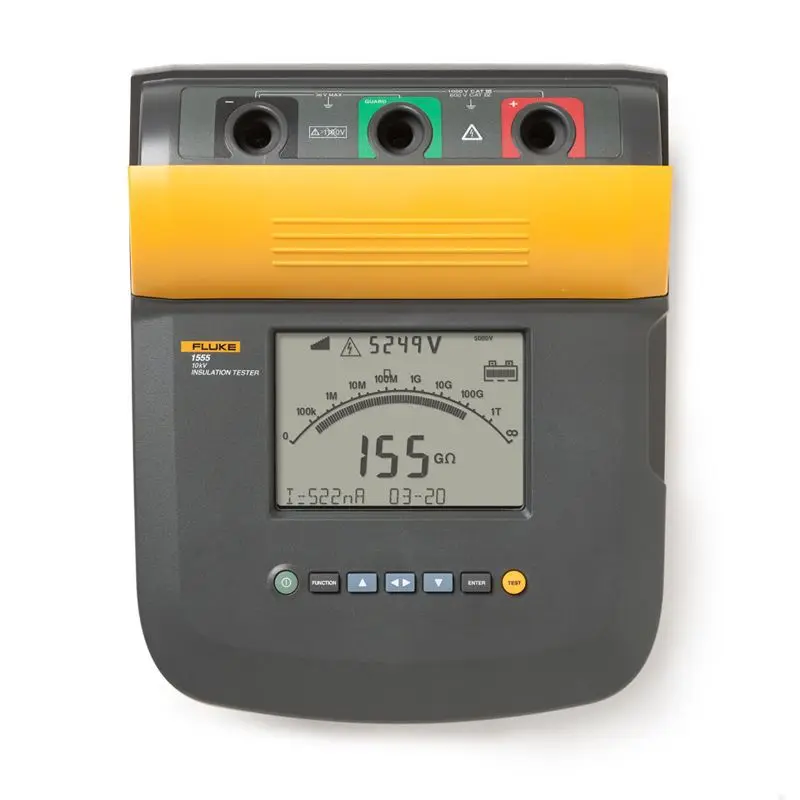

Fluke 1555 FC изоляционный тестер 10 кВ
- Category: >>>
- Supplier: Shenzhen Mepco Technology Co. Ltd.
Share on (1600764286268):
Product Overview
Description
Product Description

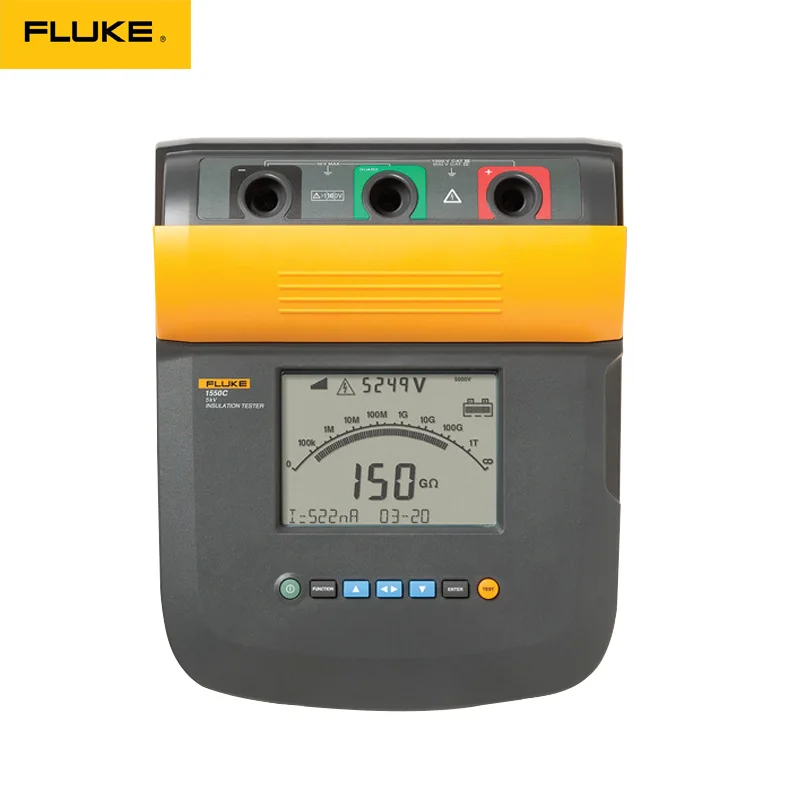

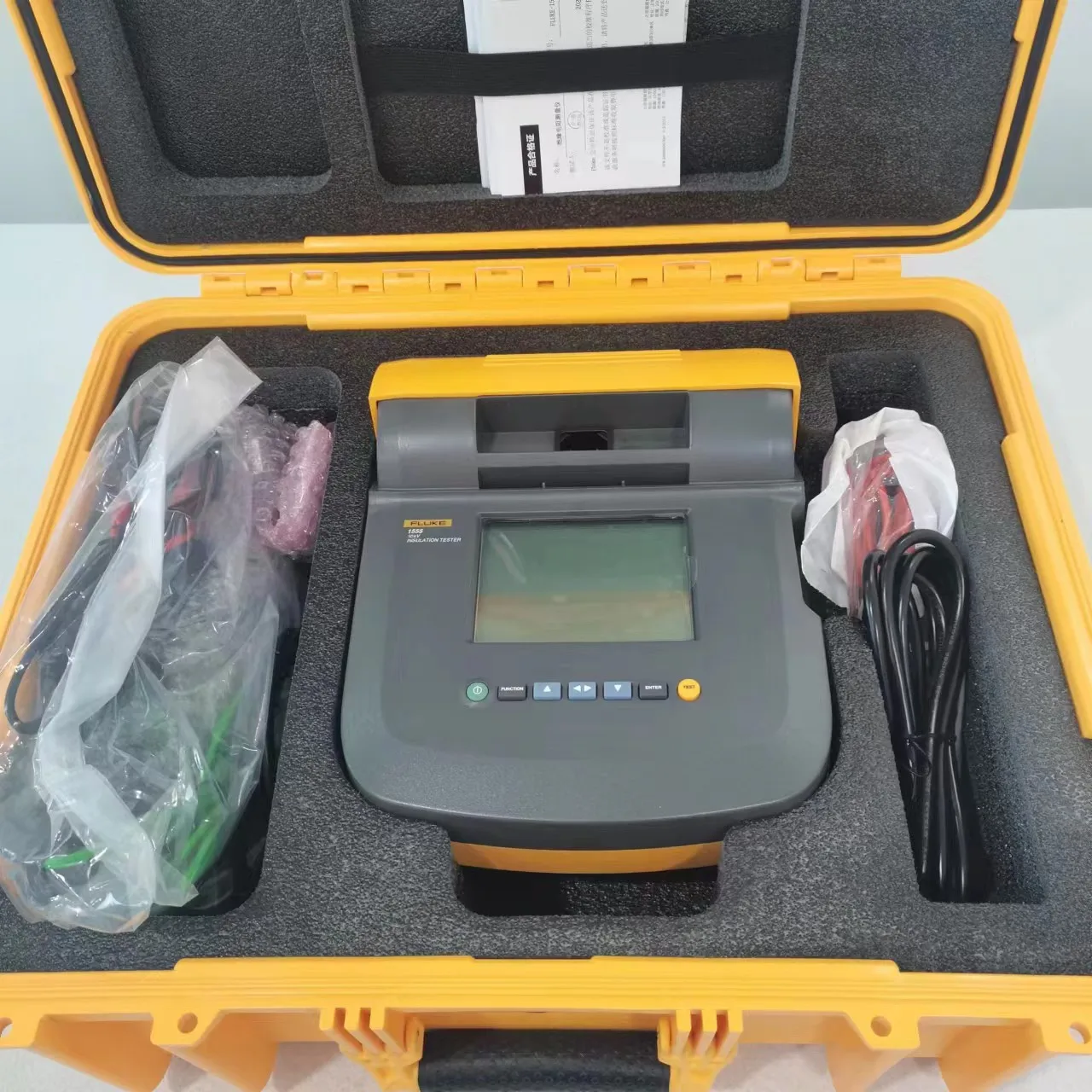

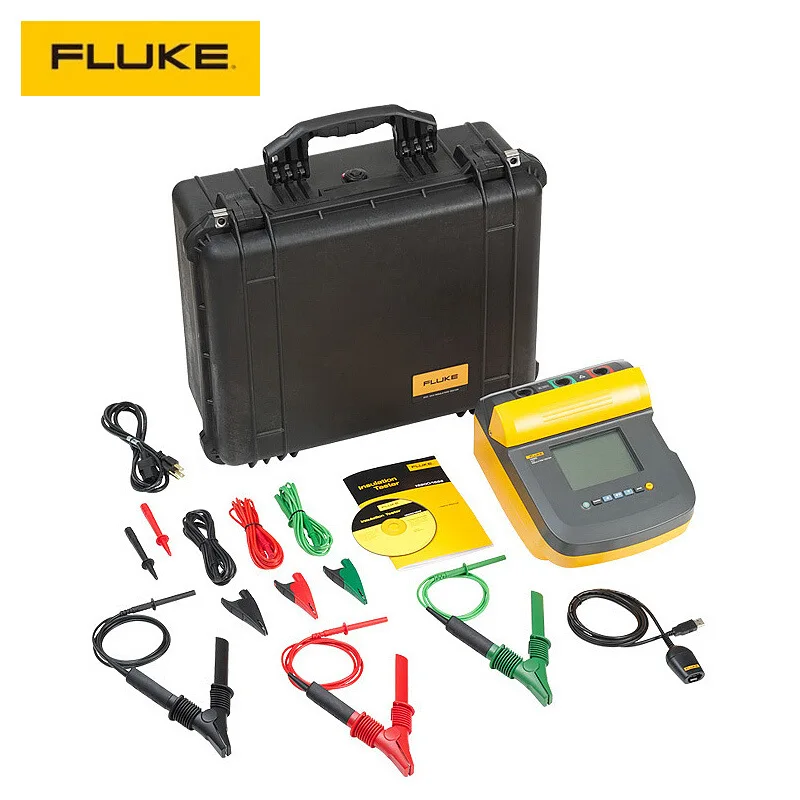

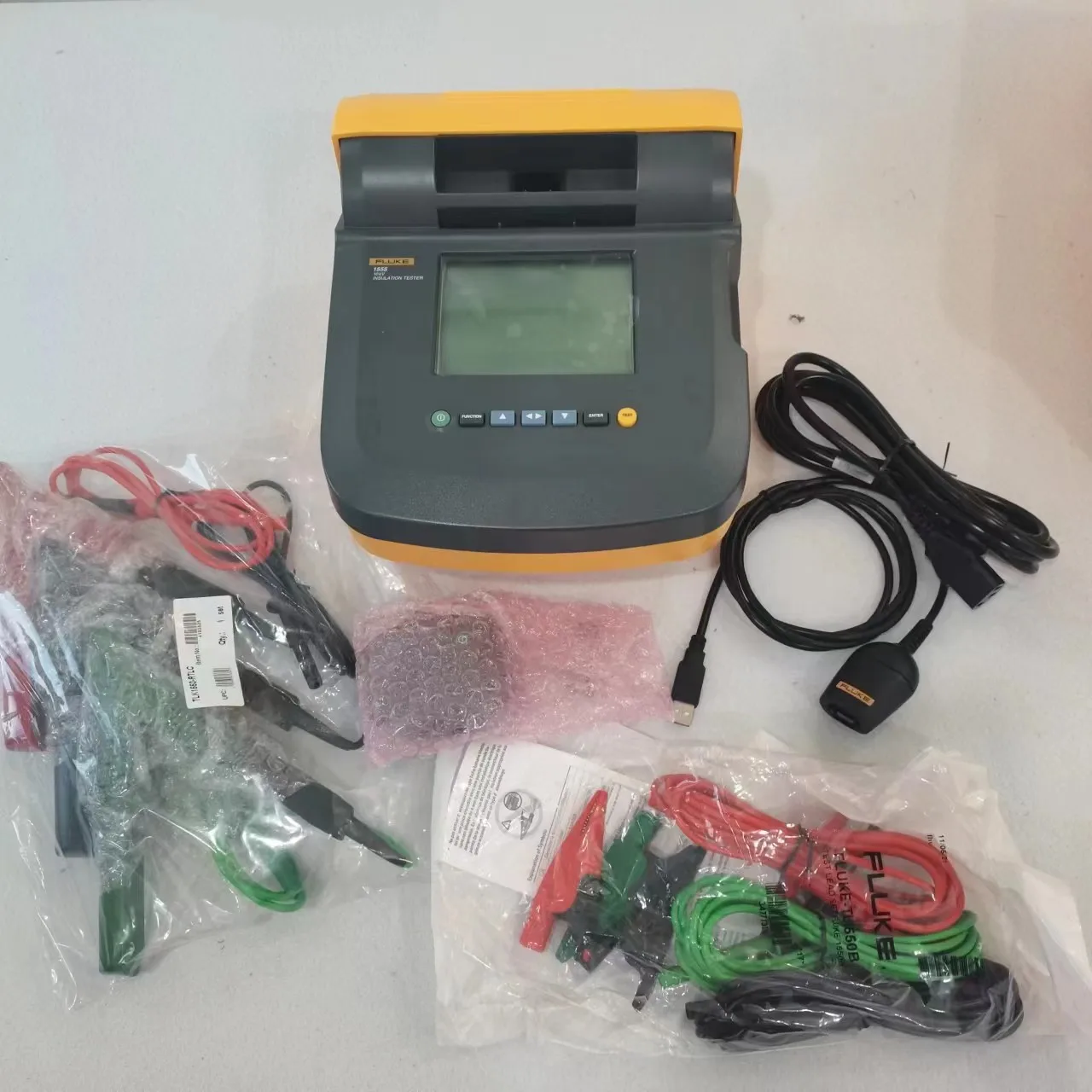

The Fluke 1555C Tester together with the IR3000 FC connector and Fluke Connect App allow users to perform advanced insulation testing by wirelessly transfering test results from the tester to Fluke Connect which eliminates error-prone paperwork and saves your technicianÍs time. Kit includes industrial hard case and high voltage test lead.
Safe and versatile, this insulation tester can conduct the entire range of test voltages specified in IEEE 43-2000 and is capable of real-time trending for easy-to-see visual cues. In addition, this tester features test voltage up to 10 kV and resistance up to 2TΩ.
Features：
* Select test voltages up to 10 kV
* CAT III 1000 V, CAT IV 600 V safety rating
* Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
* Long battery life gives the user over 750 tests between charges
* Guard system eliminates the effect of surface leakage current on high-resistance measurements
* Large digital/analog LCD for easy viewing
* Capacitance and leakage current measurement
* Ramp function for breakdown testing
* Resistance measurements up to 2 TΩ
* Timer settings up to 99 minutes for timed tests
* CAT III 1000 V, CAT IV 600 V safety rating
* Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
* Long battery life gives the user over 750 tests between charges
* Guard system eliminates the effect of surface leakage current on high-resistance measurements
* Large digital/analog LCD for easy viewing
* Capacitance and leakage current measurement
* Ramp function for breakdown testing
* Resistance measurements up to 2 TΩ
* Timer settings up to 99 minutes for timed tests
Applications：
* High-voltage equipment
* Switchgear
* Motors
* Generators
* Cables
* Switchgear
* Motors
* Generators
* Cables
Specification
Range: < 250 kΩ 250 kΩ to 5 GΩ 5 GΩ to 50 GΩ > 50 GΩ Accuracy (± reading): unspecified 5% 20% unspecified | |
Range: < 500 kΩ 500 kΩ to 10 GΩ 10 GΩ to 100 GΩ > 100 GΩ Accuracy (± reading): unspecified 5% 20% unspecified | |
Range: < 1 MΩ 1 MΩ to 20 GΩ 20 GΩ to 200 GΩ > 200 GΩ Accuracy (± reading): unspecified 5% 20% unspecified | |
Range: < 2.5 MΩ 2.5 MΩ to 50 GΩ 50 GΩ to 500 GΩ > 500 GΩ Accuracy (± reading): unspecified 5% 20% unspecified | |
Range: < 5 MΩ 5 MΩ to 100 GΩ 100 GΩ to 1 TΩ > 1 TΩ Accuracy (± reading): unspecified 5% 20% unspecified | |
Range: < 10 MΩ 10 MΩ to 200 GΩ 200 GΩ to 2 TΩ > 2 TΩ Accuracy (± reading): unspecified 5% 20% unspecified | |
Bar Graph Range | 0 to 2 TΩ |
Insulation Test Voltage Accuracy | -0%, +10% at 1 mA load current |
Induced AC Mains Current Rejection | 2 mA maximum |
Capacitive Load | Charging rate: 5 seconds per μF Discharge rate: 1.5 s/μF |
Leakage Current Measurement | Range: 1 nA to 2 mA Accuracy: ± (20% + 2 nA) |
Capacitance Measurement | Range: 0.01 uF to 20.00 μF Accuracy: ± (15% rdg + 0.03 μF) |
Timer | Range: 0 to 99 minutes Resolution: Setting: 1 minute Indication: 1 second |
Live Circuit Warning | Warning range: 30 V to 1100 V AC/DC, 50/60 Hz Voltage accuracy: ± (15% + 2 V) |
Display | 18.7 x 4.1" (475 x 105 mm) |
Charger Input | (AC) 85 V to 250 V ac 50/60 Hz 20 VA |
Temperature | Operating: -4 to 122°F (-20 to 50°C) Storage: -4 to 149°F (-20 to 65°C) |
Humidity | 80% to 87.8°F (31°C) decreasing linearly to 50 % at 122°F (50°C) |
Altitude | 6561.68' (2000 m) |
Enclosure Sealing | IP40 |
Input Overload Protection | 1000 V AC |
Electromagnetic Compatibility | EN 61326 |
CSA Listed US CE Compliance TUV SUD Regulatory Compliance mark (RCM) | |
Safety Compliance | IEC 61010-1: Overvoltage category II, pollution degree 2 IEC 61010-2-030: Measurement 600V CAT IIV/1000V CAT III IEC 61557-1, IEC 61557-2 |
Fluke Connect Compatible | Yes |
Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 |
Dimensions | 6.7 x 9.5 x 13.0" (170 x 242 x 330 mm) |
Weight | 7.94 lbs (3.6 kg) |
