Belt conveyor is suitable for conveying all kinds of materials

Product Overview

Description



Belt conveyor is a machine that transports materials in a continuous manner

Mainly by the rack, conveyor belt, roller, roller, tension device.According to the transport process requirements, can be a single transport, can also be composed of multiple or with other transport equipment composed of horizontal or inclined transport system, in order to meet the requirements of different layout forms of the line



• Product feature

1High speed of motion can be used, and the speed is stable

2It can transport all kinds of materials, more versatile

3Compact construction, easy to manufacture and maintain

4Different materials can be selected according to different materials (food: ppc) (non-food: rubber)

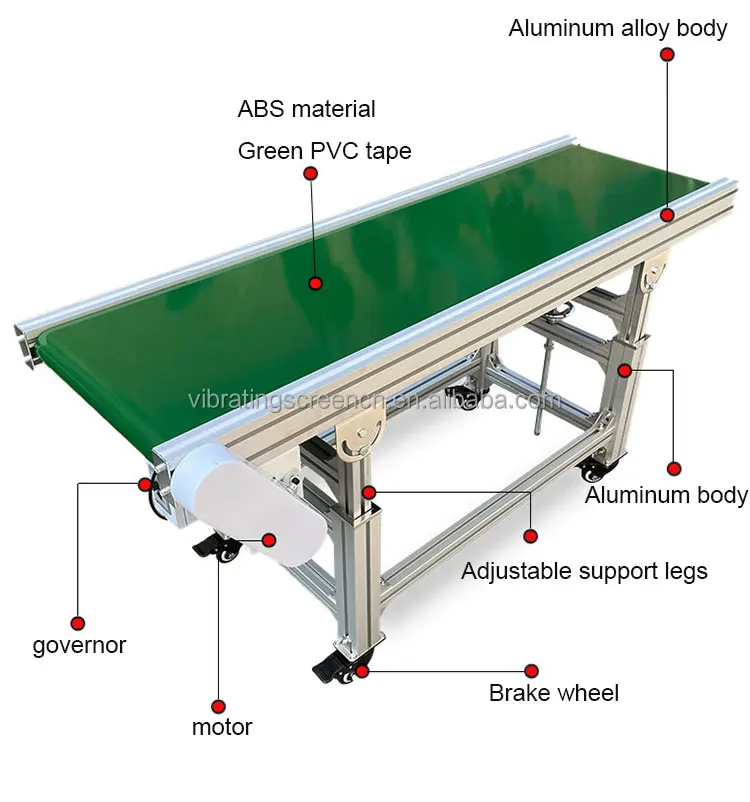

• Product structure

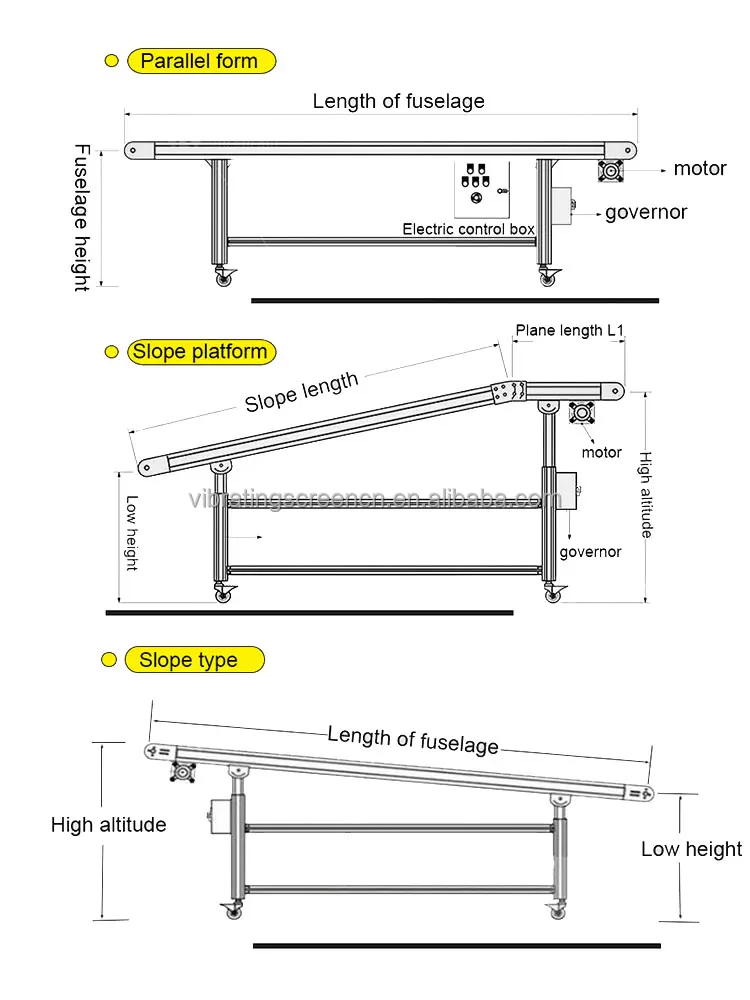

• Detail drawing

• Technical parameter

Belt width	Transmission length (m)/Power (kw)			Conveying speed	throughput
400	≤12/1.5	12-20/2.2-4	20-25/4-7.5	1.3-1.6	40-80
500	≤12/3	12-20/4-5.5	20-30/5.5-7.5		60-150
650	≤12/4	12-20/5.5	20-30/7.5-11		130-320
800	≤6/4	6-15/5.5	15-30/7.5-15		280-540
1000	≤10/5.5	10-20/7.5-11	20-40/11-22	1.3-2.0	430-850
