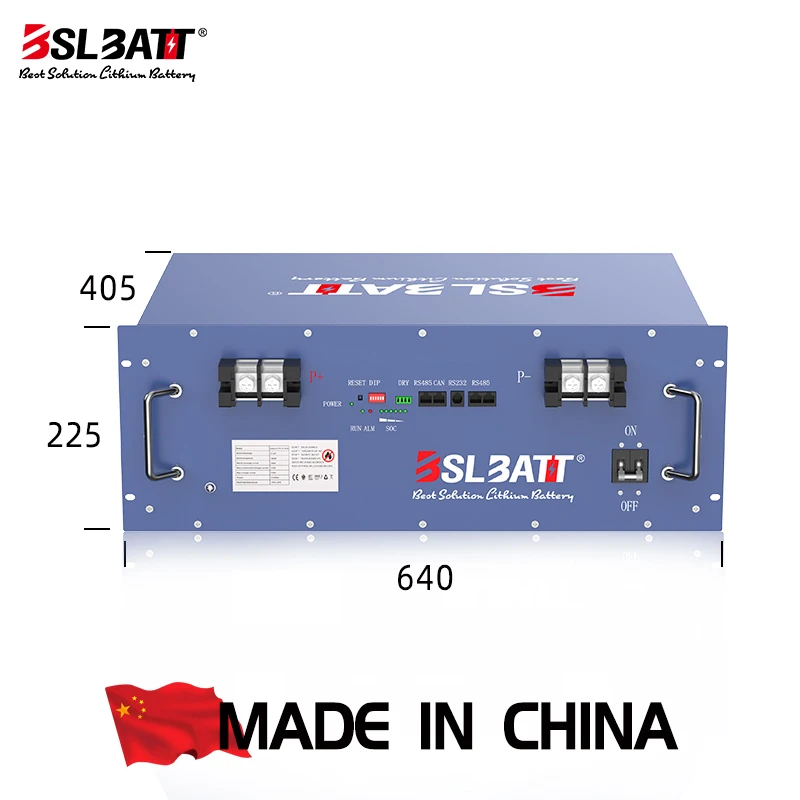

BSLBATT 48v 100ah liion lifepo4 lithium 5.12kwh 48v 100ah 160ah solar battery lithium
- Category: >>>
- Supplier: Huizhou Wisdom Power Technology Co. Ltd.
Share on (1600764352273):
Product Overview
Description
Product Paramenters
Items | Parameter |
Product name | BSLBATT 48v 100ah liion lifepo4 lithium 5.12kwh 48v 100ah solar battery lithium |
Nominal Voltage | 48V |
Nominal Capacity | 100Ah |
Energy | 4800WH |

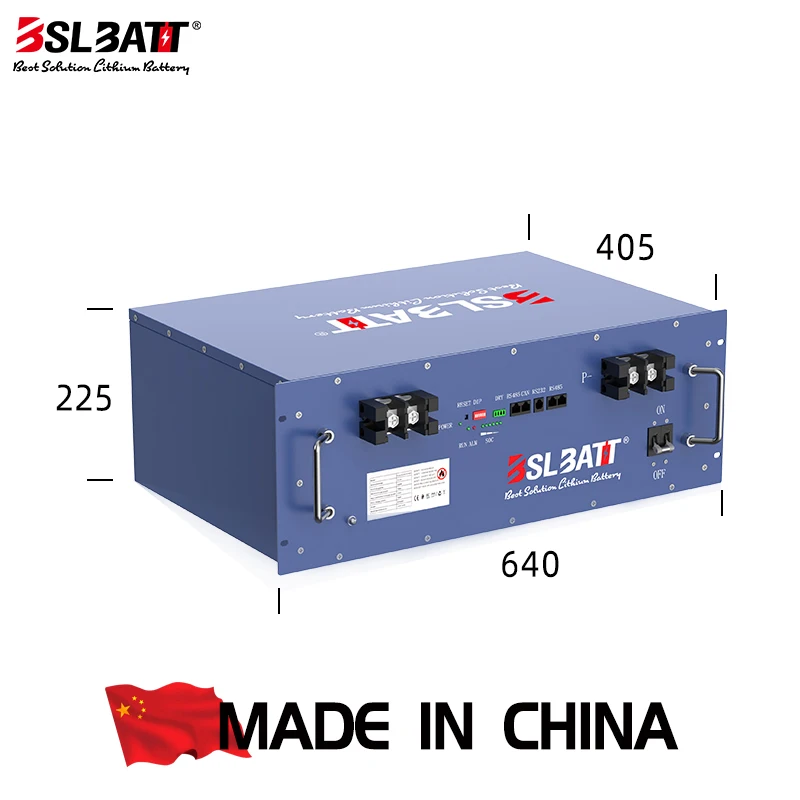

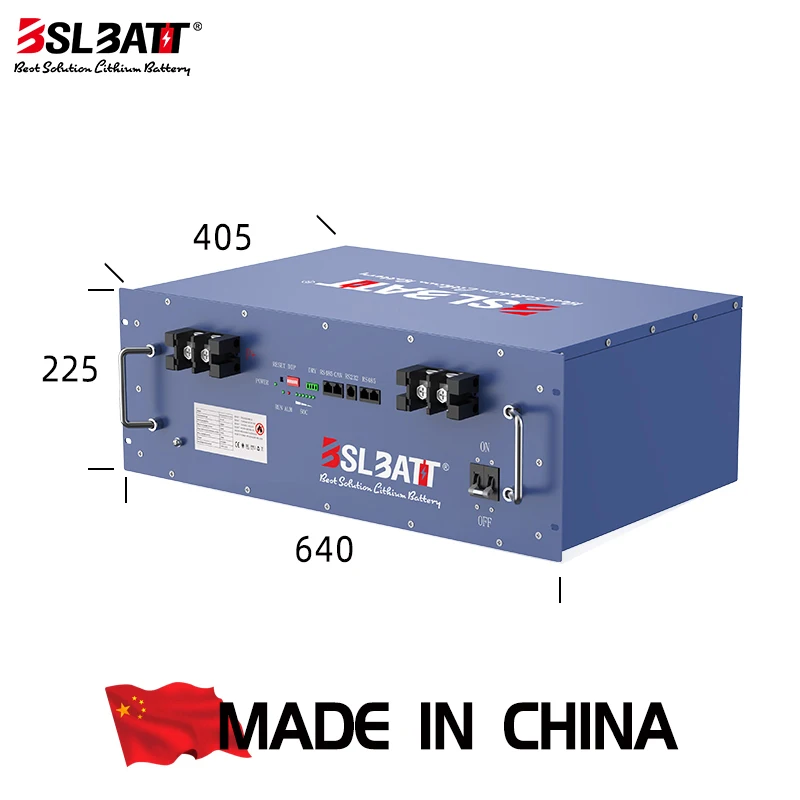

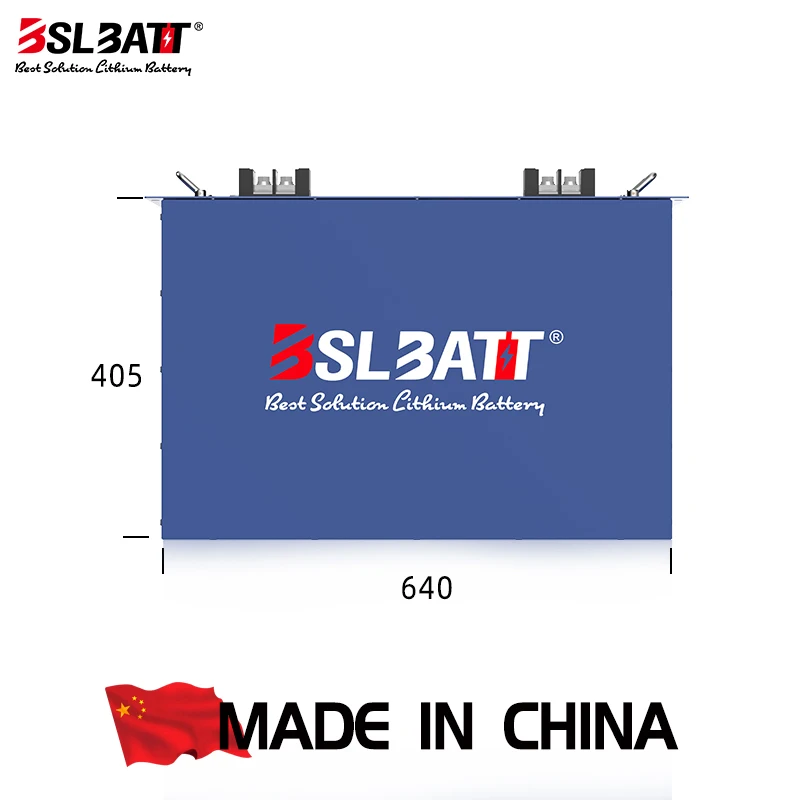

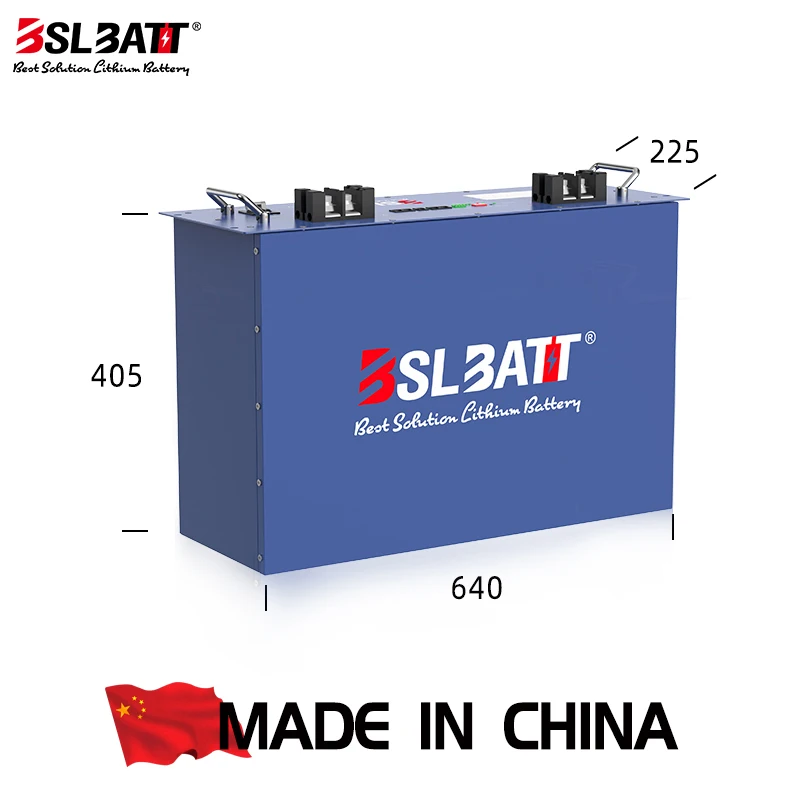

Dimensions (L x W x H) | 600*403.5*225mm |
Weight | 75KG |
Case Material | Iron case |
Certifications | CE/ISO/UN38.3/MSDS |
Efficiency | 99% |
Self Discharge | <1% per Month |

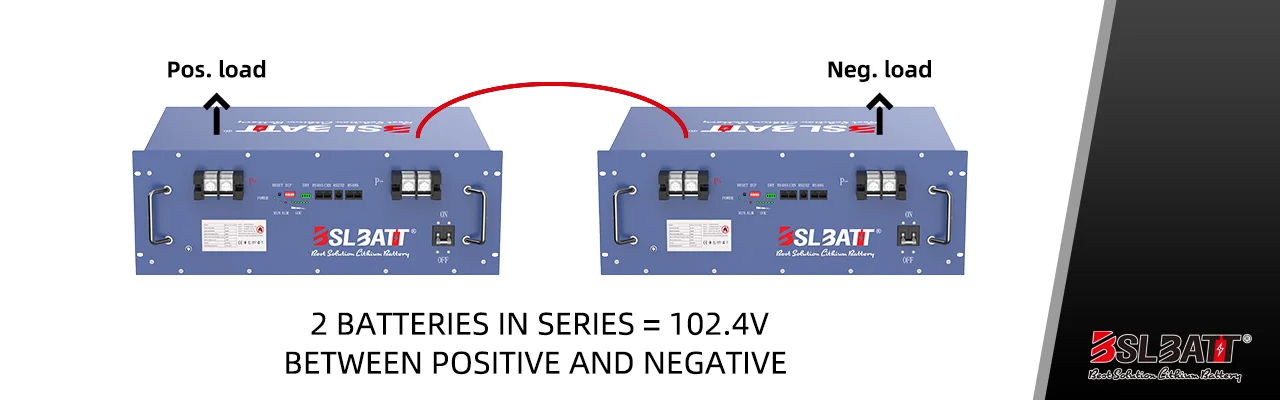

Series & Parallel Application | 20 parallel connected application |
Peak Discharge Current | 200 A |
Max constant discharge current | 150 A |
Operation Temperature Range | -20~60℃ |
Max charge current | 80A |
Working Voltage | 37.5-54V |
Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
Cycle Life | > 4500 cycles |
Self-Discharge Rate | Residual capacity: ≤3%/month; ≤15%/years |
Reversible capacity: ≤1.5%/month; ≤8%/years | |
Storage Temperature & Humidity Range | Less than 1 month: -20℃~35℃, 45%RH~75%RH |
Less than 3 months: -10℃~35℃, 45%RH~75%RH | |
Recommended storage environment: 15℃~35℃，45%RH~75%RH |
Product Details
NEW From BSLBATT Battery!

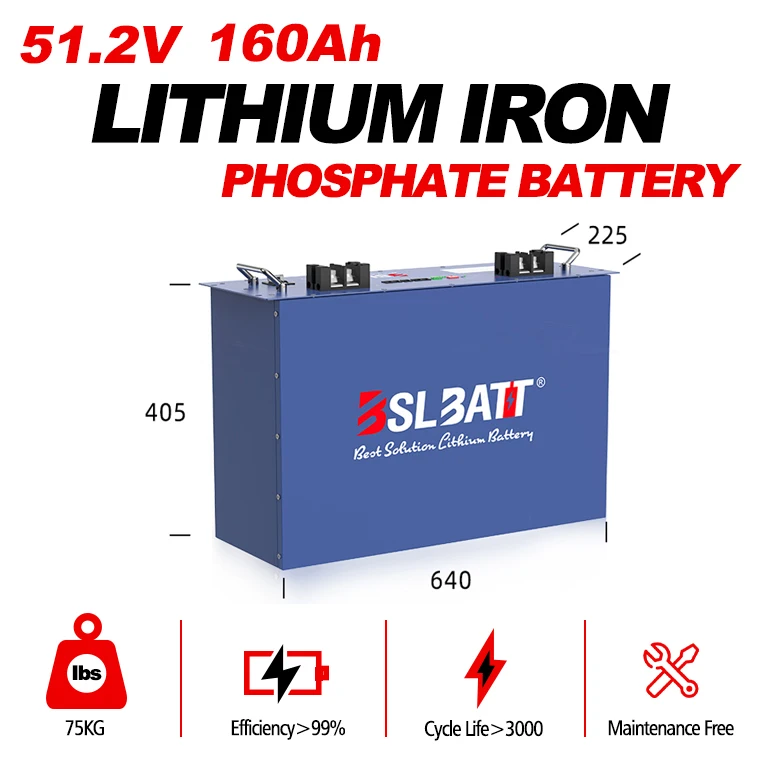

This 48 Volt 160 Ah lithium iron phosphate (LiFePO4) deep cycle battery is packed with power.
The battery delivers efficient power for battery systems requiring large amounts of power at 48 Volt. The BSLBATT Battery 48V 160 Ah has a large amp capacity in one battery and eliminates the need for multiple batteries without losing amperage.
Compared to other battery technologies, this battery delivers large amounts of power, at half the weight and provides up to 8 times more battery cycles and no memory problems. Loaded with automatic safety features, such as a Battery Management System (BMS), which maintains individual cell integrity, low and high voltage protection, reverse polarity, and temperature management. The battery also uses automatic cell balancing, requires almost no maintenance, and includes RS485 and CAN monitoring.
CELL
--- BSLBATT’s superior Lithium Iron Phosphate prismatic Al can cell provide superior performance with the highest safety and stability.
--- Fully automated & robotic manufacturing technology help maintain amazing consistency of performance.
Module
--- BSLBATT’s flexible modular design can be tailored to meet different capacities and voltage neds. 15 LFP cells are connected in series to make 48V lithium-ion battery for telecom towers Modules.
--- The module consists of advanced BMS, safety features, thermal management, and communication with the outside world to provide customers unbeatable performance

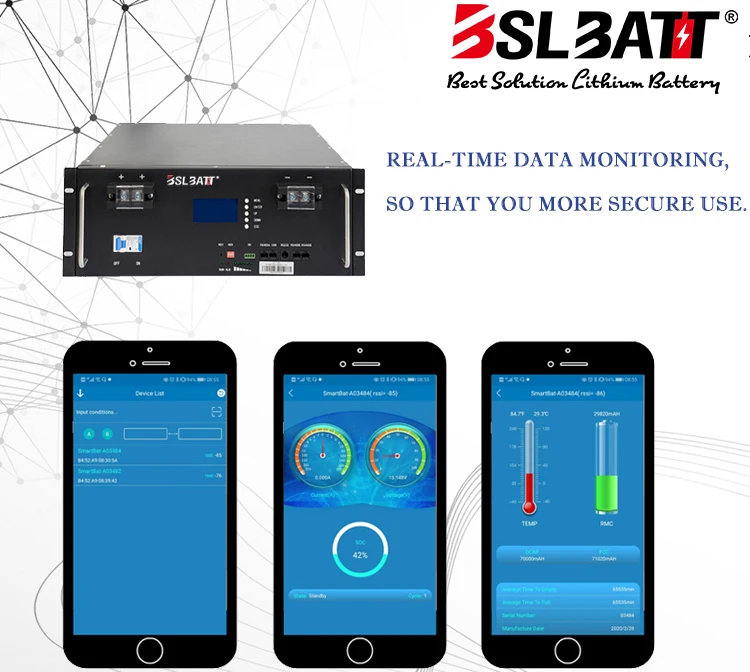

GPRS+GPS Feature
--- Real-time monitoring Factory engineers in China , customers from all over the world, can read the data through the Internet.
---Easy for communication, and fast to analyze and find the solution if battery have any problems.
System

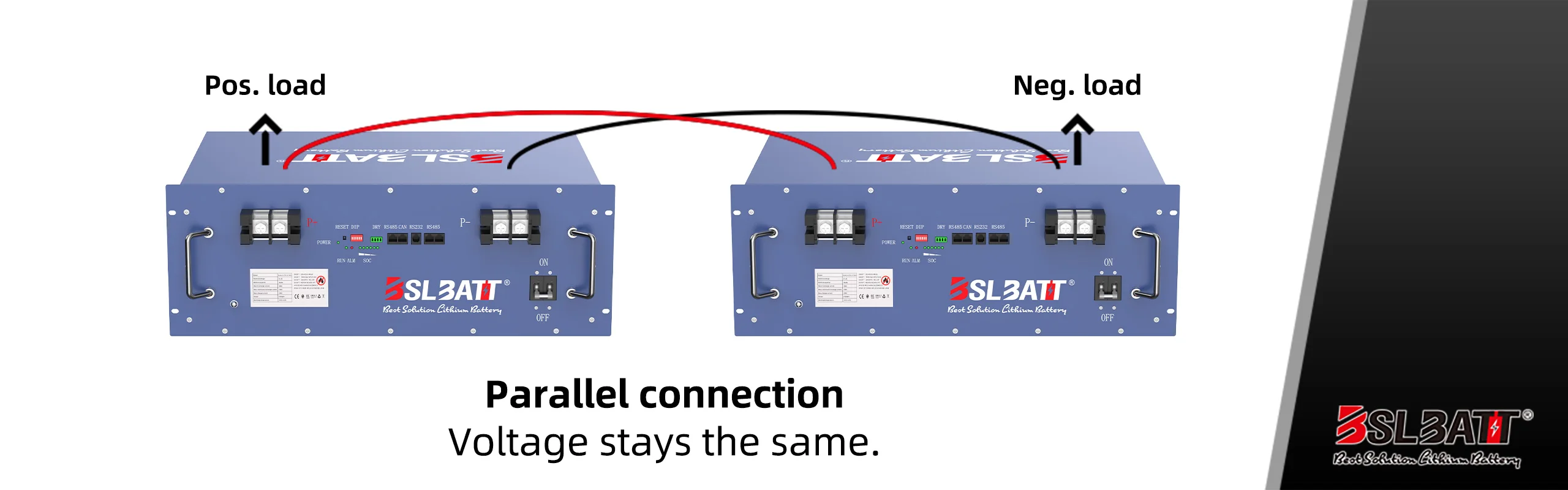

--- BSLBATT’s Lithium Telecom Solution can be installed in Telecom sites, Commercial & Industrial markets, etc. Our proprietary design can support the paralleling of multiple battery modules enabling system design from 75Ah to 2000AH.
Application Scenarios
Customer Project
Why Choose Us
---Wisdom Industrial Power Co. Ltd is professional for R&D and manufacturing lithium battery systems more than 18 years. In 2003 Wisdom Power develops and produces advanced series “BSLBATT” brand for lithium battery.
---BSLBATT Lithium has an integrated BMS (Battery Management System), which maximizes the performance of the battery by balancing the cells and protecting them from being overcharged or over-discharged.BSLBATT lithium offer at least 5 years warranty as well as provide testing reports to our clients after finishing production.
---Wisdom Power have attained international certifications of ISO9001 and the lithium product has passed CE, CB, UN38.3 and IEC approvals. Our service teams provide 24/7 after sales service and online training for the customers. If you want to get more detail ,please feel free to contact us.
---BSLBATT Lithium has an integrated BMS (Battery Management System), which maximizes the performance of the battery by balancing the cells and protecting them from being overcharged or over-discharged.BSLBATT lithium offer at least 5 years warranty as well as provide testing reports to our clients after finishing production.
---Wisdom Power have attained international certifications of ISO9001 and the lithium product has passed CE, CB, UN38.3 and IEC approvals. Our service teams provide 24/7 after sales service and online training for the customers. If you want to get more detail ,please feel free to contact us.
FAQ
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 18 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection; All cells we adopt are brand new Grade A !other supplier maybe sell seconds on best quality prices.
Q2: Is this product safe?
A2: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance;
Q3. What's the Lead time of the battery?
A3: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q4: Is it OK to print my logo on the product?
A4. Sure. Please inform us formally before our production and confirm the design first based on our sample.
Q5:How to proceed with an order?
A5. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirm the order details and place a deposit for formal order. Fourthly after receiving payment, we will arrange the production asap and keep you updated during the whole business.
A1: Over 18 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection; All cells we adopt are brand new Grade A !other supplier maybe sell seconds on best quality prices.
Q2: Is this product safe?
A2: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance;
Q3. What's the Lead time of the battery?
A3: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q4: Is it OK to print my logo on the product?
A4. Sure. Please inform us formally before our production and confirm the design first based on our sample.
Q5:How to proceed with an order?
A5. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirm the order details and place a deposit for formal order. Fourthly after receiving payment, we will arrange the production asap and keep you updated during the whole business.
Contact us
If you are interest in our products, please feel free to contact us!
Send your inquiry to inquiry@bslbattery.com or directly Contact us Eric, we will reply you as soon as possible.
