Hengwang DTH Drilling Rig For Blast Hole Use Work With Portable Screw Air Compressor
Product Description

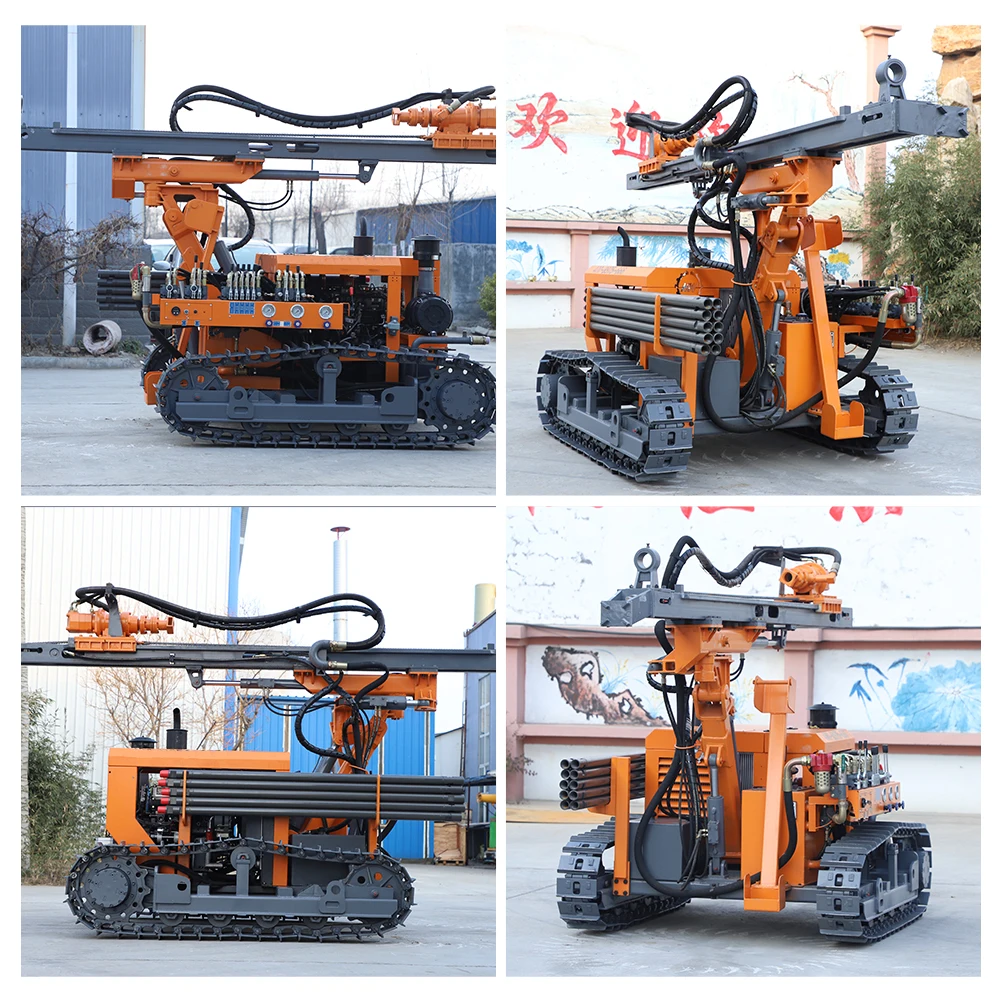

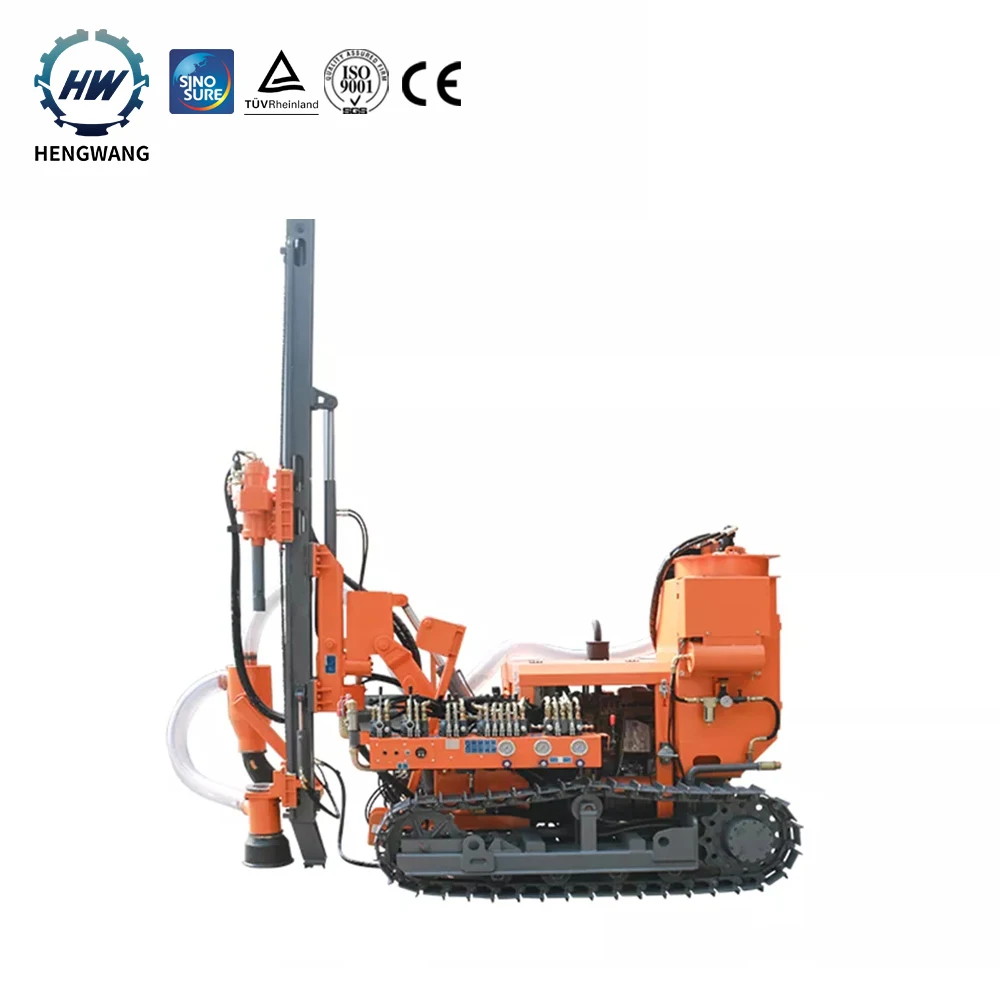

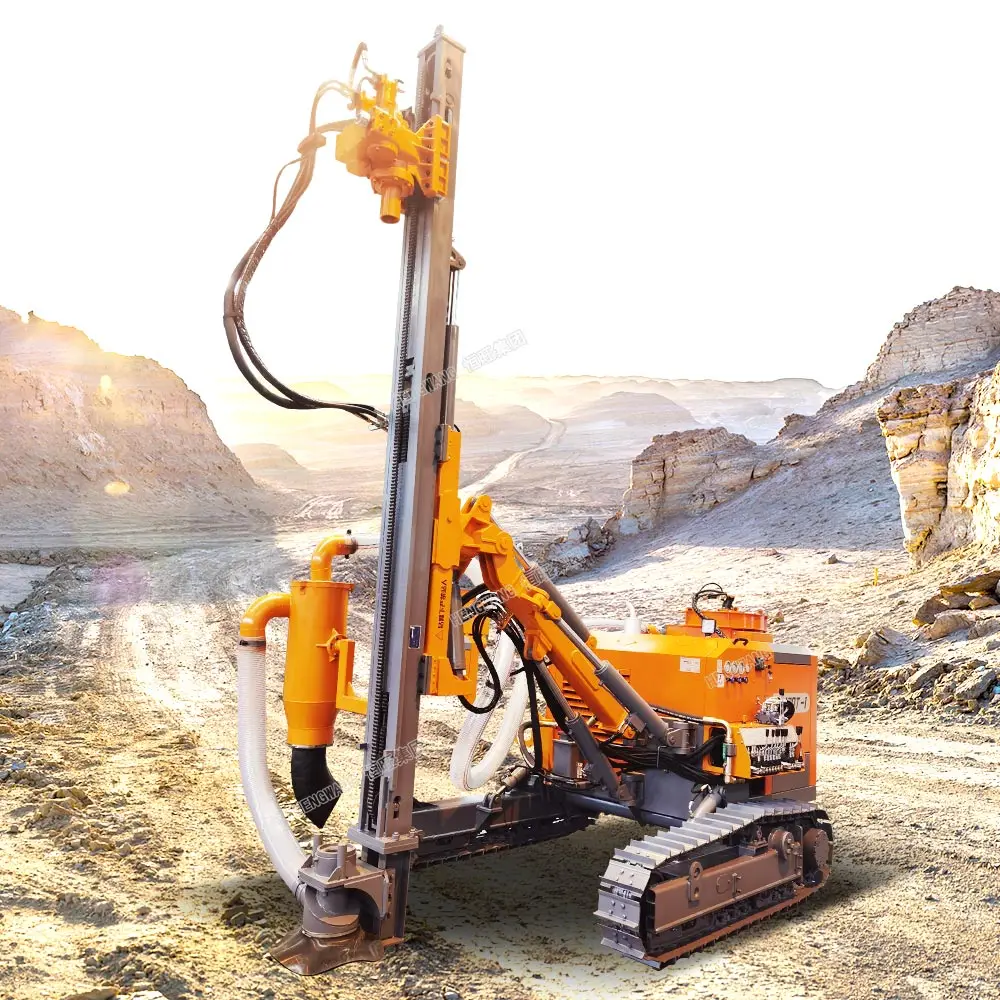

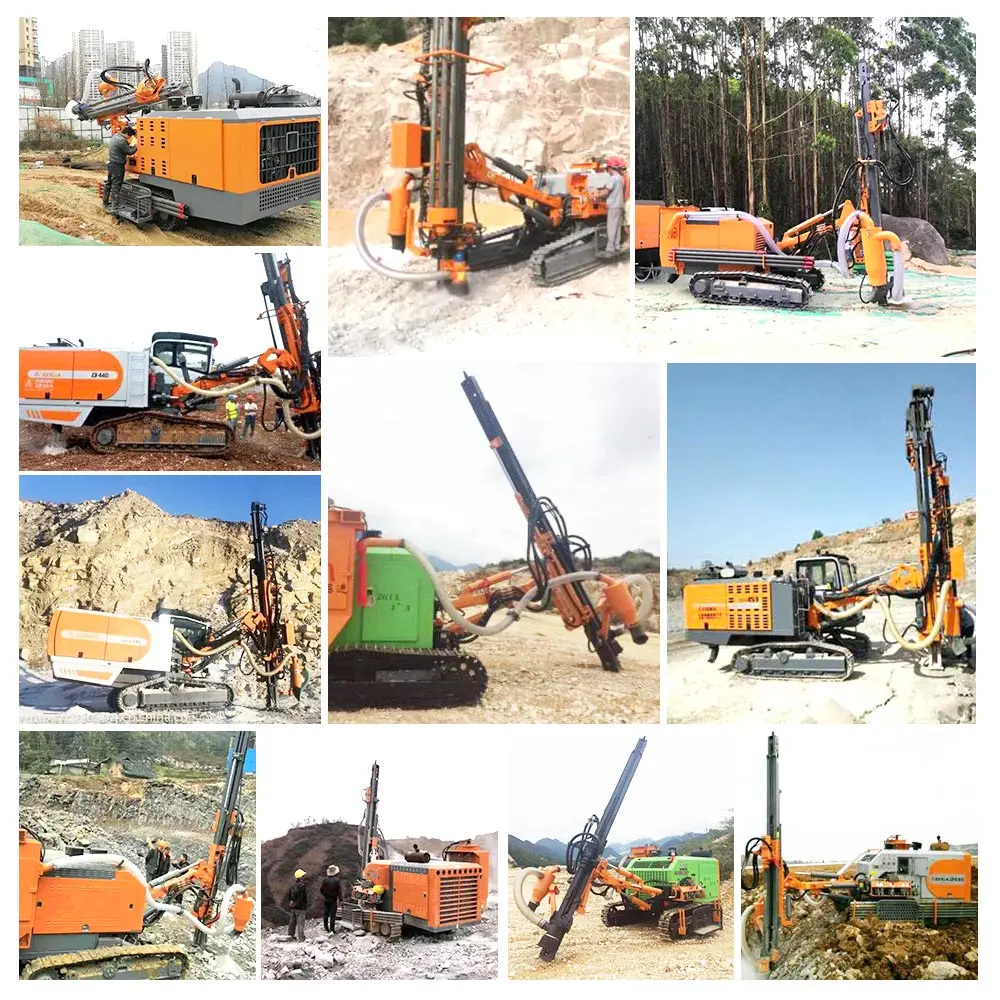

Our Hengwang blasthole drill rig model HW920/HW920-1 is a kind of heavy drill equipment with air compressor built-in. Its diesel engine is Yuchai brand 58kw very powerful for 20m hole with diameter 90-130mm. The DTH surface drilling rig is used at front-line sites such as lime mines, metal mines, quarries, for civil engineering work and construction.
Hengwang DTH Drilling Rig For Blast Hole Use Work With Portable Screw Air Compressor

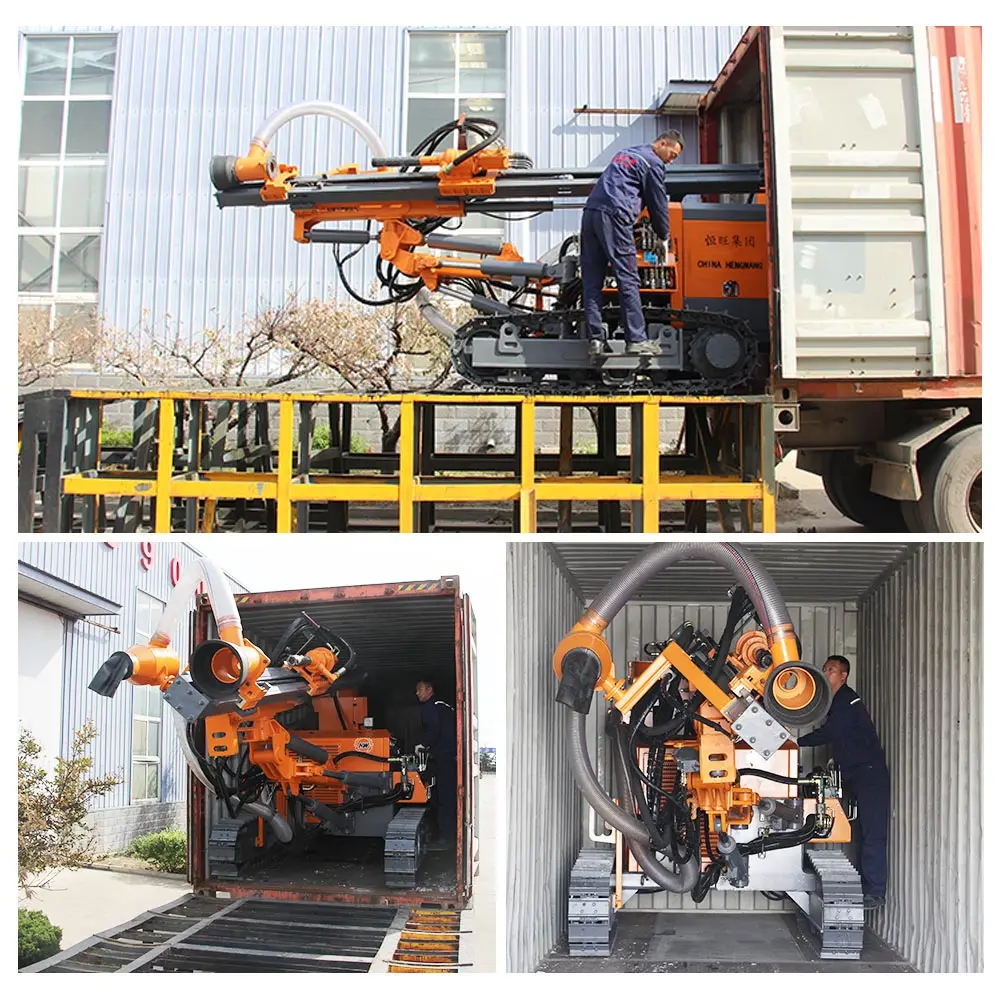

Seperated DTH drill rig load in 1*20ft container
DTH blast hole drill rig + air compressor load in 1*40ft container
Air compressor built-in DTH surface drill rig load by RORO ship
Air compressor built-in DTH surface drill rig load by RORO ship
Product category navigation map
Hengwang DTH Drilling Rig For Blast Hole Use Work With Portable Screw Air Compressor
Product Parameters
HW920/920-1Separated DTH Surface Drill Rig | ||||
Rig Model | Power | Rated Power | ||
HW920 | Yuchai YC4DK80 | 58 KW | ||

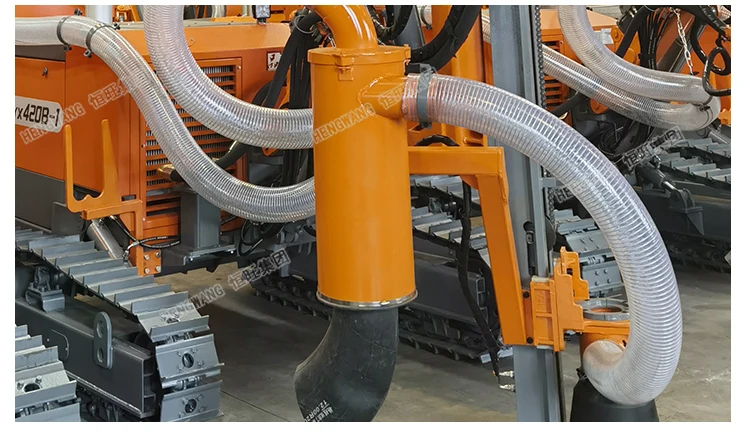

HW920-1 | Yuchai YC4DK80 | 58kW ( Dust collection system as standard equipment) | ||
General Specifications | ||||
Drill Pipe Sizes | 76*3000 mm | |||
Hole range | 90-130 mm | |||
Rotation torque (Max.) | 2,200 N.m | |||
Rotation Speed | 0-150 rpm | |||
Feed Force | 15 kN | |||
Pull Up Force | 25 kN | |||
Feed Type | Hydraulic cylinder-chain | |||
Tramming Speed (Max.) | 2.5 km/h | |||
Gradeability | 30° | |||
Total Weight | 4,000Kg/ 4,400 kg | |||
Transportation Dimensions | 5,700X2,130X2,200 mm | |||
Model | HW910 Seperated Drill rig |
Hole Dia | 90-110 mm |
Drill Pile Sizes | Dia. 60mm x 2000mm |
DTH Hammer | 4" |
Power | 50KW |
Rotation Torque ( Max.) | 1,650 N.m |
Working Pressure ( Max.) | 6-12 bar |
Total Weight | 3,800 kg |
Transportation Dimensions | 4,900 X 2,000 X 2,200 mm |
Model | HW930 Seperated Drill rig |
Hole Dia | 110-165 mm |
Drill Pile Sizes | Dia. 76mm x 3000mm |
DTH Hammer | 4" / 5" |
Power | 73.5KW |
Rotation Torque ( Max.) | 3,500 N.m |
Working Pressure ( Max.) | 7 - 20 bar |
Total Weight | 6,460 kg |
Transportation Dimensions | 7370 x 2360 x 2560mm |
Model | HW938 Integrated Drill rig |
Hole Dia | 90-138 mm |
Drill Pile Sizes | Dia. 76mm x 3000mm |
DTH Hammer | 4" |
Power | 191KW |
Rotation Torque ( Max.) | 2,500 N.m |
Working Pressure ( Max.) | 17 bar |
Total Weight | 9,310 kg |
Transportation Dimensions | 7550 x 2500 x 3060mm |

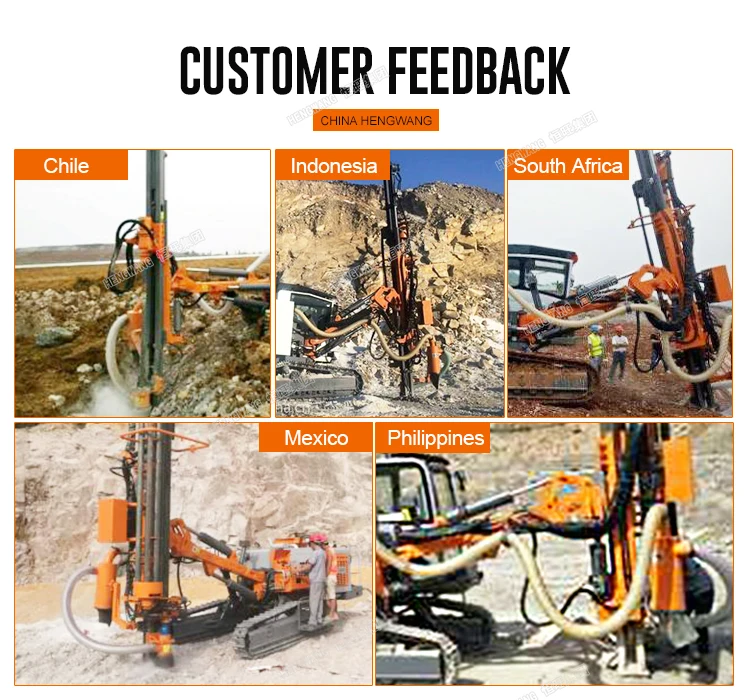

Customer feedback

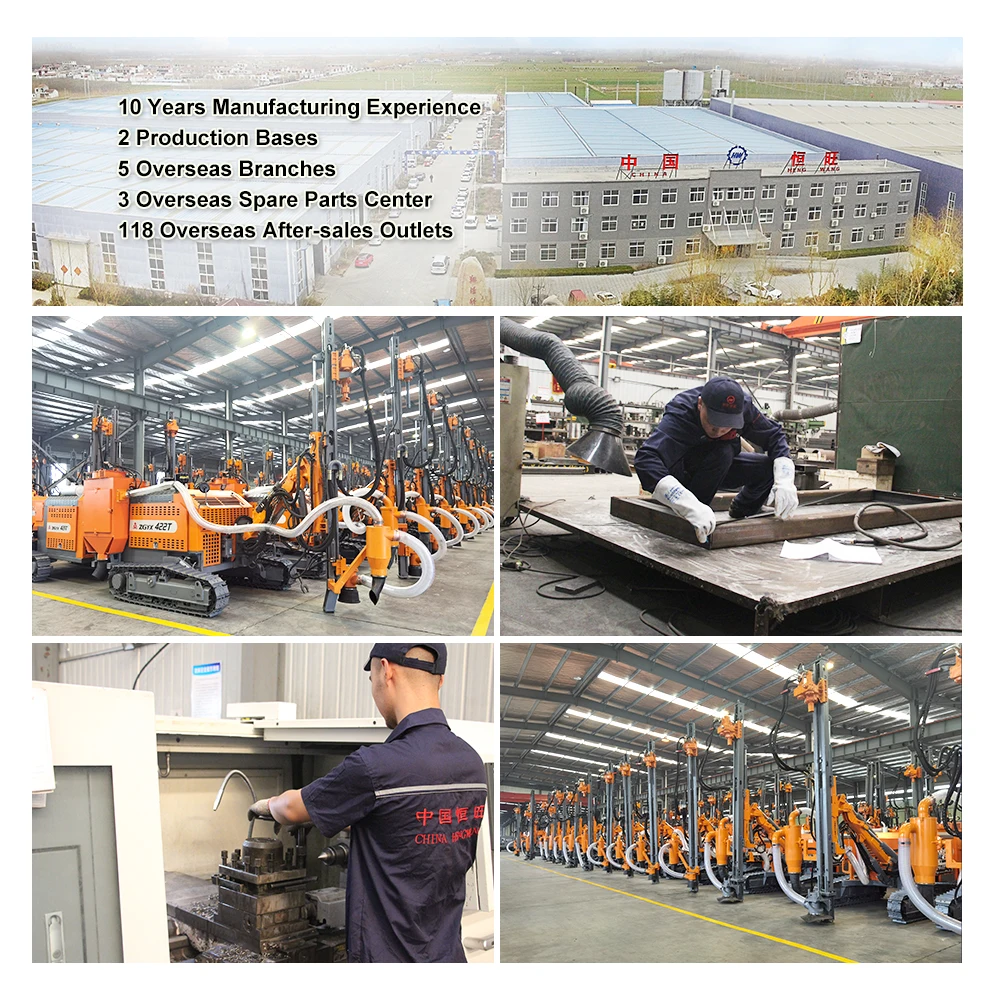

Our Company
