Product Overview

Description



Energy Storage Hybrid Inverter (High Battery Voltage)


1.Flexible

* Various working mode can be flexibly.
* Flexible Battery Type(li-ion,lead-acid).
* PV controller can be expended to fexilitate flexible

2.Convinent

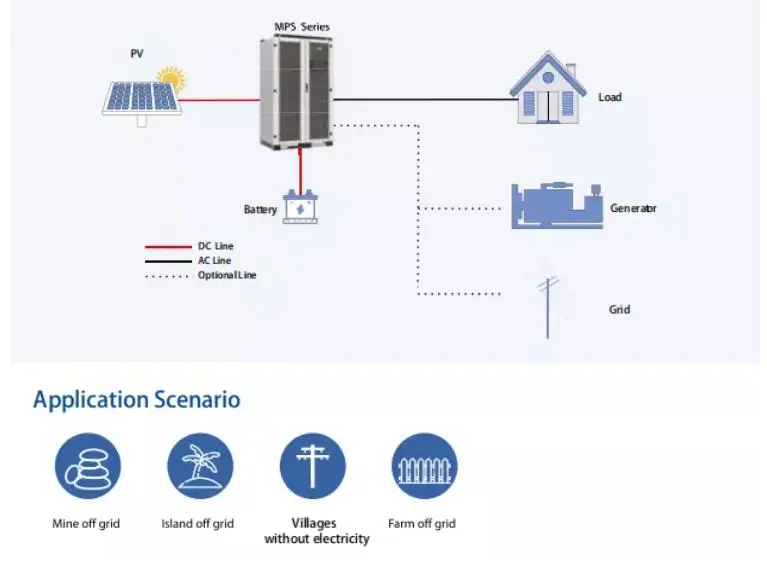

* Integreted design to support loads, batteries,power grids,diesel generators and PV be connected.
* Integrated EMS function, power supply security and stability,maximum utilization of new energy

3.Reliable
* Prediction intelligent battery management and discharge time.
* CAN and RS485 communication interface, modbus protocol.
* Seamless transfer between on and off grid.
*Strong load adaptability
*Perfect protection function to protect inverters and batteries





































































































































Model



Energy storage   P30




Energy storage   P50




Energy storage   P100




Energy storage   P150




Energy storage   P250




Energy storage   P500



AC(grid-connected)


Rated power



30kW




50kw




100kw




150kw




250kw




500kW



Rated current



43A




72A




144A




217A




361A




722A



Voltage range



320V-460V



AC(off-grid)


Apparent power



33KVA




55KVA




110KVA




165KVA




275KVA




550KVA



Rated power



50KW




50KW




100KW




150KW




250KW




500KW



Rated Voltage



400V



Rated Current



43A




72A




144A




217A




361A




722A



PV


Max. PV open-circuit
voltage



1000VDC



PV MPPT Voltage Range



220-850V



MPPT Number



1/2




2/3/4




5/6




10/11/12



Battery


Battery Voltage



150V-850V




420V-850V




500V-850V



Dimension(WXDXH)



800X800X1900mm




1200X800X2050mm



1800X800X2050mm


2800X800X2050mm


Weight



440kg




620kg




900kg




1250kg




1700kg




3520kg



Communication


Display



Touch screen LCD



Communication interface



RS485/CAN
