FEP cooling pipe, FEP ultra pure water pipe,FEP tube

Product Overview

Description

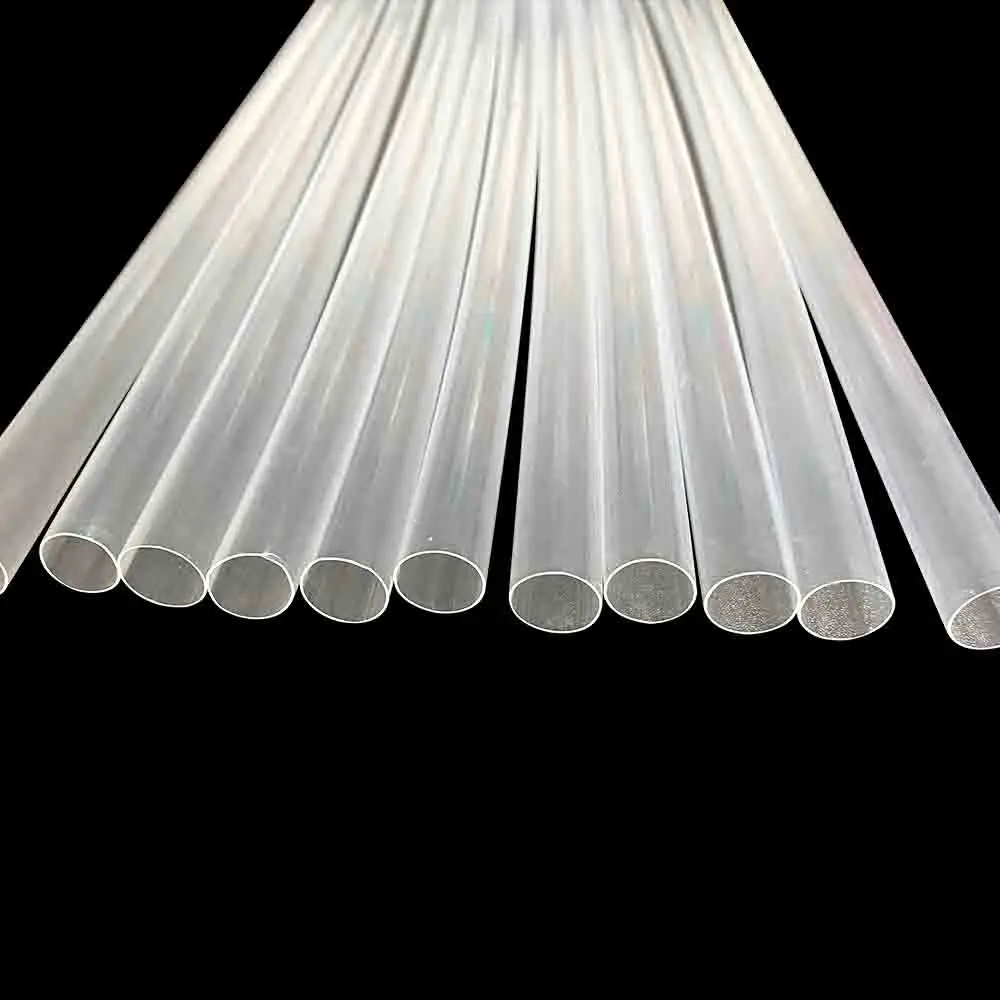

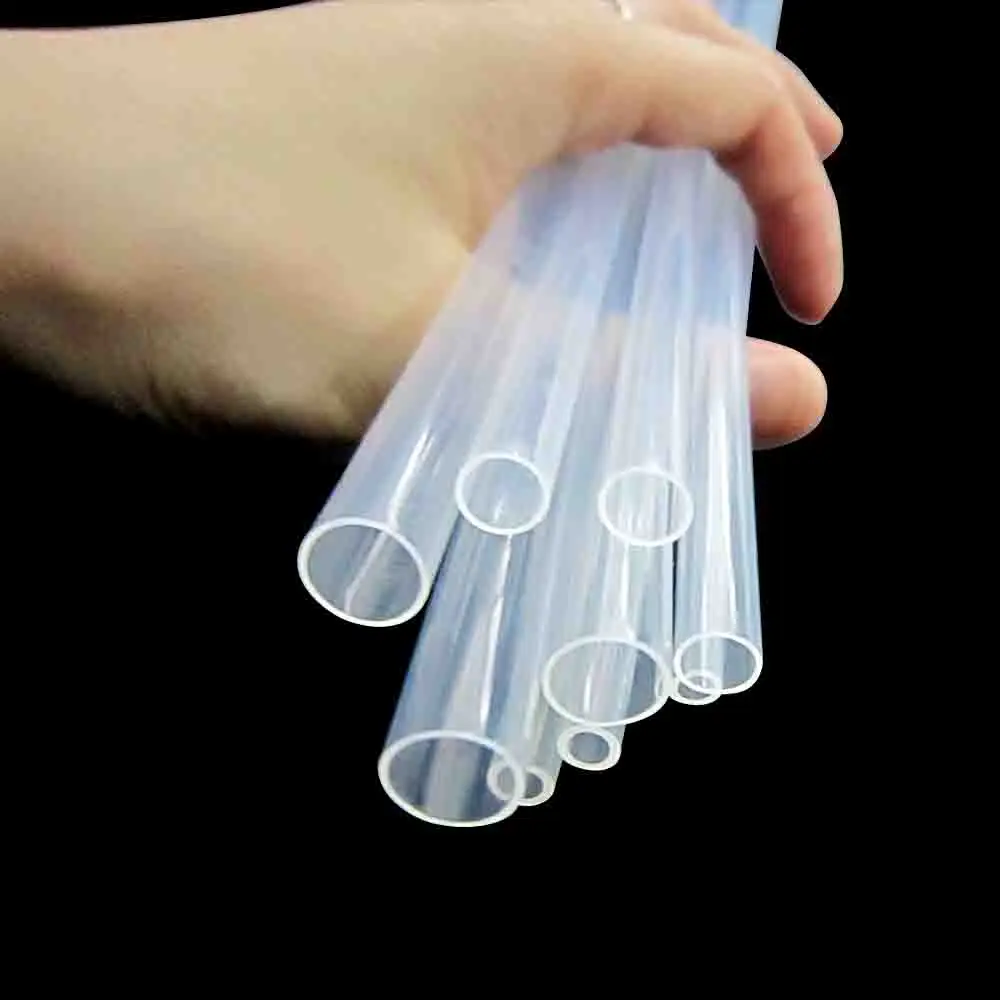

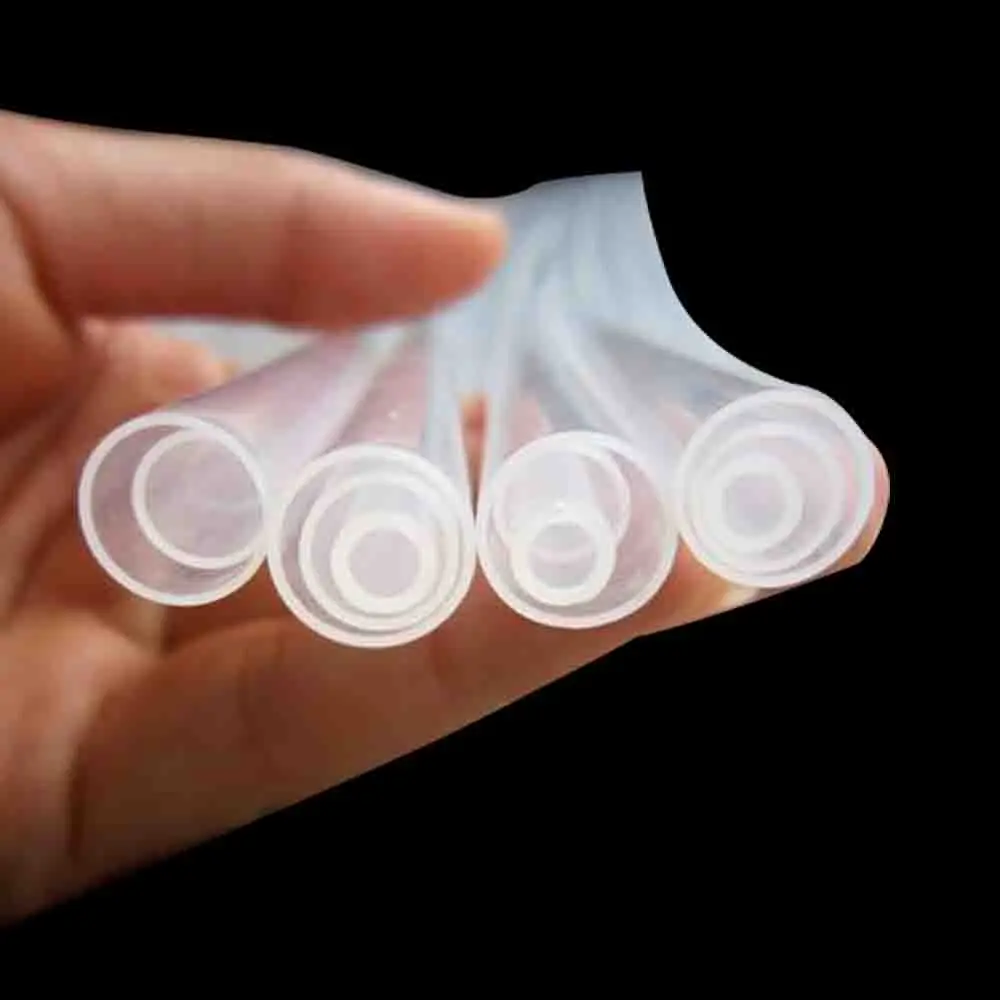

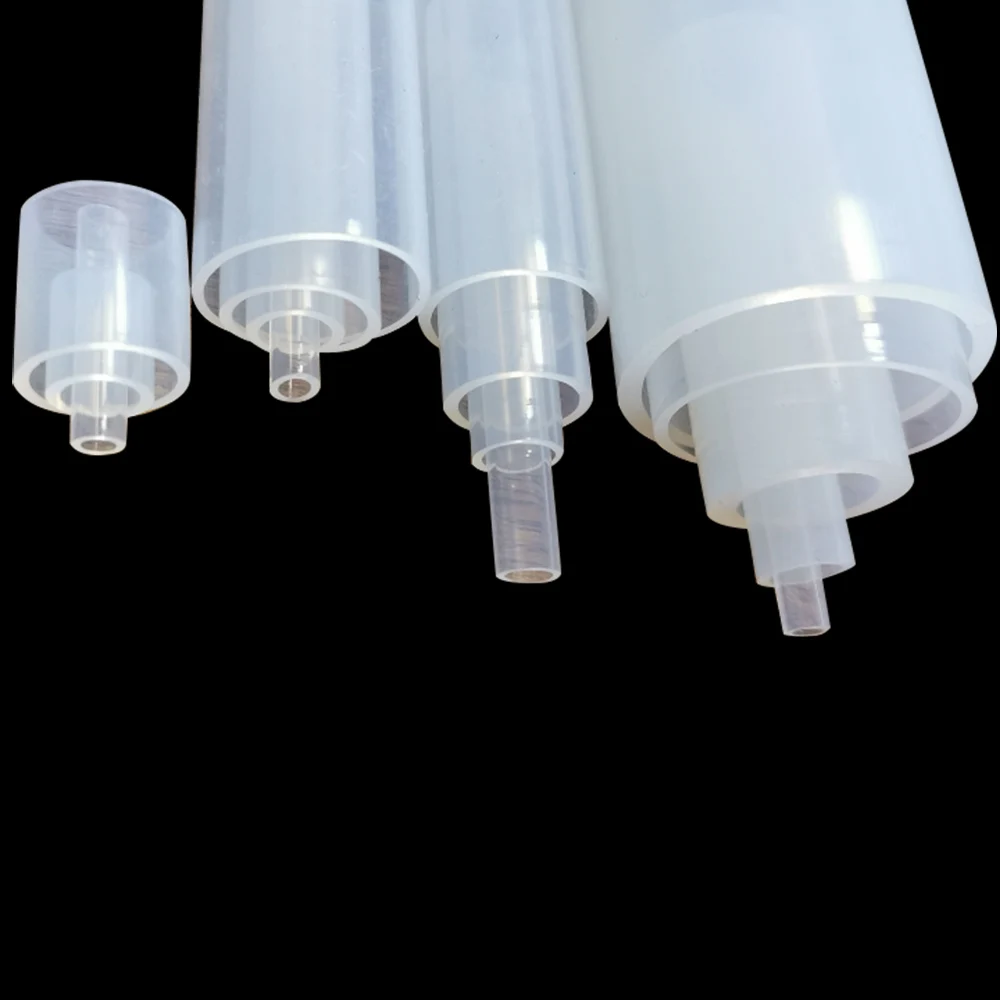

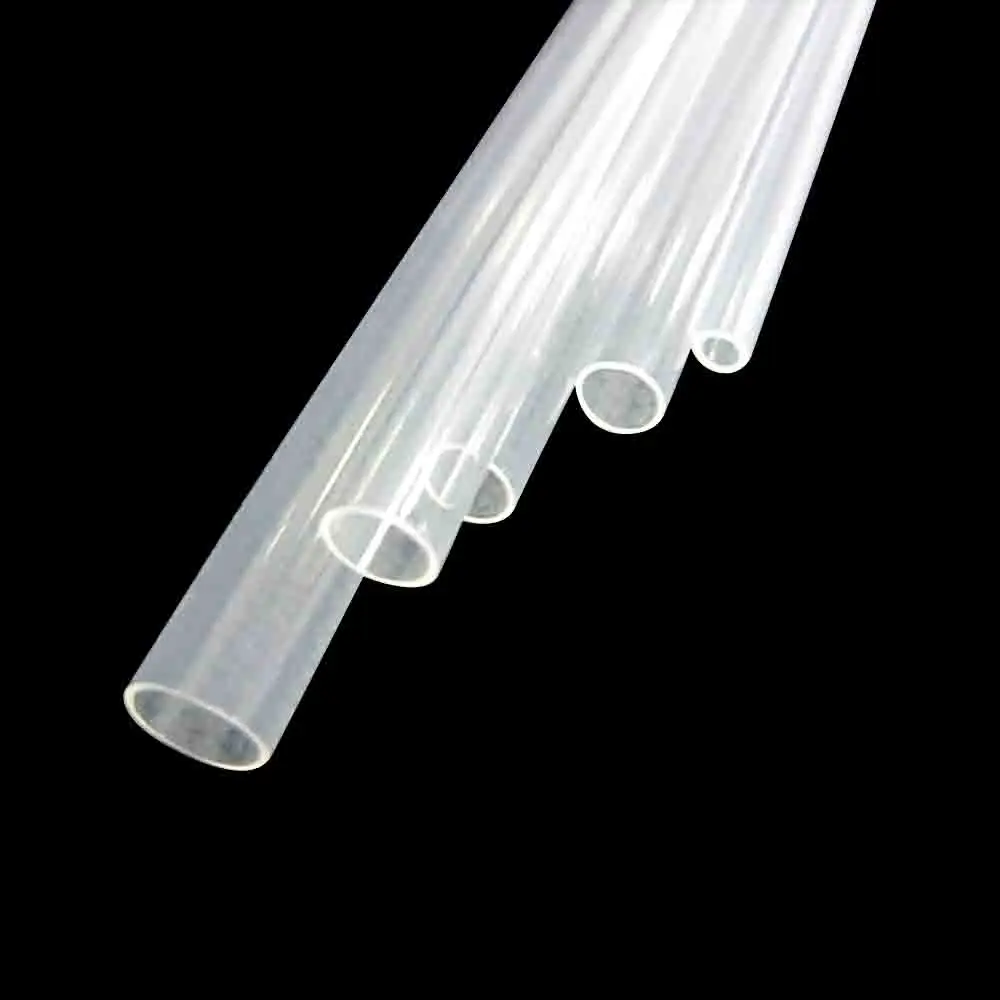

FEP cooling pipe, FEP ultra-pure water pipe,FEP tube



Physiological

High transparency

Low refractive index in all plastics

Weather resistance

Long-term exposure to ozone and sunlight

Easy secondary processability

Can be self-sealing, self-welding, can be turned over, Can be made to coil



 Usage:

· 1-Photovoltaic solar cell module cleaning tube

  2-Semiconductor manufacturing equipment

  3-Heat exchanger, steam piping

  4-High-purity reagent delivery tube

  5-Various corrosive media (harsh solvents) pipelines

  6-Import and export flexible hoses for bipolar ion membrane caustic soda production

  7-Various frequency wire and cable sheaths, slot insulation tubes

  8-For air conditioning wiring harness assembly

  9-Full-wrapped plastic O-ring seal tube

 10-Utilization characteristics:

 11-· High and low temperature resistance

  -200 ~ 200 ℃,

 12-· Non-sticky, fight water, fight oil

 13- No fouling and stagnation inside and outside the pipe wall

·14- Electrical reliability, high insulation

 15-Dielectric constant of 60HZ-60MHZ at high and low temperature is 2.1

 16- Even if the surface is flashed and damaged, it will not produce conductive

tracks.

· Corrosion resistance

17-Only elemental fluorine and alkali metals work with it at high temperature, and

it has no effect on all other concentrated and dilute inorganic organic acids,

alkalis and esters.

18· Low absorption

Low absorption rate <0.01%

19-Incombustibility

20-Does not burn in the air. (Oxygen Index> 95vol.%)

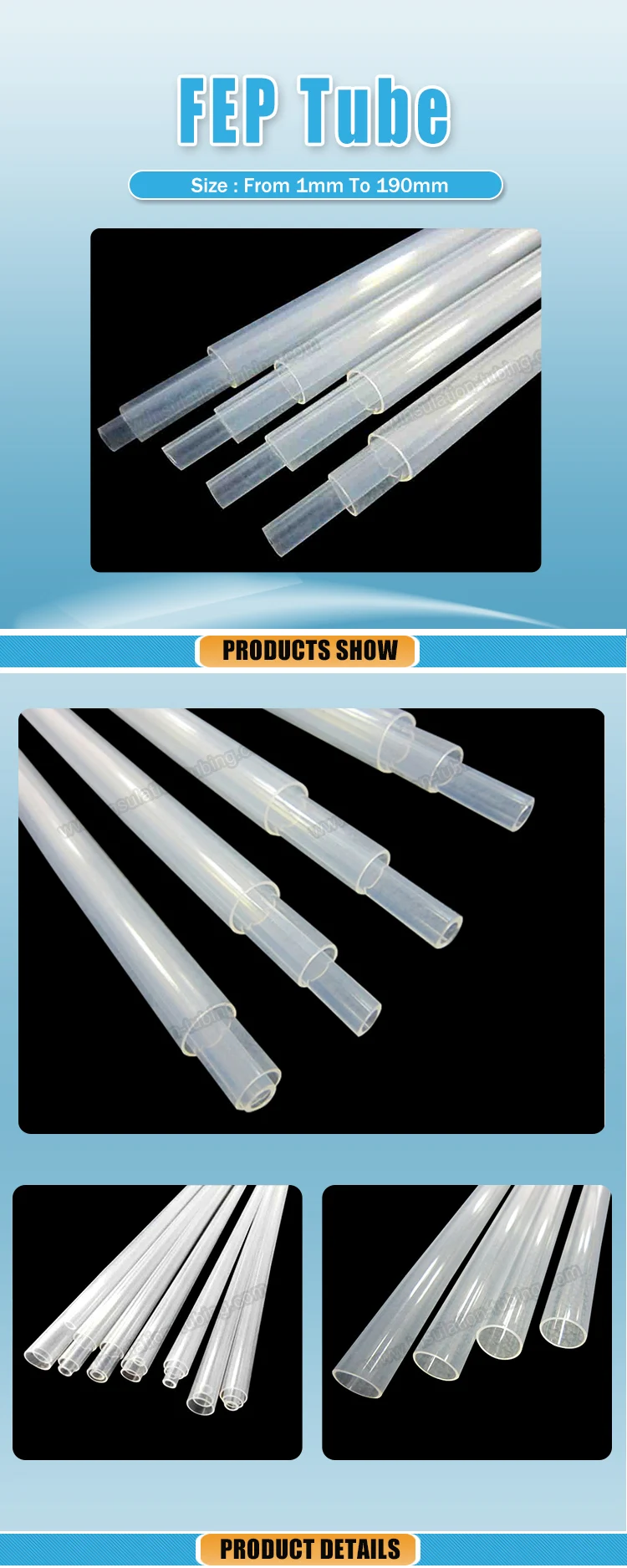

external diameter*internal diameter maximum length external diameter*internal diameter maximum length φ2*φ1.6 300 φ16*φ13 50 φ3*φ2.2 250 φ16*φ14 50 φ4*φ3.2 200 φ20*φ16 30 φ5*φ4 200 φ20*φ18 30 φ6*φ3 200 φ25*φ21 30 φ6*φ4 200 φ25*φ22 30 φ6*φ5 200 φ32*φ28 6 φ8*φ6 50 φ32*φ29 6 φ8*φ7 50 φ36*φ32 6 φ10*φ7 50 φ36*φ30 6 φ10*φ8 50 φ40*φ34 6 φ10*φ9 50 φ40*φ36 6 φ12*φ10 50 φ50*φ46 6 φ12*φ11 50 φ60*φ54 6 φ16*φ12 50 φ80*φ70   Customer sizes avaliable upon request. Avaliable size : 1mm to 190mm

FEP tubing Products Infomation:

FEP Tubing Used in applications ranging from environmental monitoring equipment to medical

applications and electronics applications.forbest manufacturing manufactures a wide range of

custom and stock sizes of FEP tubing.

Teflon Tubing
FEP Tubing is most referred to under the name "Teflon® Tubing". Teflon is actually three

different polymer resins: FEP, PTFE, and PFA.

Applications where FEP tubing is chosen usually require more clarity, flexibility or a lower heat

shrinkable temperature than PTFE.

Advantages of FEP Tubing
Lower heat shrink temperature than PTFE
More flexible than PTFE
More optically clear than PTFE
More lubricious than PFA

Customer sizes avaliable upon request.
