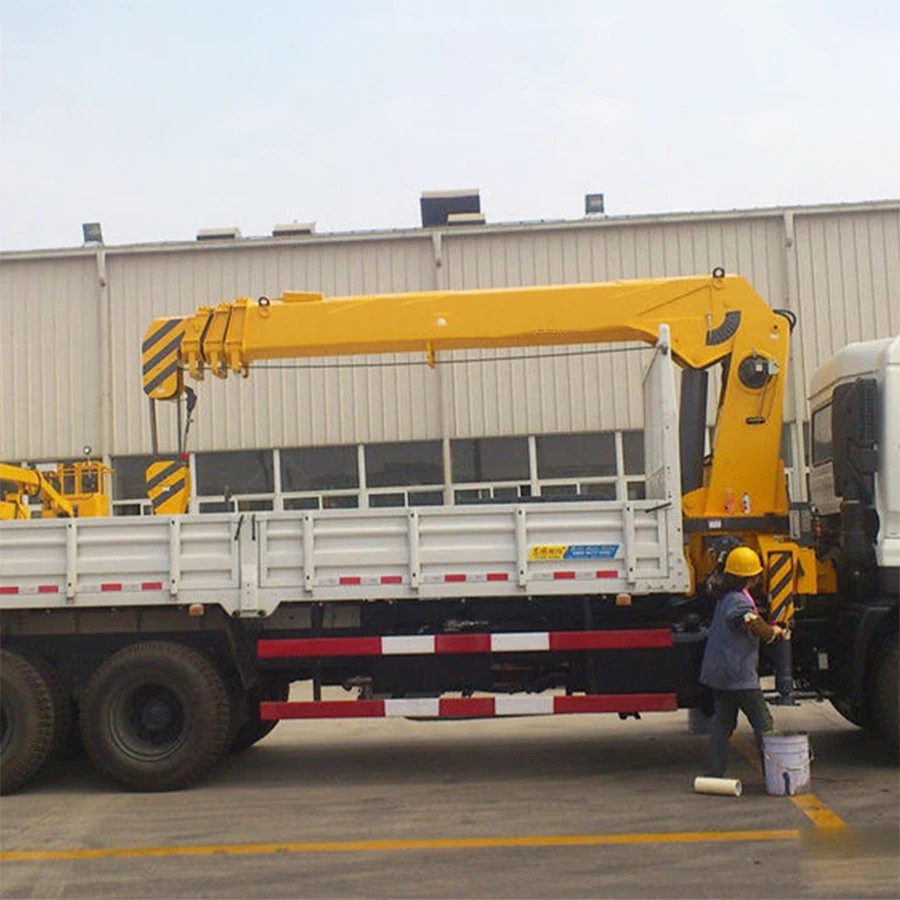

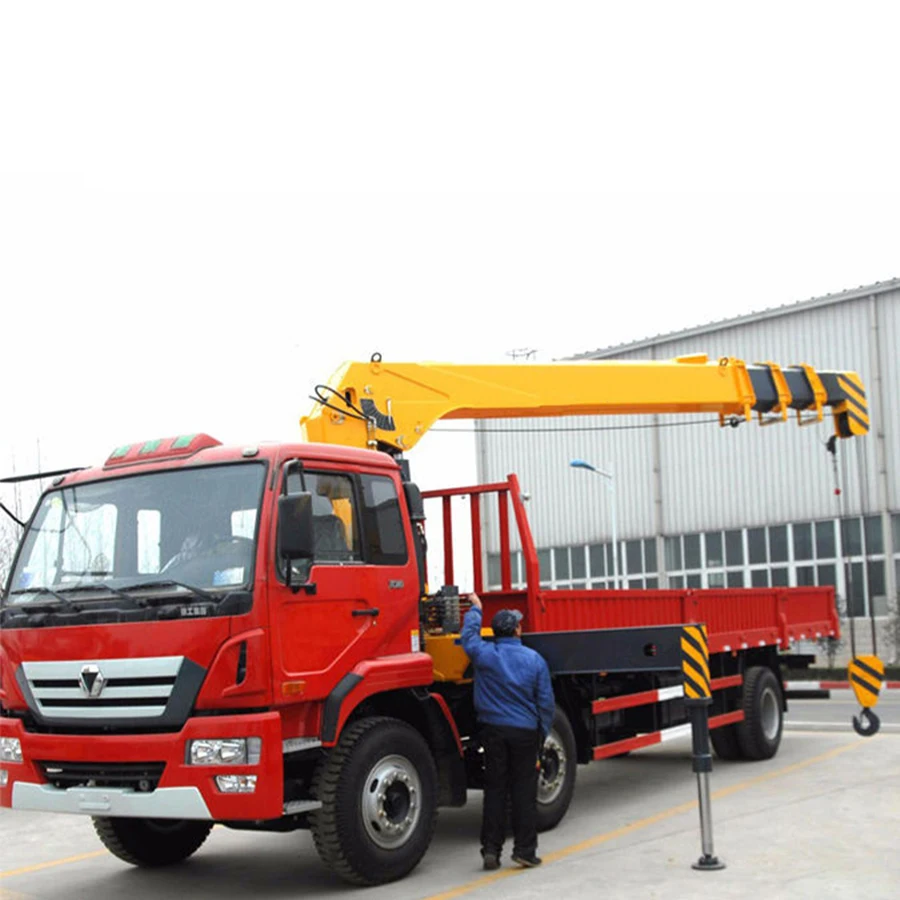

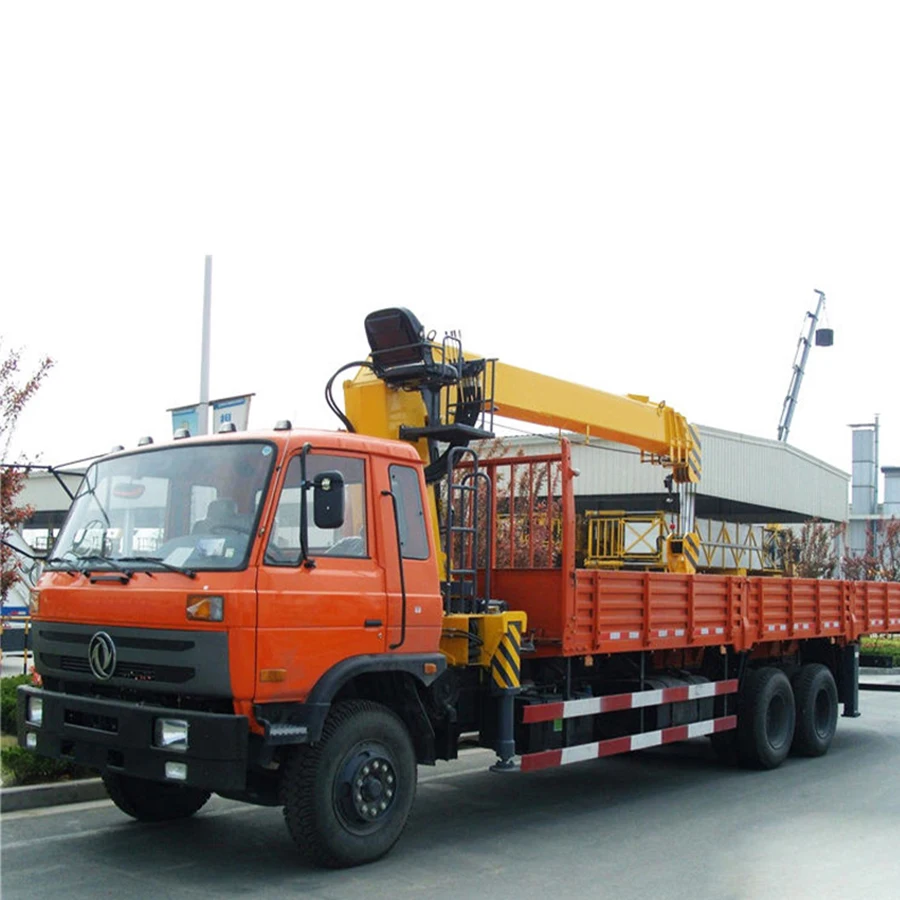

PANDA 10T Truck Mounted Crane Manipulator New Right Hand Drive SQ10SK3Q
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600764475540):
Product Overview
Description
Product information
1. Single cylinder synchronization guy cable technology makes work efficiency higher than before.
2. The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.
3. The work is more safety after fitted with alarm device.
4. Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.
5. Anti-slewing impulse equipment makes vehicle running safety.
2. The more symmetrical center design of pentagon or hexagon boom make it has bigger anti-bending capacity.
3. The work is more safety after fitted with alarm device.
4. Float three –point bridge structure design can lower the accessional stress on the chassis when traveling.
5. Anti-slewing impulse equipment makes vehicle running safety.
Technical Parameters
Truck Chassis | ||
Truck Model | ZZ2257N5857A/S0WA | |
Engine | WD615.47 371HP 6*6 | |
Total weight | 25000kg | |
Curb Weight | 12450kg | |
Transmission | HW19710+HW70 | |
Front axle | STR | |
Rear axle | ST16 | |
Approch angle | 31/14 | |
Front/Rear overhang | 1602/3190mm | |
Wheel track | 2022/1850mm | |
Wheel base | 5800+1400mm | |
Tire | 12.00R20 10pcs | |
Max speed | 110km/h | |
Overall dimension | 11992x2520x3120mm | |
Cargo box dimension | 7500x2300x600mm | |
Truck Mounted Crane | ||
Crane model | SQ10SK3Q | |
Curb Weight | 3765 kg | |
Max. lifting moment | 250 kN.m | |
Max. lifting capacity | 10000 kg at 2.5 m | |
Max. hook height | 15.5 m | |
Max. working radius | 13.5 m lift 1300 kg | |
Slewing angle | 360° Continuous | |
Outriggers span | 5624 mm | |
Auxiliary rear Outriggers span | 3535 mm | |
Operate position | Top seat | |
Max. pressure of hydraulic system | 26 MPa | |
Rated flow of hydraulic system | 63+40 L/min, double pump | |

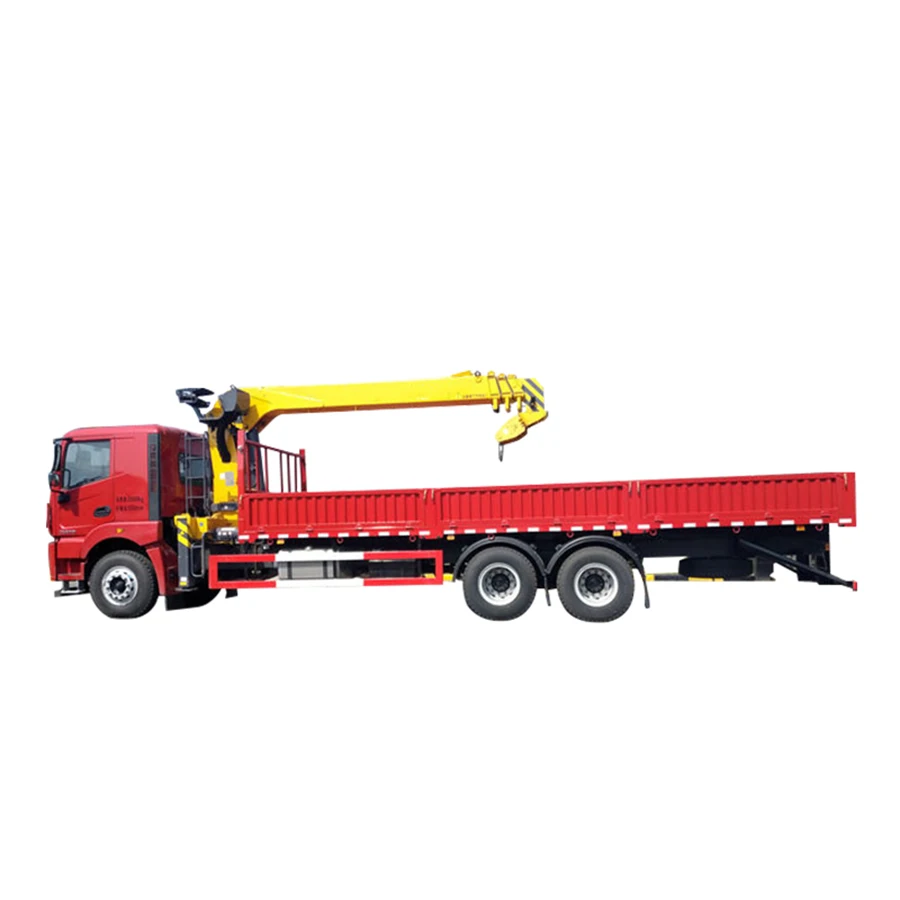

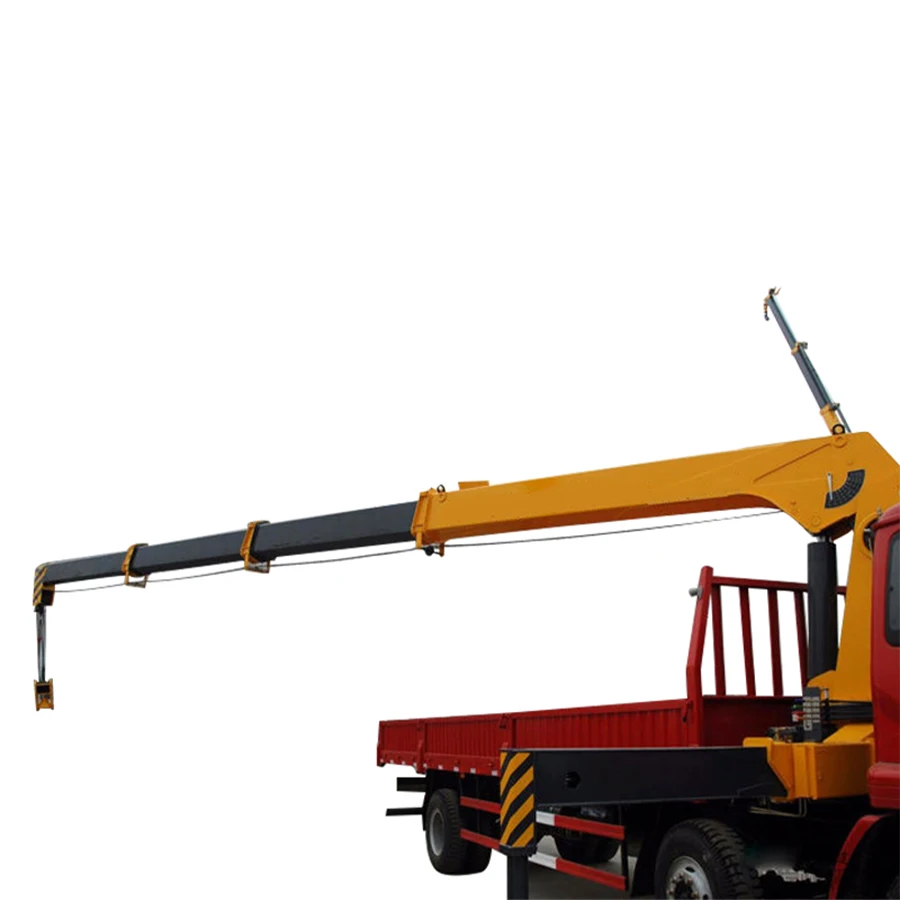

Product display
