JXT X 12A China Professional Medical ENT Equipment Ophthalmic Dental Surgery Operating Microscope
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (1600764476737):
Product Overview
Description
Product Description
ER WF10X Eyepiece
0~90° angle adjustable
W.D.: >250mm
Coaxial Cold Light Source
JXT-X-12A Microscope is a professional ENT and Dental Surgical Operating Microscope. Adopts the 4X~20X stepless continuous zoom and WF10X eyepiece, which provides clear imaging, strong 3D sense, large field of vision and long depth of field.
The coaxial cold light source from Germany OSRAM bulb is equipped, which has no damage to tissue. Automatic balancing design of this model, providing flexible operation and keeping balance at any places.
Features
---WF10X binocular, 0~90°angle adjustable
---Adopt the stepless continuous zoom 4X~20X
---Adopt coaxial cold light source, dual illumination systems
---Automatic balancing design of this model, providing flexible operation and keeping balance at any places.

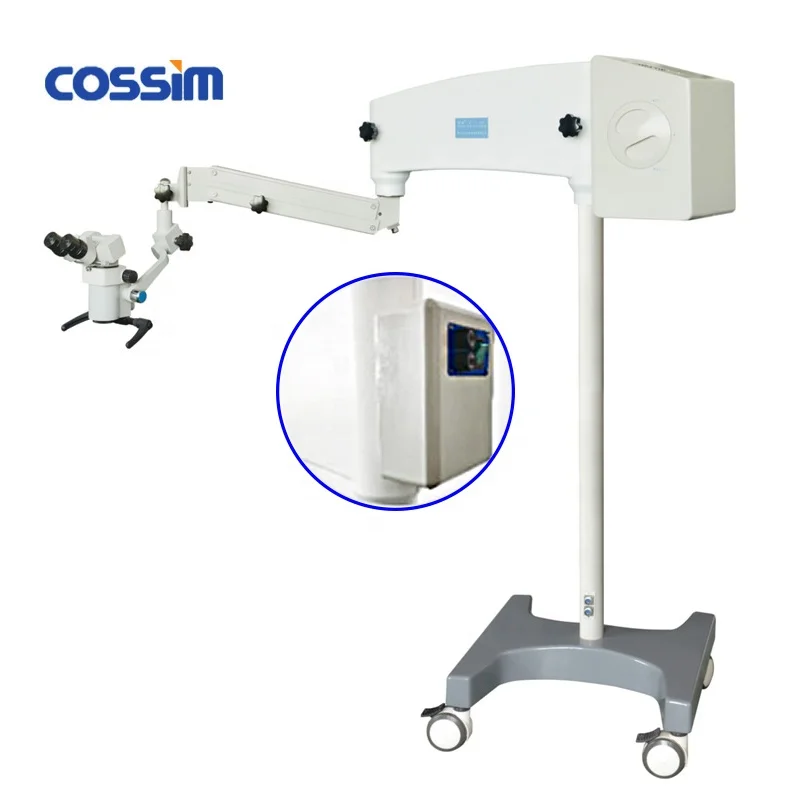

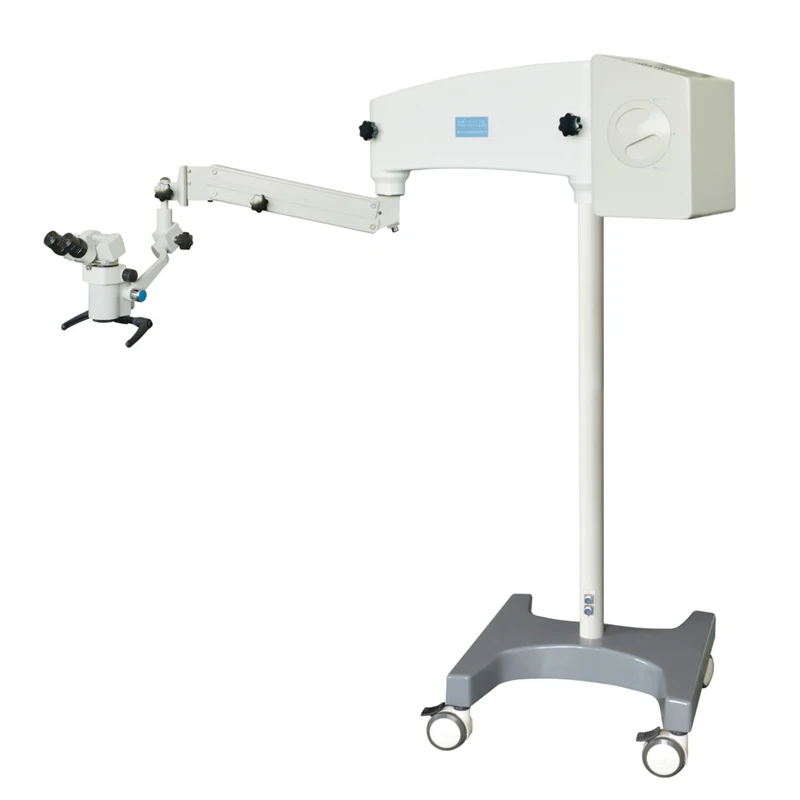

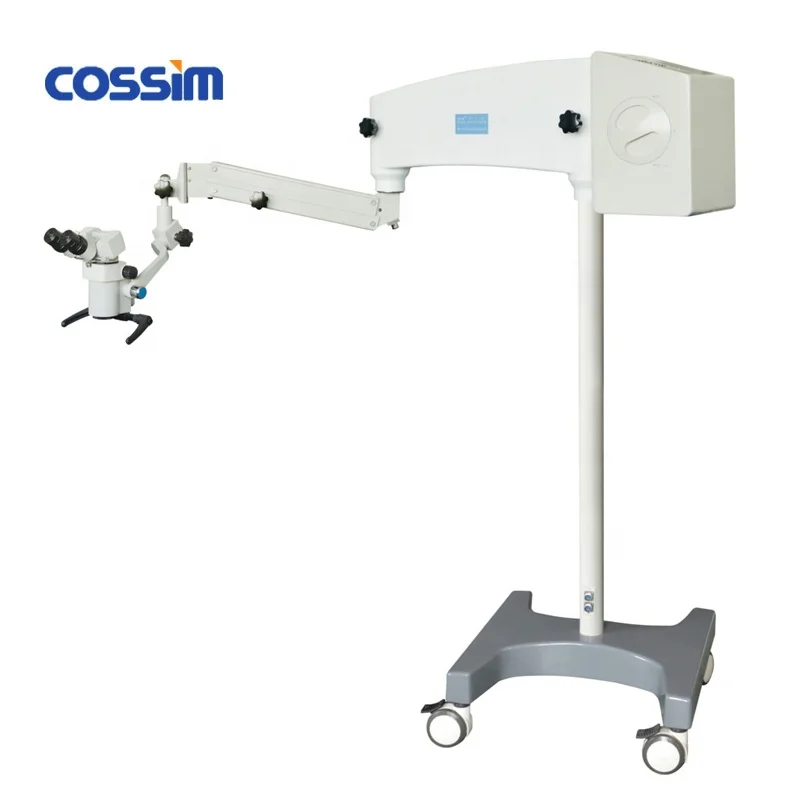

| JXT-X-12A ENT Microscope |

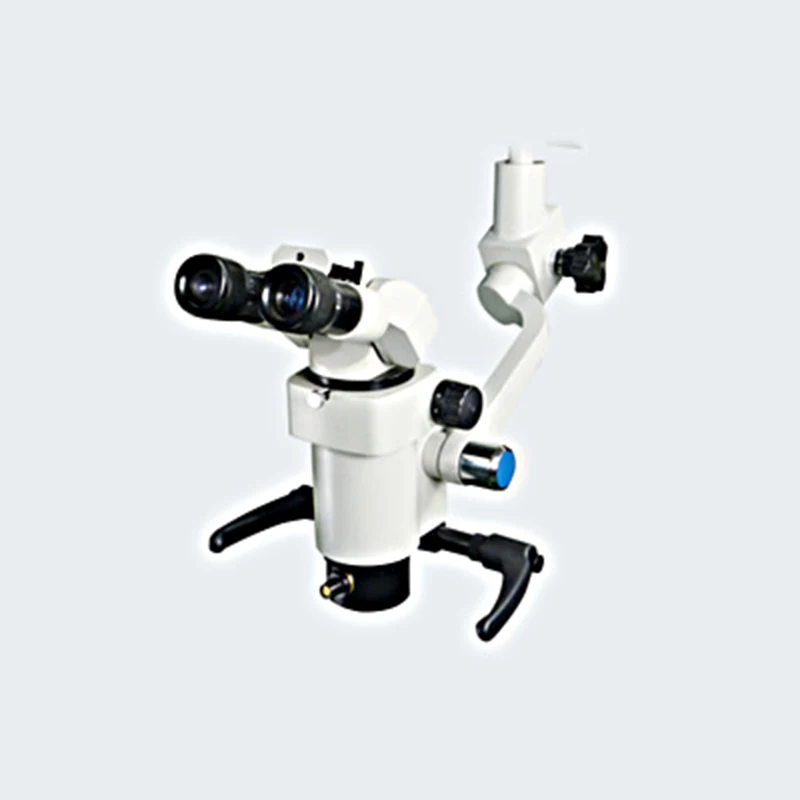

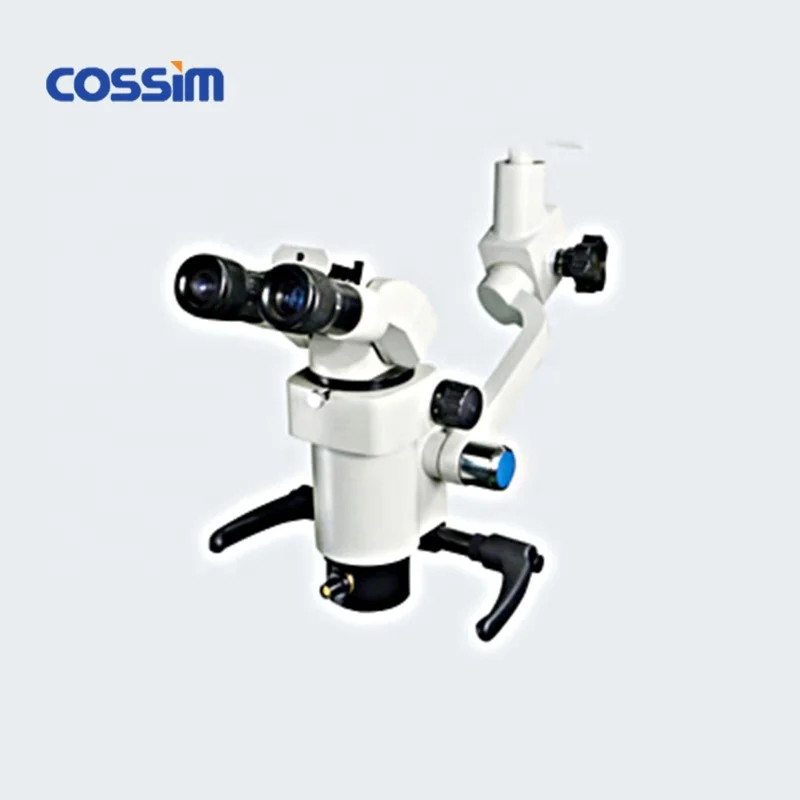

| Head of JXT-X-12A Microscope |
Specification
Specification for JXT-X-12A: | |
|---|---|
JXT-X-12A | |
Main Eyepiece | WF10X, Binocular, Dioptric adjustment: ±6D |
IPD adjustment | 55mm ~ 75mm |
W.D. | >250mm |
Magnification | 4X~20X electric stepless continual zoom |
F.O.V | 8mm~65mm |
Objective | Variable - zoom achromatic lens |
Ratio | 1:8 |
Illuminator | Dual illumination systems, coaxial cold light source, 15V/150W OSRAM halogen lamp, brightness adjustable, ≥15000Lux |
Extension hand | Max length: 1360mm |
Vertical adjustment range | 300mm |
Distance of main mirror above ground | 1200mm |
Focusing | Hori Focusing speed: ≤1.5mm/s Focusing adjusting range: ≥40mm |
Power supply | AC 220V, ±10% 50Hz |
Optional Accessory | Microscope Cameras |
