LSI MegaRAID 9361 8i(1G) 12GB/S 8 port LSI00462 sas exspander RAID controller,05 25420 08/03 25420 14/B5MQ/B4RQ/7085209/D3216 A1

MegaRAID SAS 9361-8i

Solution Provided

Eight-port internal 12 Gb dual core ROC-based SAS solution for data center, cloud, and performance-hungry applications using up to
128 SAS or SATA devices

Physical Dimensions

MD2 low profile (6.6 in. × 2.536 in.)

Connectors

Two mini-SAS SFF8643 internal connectors (horizontal mount)

Device Support

Up to 128 SAS and/or SATA devices

Host Bus Type

x8 lane PCI Express 3.0 compliant

Data Transfer Rates

Up to 12 Gb/s per port

I/O Processor/SAS Controller

SAS3108 12 Gb/s dual-core ROC

Cache Memory Options

• 1 GB 1866 MHz DDR3 SDRAM
• 2 GB 1866 MHz DDH3 SDRAM

Cache Protection

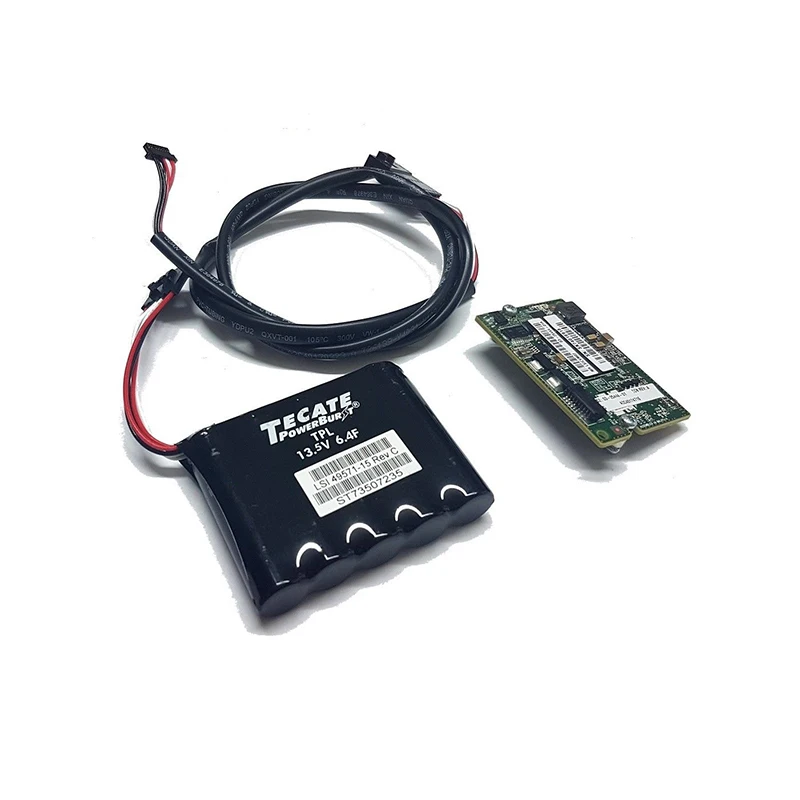

Optional CacheVault Flash Module (LSICVM02) – Includes CVFM04, CVPM02, mounting clip, and cable

Key RAID Data Protection Features

• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50, and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction (RLM)
• Single controller Multipathing
• Load Balancing
• Configurable stripe size up to 1 MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity
• SSD Support with SSD Guard™ technology
• Patrol read for media scanning and repairing
• 64 logical drive support
• DDF compliant Configuration on Disk (COD)
• S.M.A.R.T. support
• Global and dedicated Hot Spare with Revertible Hot Spare support
– Automatic rebuild
– Enclosure affinity
– Emergency SATA hot spare for SAS arrays
• Enclosure management
– SES (inband)
– SGPIO (sideband)
• Databolt bandwidth optimizer technology support for compatible expander-based enclosures
• Shielded state drive diagnostic technology

Operating Temperature

Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C

Operating Voltage

+3.3V, +12V

MTBF (Calculated)

1,343,187 hours

Hardware Warranty

3 years, free 5x8 phone support, advanced replacement option

Regulatory Certifications

EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI;
C-tick

MegaRAID Management Suite

• MegaRAID Storage Manager
• StorCLI (command-line interface)
• CTRL-R (BIOS configuration utility)
• HII (UEFI Human Interface Infrastructure)

SSD Optimization

• MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-perfor- mance
controller cache pools (Optional Upgrade)
• MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6 Gb/s Mega- RAID SATA+SAS
controllers (Included)

Compliances

EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS
3548); Safety: EN60950

OS Support

Extensive support includes Microsoft Windows Server 2012/8 and 7/2008/Vista/2003, Linux, Solaris (x86), FreeBSD, VMware and more.
Visit the download center for the most complete list of supported operating systems: www.broadcom.com/support/download-search
