Wholesale Exam Bed Sheet Disposable Surgical Medical Bedsheets Machine
- Category: >>>
- Supplier: ZHEJIANG DEHENG MACHINERY CO. LTD
Share on (1600764484072):
Product Overview
Description
Products Description

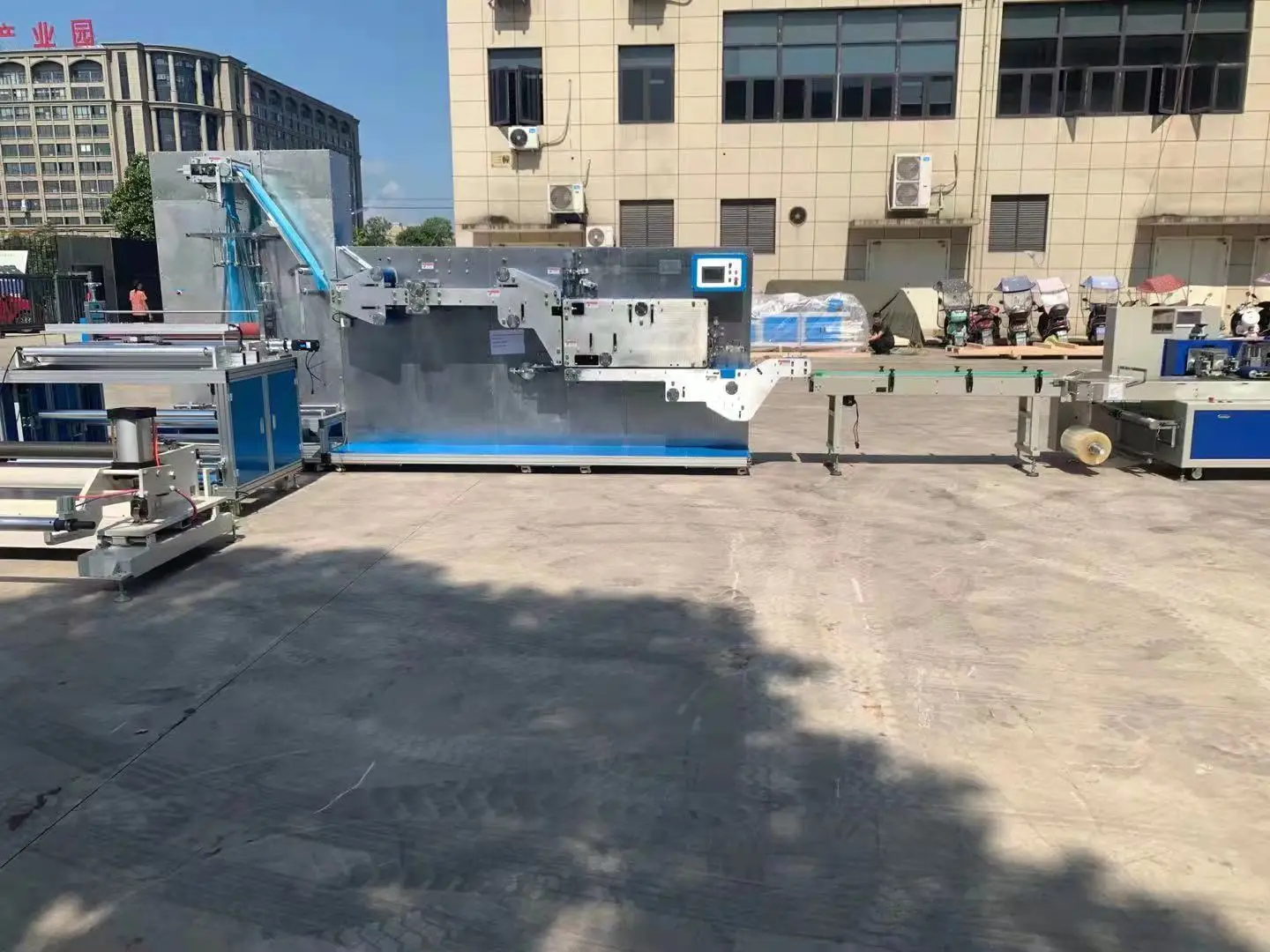

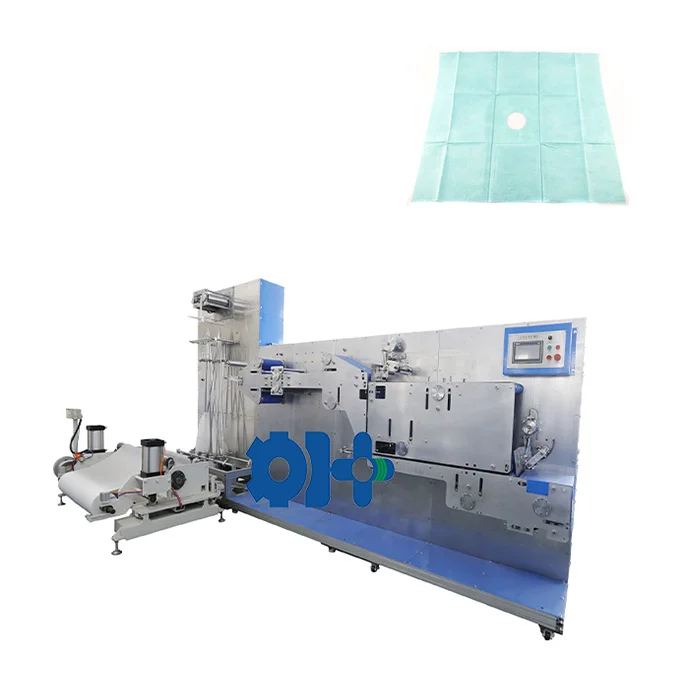

DH-C Automatic Disposable Bed Sheet Making Machine
This equipment can be customized according to customer requirements of different sizes, feeding device can also be enlarged according to customer materials, sheets can be added with elastic bands and perforate adjustable.
Machine Operation
Automatic feeding -import - folding and cutting to output
Automatic feeding -import - folding and cutting to output
Product Paramenters
Machine Type | DH-C |
Machine Speed | 65M/MIN |
Machine Size | 6000*1600*2500MM |
Machine weight | 4000KG |
Power | 3.5KW |
Voltage | 380V 50HZ |
Raw Material | Non woven fabric composit paper 20-50gsmMax |
Details Images

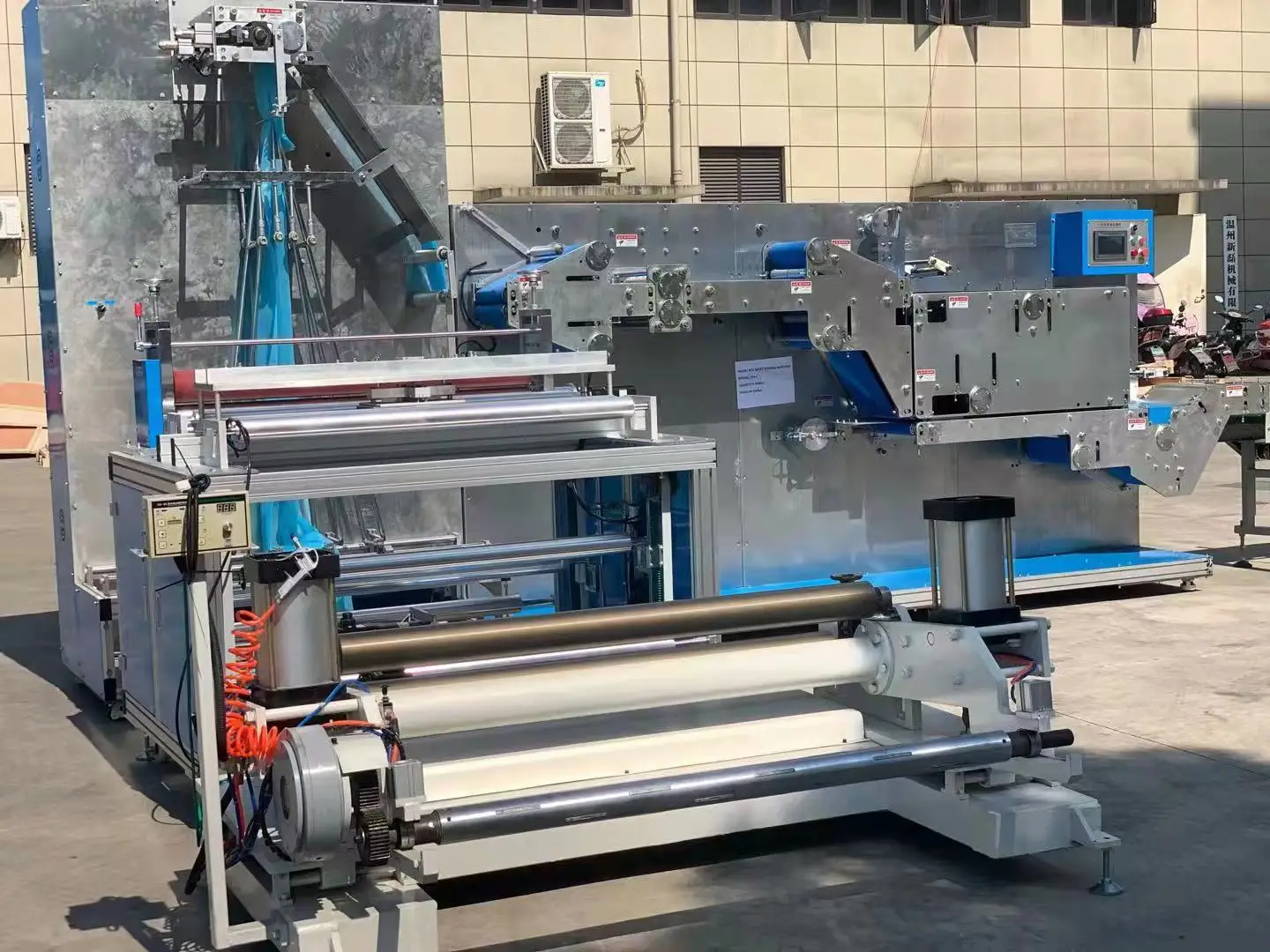

Raw Material shelf
The material shelves can be customized according to customer materials
Vertical Folding (ww)
4 Max fold Vertical,10 Max fold Horizontal(sheet 140x240cm,will be 3 fold vertical and 6 fold horinzontal,final sheet size is 23.3X30cm)
Horizontal folding
4 Max fold Vertical,10 Max fold Horizontal(sheet 140x240cm,will be 3 fold vertical and 6 fold horinzontal,final sheet size is
23.3X30cm)
23.3X30cm)
Conveyer Belt
This sheet machine is also possible connect packaging machine
Recommend Products

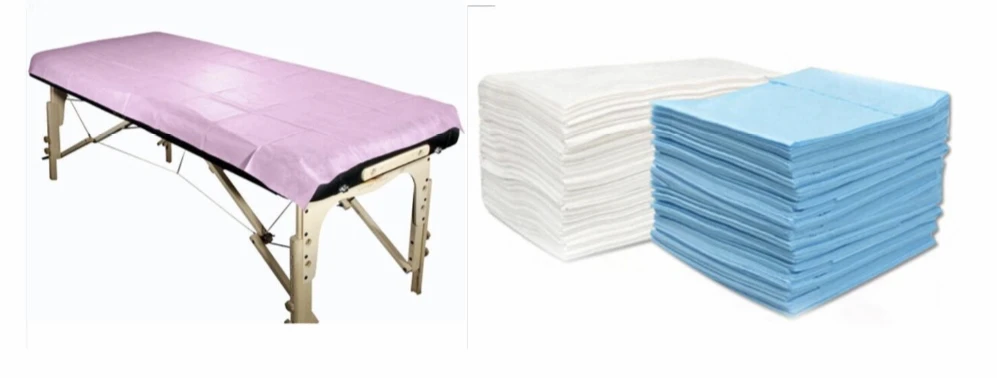

Bed Sheet with elastic border
Bed Sheet with Double Sticky Tape
Bed Sheet Normal
Bed Sheet with perforate adjustable
Bed Sheet Roll Without Folding
We can also make Roll Sheet and with shrinkable packaging machine
Protective Cover Can Be Added Outside The Machine According To Customer Requipments.
Operation:5KG magnetic powder controls the unwinding tension, and a 0.75KW servo motor drives the first set of traction rollers to
feed. The material is folded through the inserting mechanism. The second 0.75KW servo motor drives the second set of traction
rubber rollers to feed through the third
A servo-driven hob cuts the product (the length of the product is independently controlled by the hob and the size is adjustable).
After the product is cut, it is conveyed by 6 groups of conveyors driven by 2KW. During the conveying period, three groups of
0.75KW servo motors drive their respective half-folding mechanisms to fold the product three times in half. After the half-folding
is completed, the product is sent out by a conveyor driven by a 0.12KW speed-regulating motor.
feed. The material is folded through the inserting mechanism. The second 0.75KW servo motor drives the second set of traction
rubber rollers to feed through the third
A servo-driven hob cuts the product (the length of the product is independently controlled by the hob and the size is adjustable).
After the product is cut, it is conveyed by 6 groups of conveyors driven by 2KW. During the conveying period, three groups of
0.75KW servo motors drive their respective half-folding mechanisms to fold the product three times in half. After the half-folding
is completed, the product is sent out by a conveyor driven by a 0.12KW speed-regulating motor.
Our company will participate every year in different exhibitions at china and abroad, and get close contact with customers
