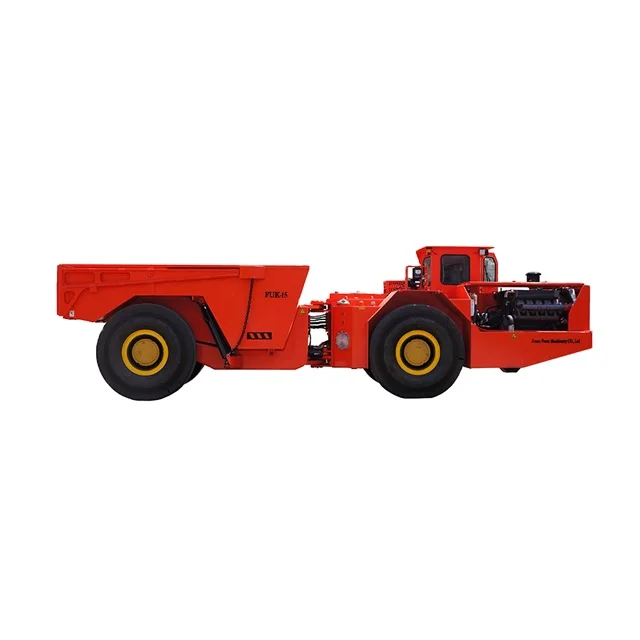

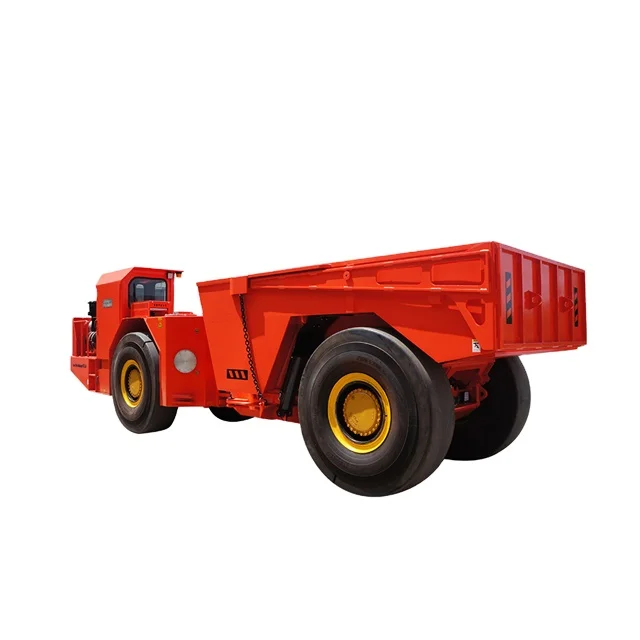

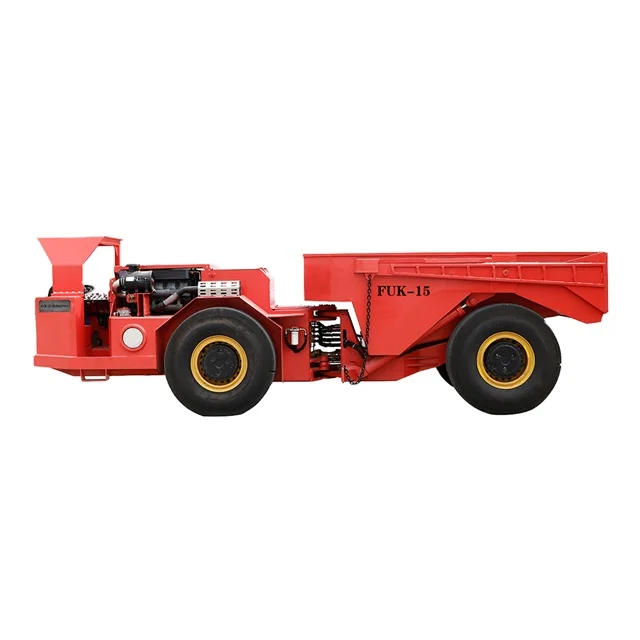

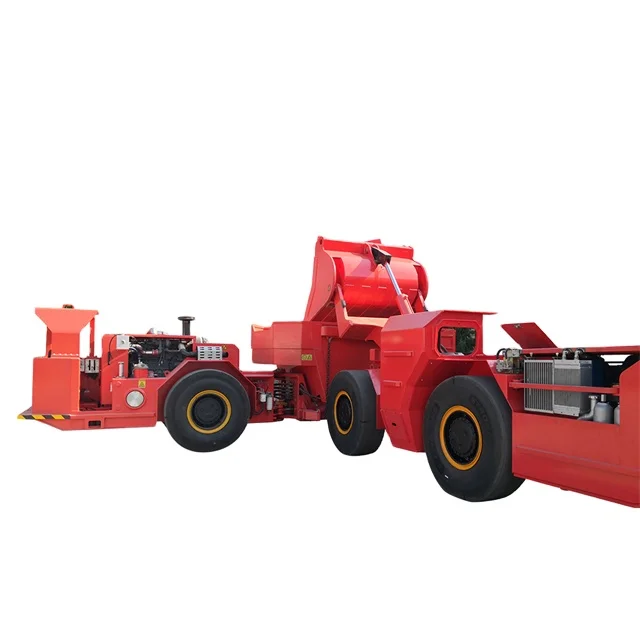

15 Ton Underground Mining Haul Truck for Underground Tunnel
- Category: >>>
- Supplier: Jinan Focor Machinery Co. Ltd.
Share on (1600764499263):
Product Overview
Description
Products Description

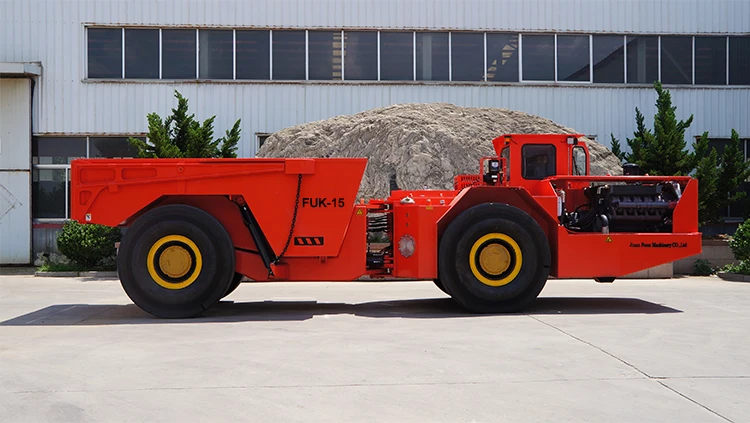

FUK-15 is an underground mining trucks with 15 ton payload for middle and big scale mine. Best payload to own weight ratio in its class. It is full of features to help mines maximize tons and minimize costs. Focor range of mine trucks for underground mining and tunneling applications includes models with payload capacities from 6-30 tonnes. The computerized drive system, Rig Control System, RCS, provides service information and diagnostics that are logged as well as displayed on the screen inside the cab. Our mining dump trucks are built with safety and ease of operation in mind. Standard safety features and comfortable work conditions adds to increased production.

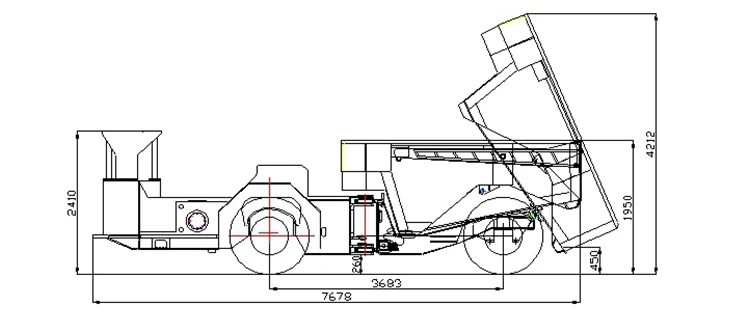

DIMENSIONS
FEATURE
1. Main parts are imported top brand, like Deutz Engine, DANA torque converter, transmission, Parker pump and valves etc.;
2. Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;
3. Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.
2. Braking System consisted of Working brake and Stop brake, with Fully enclosed and Multi-disc wet hydraulic brake, Stop brake with spring brake;
3. Tailor made size and optional parts for customers to choose: remote control, Centralized lubrication, rear view camera etc.

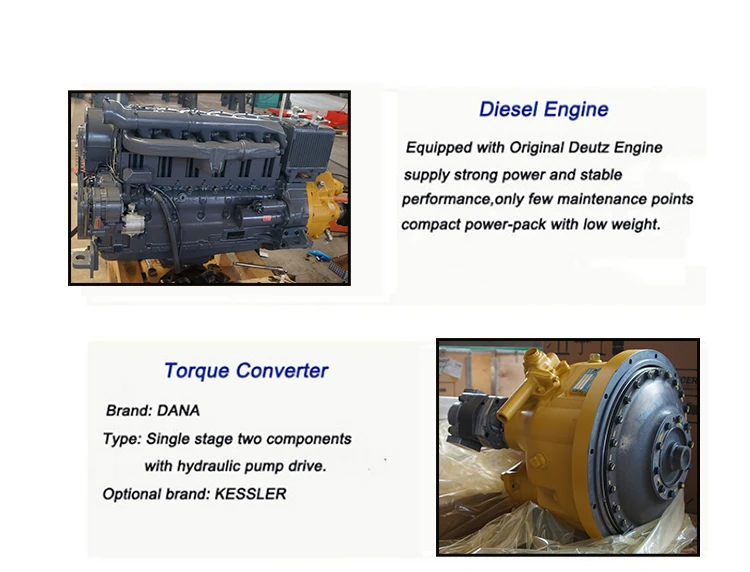

MAIN CONFIGURATION AND PARTS
Diesel Engine | ||
Brand | Germany DEUTZ | |
Rated power | 165KW， or customized by user | |
Type | Water cooling | |
Torque Converter | ||
Brand | American DANA | |
Type | Single stage two components,with hydraulic pump drive. | |

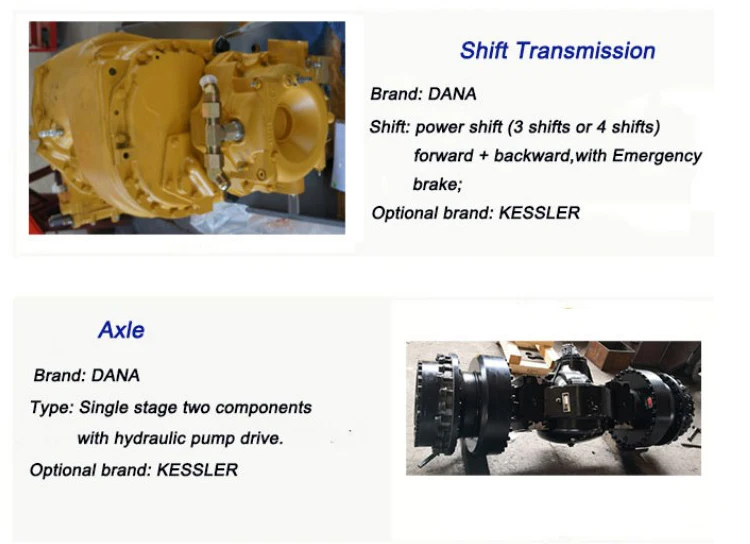

Shift Transmission | ||
Brand | American DANA | |
Type | power shift (4 shifts) forward+backward, with Emergency brake | |
Product Paramenters
Rated capacity | 15000kg |
Length | 7678mm |
Width | 2250mm |
Height(cabin) | 2410mm |
Bucket volume | 7.5 m3 |
Discharging height | 4212mm |
Wheelbase | 3683mm |
Min. Ground clearance | 400mm |
Turning angle | ±7° |
Bucket lifting time | 9.1 S |
Bucket down time | 8.2 S |

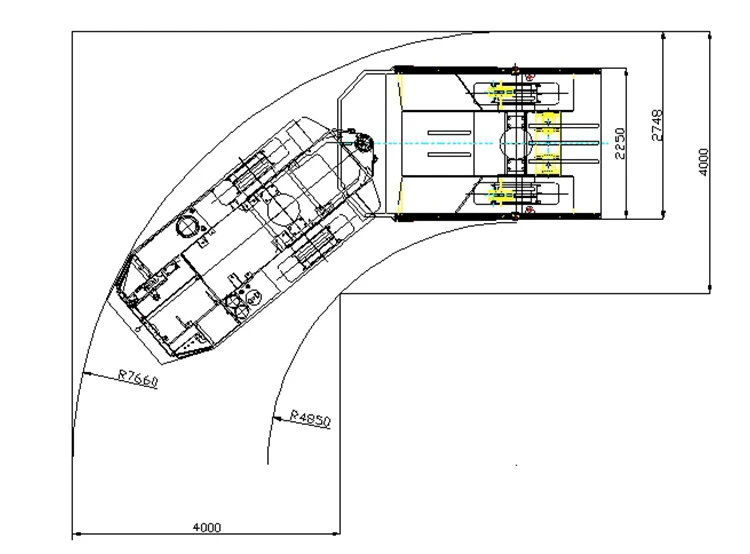

Min. Turning radius | inner 4850mm |
outer 7660mm |

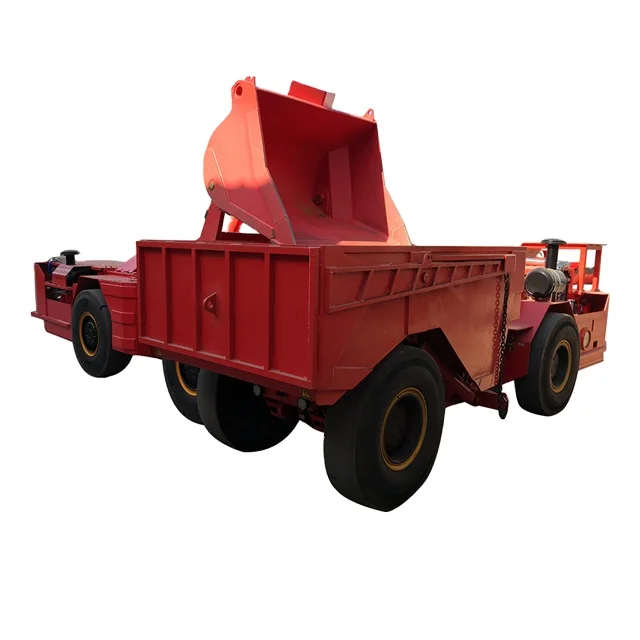

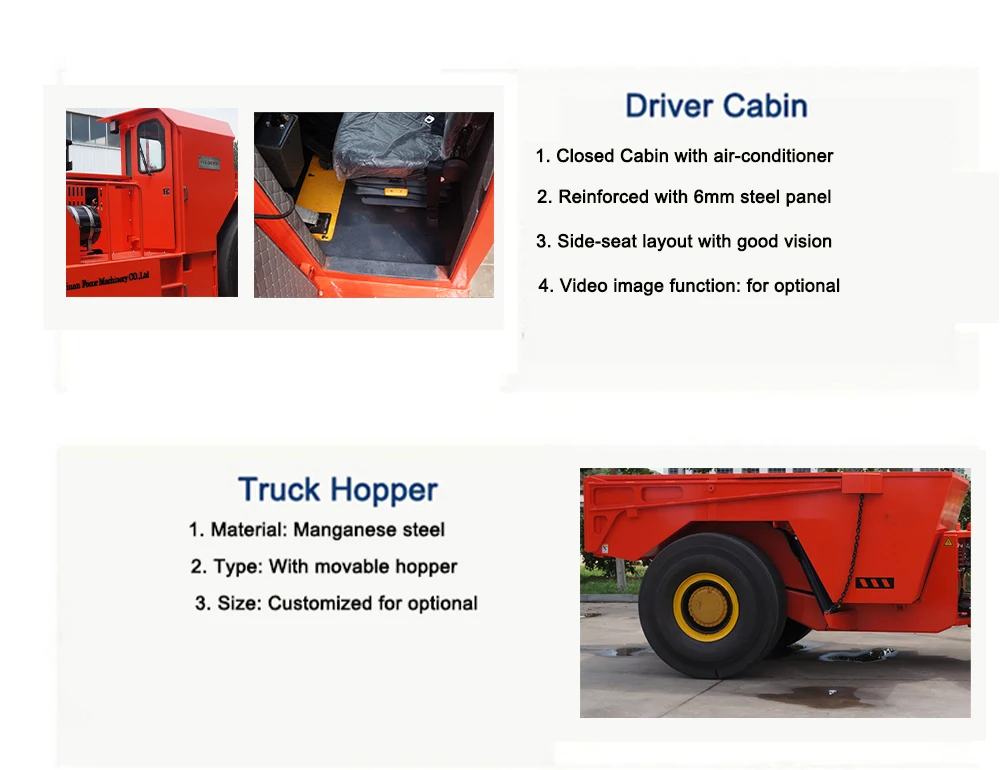

Details Images

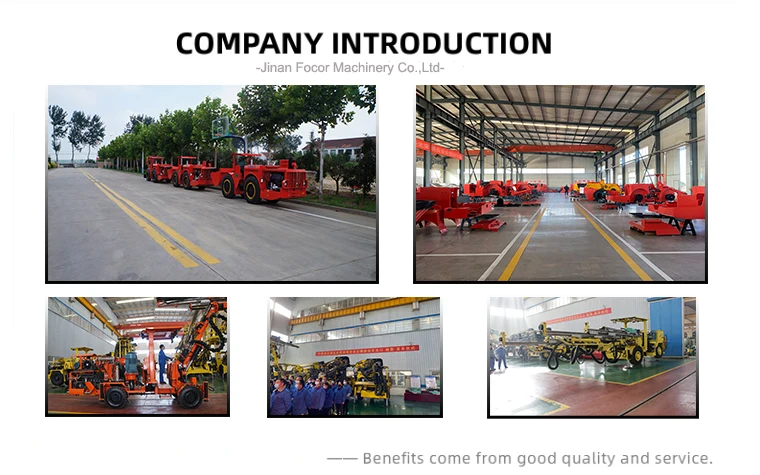

Company Profile
Jinan Focor Machinery Co., Ltd have always been committed to manufacturing underground LHD loaders(Scooptram), underground mining truck and drilling jumbo for the past years, which provide high-grade mining solutions and high-end machines for various of metal mine, tunneling and large-scale projects. Just as careful and elaborate drilling and mining, FOCOR has now become a high-tech enterprise integrating research, production, sales and services after years of steady development, shining brilliantly in the international market as an iconic enterprise among China's mining machinery industry.
Our Advantages
1.The introduction of advanced production equipment, the use of the most pro-automatic assembly method greatly improve the production efficiency, shorten the production time, reduce the production cost.
2. To provide online technical support, on-site technical support, 24 hours of telephone consulting services.
3. Each equipment is equipped with the necessary accessories, including wearing parts and maintenance tools
2. To provide online technical support, on-site technical support, 24 hours of telephone consulting services.
3. Each equipment is equipped with the necessary accessories, including wearing parts and maintenance tools

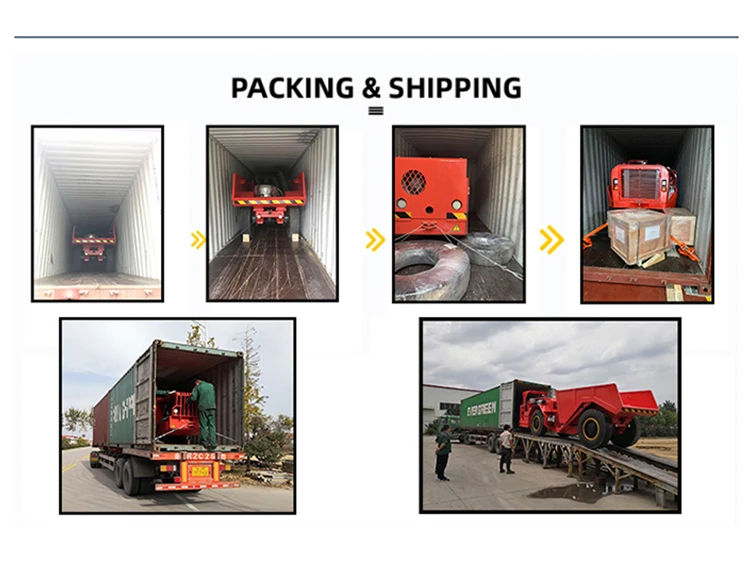

Product packaging
FAQ
1.Are you factory or trade company?
We are manufacturer, we also supply trade service.
2.How is the quality of your products?
We have been approved of ISO, CE and always produce our products strictly according to national and international standards. We do strict inspection in every production stage,all the machines we sell are under warranty.
3.What about your price?
We always supply our products with low price, because we believe this is the way to build long-term business and earn good reputation.
4.What payments term do you accept?
We accept L/C, T/T and other ways like D/A and D/P etc, T/T goes with 30% advanced payment after signing contract or order confirmation.
5.What about the order lead time?
We have two factories and big productivity, the order lead time is only 15-20 days.
We are manufacturer, we also supply trade service.
2.How is the quality of your products?
We have been approved of ISO, CE and always produce our products strictly according to national and international standards. We do strict inspection in every production stage,all the machines we sell are under warranty.
3.What about your price?
We always supply our products with low price, because we believe this is the way to build long-term business and earn good reputation.
4.What payments term do you accept?
We accept L/C, T/T and other ways like D/A and D/P etc, T/T goes with 30% advanced payment after signing contract or order confirmation.
5.What about the order lead time?
We have two factories and big productivity, the order lead time is only 15-20 days.
