Call Center Telesales System: 4CH Customized Standalone Network Telephone Call Recorder Voice Logger with HDD, SDK/API & OEM PVC
- Category: >>>
- Supplier: Shenzhen Yishi Electronic Technology Development Co. Ltd.
Share on (1600764499736):
Product Overview
Description

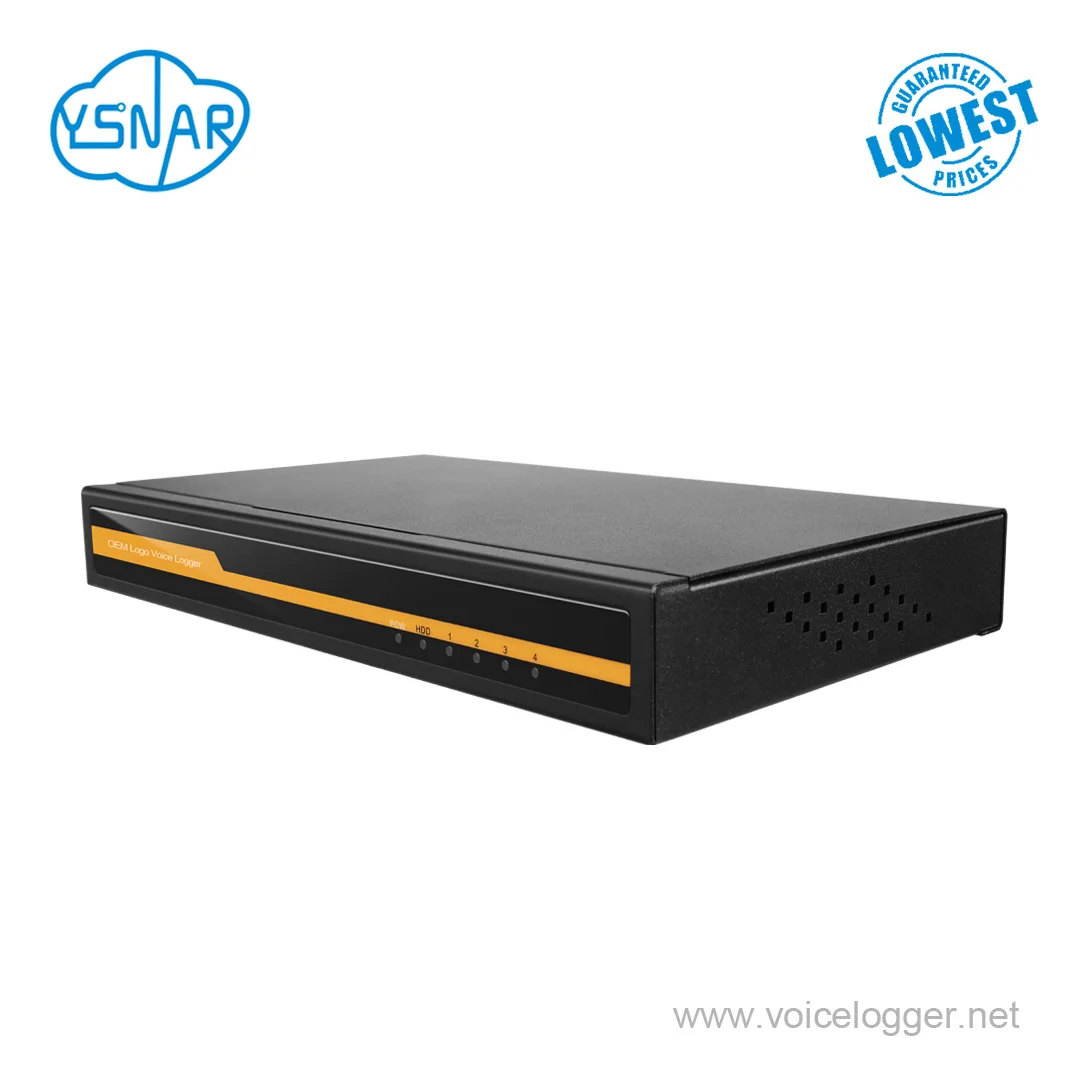

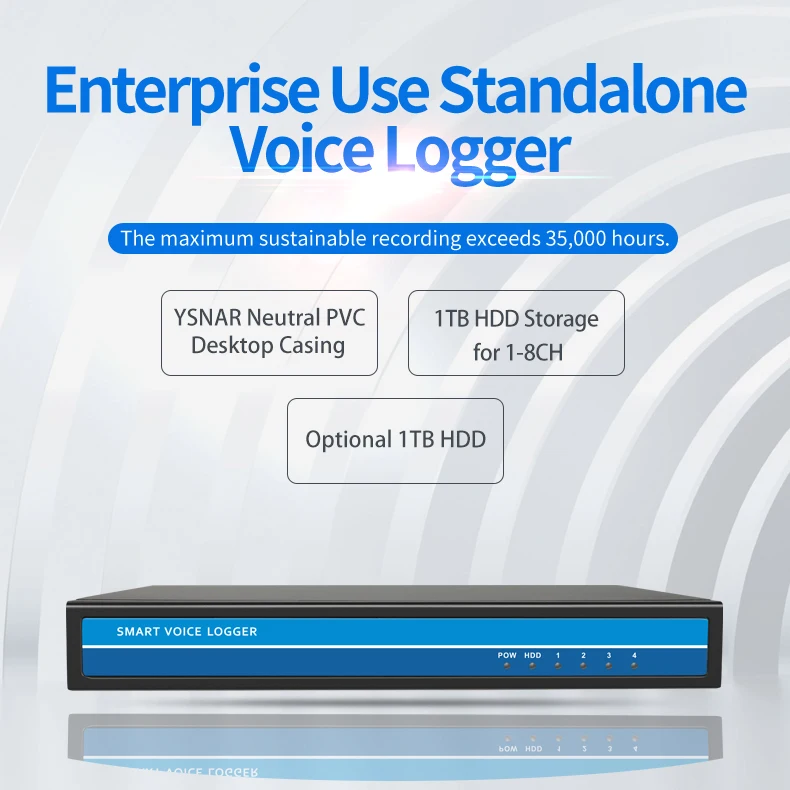

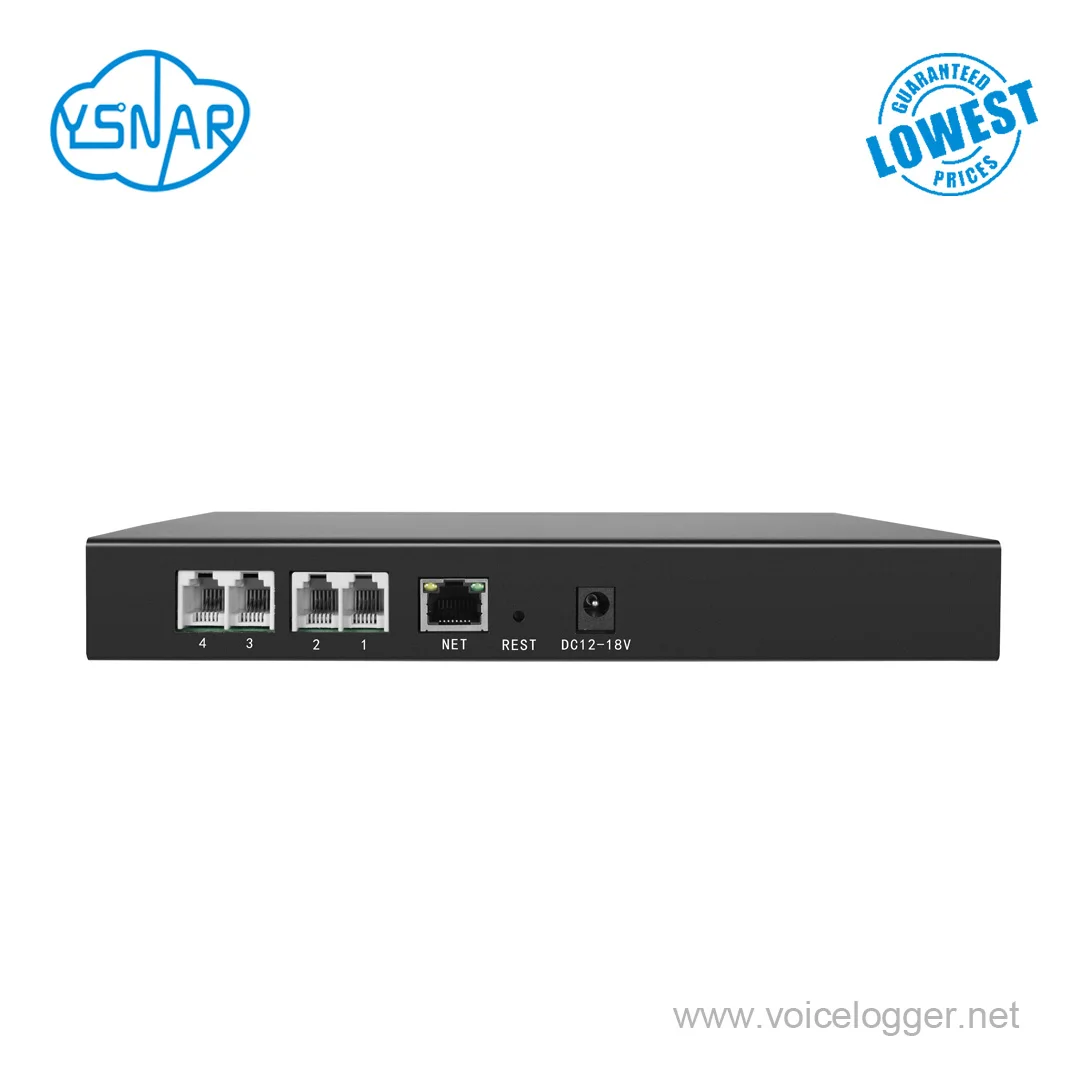

Call Center Telesales System: 4CH Customized Standalone Network Telephone Call Recorder Voice Logger with HDD, SDK/API & OEM PVC
Product Description
NAR-9100 series is consisted by 72-168MHZ CPU, latest ARM chip and innovative hardware frame and specific call recording software. It is a fully independent recording device that does not depend on a computer. The device supports 1, 2, 4, 8 lines and 1 network interface. The user can complete all operations through the PC software like: the real-time monitoring on line, record query, audio playback, real-time monitoring and so on, which is convenient for construction, installation, debugging and make it a really worthwhile embedded telephone recorder.

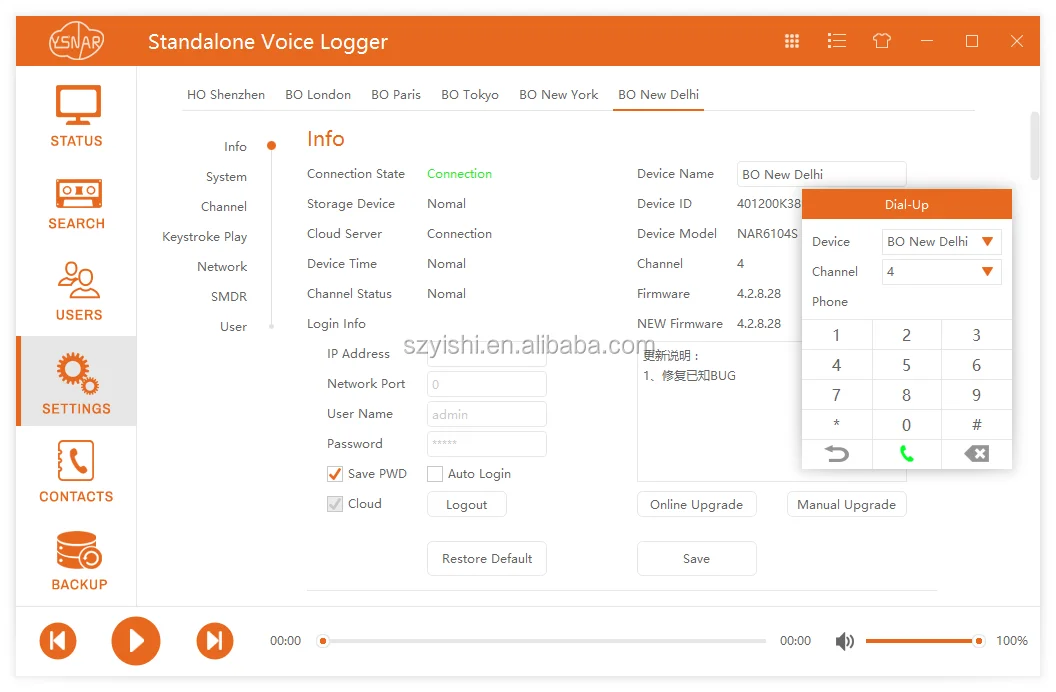

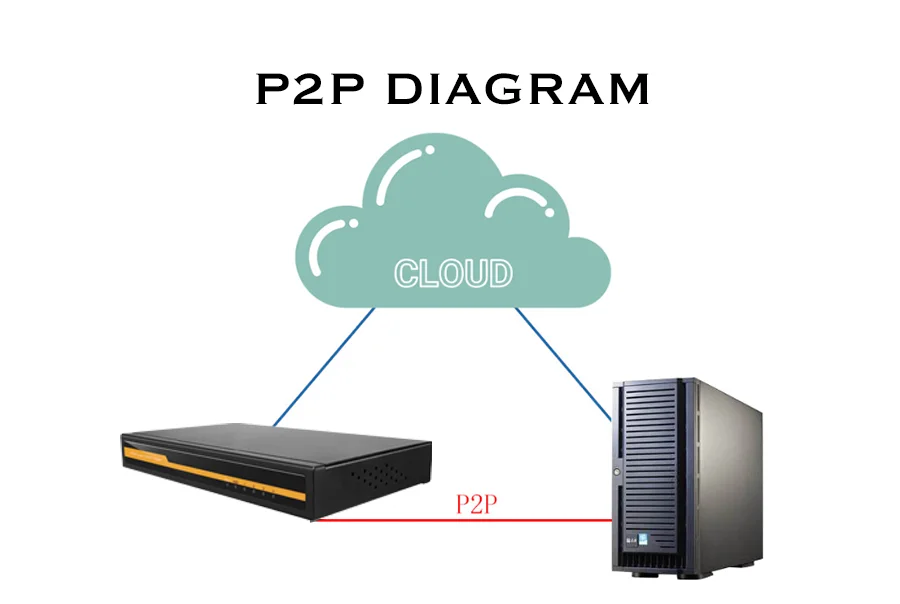

CMS(Centralized Management System) for Multi Branches in Head Office:

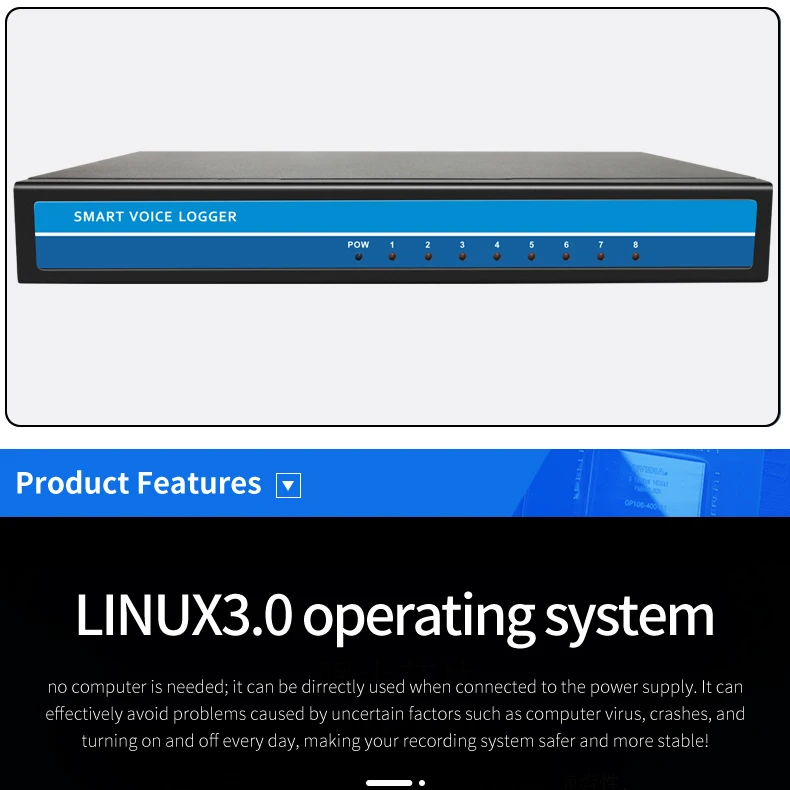

Features:
1. Booting speed: 5 seconds to enter the system.
2. SD card / Hard Disk versions can be selected, and 2.5" HDD can support max 8TB.
3. Support 1, 2, 4, 8, 16, 24, 32, 40, 48, 56, 64 lines analog recording at the same time, and various combinations can be done via network.
4. It owns network card itself, which is convenient for networking building and remote monitoring.
5. Total automatically recording without computer supporting, fully embedded-in (standalone) devices.
6. Low power consumption, small heat, and it can run 24/7 without fan.

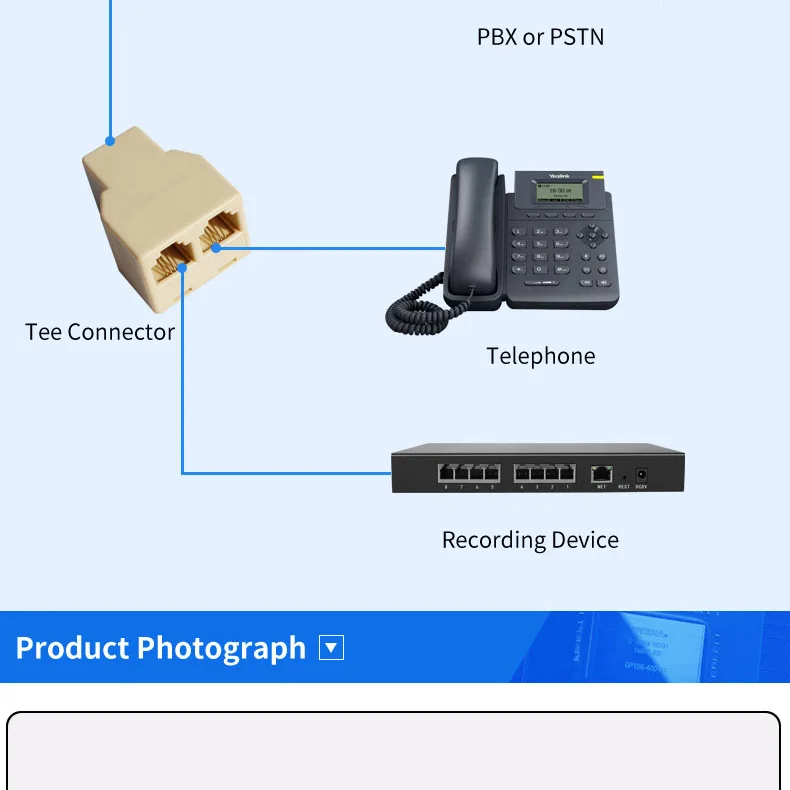

Recording Interfaces:
l PSTN lines and analog phones;
l PBX and Ext;
l Radio Voice Lines:;
l Live Recording(meeting);
l Intercom Audio Lines;
l Fixed Wireless Telephone.

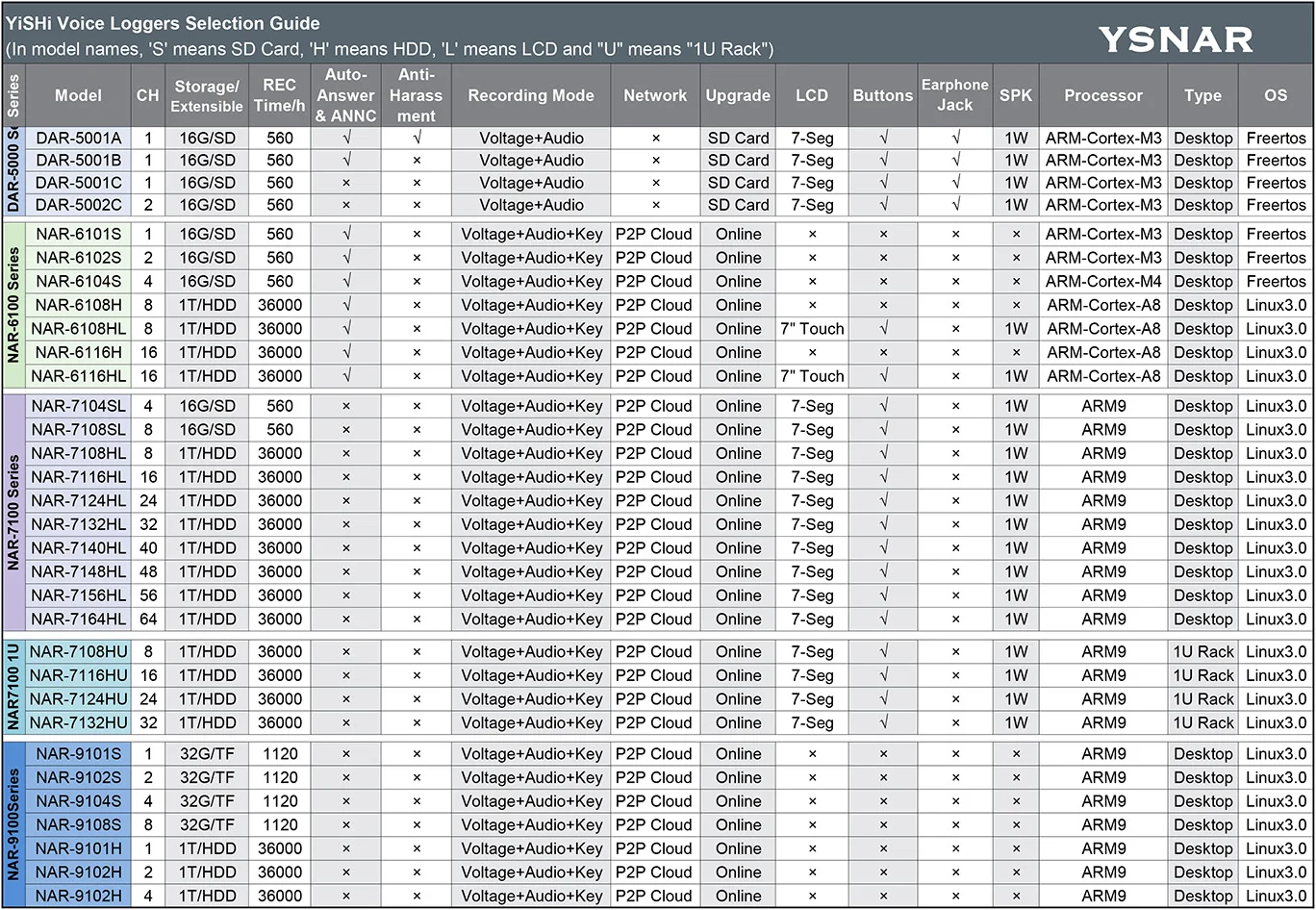

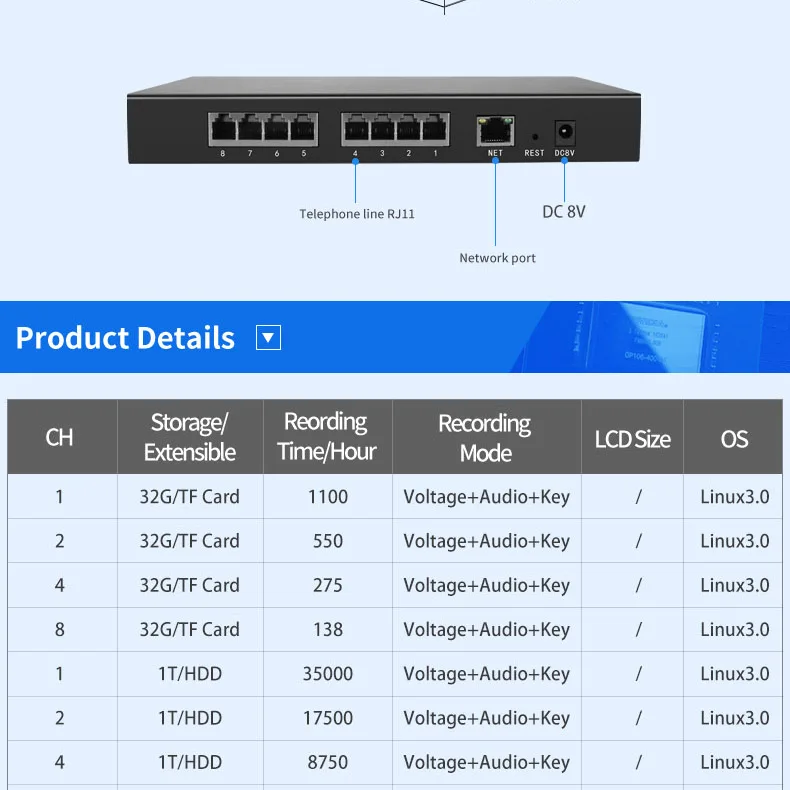

Selection Guide:

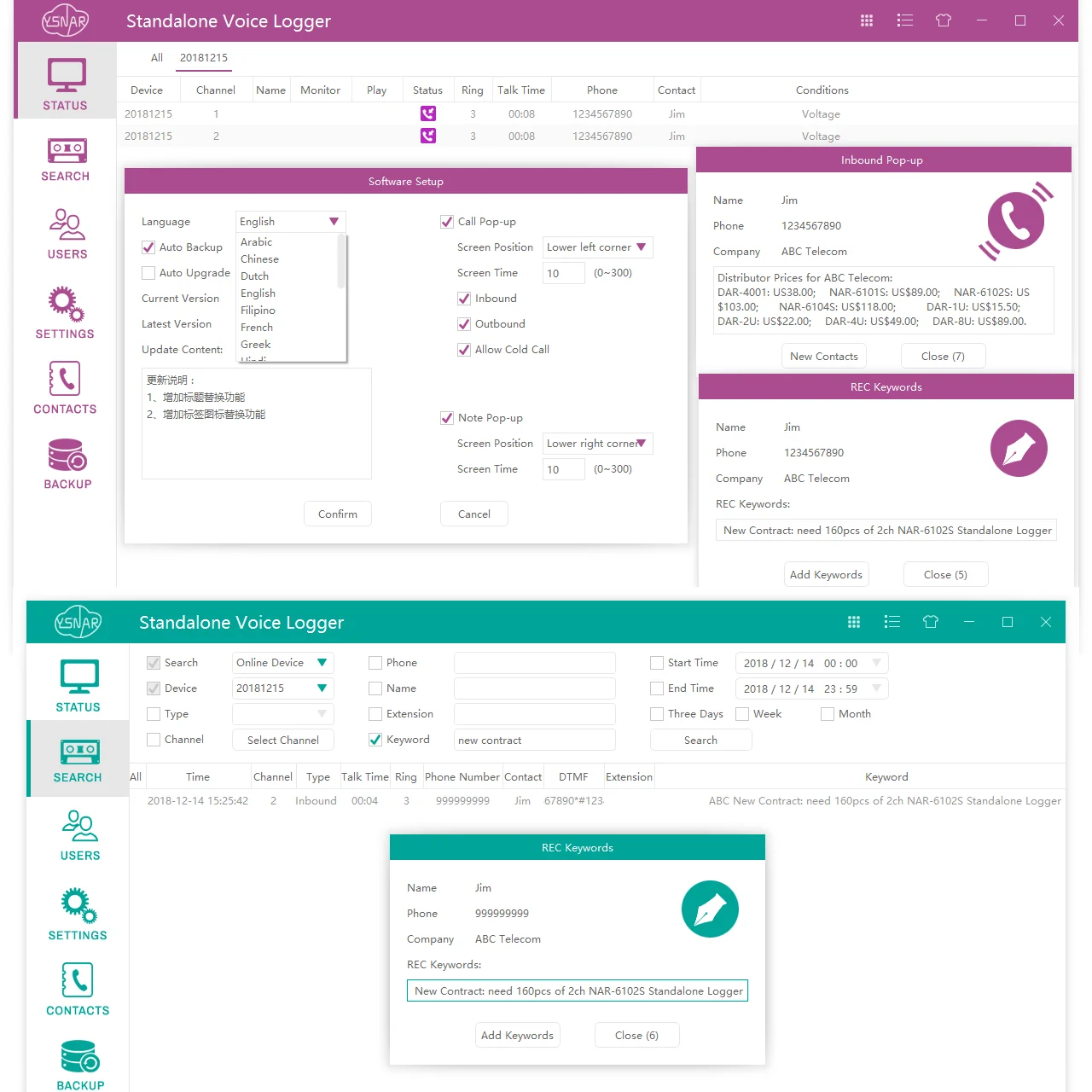

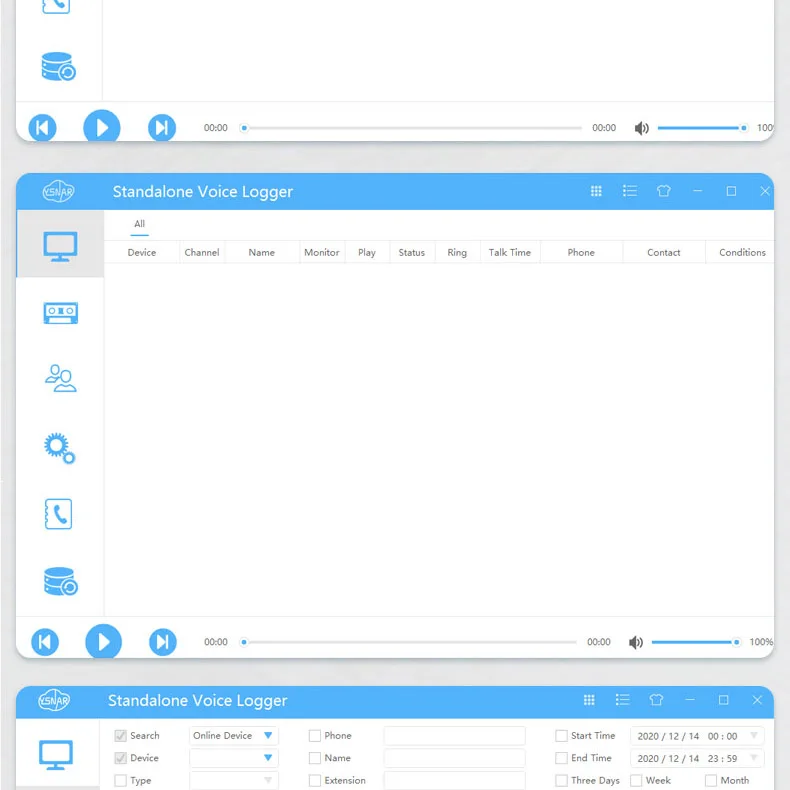

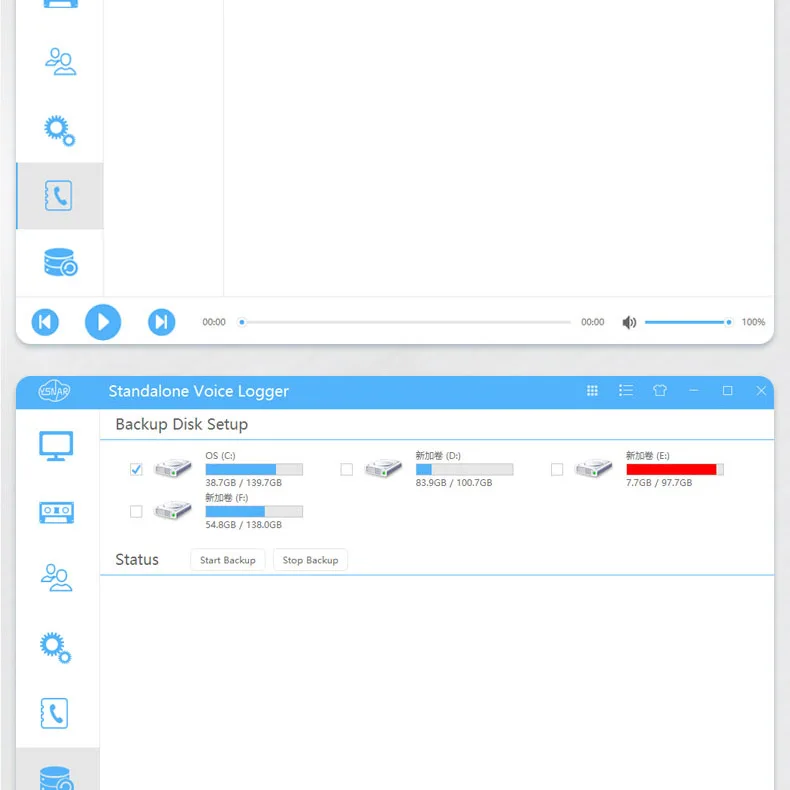

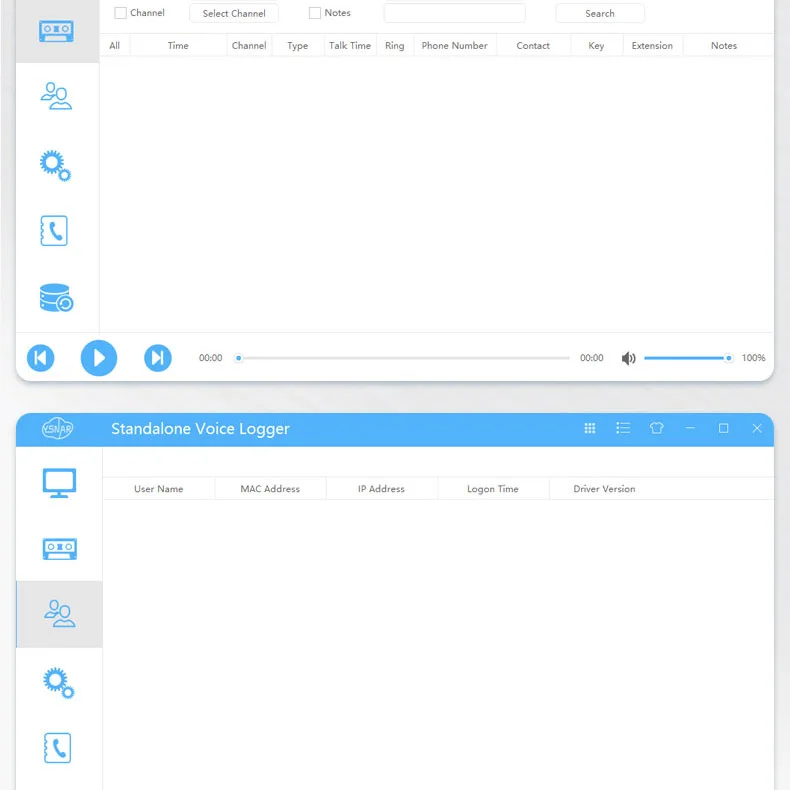

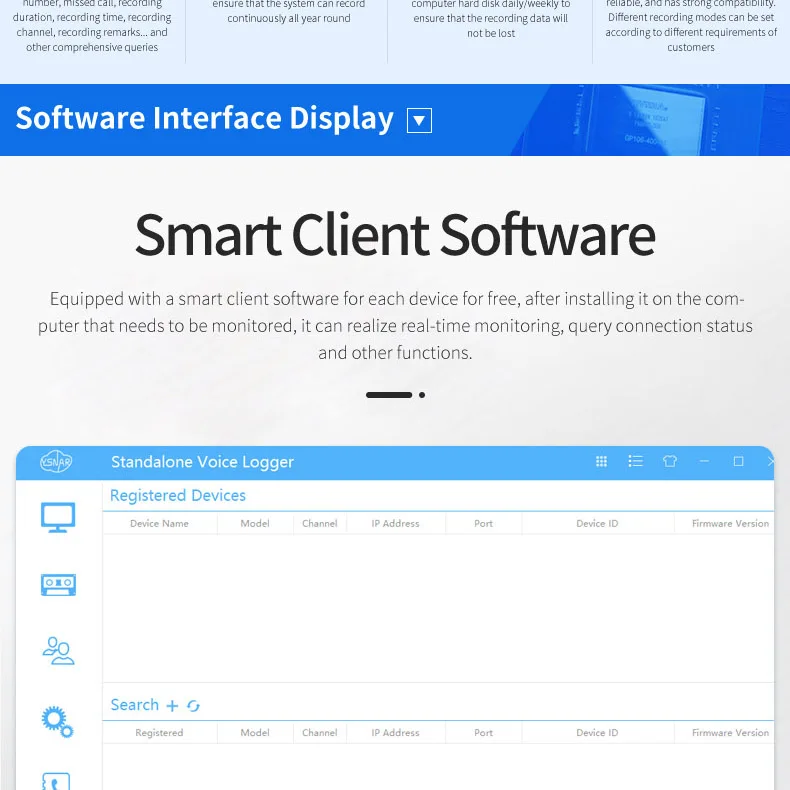

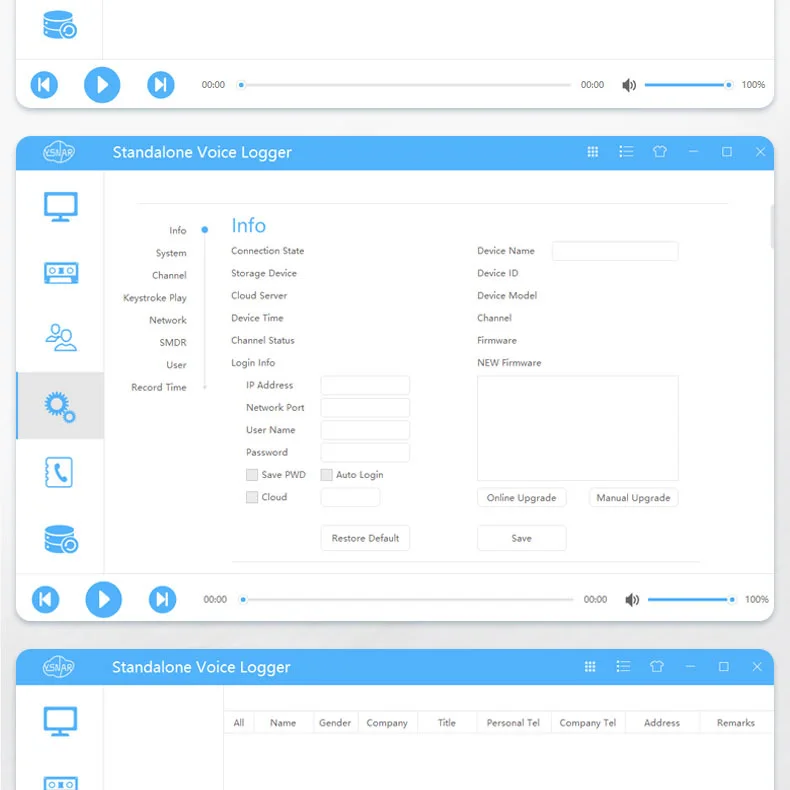

Software Interface:

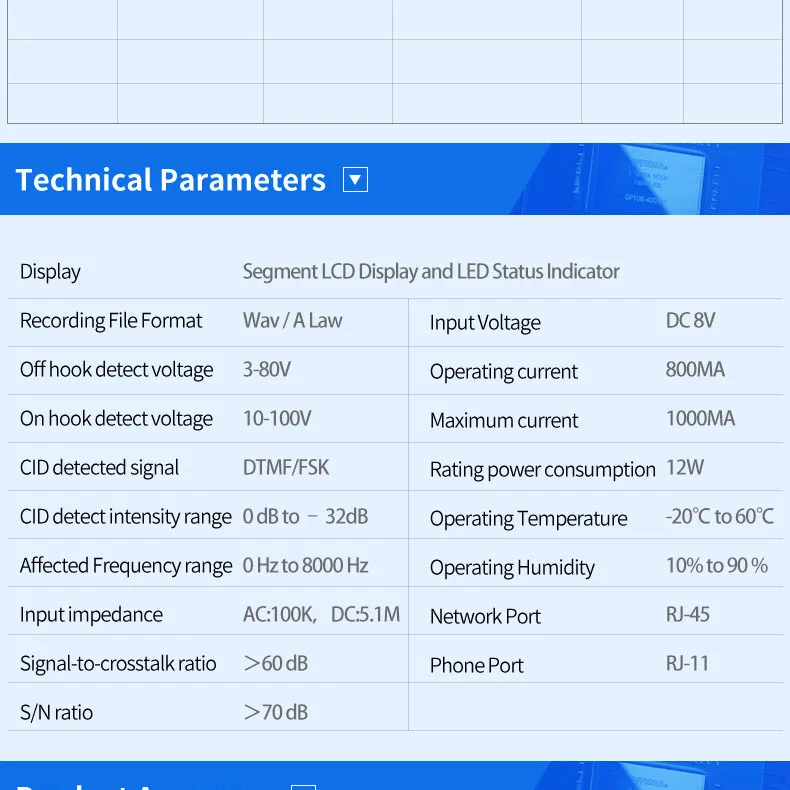

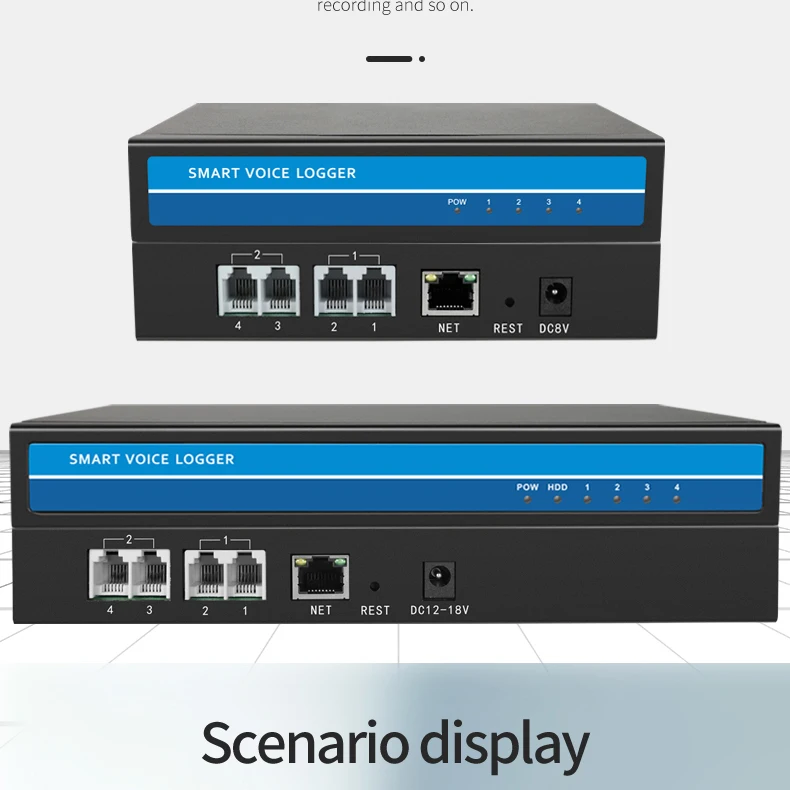

NAR-9100 Specification:
NAR-9100 1-8CH Most Affordable Standalone Network Voice Logger Data Sheet
Channel | NAR-9101/2/4/8S | NAR-9101/2/4H |
Display | LED Status Indicator | |
Storage Device | 32GB TF Card / 1TB HDD | |
Recording Format | Wav / A Law | |
Recording Trigger Mode | Voltage/ Voice/ Hot key/Continuous REC | |
Off hook detect voltage | 3-80V | |
On hook detect voltage | 10-100V | |
Support CID | DTMF/FSK | |
CID detect intensity range | 0 dB to –32dB | |
Recording Frequency range | 0 Hz to 8000 Hz | |
Input impedance | AC: 100K,DC:5.1M | |
S/N ratio | >60 dB | |
Signal-to-crosstalk ratio | >70 dB | |
Input voltage | DC8-18V | |
Rating operating current | 800MA | |
Maximum current | 1000MA | |
Rating power consumption | 12W or Above | |
Operating Temperature | -20℃ to 60℃ | |
Operating Humidity | 10% to 90 % | |
Network interface | RJ-45 | |

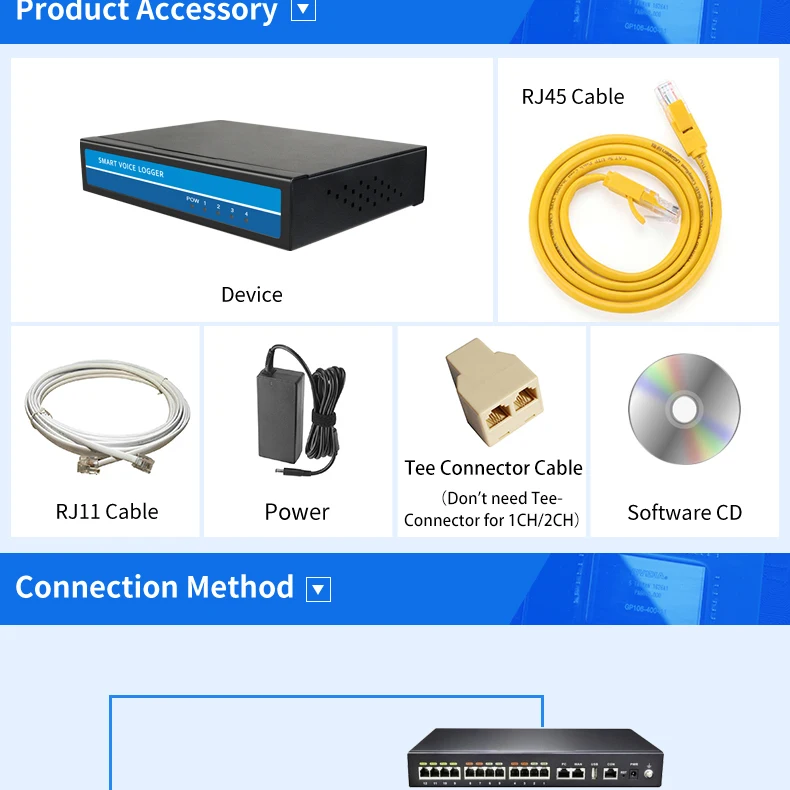

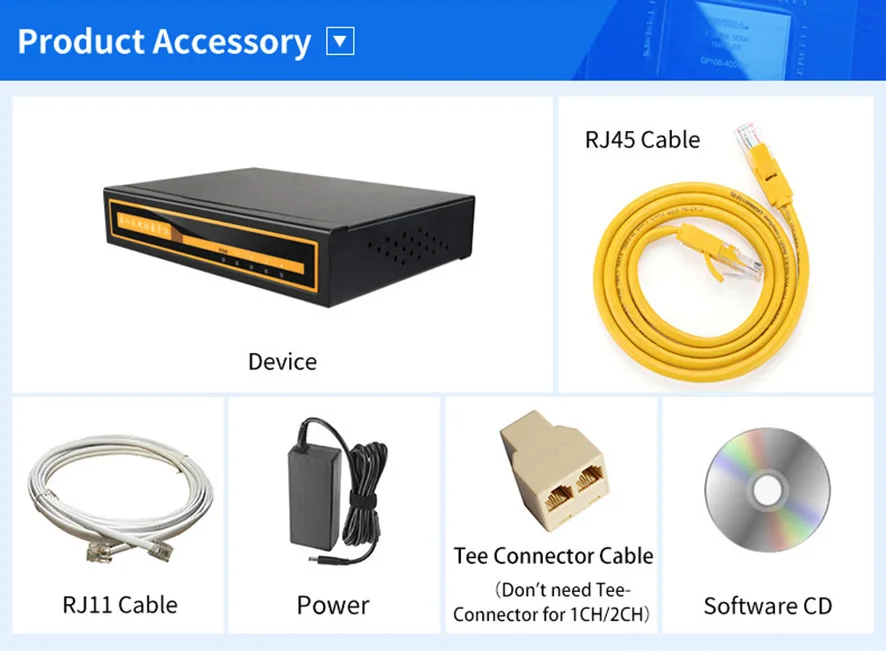

Tee Connector & Cable, RJ11 & RJ45 Cable, Power, Software CD | ||
Weight | 0.7kgs/1.5kgs | |

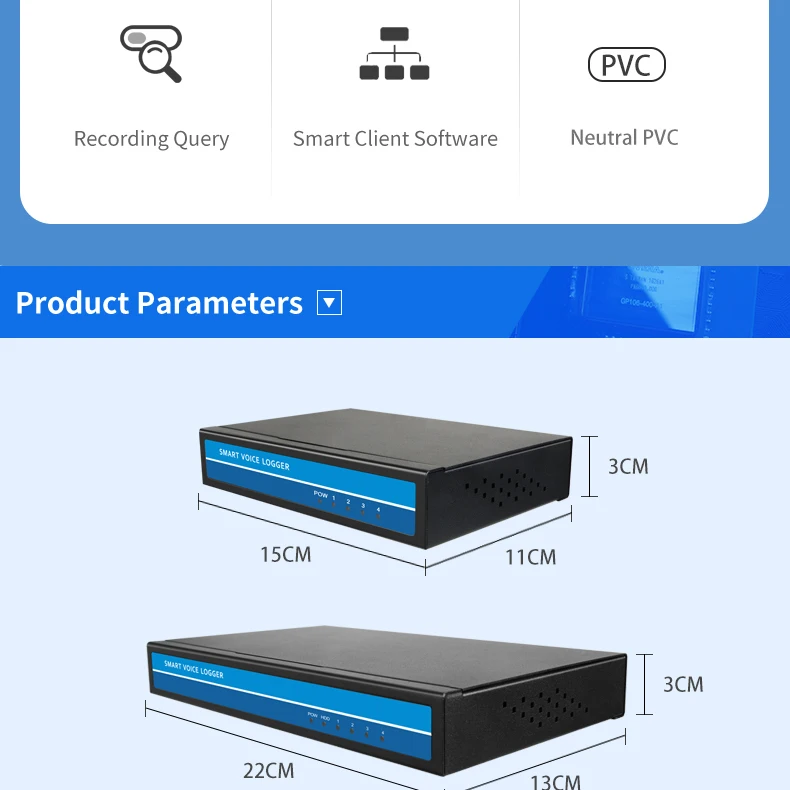

Package L*W*H | 15.0cm*11.0cm*3.0cm/22.0cm*13.0cm*3.0cm | |
Packaging & Shipping
Our Services
OEM and Customizable Software.
One year quality warranty and Life-long repair.
Company Information
I don't want to exagerate but we are the one of the top 3 manufacturers of "Telephone Recorders / Voice Logger" in China.
Shenzhen YiShi Electronic Technology Development Co., Ltd is a high technology company in security area. We have Branch Company in Hong Kong and modern SMT plant in Mainland China, which has obtained ISO9001 and 2000 certification, so as to provide sufficient insurance of products quality and meet your demand for higher quality and lower price. Our modern SMT plant and R&D department offer PCB assemble and OEM service too.
Our main products are as follow:
1. Voice Logger / Telephone Recorders, Standalone Type and PC on Based Type.
2. OEM/ODM PCBs, PCBA service
As a manufacturer, our price is very competitive. Most of our products are exported to Western Europe, North America, Eastern Europe, Middle-East Europe, and etc overseas many other countries. We'll do our utmost to meet customer's requirements with a positive attitude, so your constant interest and encouragement would be highly appreciated.
High quality, sincere service and low price is our value and our promises to our customer. As an enterprise integrated with manufacture and sales, we have confidence to launch more competitive products to cope with more severe competition. YiShi is your sincere partner.
FAQ
Q: What kind of product you make?
A:The main products: Voice Logger / Telephone Recorder, Standalone Type and PC on based Type, P2P Cloud Network Voice Logger
Q: Are you really manufacturer or trading company?
A: We have our own factory and engineer team. The service including offering the technology and support of Telephone voice recorder, PCBs and so on oversea.
Q: What is your MOQ?
There are different standard of MOQ for different goods. If you want to customize but your quantity is small, the price will be higher than the normal one. Because we give the quotation according to the cost of production.
Q: Do you have any certification to ensure the quality?
A:ISO9001, CE and patents for some products.
