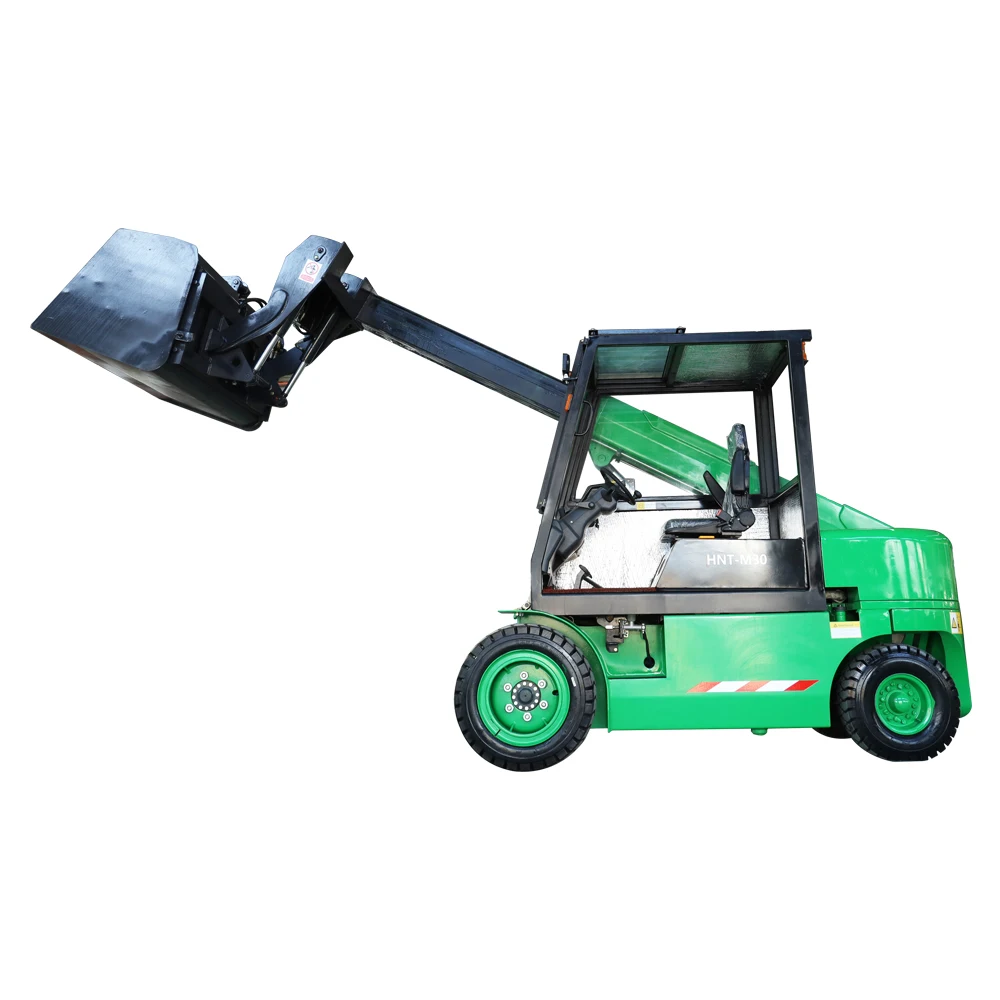

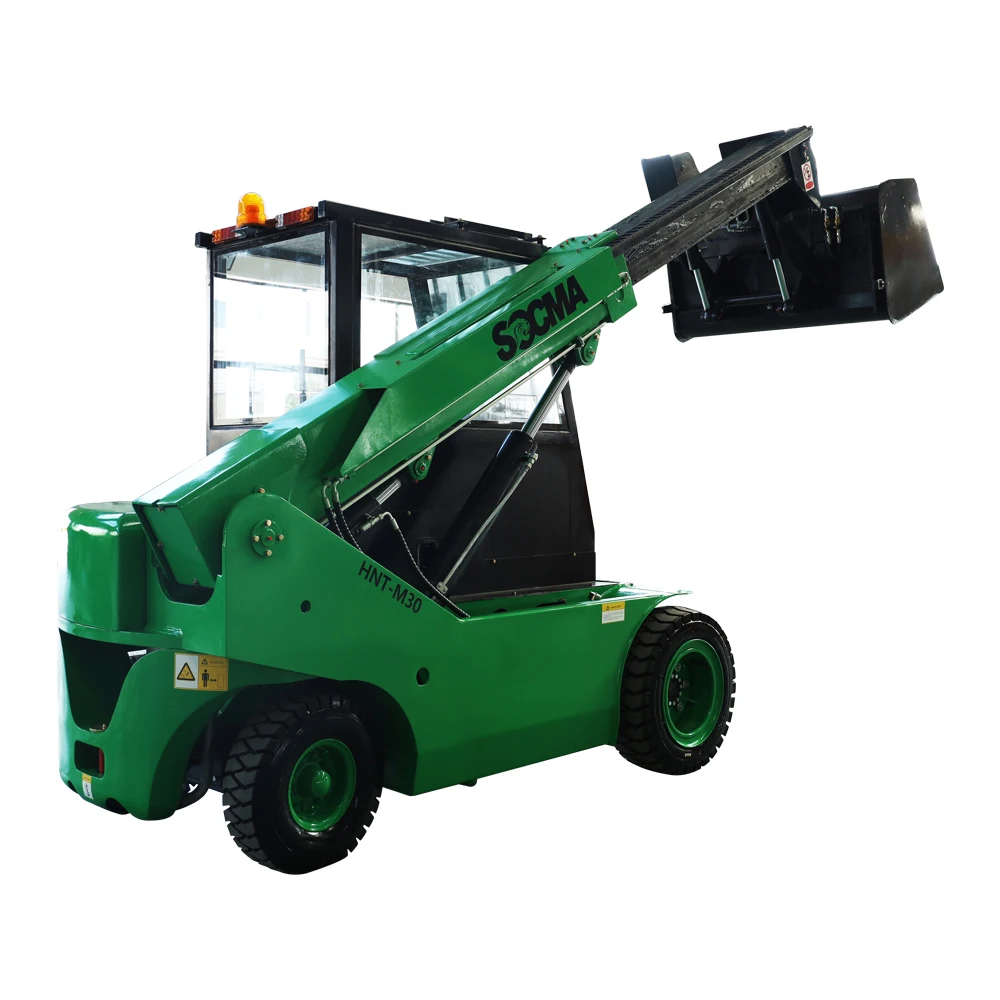

SOCMA 3 tons 3t Mini telehandler Teletruk

Performance

Technical data

Remark

Rated Capacity ,kg

≤3000

Engine

4D27G31

Total weight,kg

4500

Max. lifting height,mm

4000

(Distance from the surface)

Wheel base,mm

1850

Front wheel tread,mm

990

Rear wheel tread,mm

990

Min. ground clearance,mm

160

Total length,mm

2900

Without fork

Total width, mm

1300

Total height,mm

2200

Height of closed cabin,mm

1450

Rear-mounted length,mm

520

Max. horizontal reach,mm

2090

(horizontal direction)

Boom tilting up/down,(°)

60°/-2°

Max. driving speed,Km/h

20

Front wheel

28x9-15

Rear wheel

6.5-10
