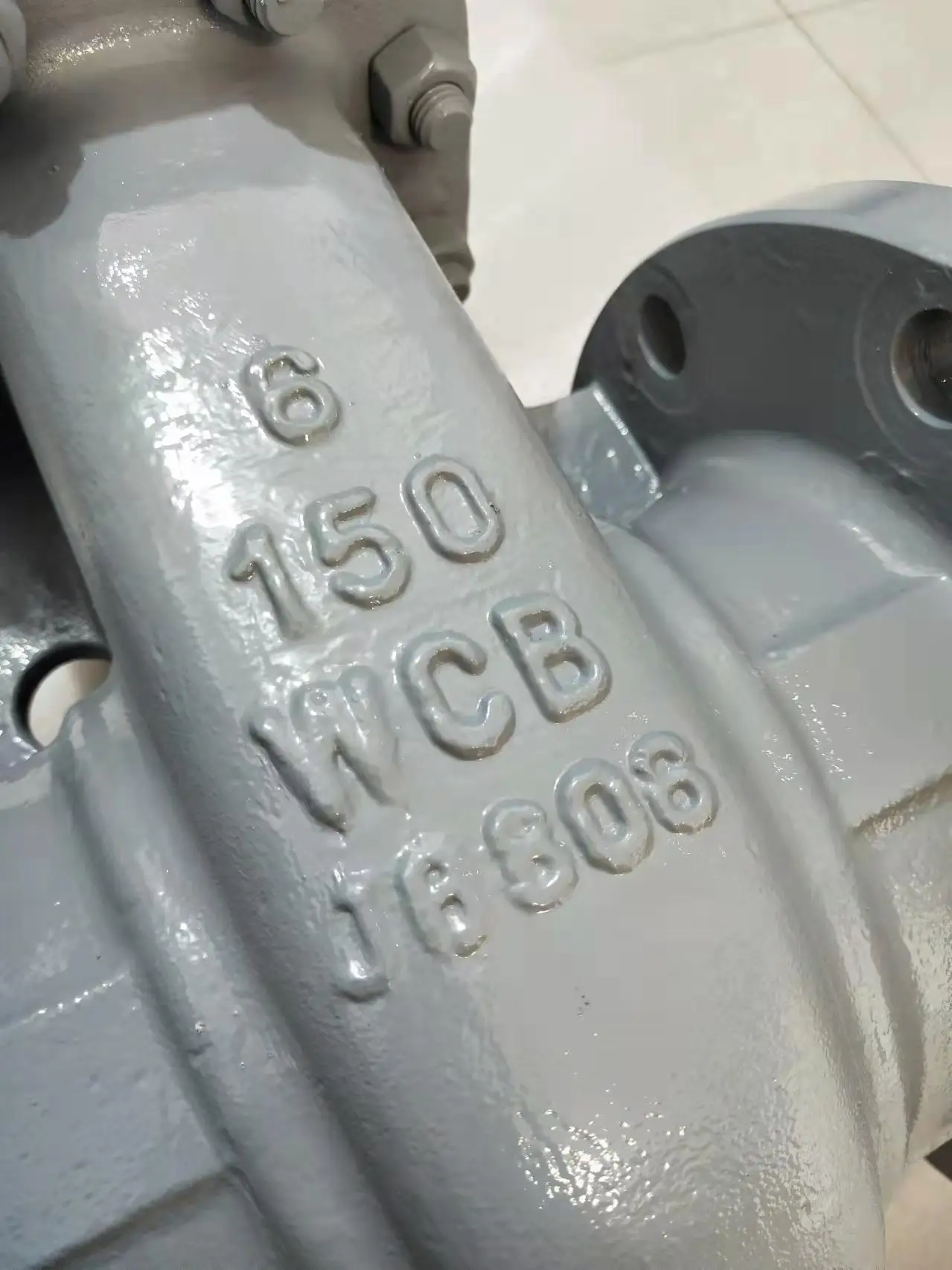

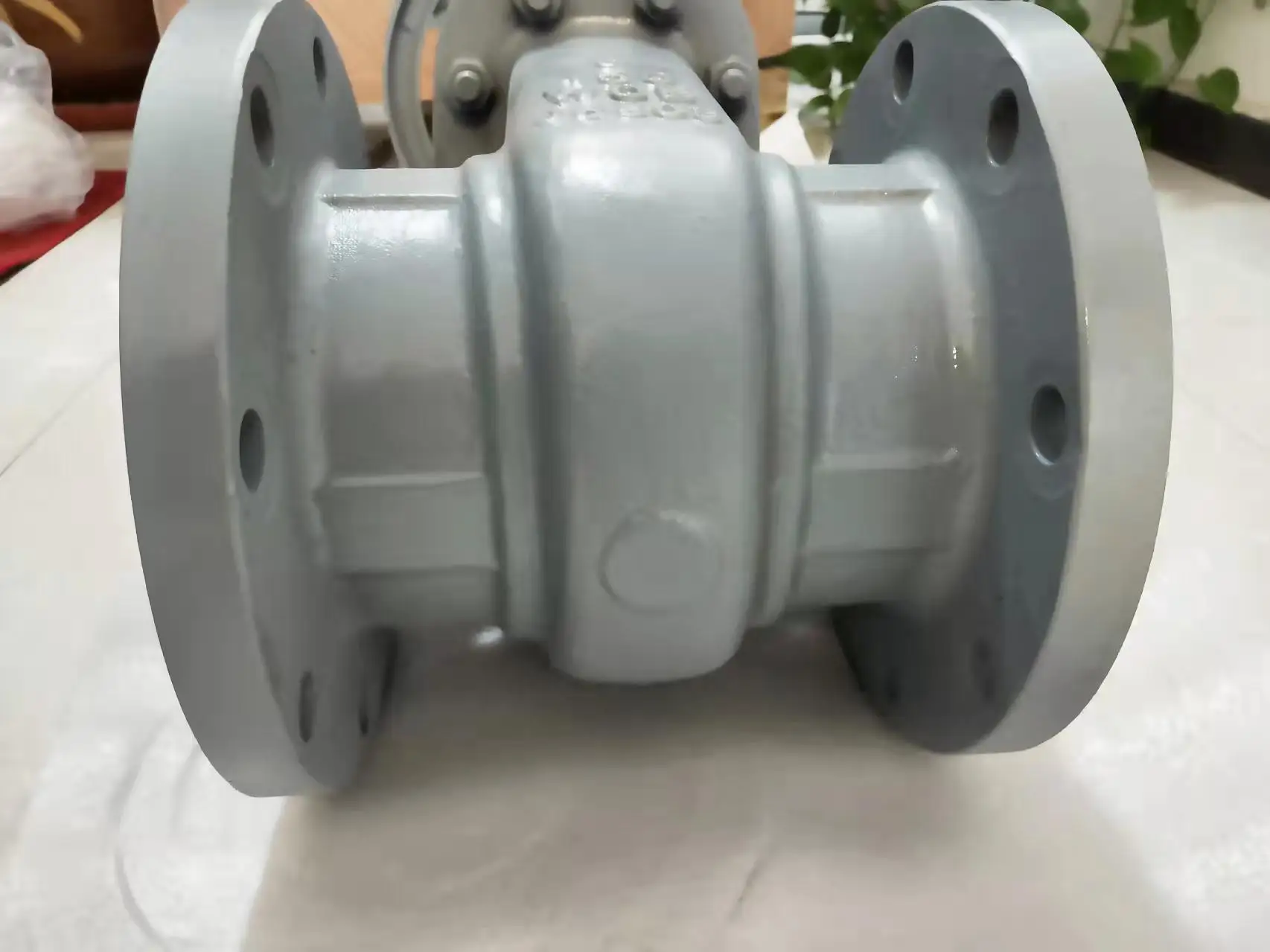

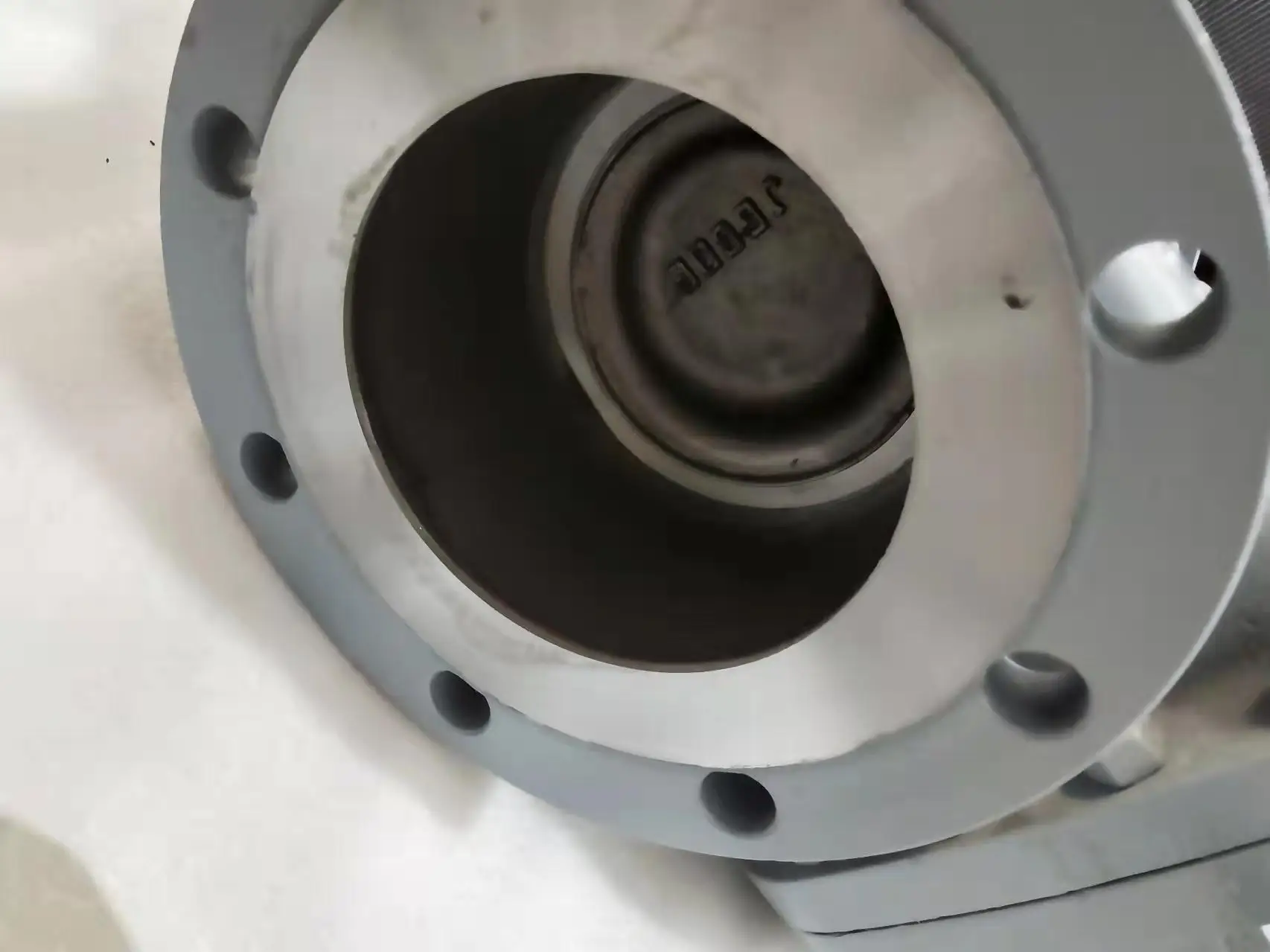

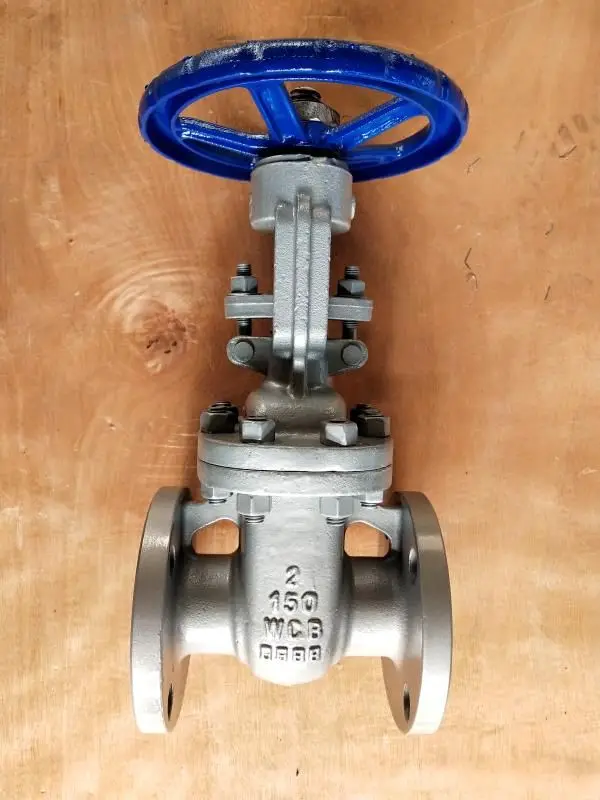

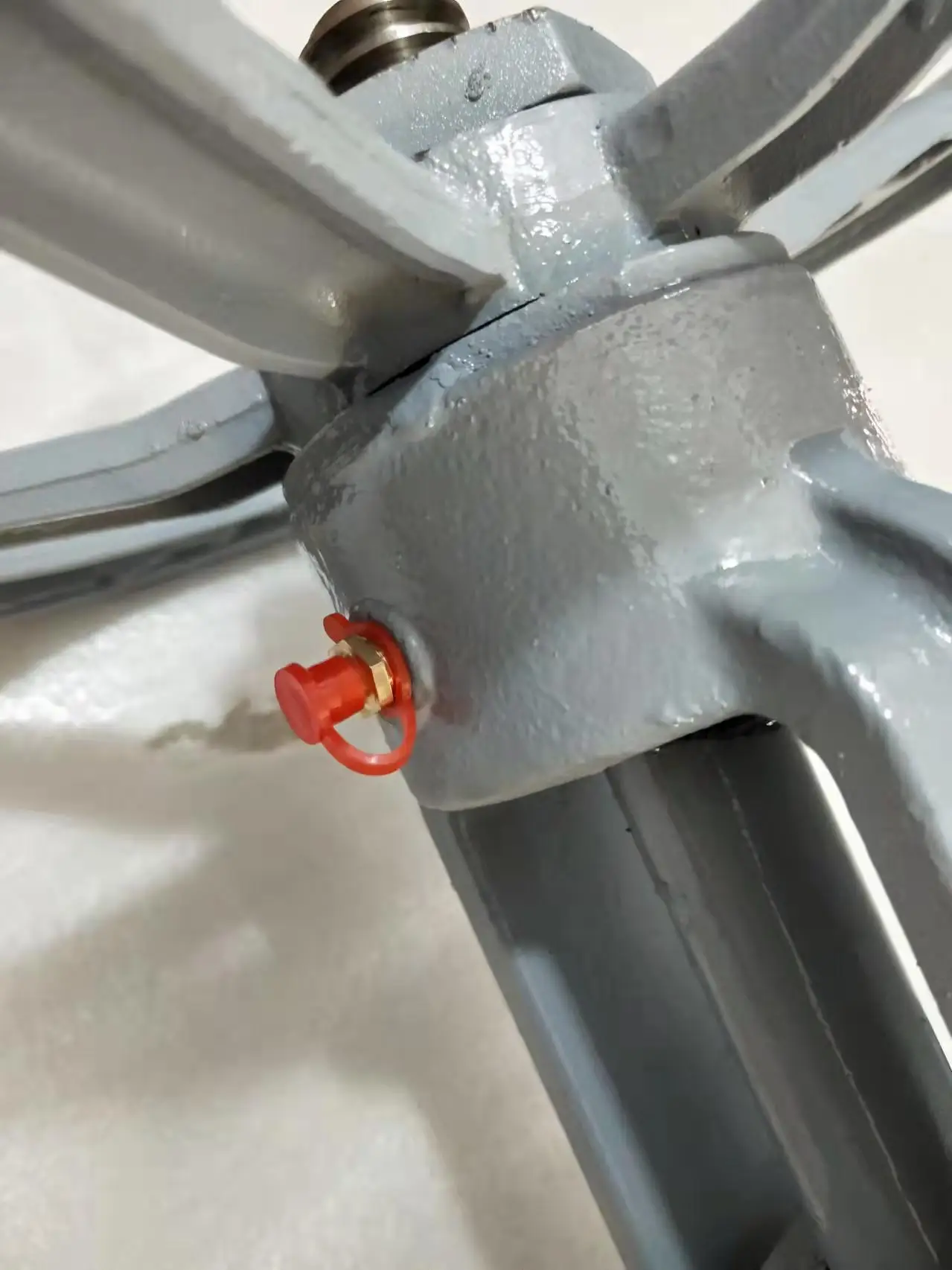

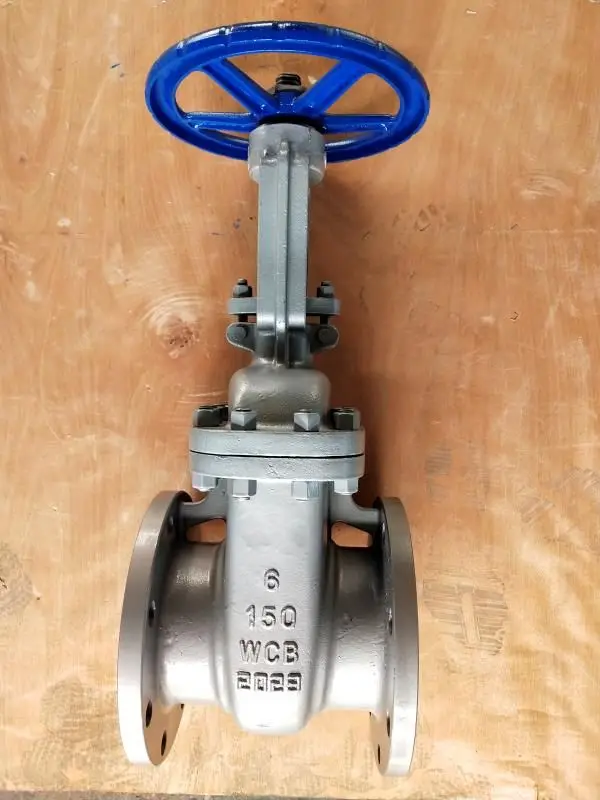

API carbon steel 150 Gate Valve for water steam
- Category: >>>
- Supplier: Hebei Yaosheng IM & EX Trading Co. Ltd.
Share on (1600764629131):
Product Overview
Description
Product Description
The ASME WCB gate valve by HebeiYaosheng Factoryis extensively used in petro-chem industry, pharmacy and power industry ect.And it is suitable the nitric acid type pipeline which all opens all shuts, not use throttle flow.

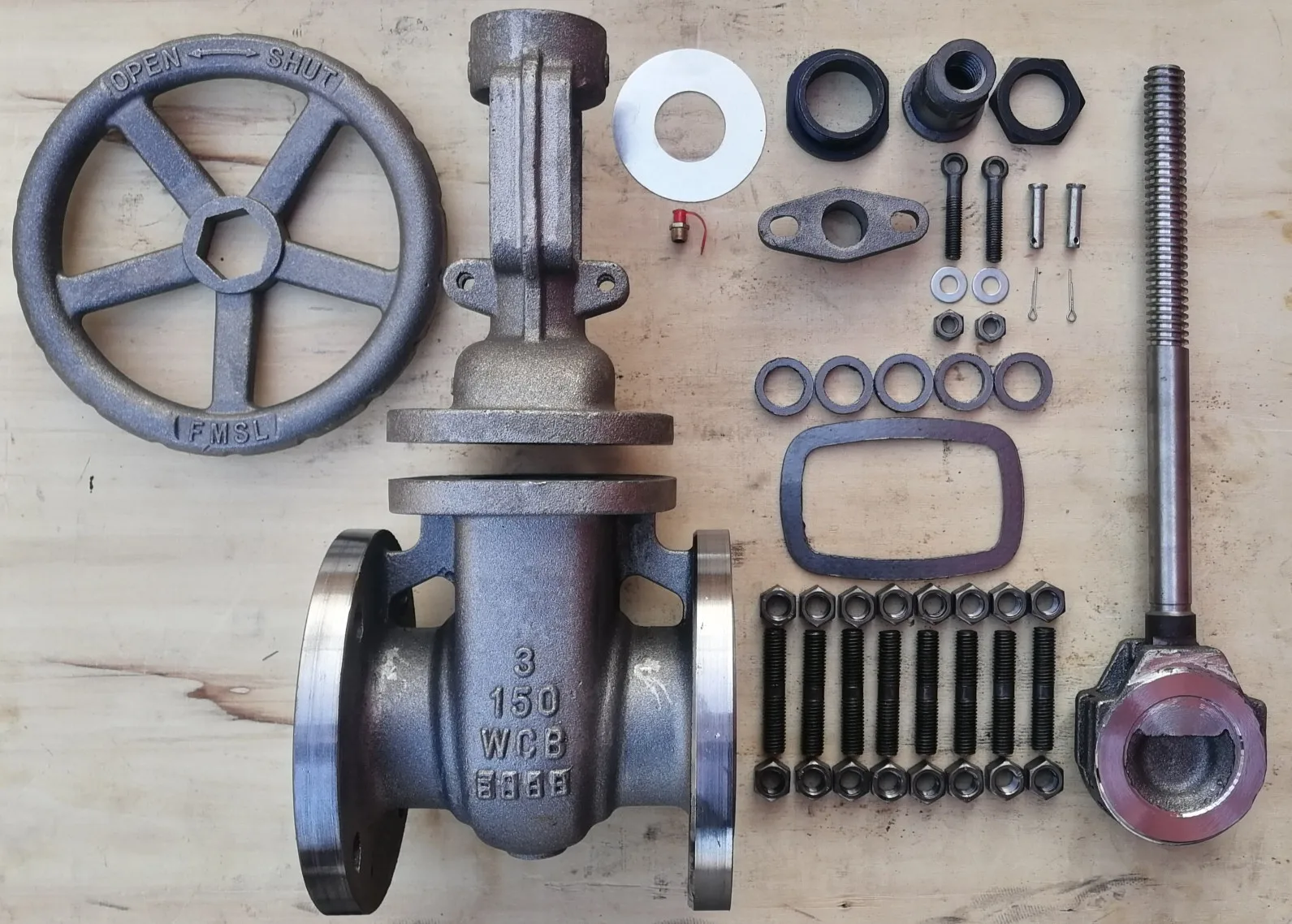

Main parts and materials | ||||
No. | Main parts | Materials | ||
1 | Valve body | WCB | ||
2 | Bonnet | WCB | ||
3 | Disc | WCB | ||
4 | Stem | Stainless steel | ||
5 | Yoke nut | Brass | ||

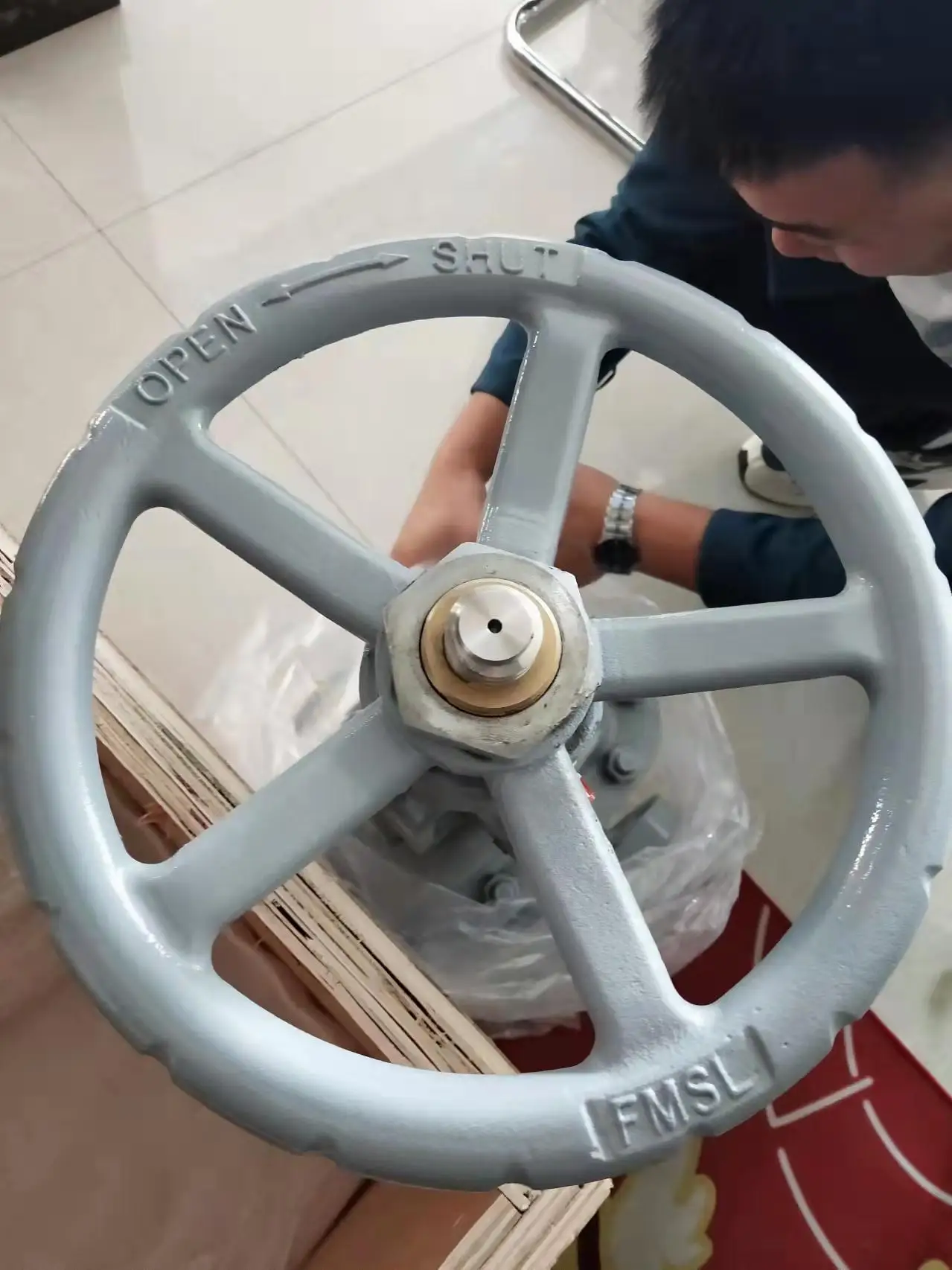

6 | Hand wheel | WCB | ||
Function and specification | ||||||||||
Type | PN (MPa) | Testing pressure (MPa) | Suitable temperature(℃) | Suitable medium | ||||||
Strength (water) | Enclose (water) | |||||||||
Z41H-16 | 1.6 | 2.4 | 1.8 | ≤200℃ | Nitric Acid | |||||
Z41H-25 | 2.5 | 3.8 | 2.8 | ≤200℃ | Nitric Acid | |||||
Z41H-40 | 4.0 | 6.0 | 4.4 | ≤200℃ | Nitric Acid | |||||
Outline and connecting measurement | ||||||||||||
Type | DN | Measurement(mm) | Reference weight (kg) | |||||||||
L | D1 | H | Z*Фd | |||||||||
Z45H-16 | 15 | 130 | 65 | 175 | 4-14 | 4 | ||||||
20 | 150 | 75 | 180 | 4-14 | 5 | |||||||
25 | 160 | 85 | 210 | 4-14 | 6 | |||||||
32 | 180 | 100 | 280 | 4-18 | 7 | |||||||
40 | 200 | 110 | 350 | 4-18 | 18 | |||||||
50 | 250 | 125 | 358 | 4-18 | 29 | |||||||
65 | 270 | 145 | 375 | 4-18 | 33 | |||||||
80 | 280 | 160 | 433 | 8-18 | 45 | |||||||
100 | 300 | 180 | 502 | 8-18 | 63 | |||||||
125 | 325 | 210 | 612 | 8-18 | 108 | |||||||
150 | 350 | 240 | 676 | 8-22 | 134 | |||||||
200 | 400 | 295 | 820 | 12-22 | 192 | |||||||
250 | 450 | 355 | 969 | 12-26 | 273 | |||||||
300 | 500 | 410 | 1142 | 12-26 | 379 | |||||||
350 | 550 | 470 | 1280 | 16-26 | 590 | |||||||
400 | 600 | 525 | 1452 | 16-30 | 850 | |||||||
Tips:
1.Compact structure, reasonable design, good valve rigidity, smooth passage.
2.Good corrosion resistance, scratch resistance and wear resistance
Product packaging
(1)we usually use cartons to package our gate valve.
(2)We also use plywood cases to package our gate valve.
(3)One 20' container can in bulk loaded on 20pcs plywood cases more or less.
(4)We can pack according to specific customers' requests.
(5)Customers' logos are available on package of the gate valve.
Production process
The crystallization of 20 years of manufacturing experience,
all products are fully inspected before leaving the factory,
achivev 100% qualified,
ensuring that all products are exquisite.
Application
Company Profile
Why Choose Us
1. All our workers own rich experience to ensure the export smoothly and make you feel sincere service before, during and after the purchase.
2. Our factory can customize according to your requirements and report the production progress to you at any time.
3. High output, you can get the earliest goods.
4. The factory sells directly, removes the middleman and earns the difference, allowing you to get the best price.
5. We have the specialized after-sales service to solve the quality problems in time.
2. Our factory can customize according to your requirements and report the production progress to you at any time.
3. High output, you can get the earliest goods.
4. The factory sells directly, removes the middleman and earns the difference, allowing you to get the best price.
5. We have the specialized after-sales service to solve the quality problems in time.
You are an agent, you will have a competitive price
You are the end user, you will have superior quality
