STMA TCM technology 3.5ton 8000lbs lpg powerful forklift EPA engine with shimadzu pump and valve
- Category: >>>
- Supplier: STMA Industrial (Xiamen) Co. Ltd
Share on (1600764649751):
Product Overview
Description
Product Description

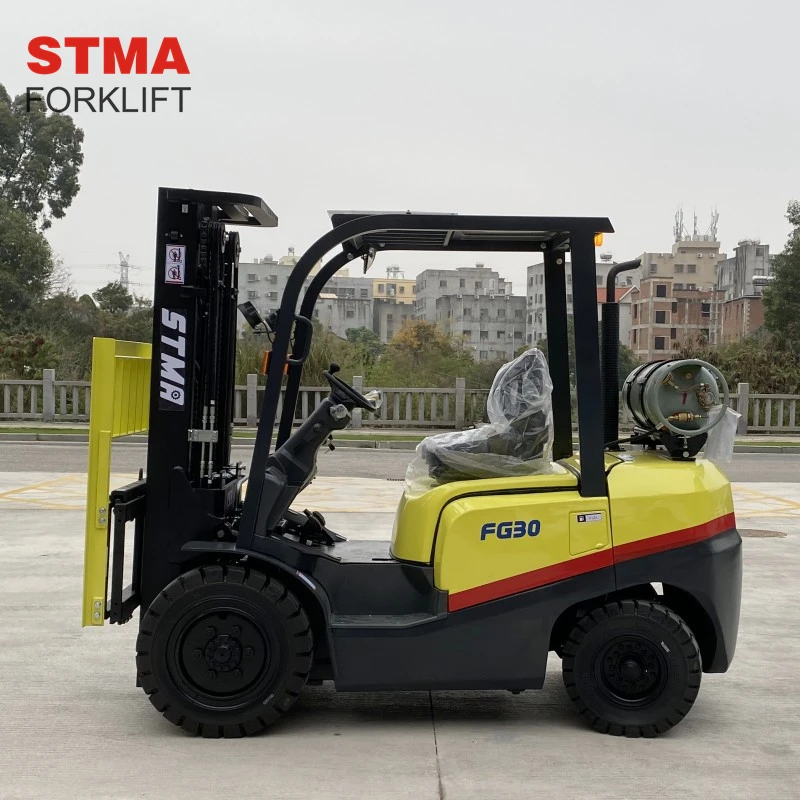

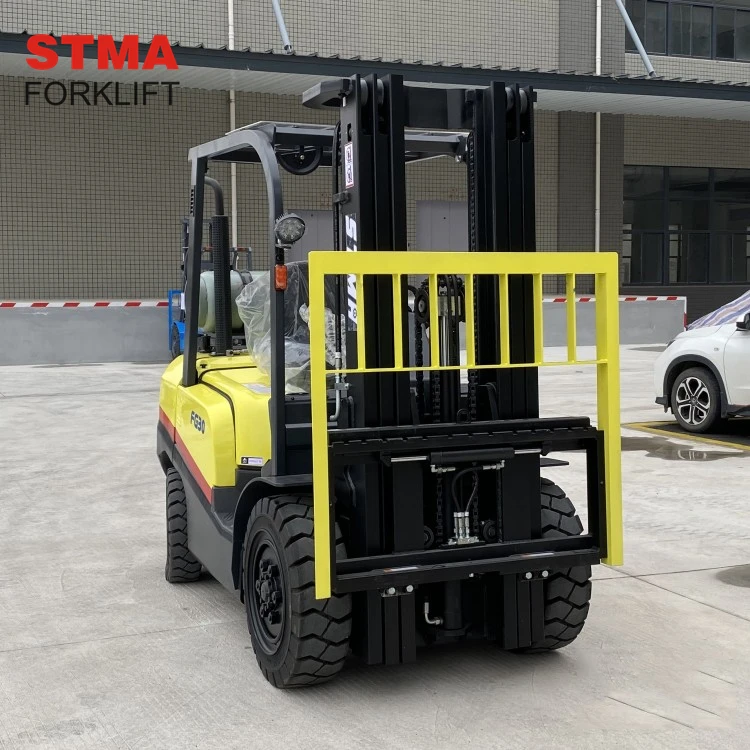

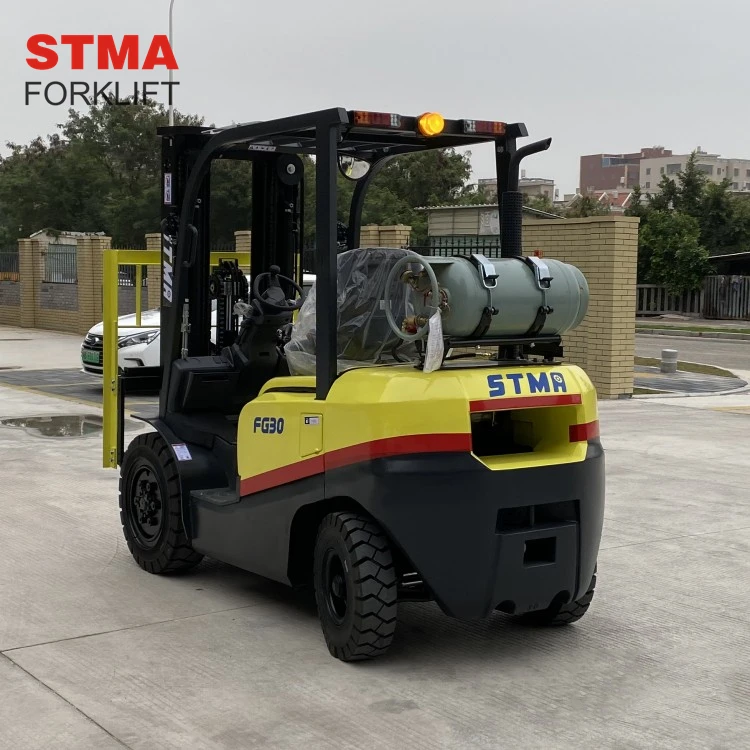

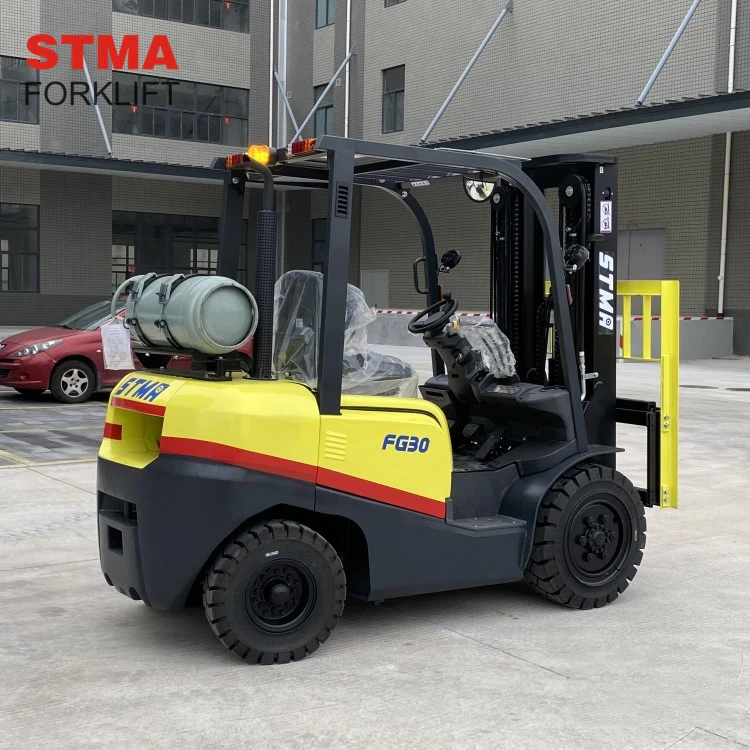

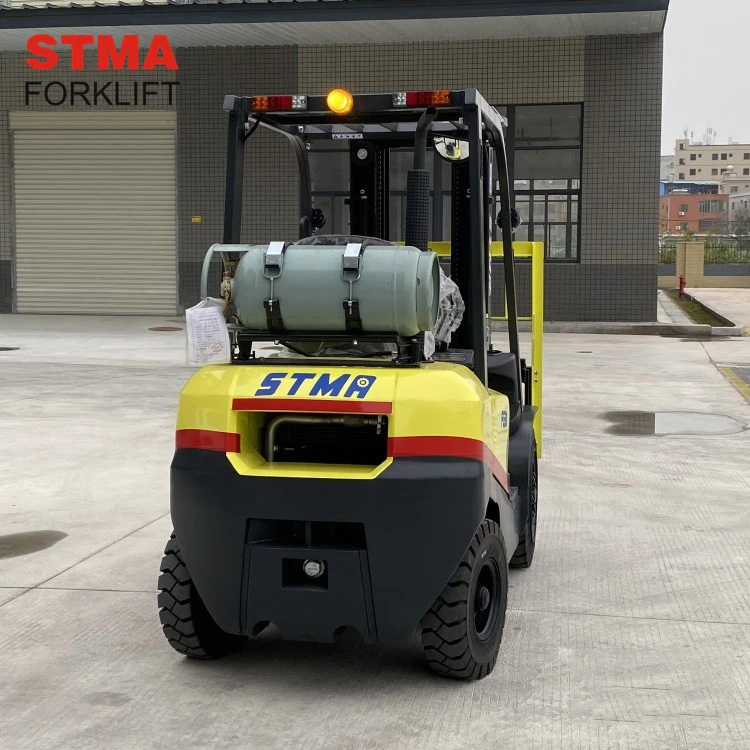

STMA TCM technology 3.5ton 8000lbs lpg powerful forklift EPA engine with shimadzu pump and valve
8000lbs forklift

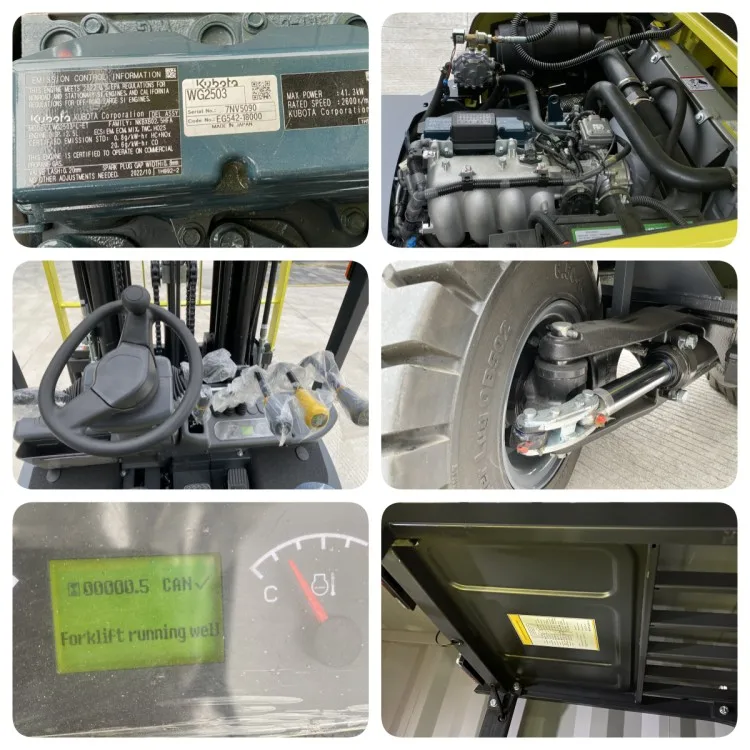

Details Images
SPECIFICATIONS FOR 3 TON LPG FORKLIFT TRUCK | ||||||
Model | FG30 | |||||
1 | Power Type | Gasoline/LPG | ||||
2 | Rated Capacity | kg | 3000 | |||
3 | Load Centre | mm | 500 | |||
4 | Lift Height | mm | 3000 | |||
5 | Fork Size (L×W×T ) | mm | 1070×125×45 | |||
6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |||
7 | Front Overhang (Wheel center to fork face) | mm | 475 | |||
8 | Ground Clearance(Bottom of mast) | mm | 120 | |||
9 | Turning Radius (outside) | mm | 2440 | |||
10 | Min. Intersecting aisle | 2110 | ||||
11 | Max.Gradeability (No load/Full load) | % | 20 | |||
12 | Wheelbase | mm | 1700 | |||
13 | Service weight | kg | 4390 | |||
14 | Battery (Voltage/Capacity) | V/Ah | 12/90 | |||
15 | Overall Dimension | Length to face of fork(Without fork) | mm | 2670 | ||
16 | Speed | Overall Width | mm | 1225 | ||
17 | Mast Lowered Height | mm | 2065 | |||
18 | Mast Extended Height(With backrest) | mm | 4150 | |||
19 | Overhead Guard Height | mm | 2090 | |||
20 | Travel (No load) | km/h | 19 | |||
21 | Lifting(Full load) | mm/s | 440 | |||
22 | Tire | Front | mm | 28×9-15-12PR | ||
23 | Rear | mm | 6.50-10-10PR | |||
24 | Engine | Model | K25 | |||
25 | Manufacture | NISSAN | ||||
26 | Rated output/r.p.m. | kw | 37.4/2300 | |||
27 | Rated torque/r.p.m. | N·m | 176.5/1600 | |||
28 | No.of Cylinder | 4 | ||||
29 | Bore×Stroke | mm | 89×100 | |||
30 | Displacement | cc | 2488 | |||
31 | Fuel Tank Capacity | L | 70 | |||
32 | Transmission | Type | Powershift (Manual) | |||
33 | Stage FWD/RVS | 1/1(2/2) | ||||
34 | Operating Pressure for Attachment | Mpa | 17.5 | |||
