Product Overview
Description

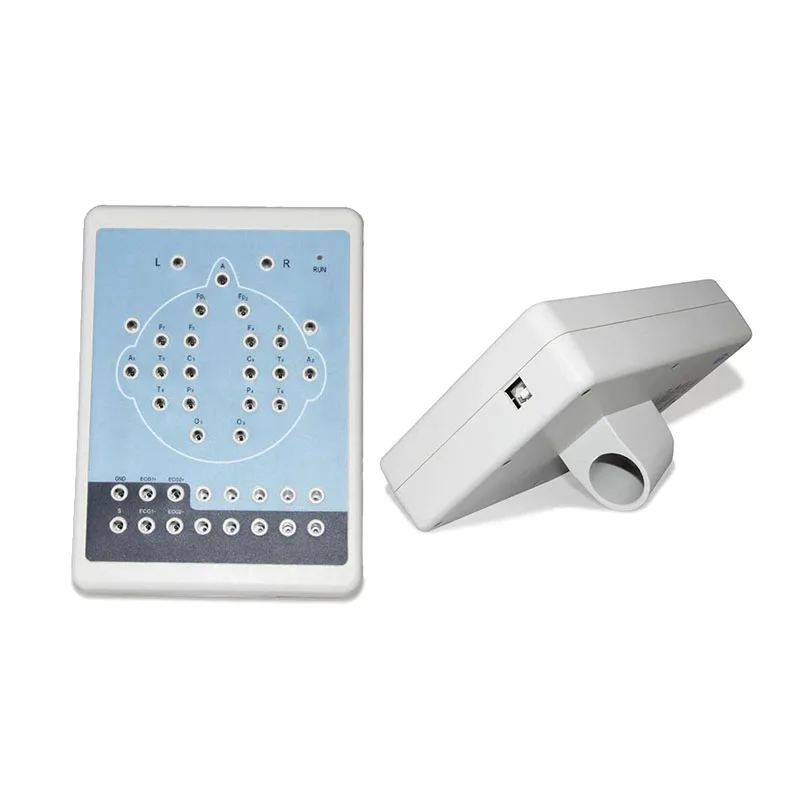

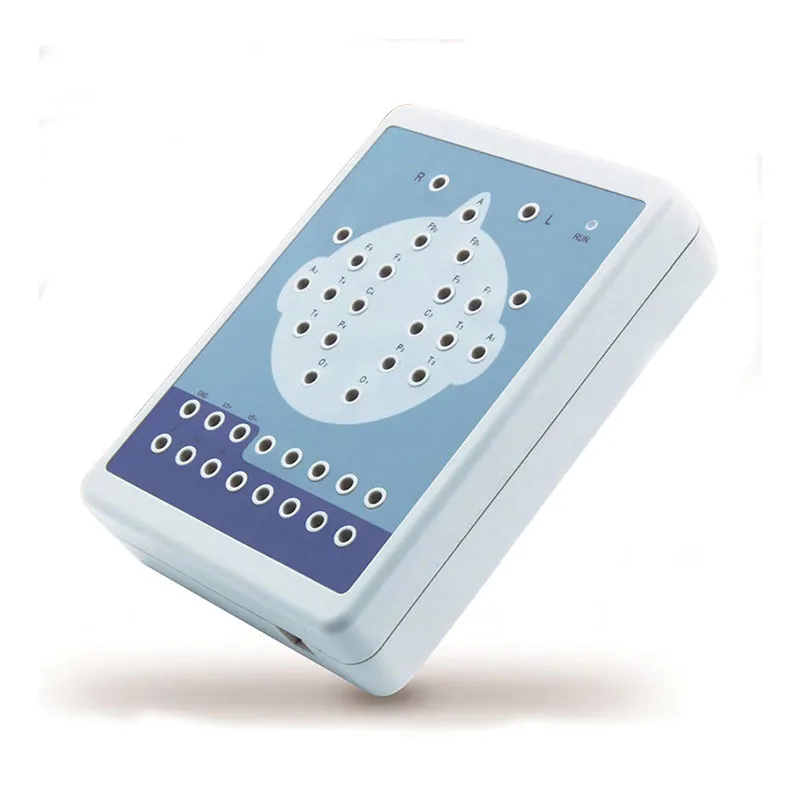

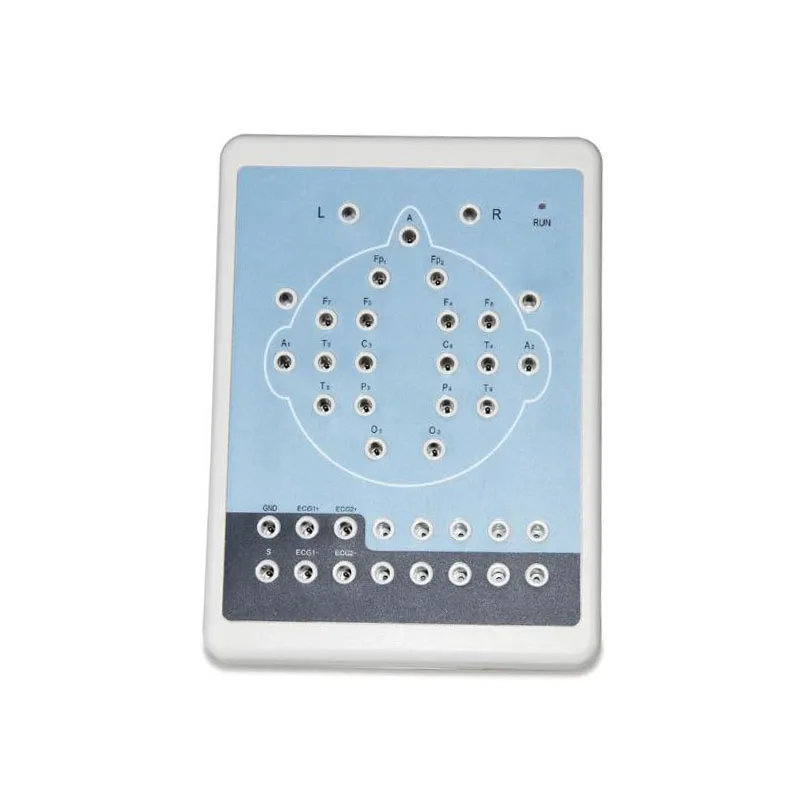

KT88 Digital Brain Electric Activity Mapping collects EEG signal with electrodes, via integrated amplification, A/D transformation, PC auto-analysis, FFT, to form electroencephalogram that displays with color depth. The product is applicable for checking such diseases as epilepsy, intracranial inflammation, cerebrovascular diseases and brain tumors.
Performance

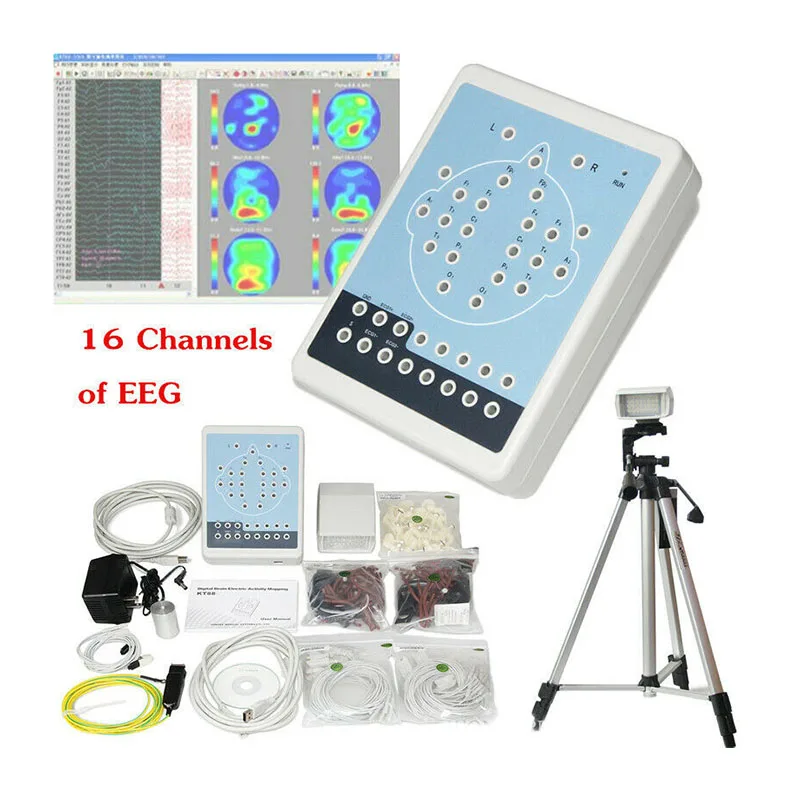

16 channels of EEG+2 channels of ECG (ECG is optional)
Sampling rate: 100 dots/s
Accuracy: 12bit
Input impedance: ≥10MΩ
Patient leak current: < 10µA
Noise level: ≤5µVp-p
CMRR: ≥90dB
Magnification multiple: 10000
Filter constant: all digital and free enactment
Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s
Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µV
Playback speed:1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times
50Hz interference suppression: ≥30dB
Safety type:Class II, type BF applied part
Sampling rate: 100 dots/s
Accuracy: 12bit
Input impedance: ≥10MΩ
Patient leak current: < 10µA
Noise level: ≤5µVp-p
CMRR: ≥90dB
Magnification multiple: 10000
Filter constant: all digital and free enactment
Display speed(paper speed): 5, 10, 15, 30, 60, 120 mm/s
Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50µV
Playback speed:1 time, 2 times, 3 times, 10 times, 20 times, 40 times, 60 times
50Hz interference suppression: ≥30dB
Safety type:Class II, type BF applied part
Dimension: 186 mm(L)×135 mm(W)×89.2 mm(H)
Weight: 550g
Operational environment:
Temperature: +5℃~+40℃
Relative humidity: 25%~95% (no condensation)
Atmospheric pressure: 700hPa~1060hPa
Power supply: USB 5V DC
Storage environment:
Temperature:-20℃~+55℃
Relative humidity: ≤90%
Atmospheric pressure: 700hPa~1060hPa
Weight: 550g
Operational environment:
Temperature: +5℃~+40℃
Relative humidity: 25%~95% (no condensation)
Atmospheric pressure: 700hPa~1060hPa
Power supply: USB 5V DC
Storage environment:
Temperature:-20℃~+55℃
Relative humidity: ≤90%
Atmospheric pressure: 700hPa~1060hPa

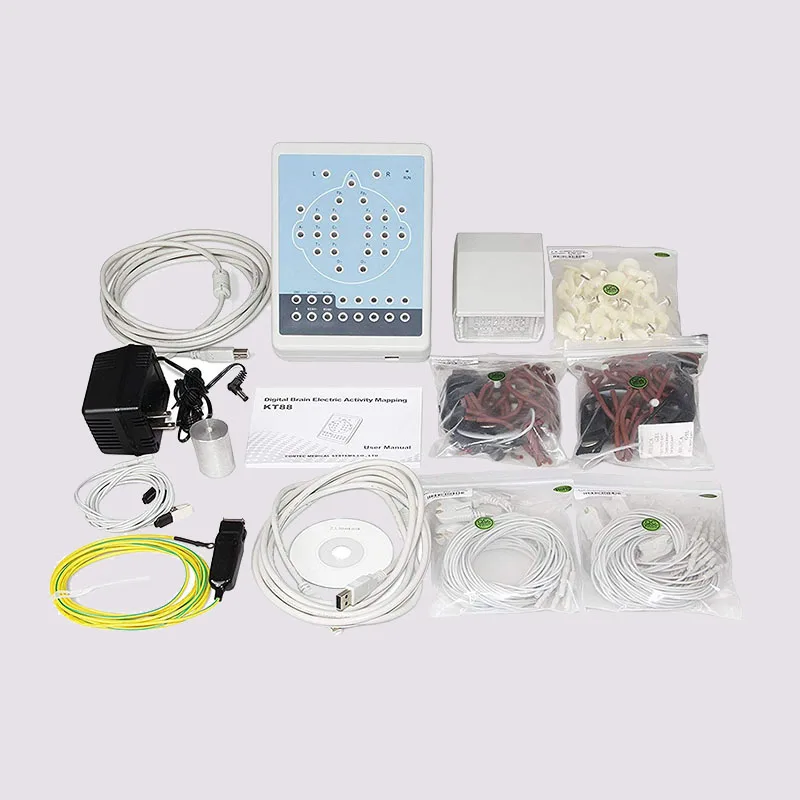

Standard
EEG lead

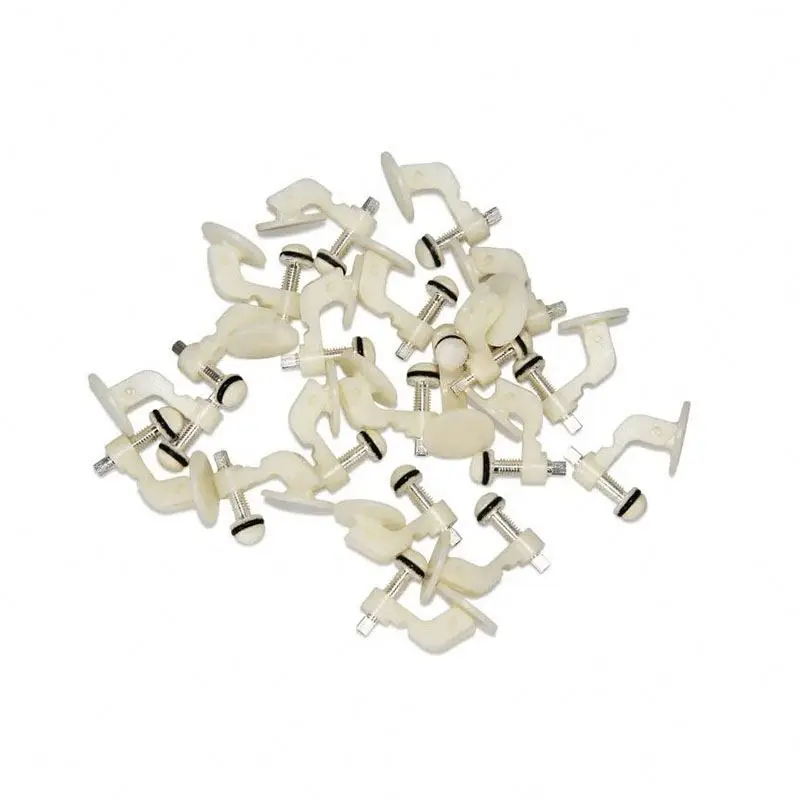

EEG electrode
Data line

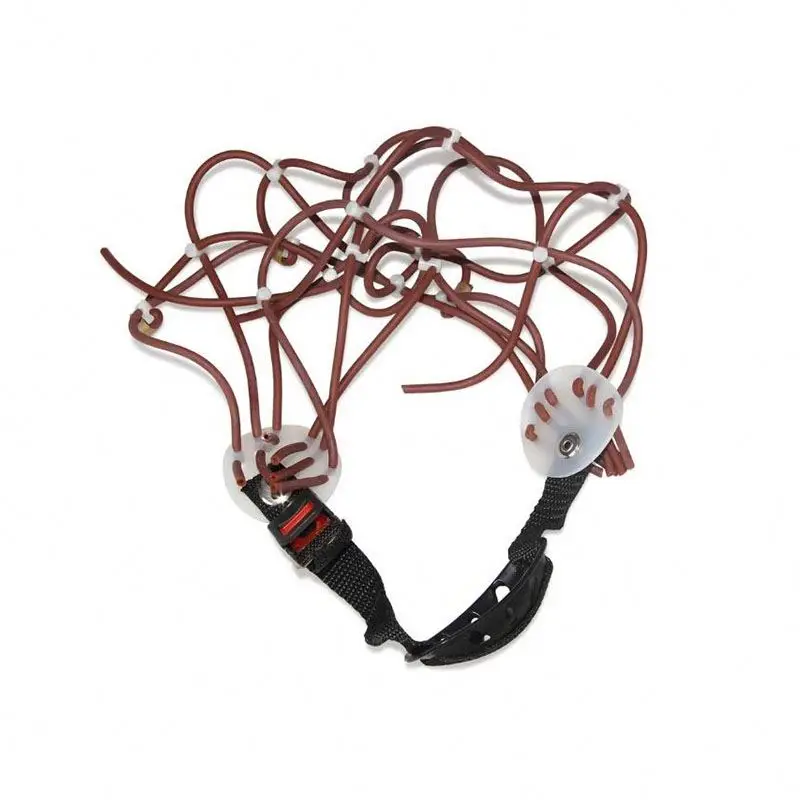

Headgear

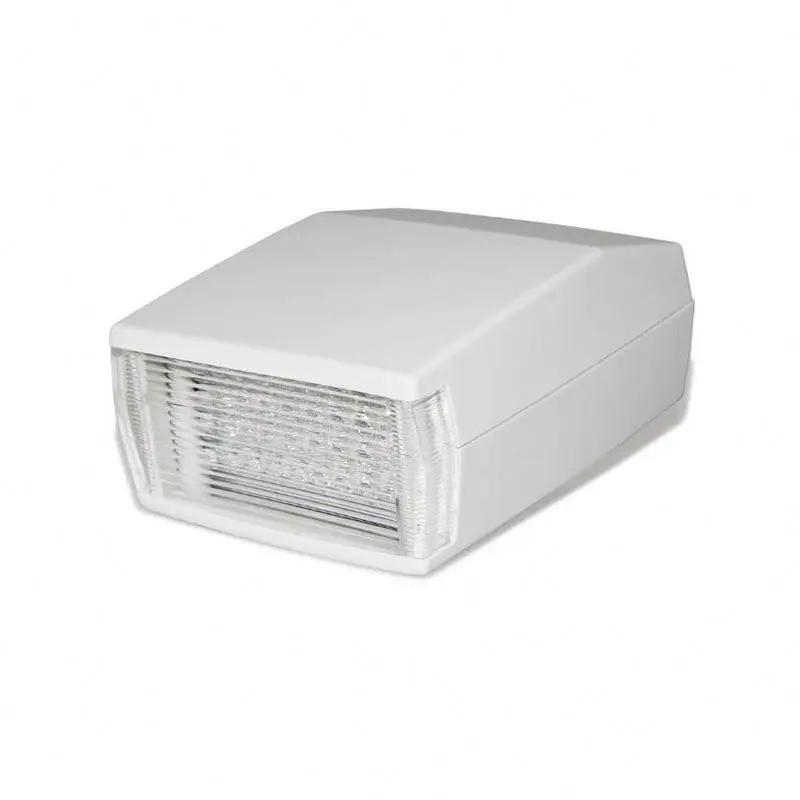

Strobe light

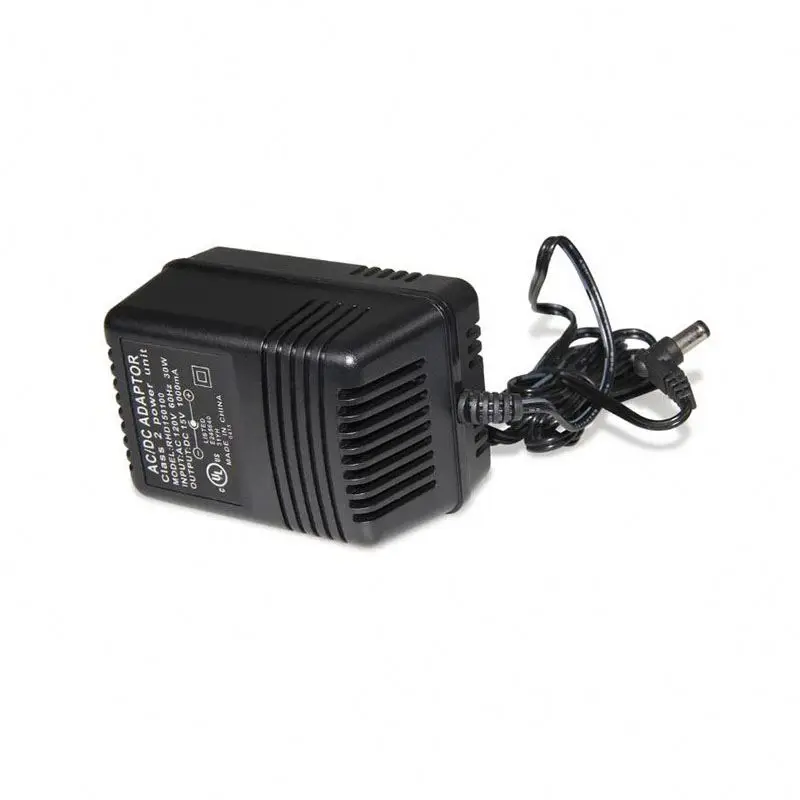

Strobe light power supply
PC software CD
User Manual
Earth wire

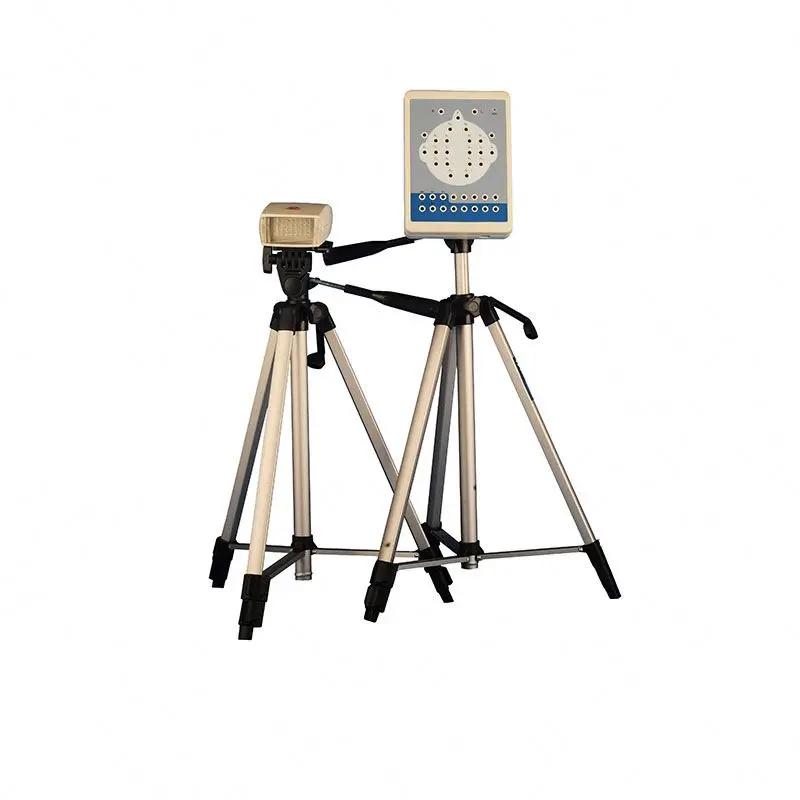

EEG bracket
Aluminum block
Optional
ECG module
EEG lead
EEG electrode
Data line
Headgear
Strobe light
Strobe light power supply
PC software CD
User Manual
Earth wire
EEG bracket
Aluminum block
Optional
ECG module
Physical characteristic | KT88 EEG Machine |
KT88 | 16 channels of EEG+2 channels of ECG (ECG is optional) |
Sampling rate | 100 dots/s |
Accuracy | 12bit |
Input impedance | ≥10MΩ |
Patient leak current | <10μA |
Noise leve | ≤5μVp-p |
CMRR | ≥90dB |
Magnification multiple | 10000 |
Filter constant | all digital and free enactment |
Display speed(paper speed) | 5,10,15,30,60,120 mm/s |
Amplitude | 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50uV |
Playback speed | 1 time2 times, 3 times, 10 times, 20 times, 40 times, 60 times |
50Hz interference suppression | ≥30dB |
Safety type | Class l, type BF applied part |
