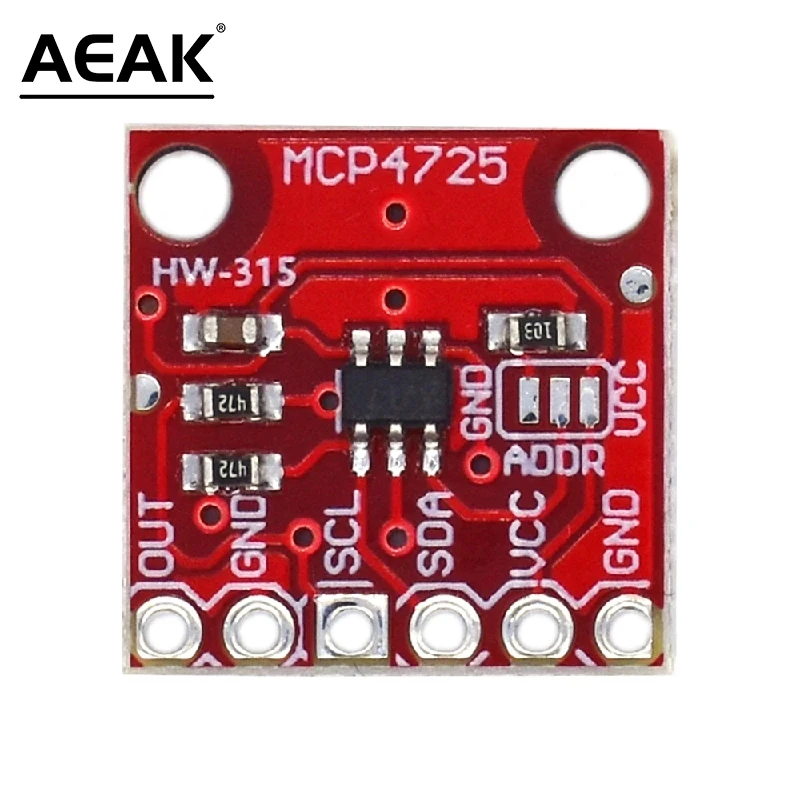

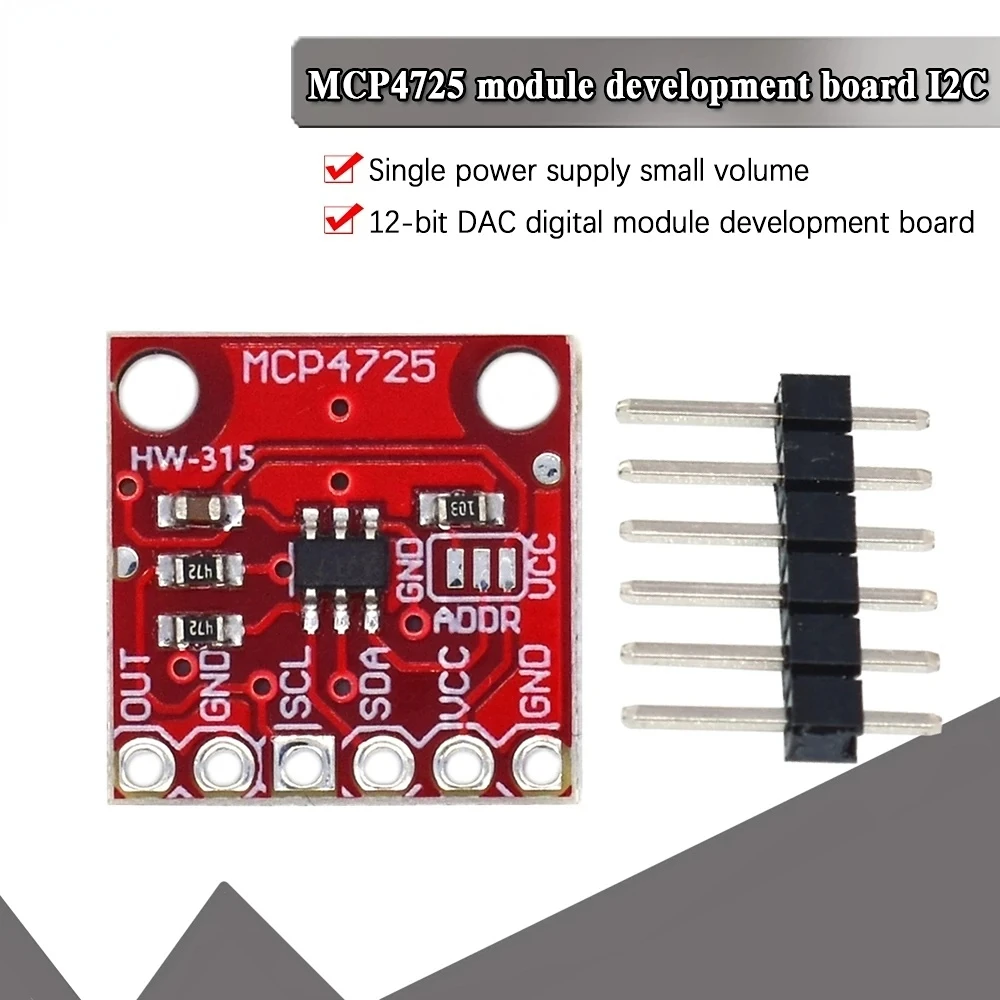

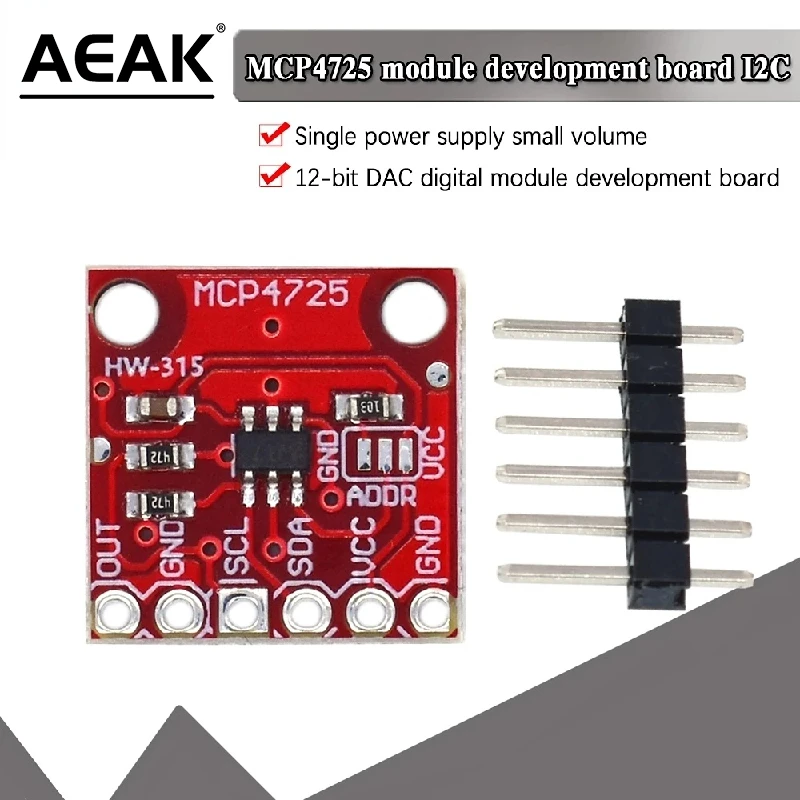

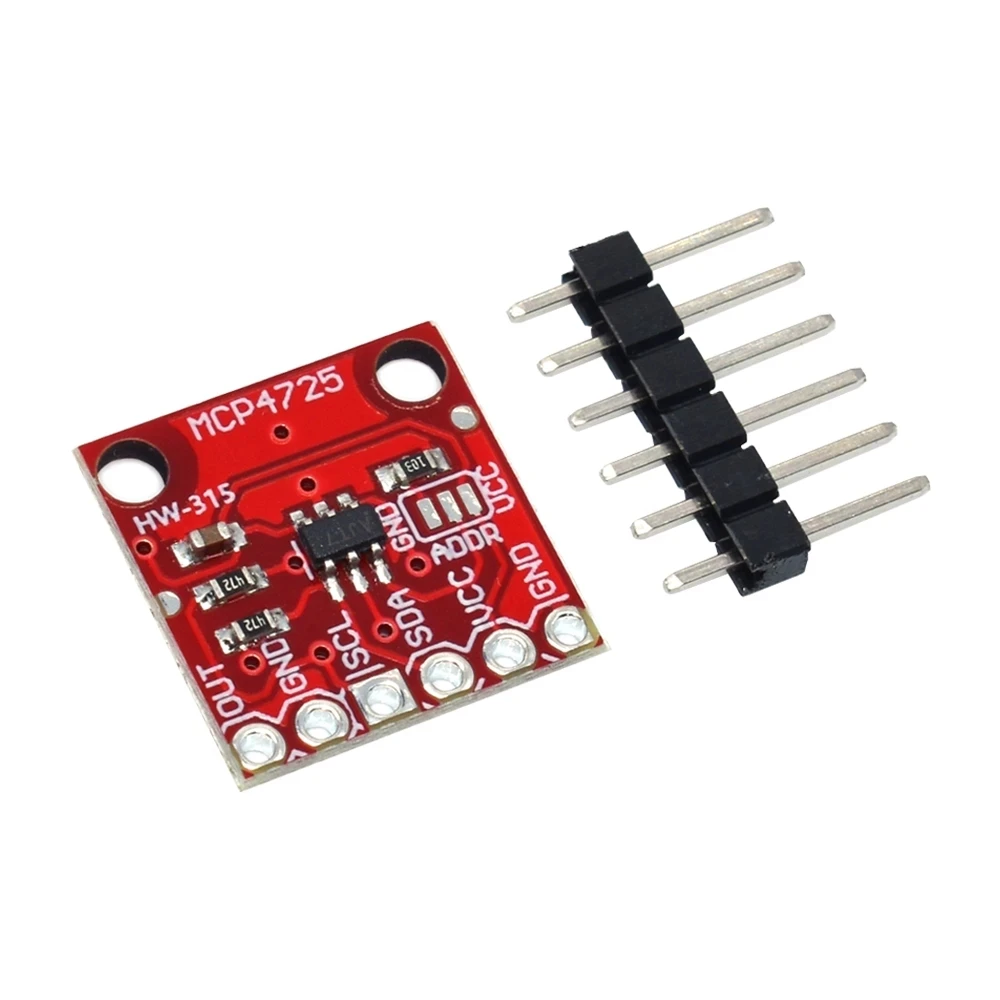

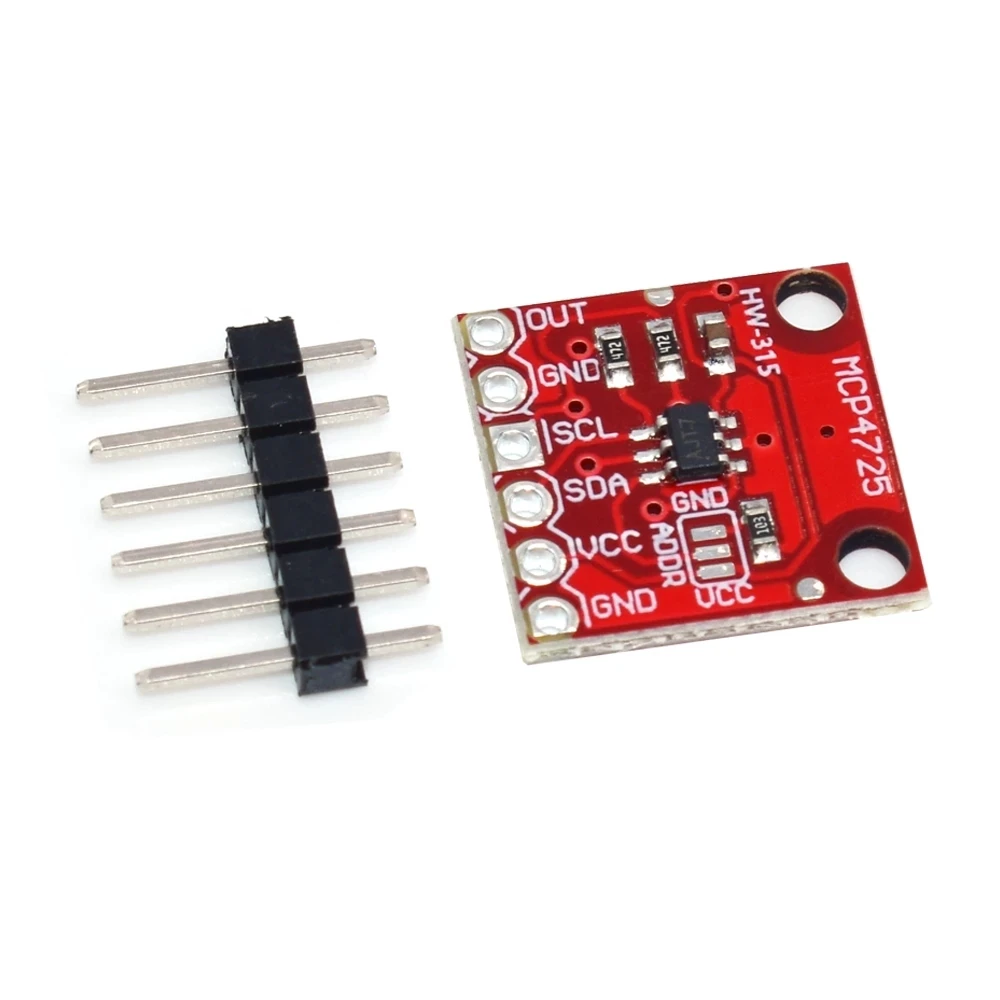

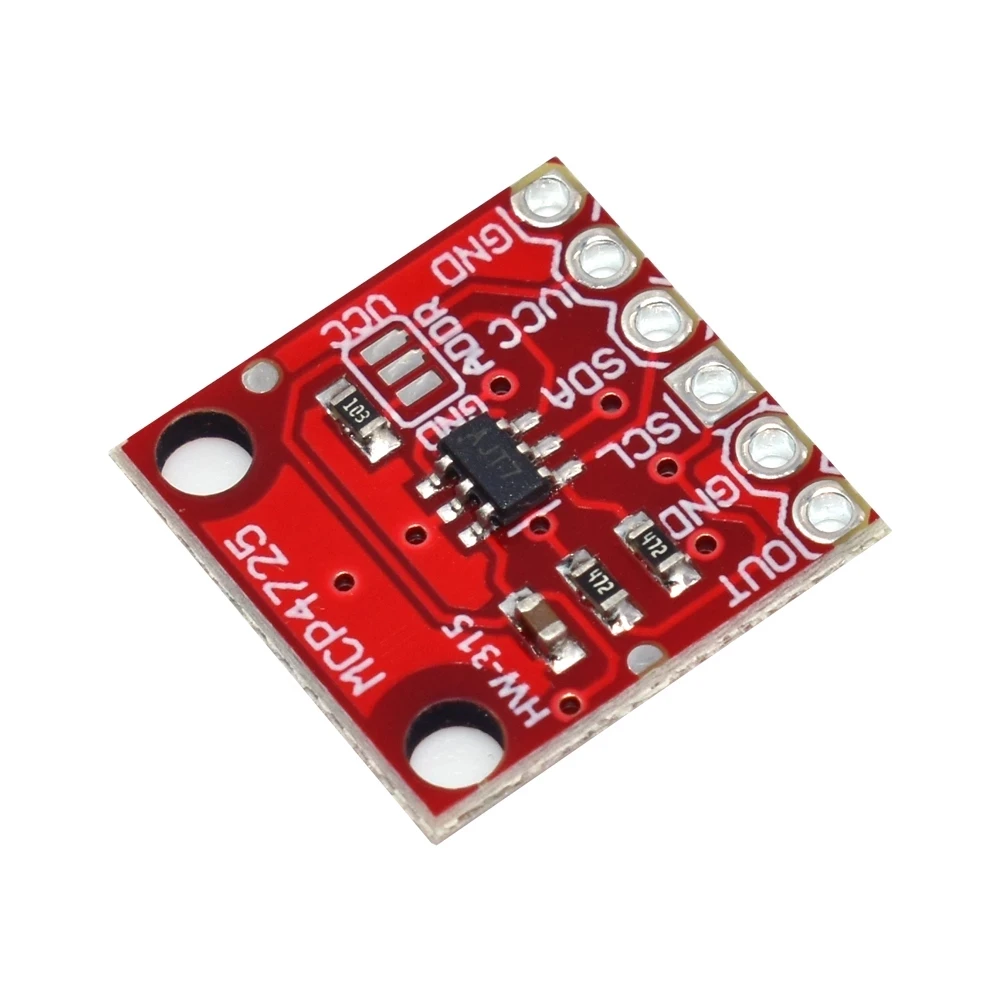

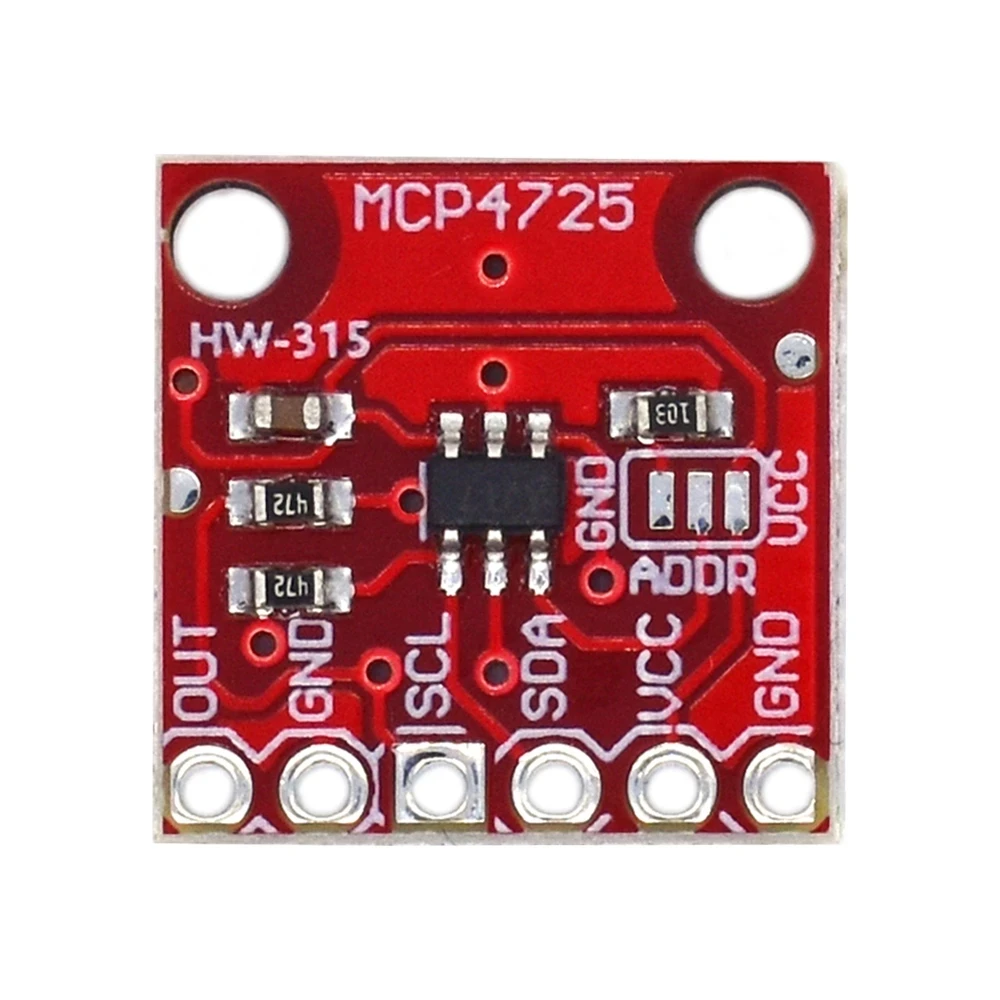

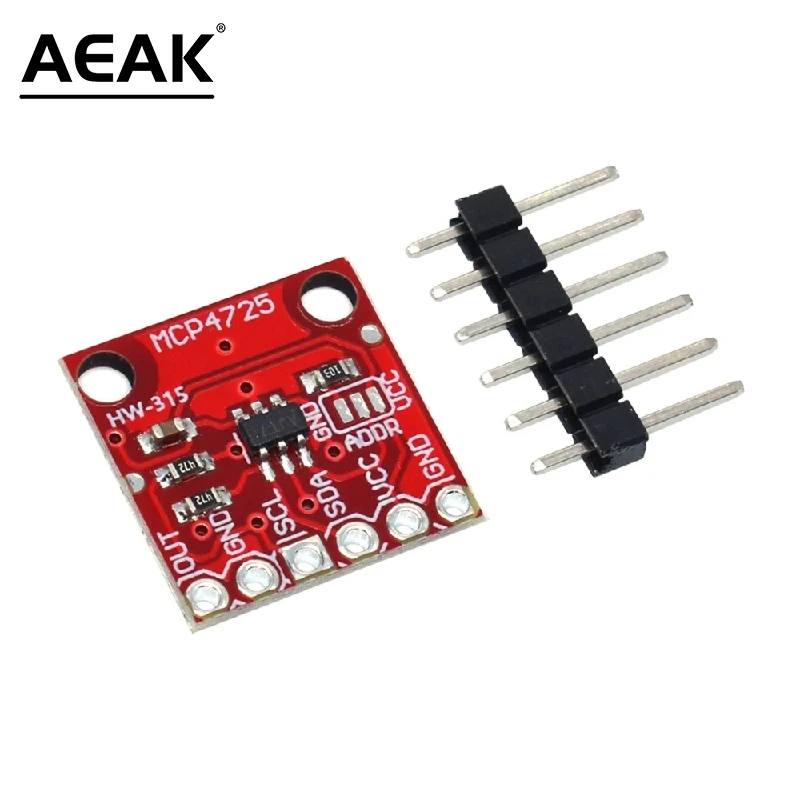

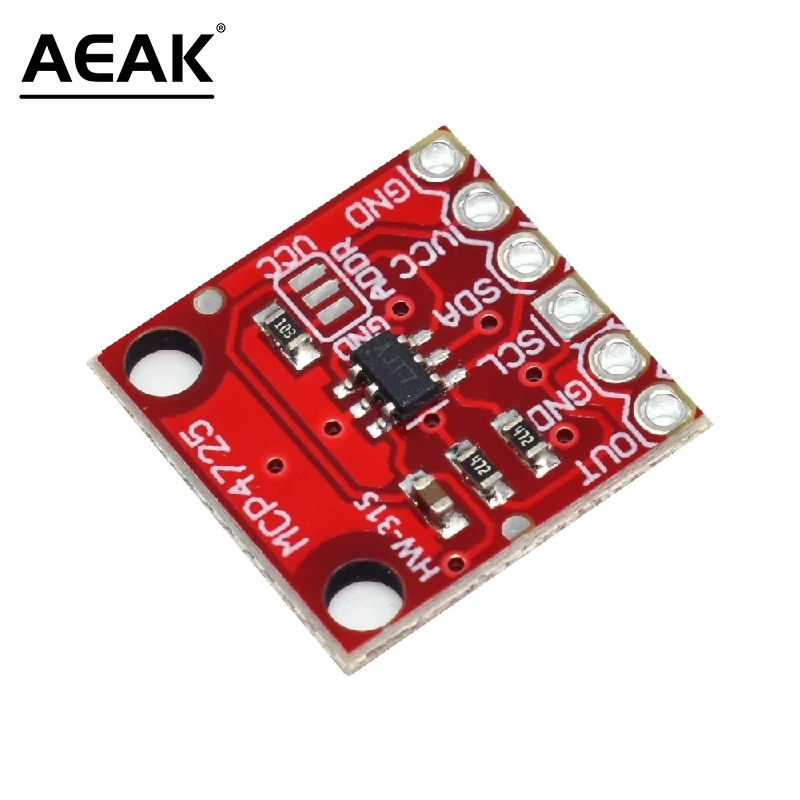

MCP4725 I2C DAC Breakout development board
- Category: >>>
- Supplier: Shenzhen Anyiku Technology Co. Ltd.
Share on (1600764889268):
Product Overview
Description
Product Introduction
The MCP4725 is a single channel 12-bit buffervoltage output with non-volatile memory (EEPROM).The DAC can be configured in normal mode or
power-saving off mode by setting the configuration register bit. The device can use a 2-wire I2C compatible serial interface and
is powered by a single power supply with a voltage range of 2.7V to 5.5V.

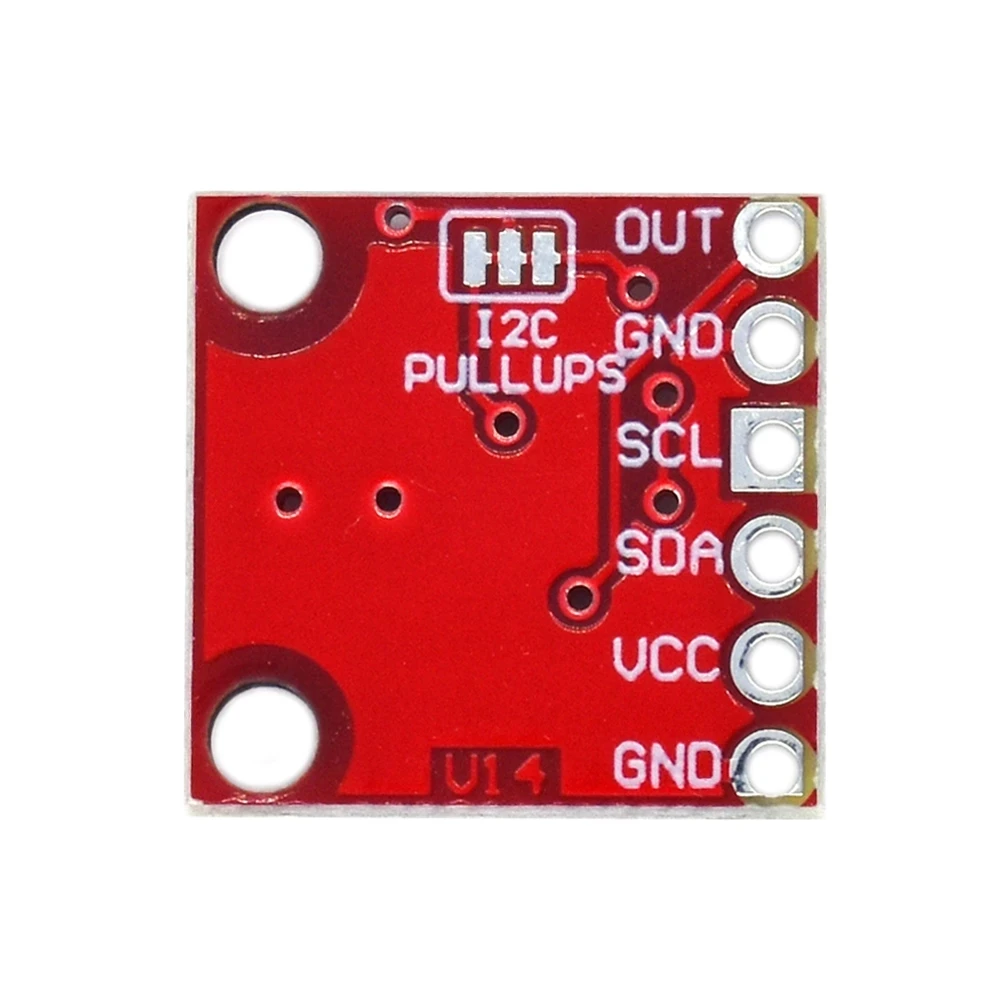

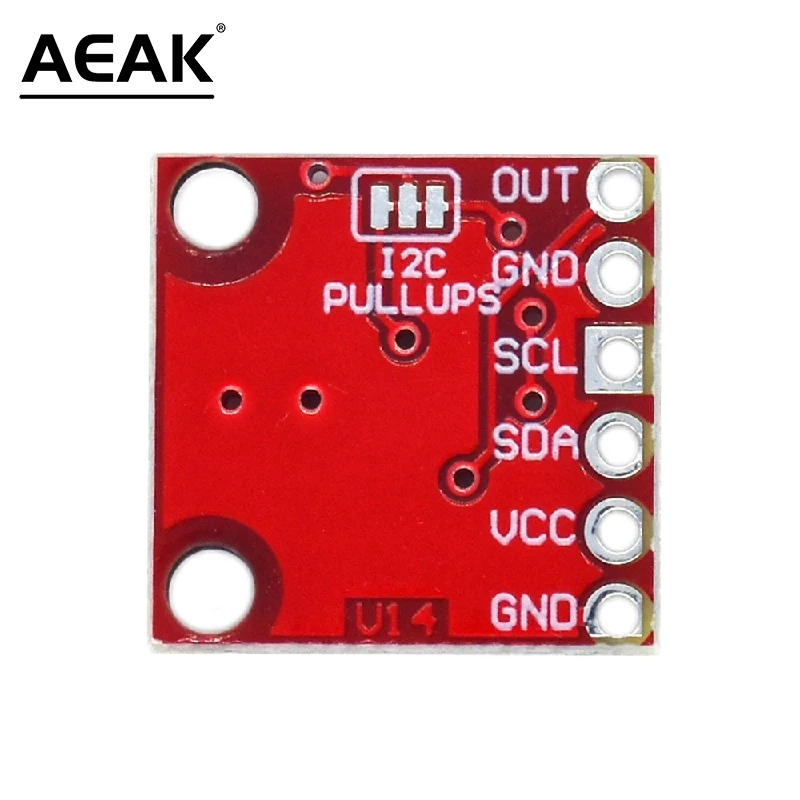

This version of the CJMCC-MCP4725 breakthrough fixes a number of issues with the board, including IC seals, I2C pins, changes to the overall board size to better fit your project, and some minor adjustments. The board disconnects every pin that you need to access and use the MCP4725, including ground and signal output pins, for connecting to an oscilloscope or any other device that needs to be connected to the board. There are SCL, SDA, VCC, and another GNDO for basic I2C leads. In addition, if you want to install multiple spider P4725 on a bus, you can disable pull-up resistors on that board. Just check the connecting guide in the documentation section below for instructions and tips on how to do this.
power-saving off mode by setting the configuration register bit. The device can use a 2-wire I2C compatible serial interface and
is powered by a single power supply with a voltage range of 2.7V to 5.5V.
This version of the CJMCC-MCP4725 breakthrough fixes a number of issues with the board, including IC seals, I2C pins, changes to the overall board size to better fit your project, and some minor adjustments. The board disconnects every pin that you need to access and use the MCP4725, including ground and signal output pins, for connecting to an oscilloscope or any other device that needs to be connected to the board. There are SCL, SDA, VCC, and another GNDO for basic I2C leads. In addition, if you want to install multiple spider P4725 on a bus, you can disable pull-up resistors on that board. Just check the connecting guide in the documentation section below for instructions and tips on how to do this.
Features:
12-bit resolution
I2C interface (compatible with standard, fast, high speed)
Small package
From 2,7 V to 5,5 V supply
Store setup for internal EEPROM
12-bit resolution
I2C interface (compatible with standard, fast, high speed)
Small package
From 2,7 V to 5,5 V supply
Store setup for internal EEPROM
