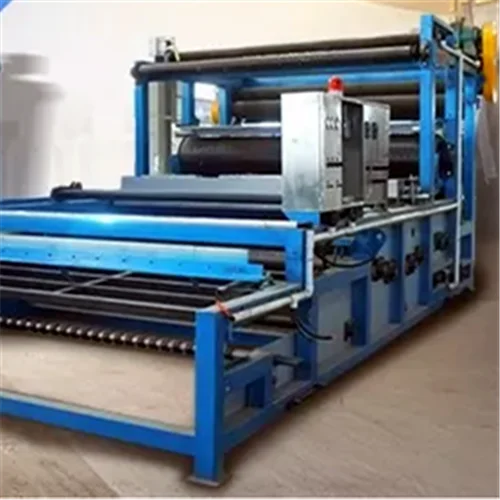

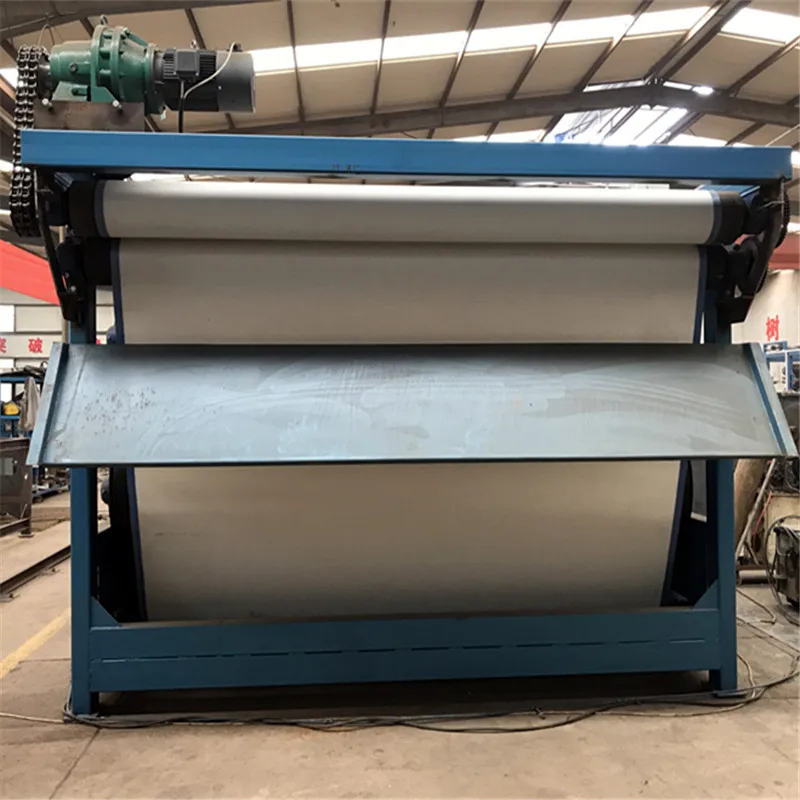

Oversea service carbon steel 304 sludge dewatering machine automatic horizontal rubber belt vacuum filter for water treatment
- Category: >>>
- Supplier: Qingdao All Universe Machinery Equipment Co. Ltd.
Share on (1600765124041):
Product Overview
Description
Product Overview
The belt filter press is popular devatering equipment in the world
Widely used in Papemarking Leather Texile Chemical , Food process ect , watewater sludge devatering.
As a waste water treatment system component, it is used for dewatering suspended particles and residue after treatment , so as to avoid secondary pollution. It is also applicable for the treatment of thickener concentrations.
Widely used in Papemarking Leather Texile Chemical , Food process ect , watewater sludge devatering.
As a waste water treatment system component, it is used for dewatering suspended particles and residue after treatment , so as to avoid secondary pollution. It is also applicable for the treatment of thickener concentrations.
Process :
Belt type filter press the whole working process can be divided into 3 basic stages: sludge flocculation, gravity pressure filter
press filter gravity dehydration, squeeze dehydration/Dewater.
1) Sludge Flocculation
Sludge dehydration before must first through the flocculation process, flocculation refers to using a flocculant (that is, a kind
of polymer, polymer electrolytes) was carried out on the suspension to processing, flocculants and sludge after mixing, the solid
phase particles in the suspension system to adhesive produces condensation phenomenon, and the solid phase liquid phase
separation. Sludge flocculation was conducted in the flocculation reactor and sludge in flocculation reactor residence time of
about 1 to 3 min
2) Gravity Dehydration
Approved by flocculation in the sludge moisture content 99.3% the thickener gravity dehydration, sludge moisture content up to
95-98%, in order to reduce the liquidity of sludge before squeezing, must emerge more free water and gravity dehydration zone is
to implement this function, the sludge in the filter pack is not affected by the external force, the filter belt sludge load
running section has an Angle, with the friction coefficient of filter with the mud and water, mud filter belt drag line up, down,
water accumulated sludge has a process, relatively extended the gravity dehydration time, out in favour of free water. Sludge
through a reverse return to squeeze the filter pack, before getting into two belt clamping press, in a single filter take random
operation, its role is to make the sludge evacuating,evenly distributed over the surface of the filter belt further dehydration.
3) Squeeze and Dewater
Sludge gravity dehydration, as the movement of the belt into the filter belt between the
wedge pressing section, to get to the compression,dehydration, and take off a part of free water on the surface of the sludge, and
then enter the consists of seven roller "S" shape of the press section, due to the sludge decreases as the filter belt between
multiple stick to the shear force produced by bending, to squeeze out internal free water.
press filter gravity dehydration, squeeze dehydration/Dewater.
1) Sludge Flocculation
Sludge dehydration before must first through the flocculation process, flocculation refers to using a flocculant (that is, a kind
of polymer, polymer electrolytes) was carried out on the suspension to processing, flocculants and sludge after mixing, the solid
phase particles in the suspension system to adhesive produces condensation phenomenon, and the solid phase liquid phase
separation. Sludge flocculation was conducted in the flocculation reactor and sludge in flocculation reactor residence time of
about 1 to 3 min
2) Gravity Dehydration
Approved by flocculation in the sludge moisture content 99.3% the thickener gravity dehydration, sludge moisture content up to
95-98%, in order to reduce the liquidity of sludge before squeezing, must emerge more free water and gravity dehydration zone is
to implement this function, the sludge in the filter pack is not affected by the external force, the filter belt sludge load
running section has an Angle, with the friction coefficient of filter with the mud and water, mud filter belt drag line up, down,
water accumulated sludge has a process, relatively extended the gravity dehydration time, out in favour of free water. Sludge
through a reverse return to squeeze the filter pack, before getting into two belt clamping press, in a single filter take random
operation, its role is to make the sludge evacuating,evenly distributed over the surface of the filter belt further dehydration.
3) Squeeze and Dewater
Sludge gravity dehydration, as the movement of the belt into the filter belt between the
wedge pressing section, to get to the compression,dehydration, and take off a part of free water on the surface of the sludge, and
then enter the consists of seven roller "S" shape of the press section, due to the sludge decreases as the filter belt between
multiple stick to the shear force produced by bending, to squeeze out internal free water.

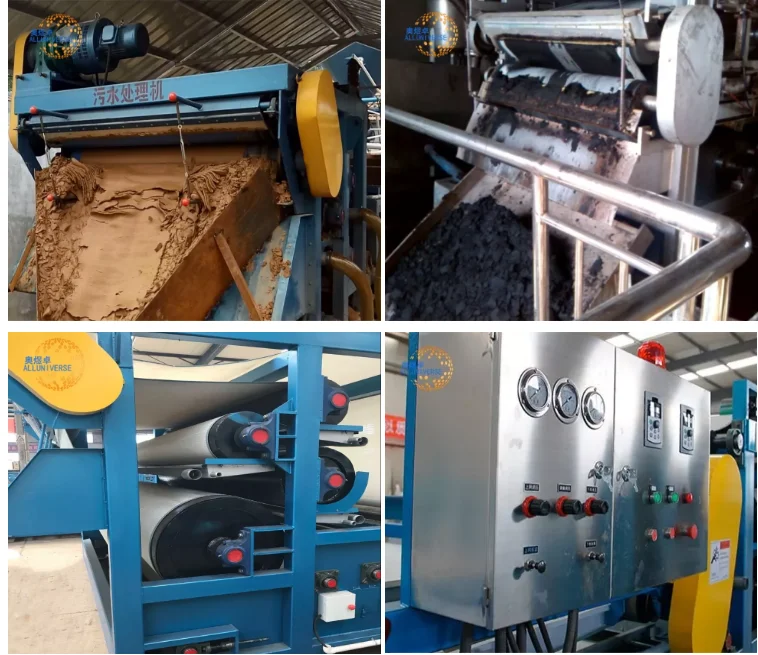

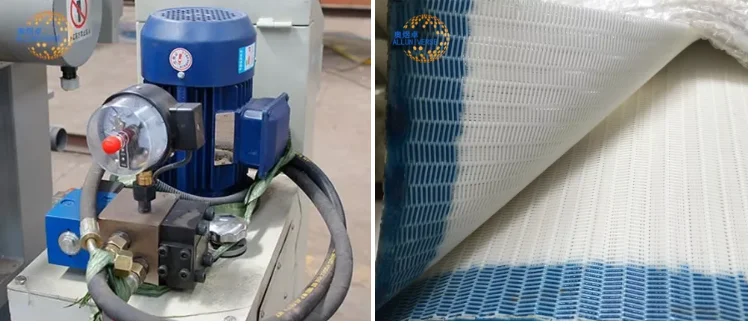

Details Images
Main features:
1) The belt filter press for sludge dewatering features a unique tilt and long wedge area to ensure stable performance
2) Large gravity dewatering area with strong treating capacity, heavy load capacity, low energy consumption and low cost
performance.
3) Multi-roller with decreasing diameter is compact and improves the solid-content of the filter cake.
4) New auto-adjusting and tilting system greatly improves the lifetime of the filter belt.
5)Adopts two independent backwash systems.
1) The belt filter press for sludge dewatering features a unique tilt and long wedge area to ensure stable performance
2) Large gravity dewatering area with strong treating capacity, heavy load capacity, low energy consumption and low cost
performance.
3) Multi-roller with decreasing diameter is compact and improves the solid-content of the filter cake.
4) New auto-adjusting and tilting system greatly improves the lifetime of the filter belt.
5)Adopts two independent backwash systems.

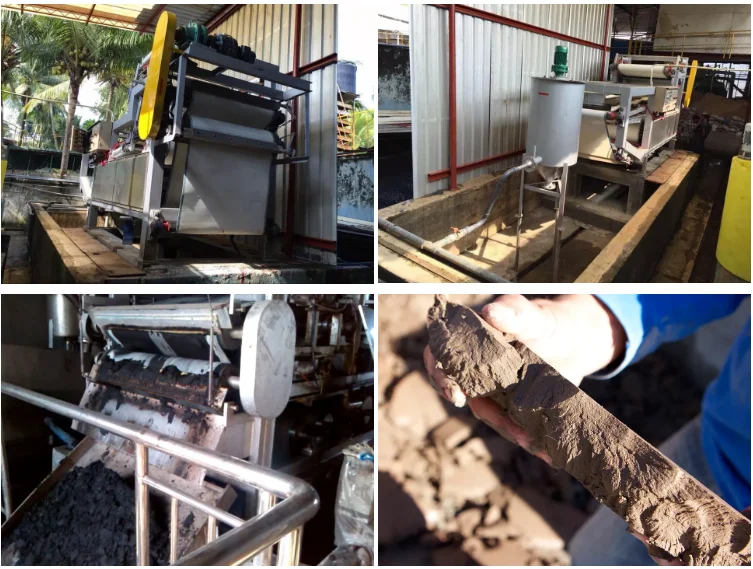

Installl

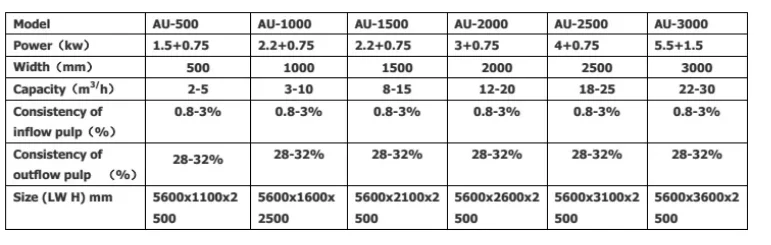

PRODUCT SPECIFICATIONS

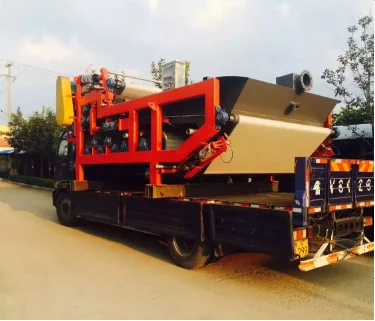

Packing & Shipping
Packaging Details:
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request.
too tigher,we will use pe film for packing or pack it according to customers special request.
Since our company was established in 2008, we have cooperated with many countries and got good feedback. We hope that your place
will be our next destination
will be our next destination
Our Comapny
Our service :
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* We are available 24 hours for customers.
*Service concept: Exceed clients’ expectation.
*Presale service: Free comprehensive and detailed *technology consultancy, help client find the most suitable lift or solutions.
*In sale service:guidance of installation and debugging and free training of operation, care and maintenance.
* Sample testing support.
* View our Factory.
* We are available 24 hours for customers.
*Service concept: Exceed clients’ expectation.
*Presale service: Free comprehensive and detailed *technology consultancy, help client find the most suitable lift or solutions.
*In sale service:guidance of installation and debugging and free training of operation, care and maintenance.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*After-sale service: 12 months warranty service of whole machine and lifetime maintenance;
*Quick responses: inquires or after-sale questions be replied within 24 hours.
*Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply, with only
cost charge after guarantee period.
* Engineers available to service machinery overseas.
*After-sale service: 12 months warranty service of whole machine and lifetime maintenance;
*Quick responses: inquires or after-sale questions be replied within 24 hours.
*Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply, with only
cost charge after guarantee period.
