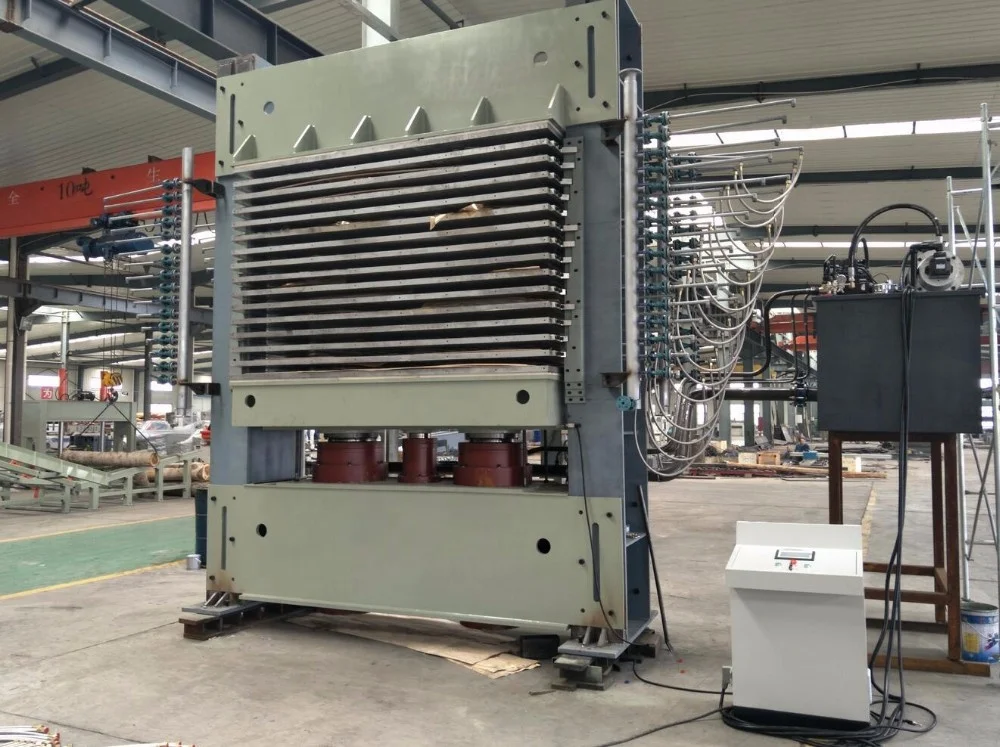

Hanvy HY214*8/8B 10 800 ton 150mm opening Semi Automatic Plywood Film Hot Press
- Category: >>>
- Supplier: Weihai Hanvy Plywood Machinery Manufacturing Co. Ltd.
Share on (1600765128725):
Product Overview
Description
Hot press
Plywood Film Hot Press
Laminating plywood hot press is a necessary equipment in plywood making line, it is used in making high level plywood products, such as formwork plywood, construction plywood and furniture plywood etc.
Product Description
Hanvy HY214*8/8B-10 800ton 4*8ft Laminating Plywood Hot Press
Plywood Melamine Laminating hot press is necessary machine for plywood making line.Glued veneer face veneer and core veneer are moulded a whole sheet of plywood by hot press.
Thermal oil heating type.Customized Pressure and opening layers.
Silicone cushion and 3mm stainless steel sheet on double sides of hot platens.
Hanvy HY214*8/8B 4x8ft 800ton Laminating Plywood Hot Press | ||||||
Pressure and working size | Working pressure | TON | 800 | |||
Hot plate size | mm | 2700x1370x52 | ||||
production dimensions | mm | 4x8ft | ||||
Opening and diameter | opening | mm | 150 | |||
opening number | pcs | 5 | ||||
Cylinder diameter | mmxpcs | 300mmx4,190mmx1 | ||||
Powe and weight | Working stroke | mm | 1000 | |||
Closing speed | m/min | 4 | ||||
Overall size | mm | 5450x1850x4415 | ||||
Weight | kg | 40000 | ||||
Main Features - Laminating Plywood Hot Press

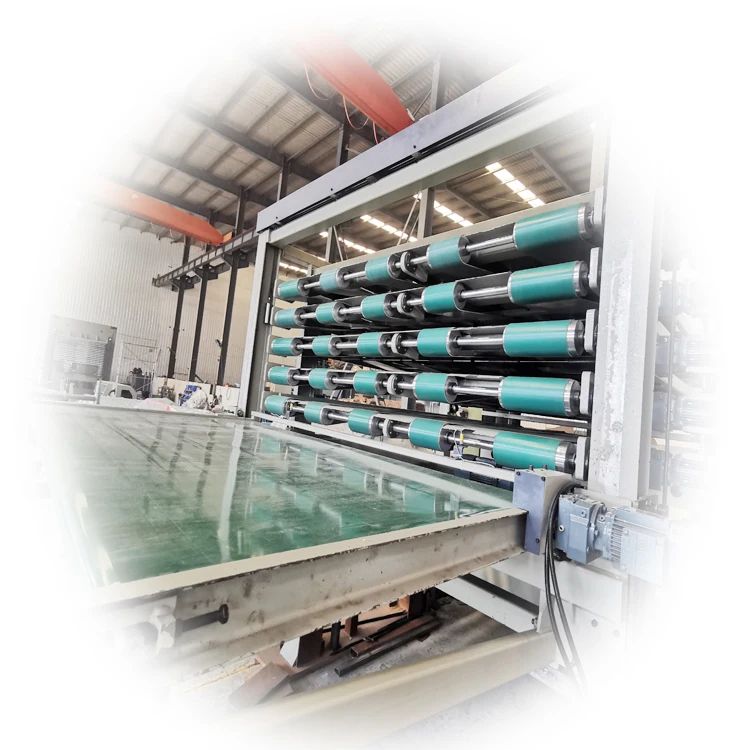

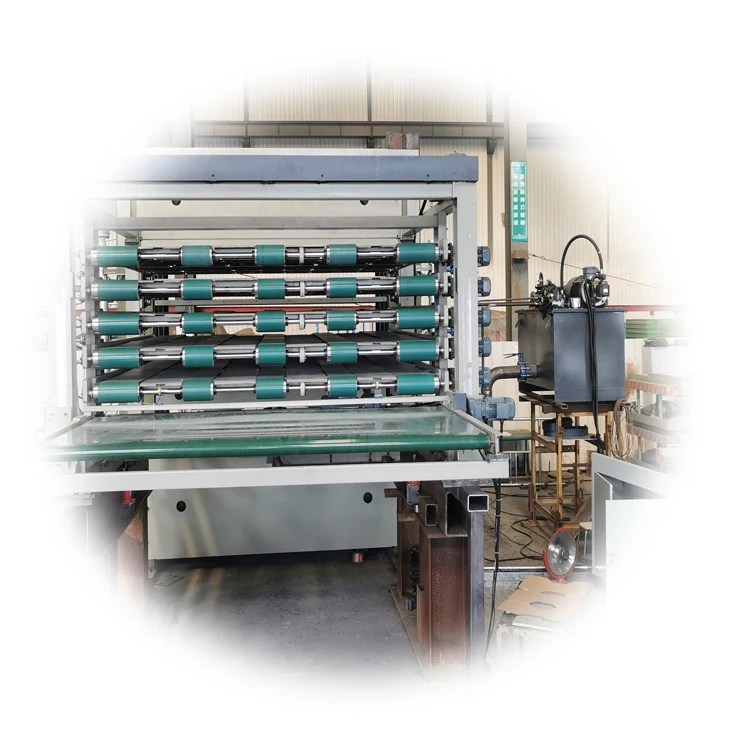

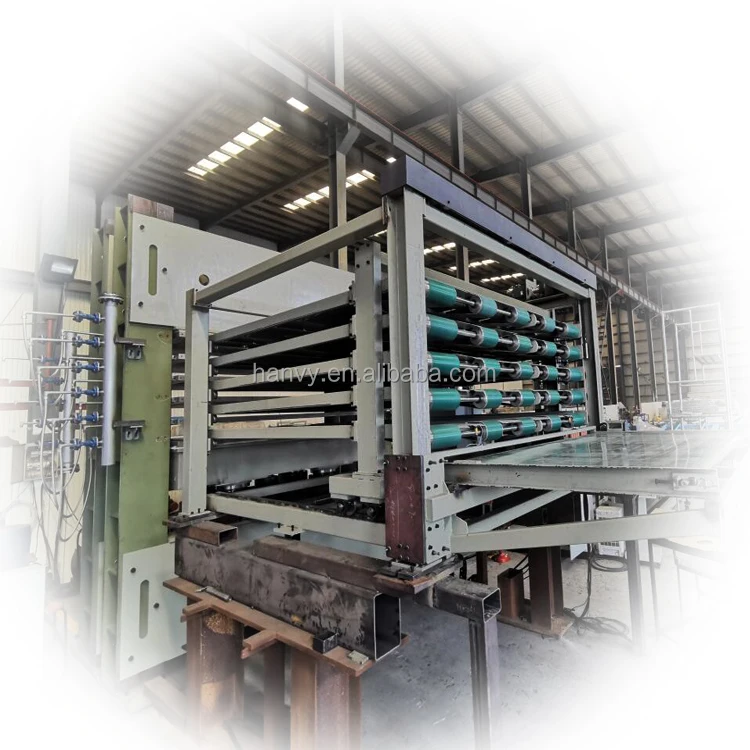

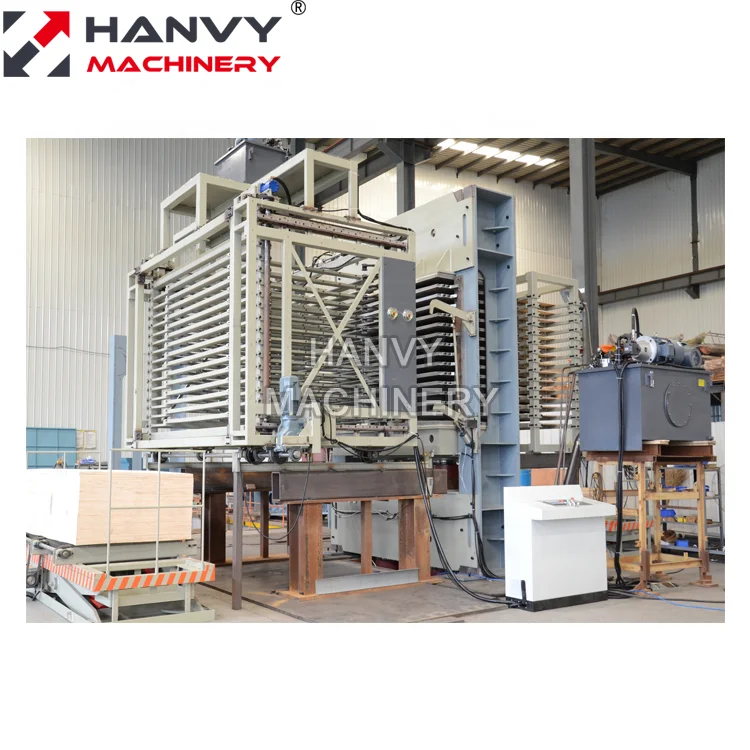

1) With Semi-Automatic Loader, to get a fast feeding speed.
2) Max. pressure is 800ton, Main cylinder diameter is 300mm, qty is 4pcs;lifting cylinder diameter is 190mm, 1pc.
3) 150mm opening
4) 100% Siemens PLC system.
5) With plywood cooling rack
Detailed Images
Melamine Laminating Hot Press Machine

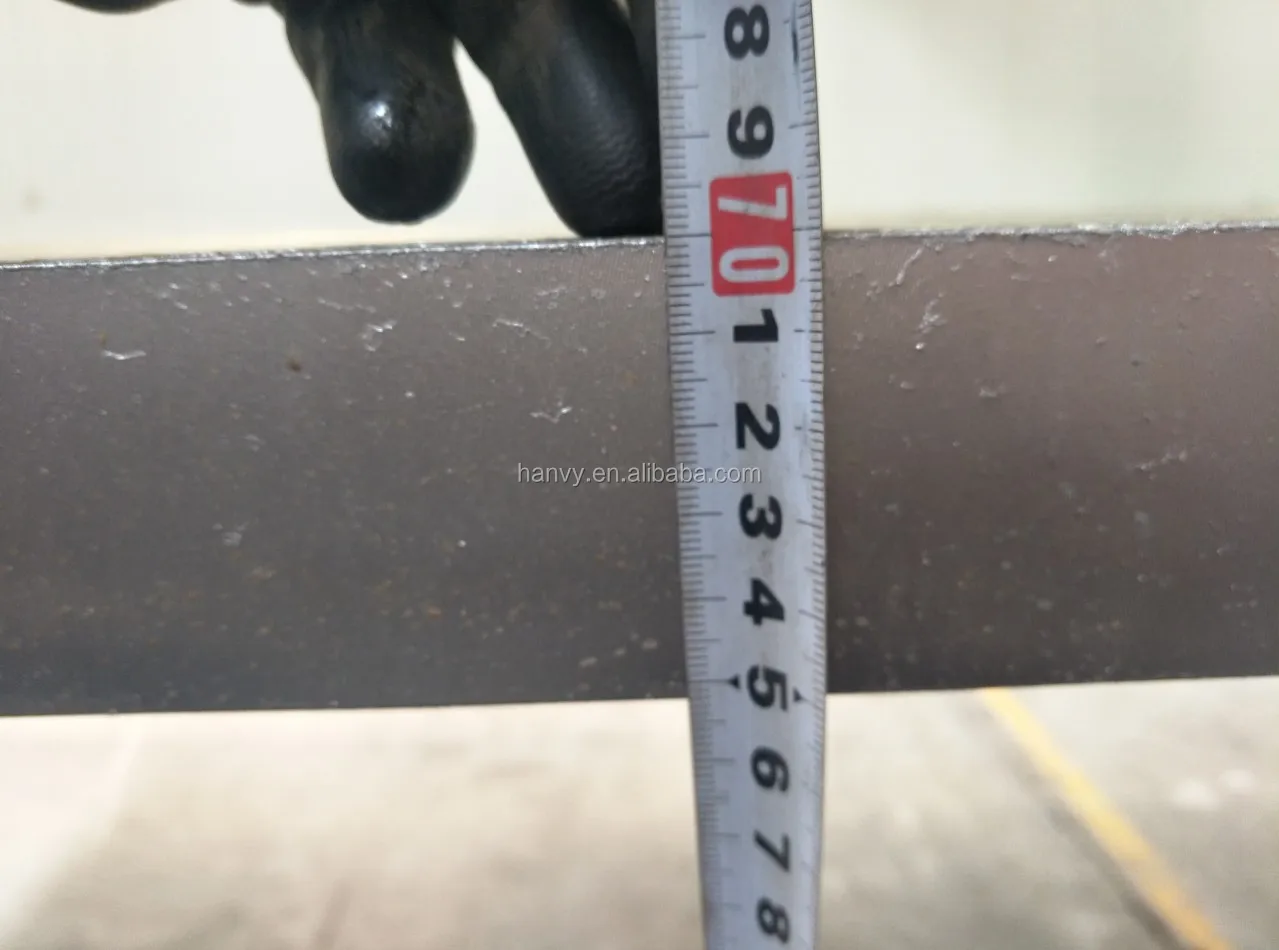

52 mm hot plate thickness
1370x2700mm hot plate size.
We could also accept OEM order.
Melamine Laminating Hot Press Machine
With Silicone cushions
Melamine Laminating Hot Press Machine
With 3 mm thickness stainless steel sheet
Laminating Plywood Hot Press

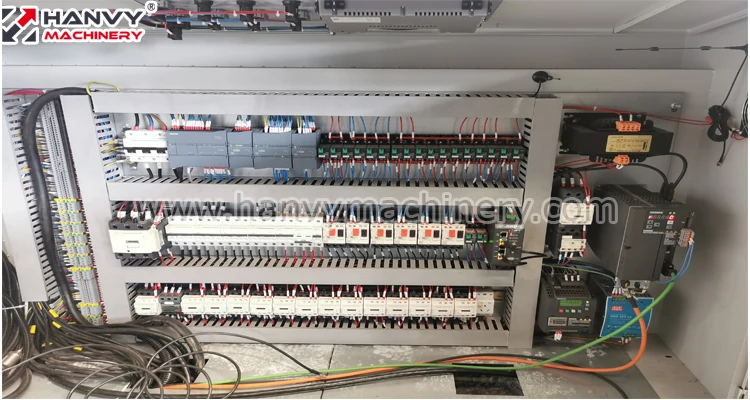

Siemens PLC system
Schneider electric compoments
Melamine Laminating Hot Press

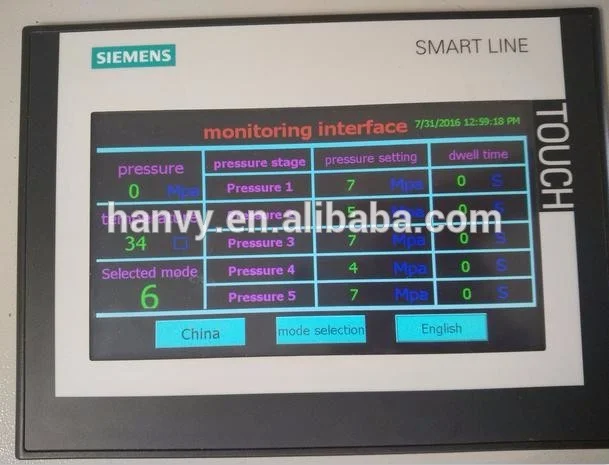

Name: Veneer hot press-simens brand touch screen
Brand: Siemens
Original: Germany
Six modes data can be saved to do different kinds of boards.
Five different pressure control, Oil-way visible, emergency alarm system
temperature pressure real time mornitoring system
Brand: Siemens
Original: Germany
Six modes data can be saved to do different kinds of boards.
Five different pressure control, Oil-way visible, emergency alarm system
temperature pressure real time mornitoring system

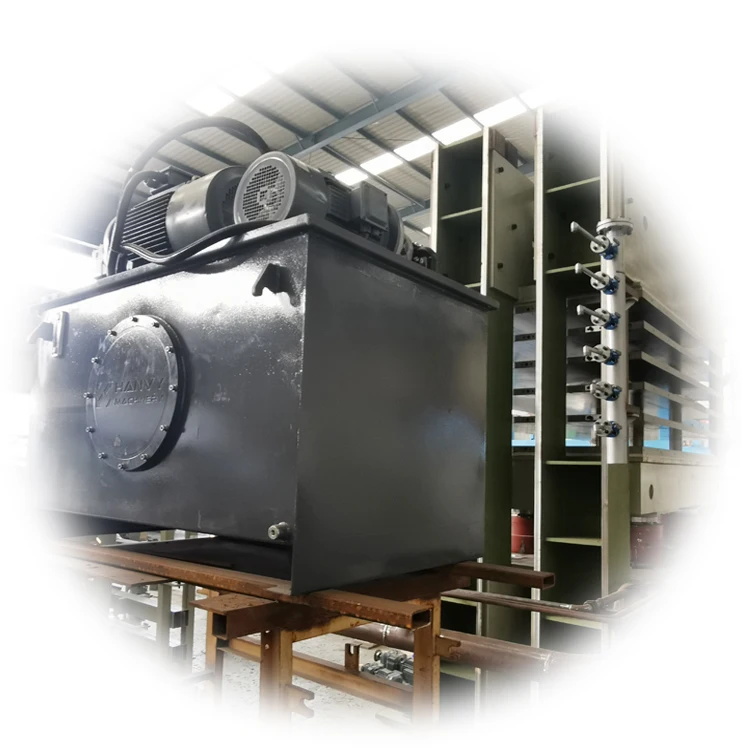

Melamine Laminating Hot Press Machine-Hydraulic cylinder
Name: Veneer hot press-hydraulic cylinder
Brand: Japenese YUKEN
Original: Japan
High quality hydraulic valve group made in Taiwan.
Low pressure oil pump from Japanese YUKEN.
Motor power 22KW+11KW

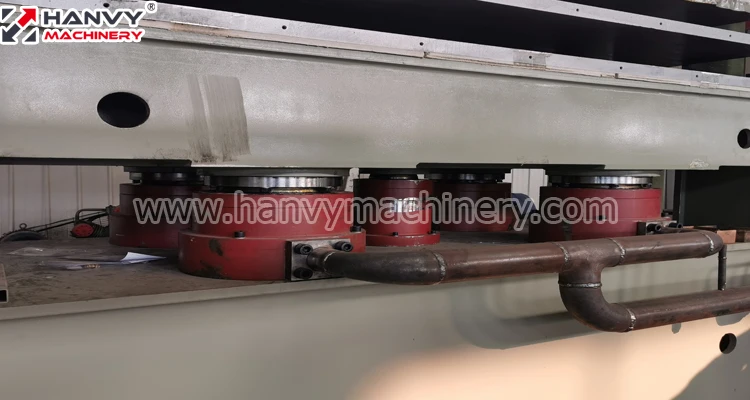

Melamine Laminating Hot Press Machine-Hydraulic cylinders
Φ 300mm*4; Φ190mm*1
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* machine's working wideo
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 5000x1446x5395mm | |
Weight | 38000kg | |
Packaging Details | Shrink film,20ft container.With anchor bolts fix. | |
About Us
Hanvy is a machinery company serving the wood products industry worldwide, located in Weihai CIty, ShanDong province,China.Our entire range comprises machines like, log debarking machine, veneer peeling machine, veneer dryer,glue spreader,cold press,hot press,plywood DD saw etc.
We have buyers in USA, Russia, Turkey,Poland,Ukraine,Ethiopia,Ghana ,Egypt,Indonesia,Vietnam and Malaysia etc.Most of them are
plywood manufacturers.We have plenty of experience in this area,and we shall be glad to share our successful cases with you.
We have buyers in USA, Russia, Turkey,Poland,Ukraine,Ethiopia,Ghana ,Egypt,Indonesia,Vietnam and Malaysia etc.Most of them are
plywood manufacturers.We have plenty of experience in this area,and we shall be glad to share our successful cases with you.
