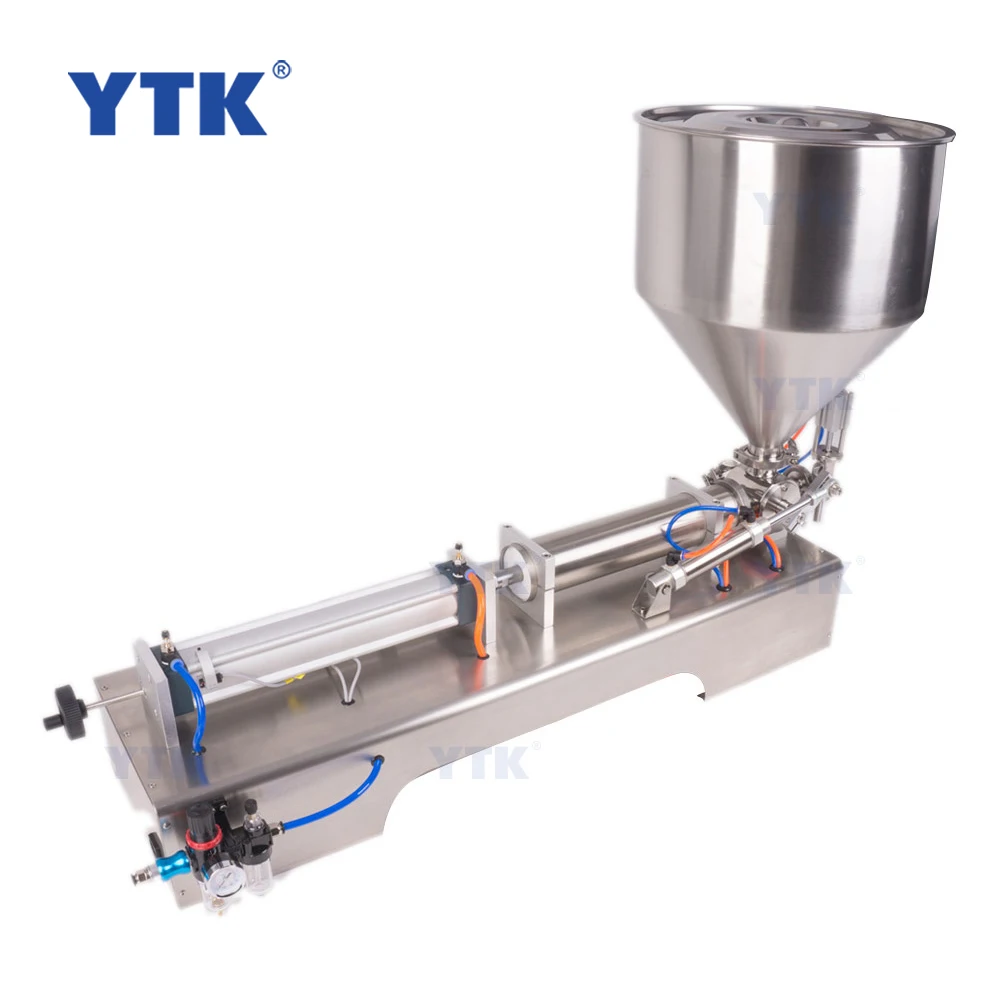

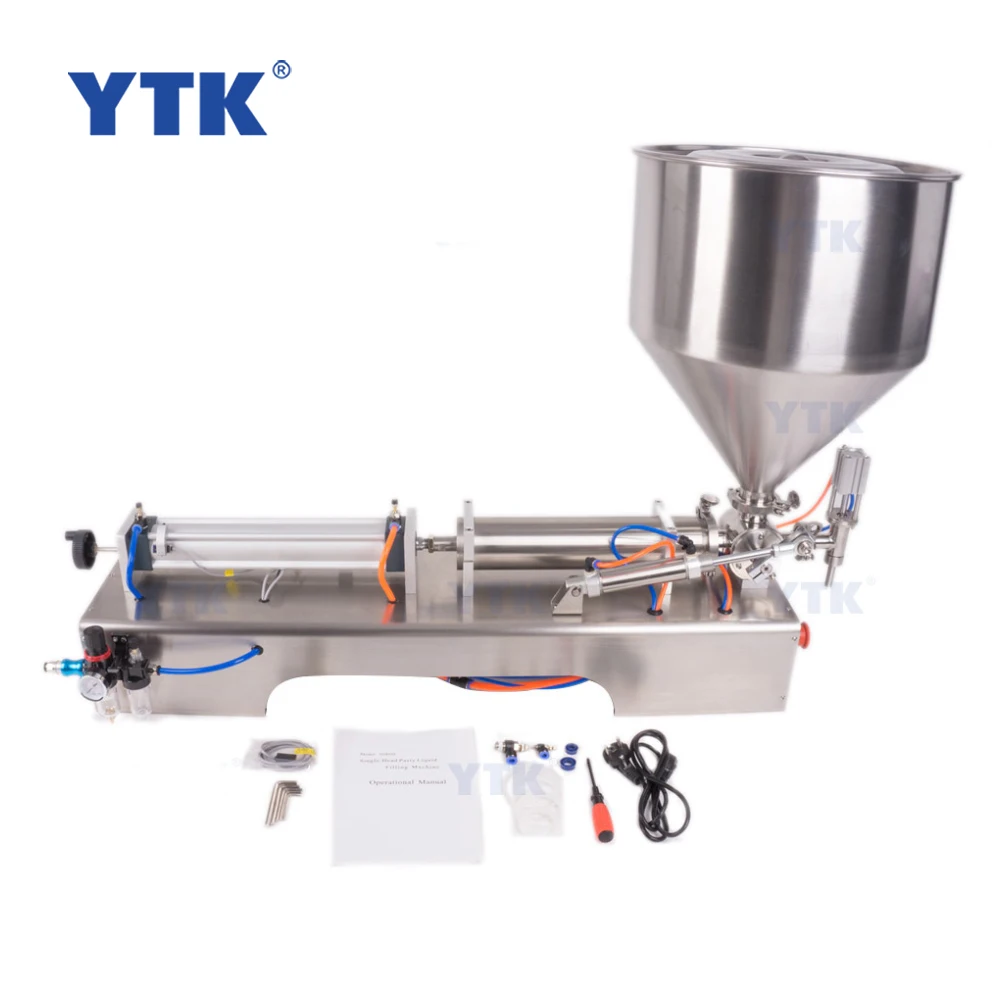

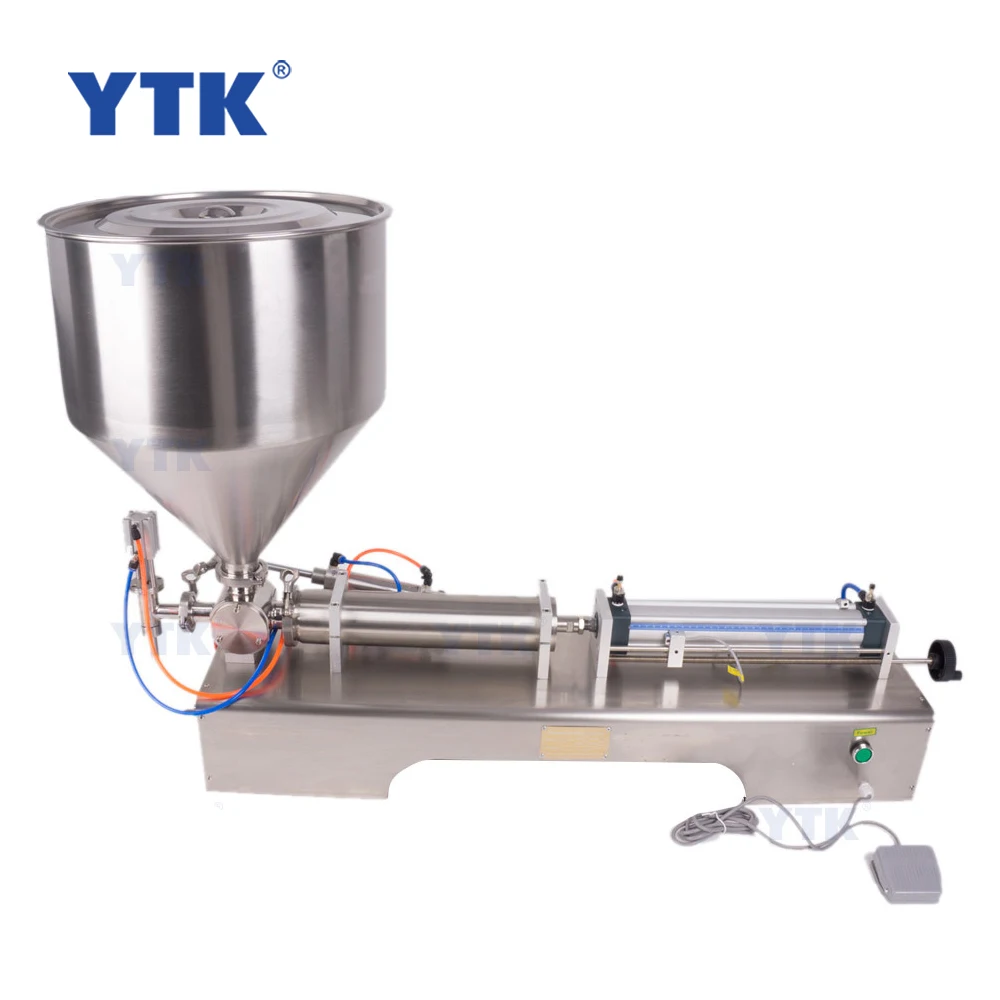

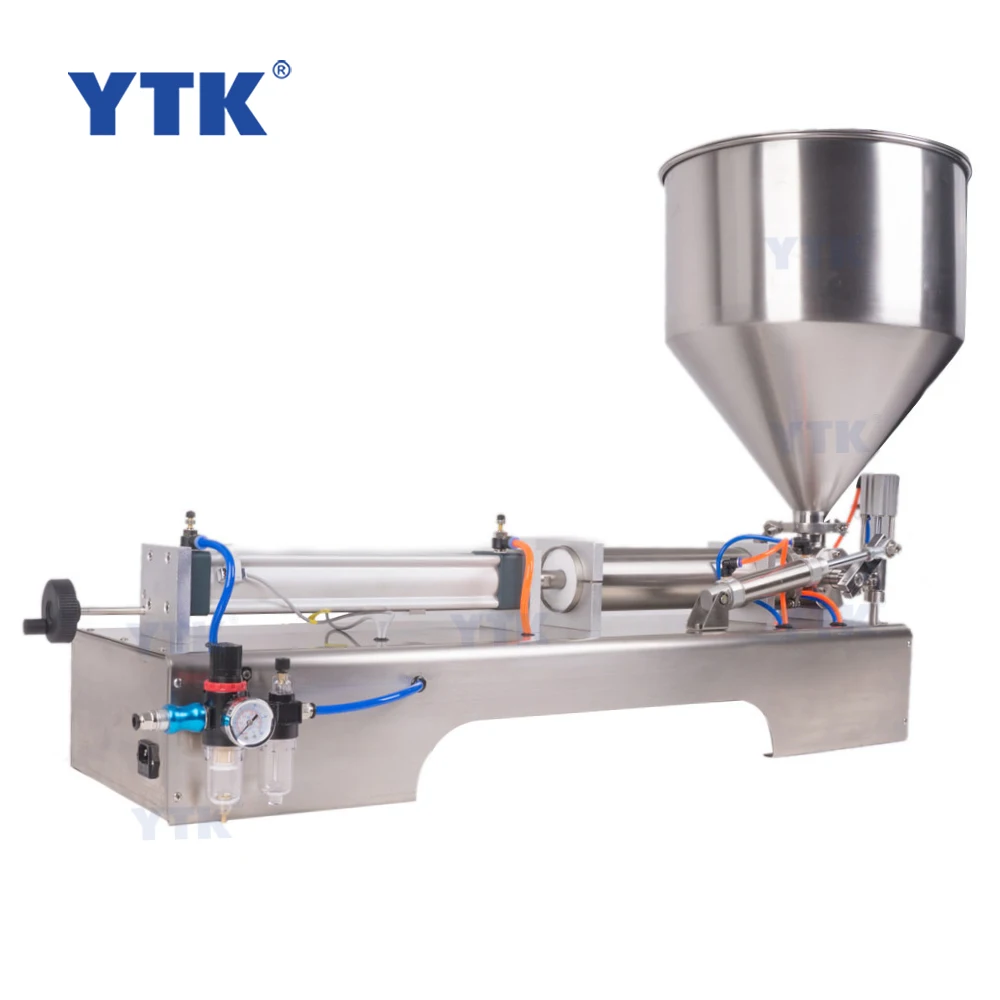

Semi automatic ketchup syrup lotion shampoo jam cosmetic cream tomato sauce honey peanut butter paste filling machine filler
- Category: >>>
- Supplier: Shenzhen Yason General Machinery Co. Ltd.
Share on (1600765134576):
Product Overview
Description
Hot Sales
Product Description

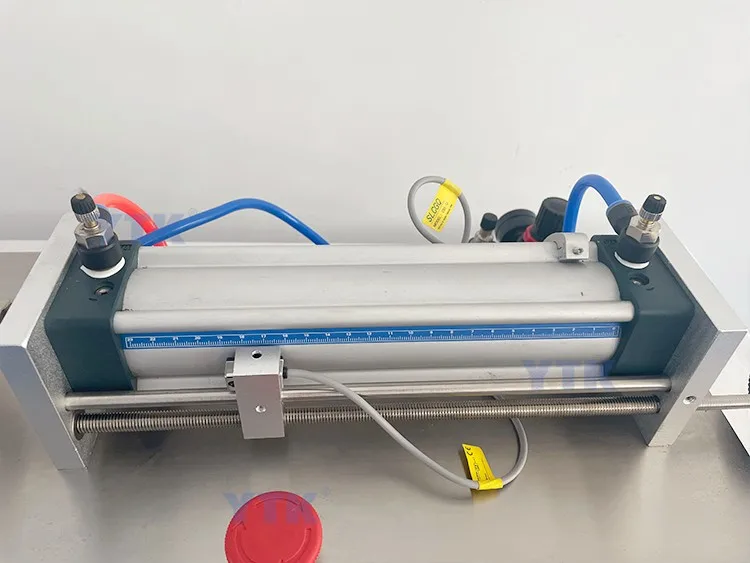

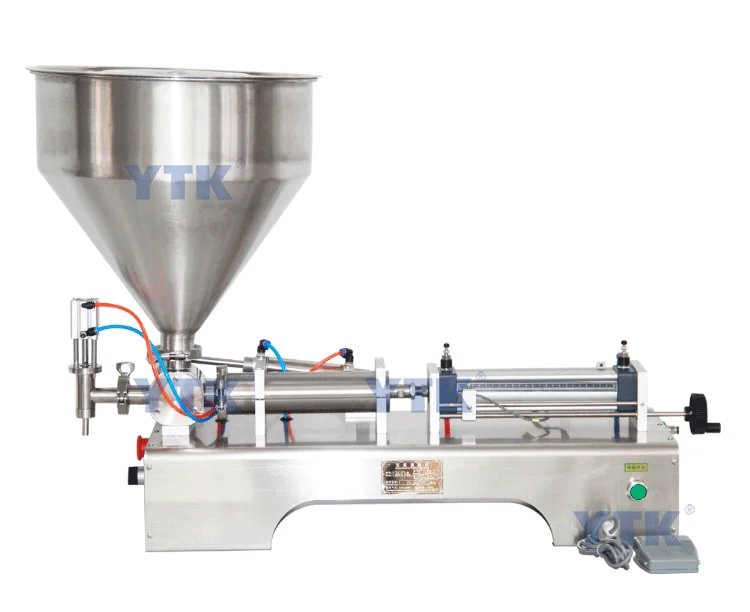

Piston pump filling machine is work with air compressor,it has larger power which makes it suitable for filling shampoo,engine oil,laundry detergent.The filling speed and filling range can be controlled.We can customize the machine and make it with mixing or heating function.It is widely used in beverage,cosmetics and daily chemical industries
Specification
Model | YTK-G1WG10-100ml |
Voltage supply | 220/110V 50/60Hz |
Power | 20W |
Filling accuracy | ≤±1% |
Filling speed | About 5-20bottles/min |
Filling volume | 3-30ml/10-100ml/30-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml |
Air pressure | 0.4-0.6MPa |
Size of air compressor connector | OD8mm |
Air consumption | ≥0.1m³/min |
Package Info | Machine Body:96*39*34cm,29KG Machine Hopper:46*46*49cm,6KG |

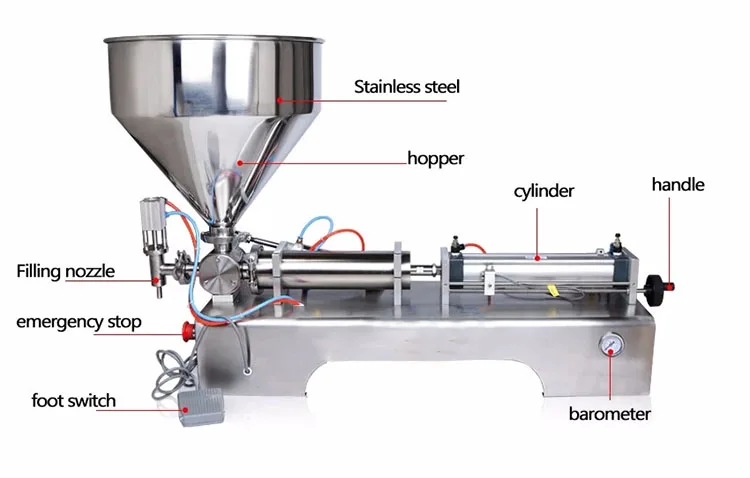

Product Detail

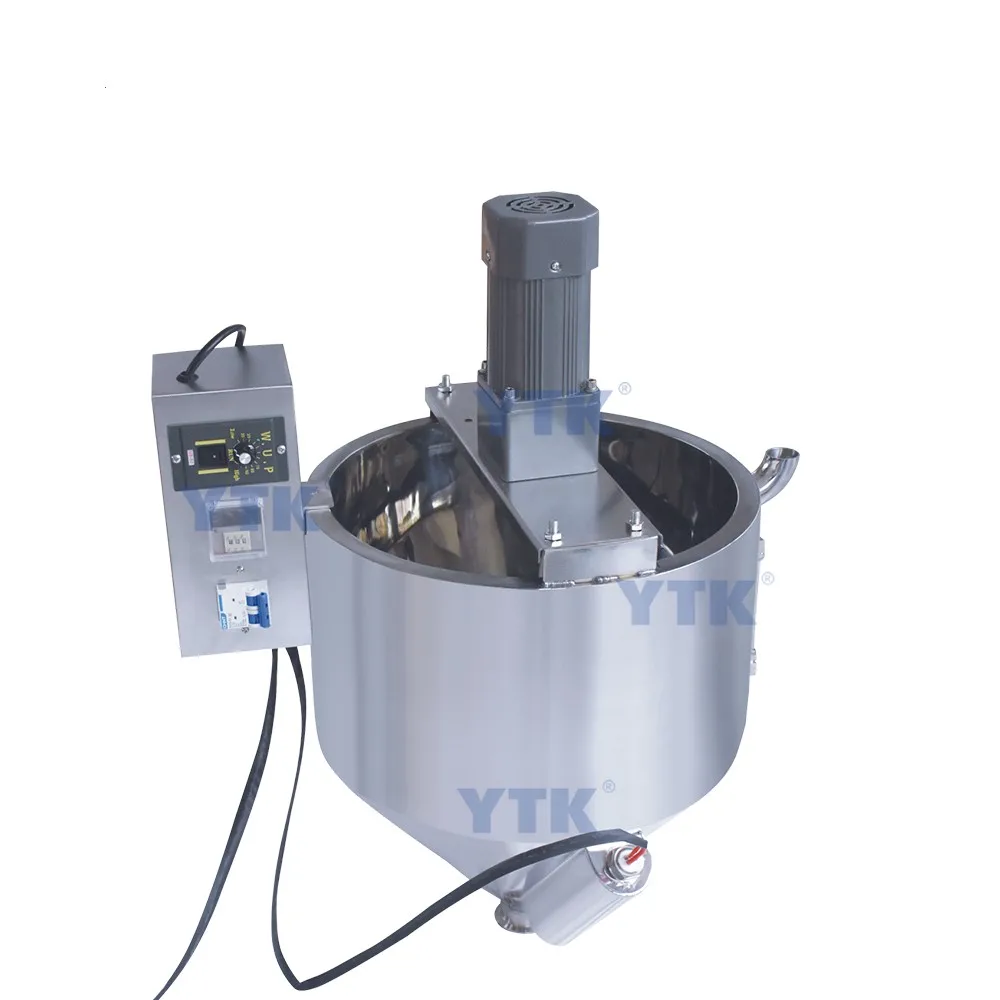

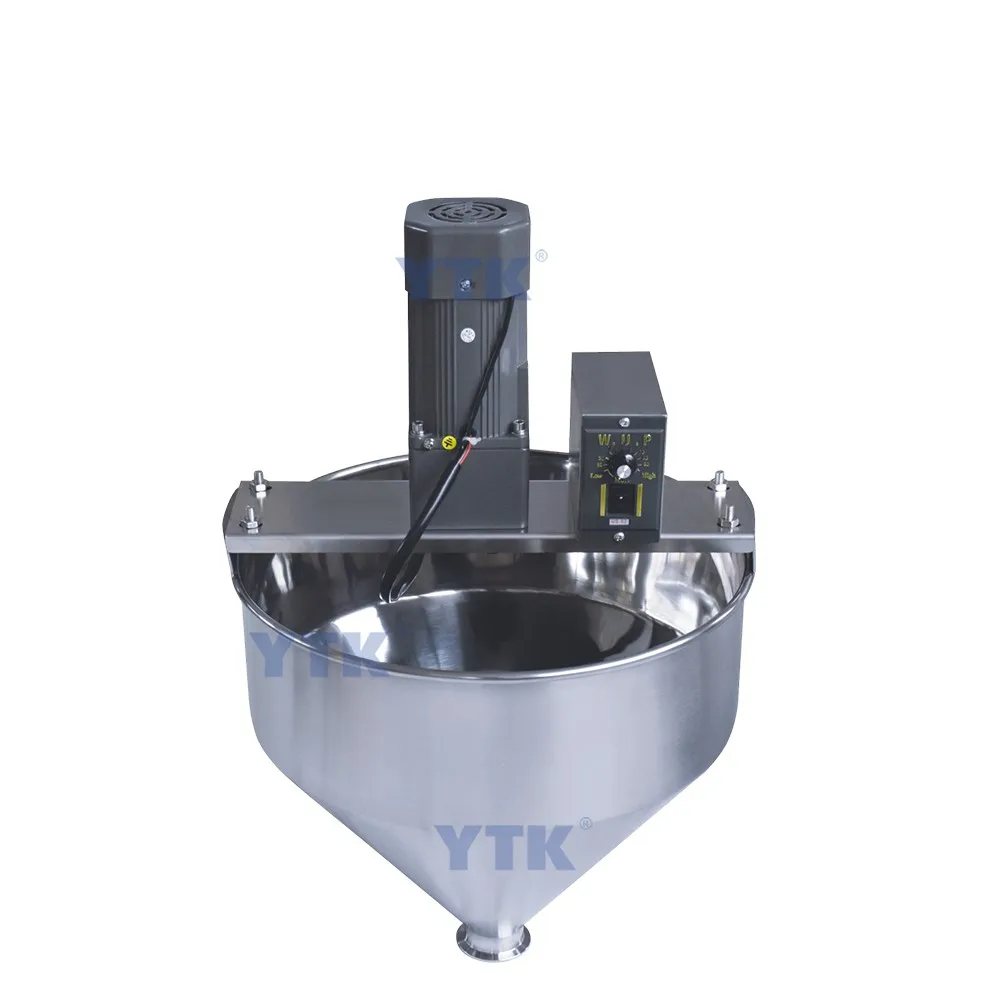

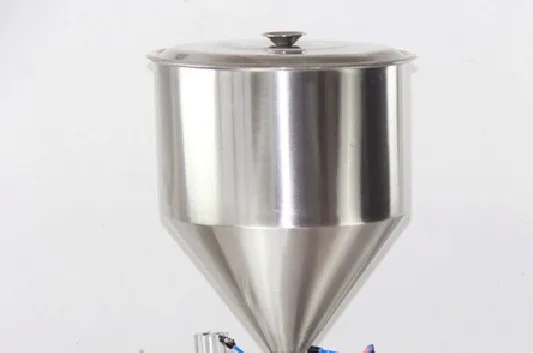

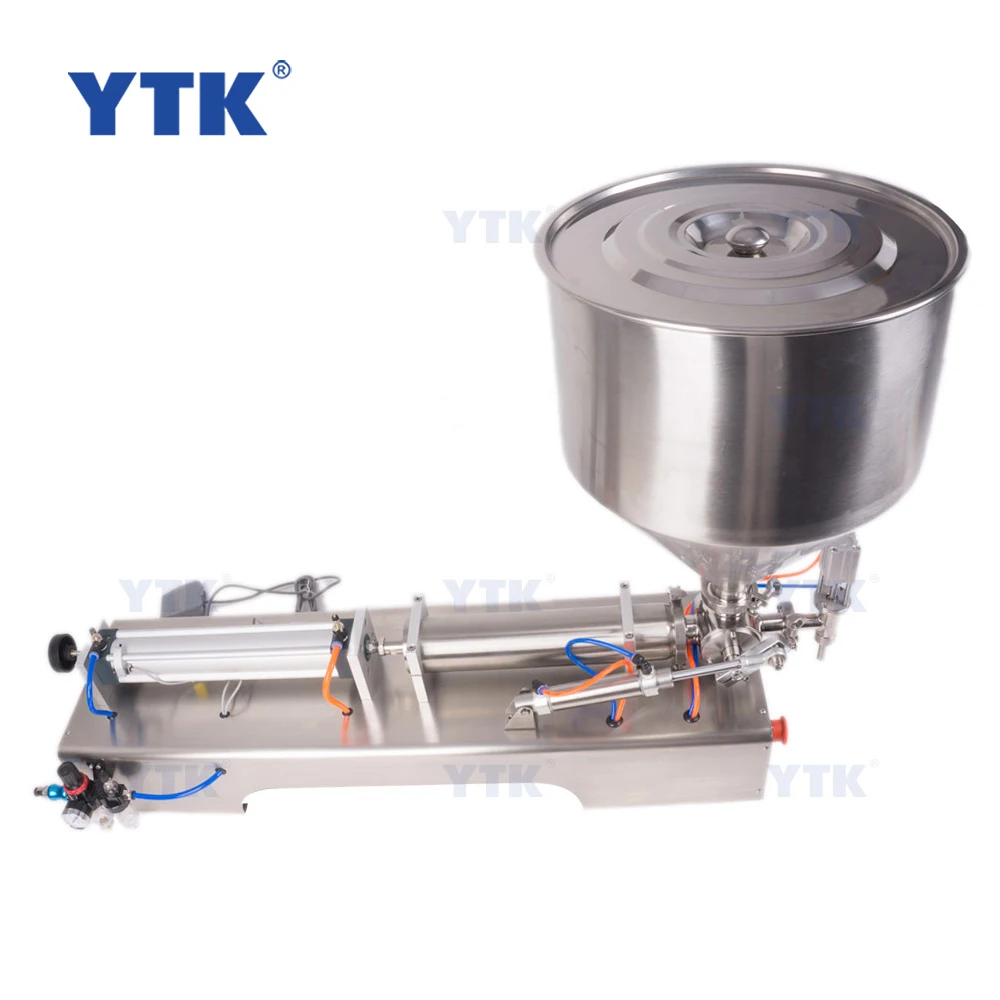

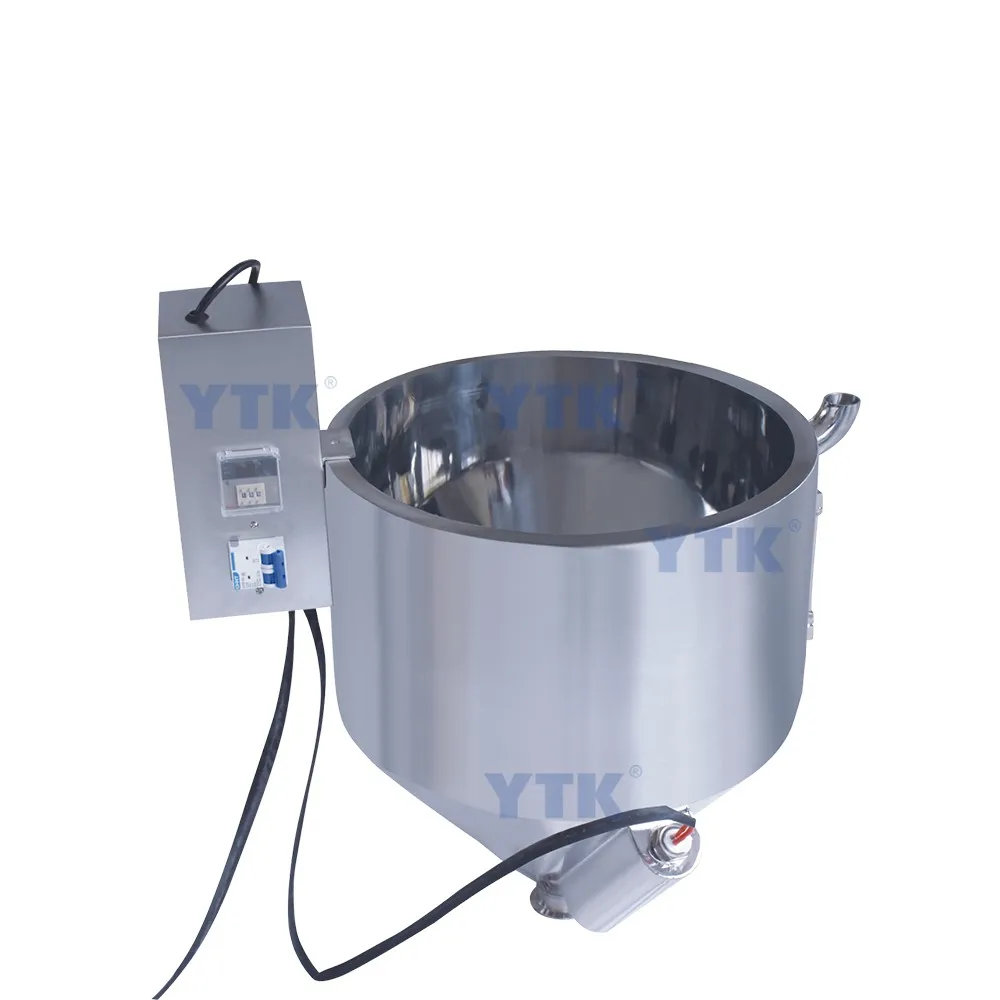

Equipped with 30L large filling hopper,it is more convenient to pour filling material.Multiple functions can be customized like mixing and heating function,if you need this please contact us.

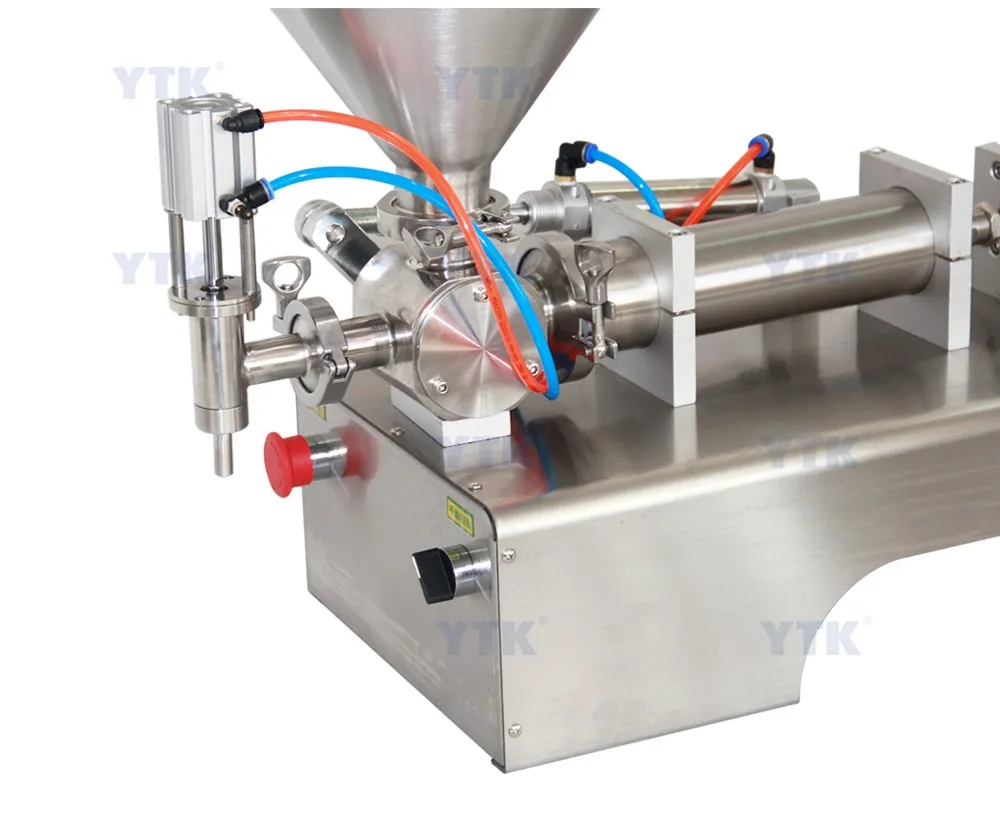

Equipped with pneumatic filling nozzle,these are with large power when filling paste or liquid,multiple filling nozzle can be customized according to operation need.
The filling speed and waiting time can be adjusted ,rotate knobs clockwise to slow down working speed. lf you use the automatic working mode,please lengthen the waiting time to make the machine works better.The larger rotary knob on the right side is designed for controlling the filling range,make it easier to operate and adjust the machine.

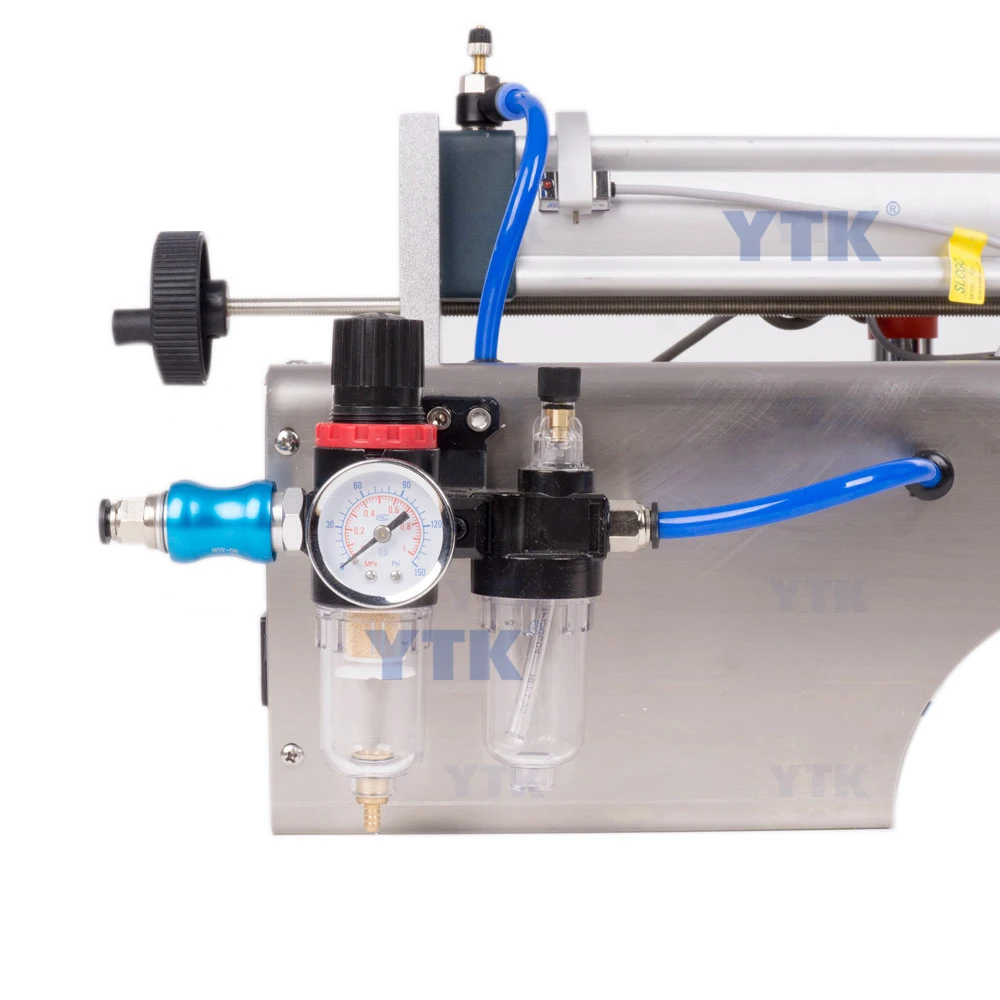

The oil-water separator is designed to watch the air pressure in real time and filter impurities,this machine need to work with air compressor(connector size is 10mm),you need to buy it separately.If you need this please contact us.

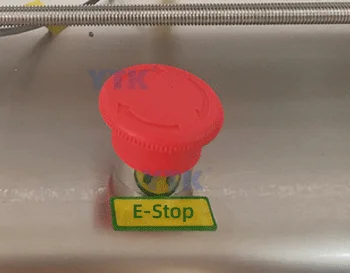

Emergency button,stops the machine immediately to save you from any potential harm

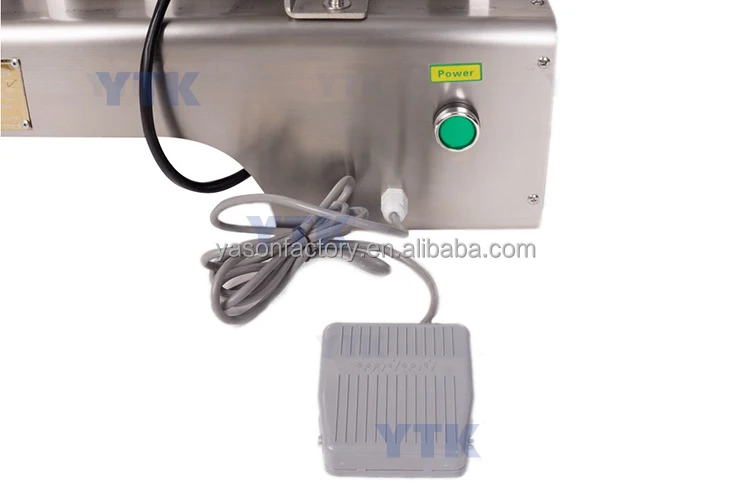

There two working mode, you can test and adjust setting parameter by using the pedal switch control mode.After setting parameter you can use the automatic working mode to improves working efficiency
Company Profile
Packing & Delivery

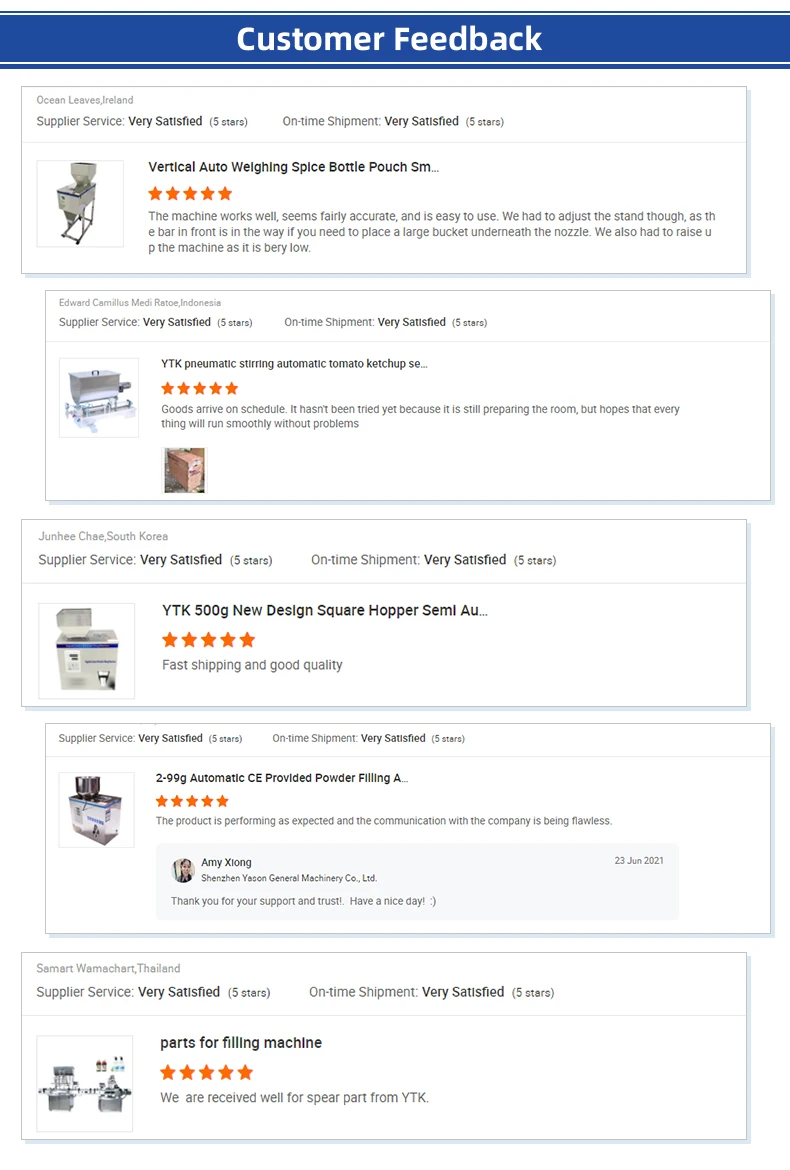

Customer Feedback
FAQ
Q1: Are you factory or trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
