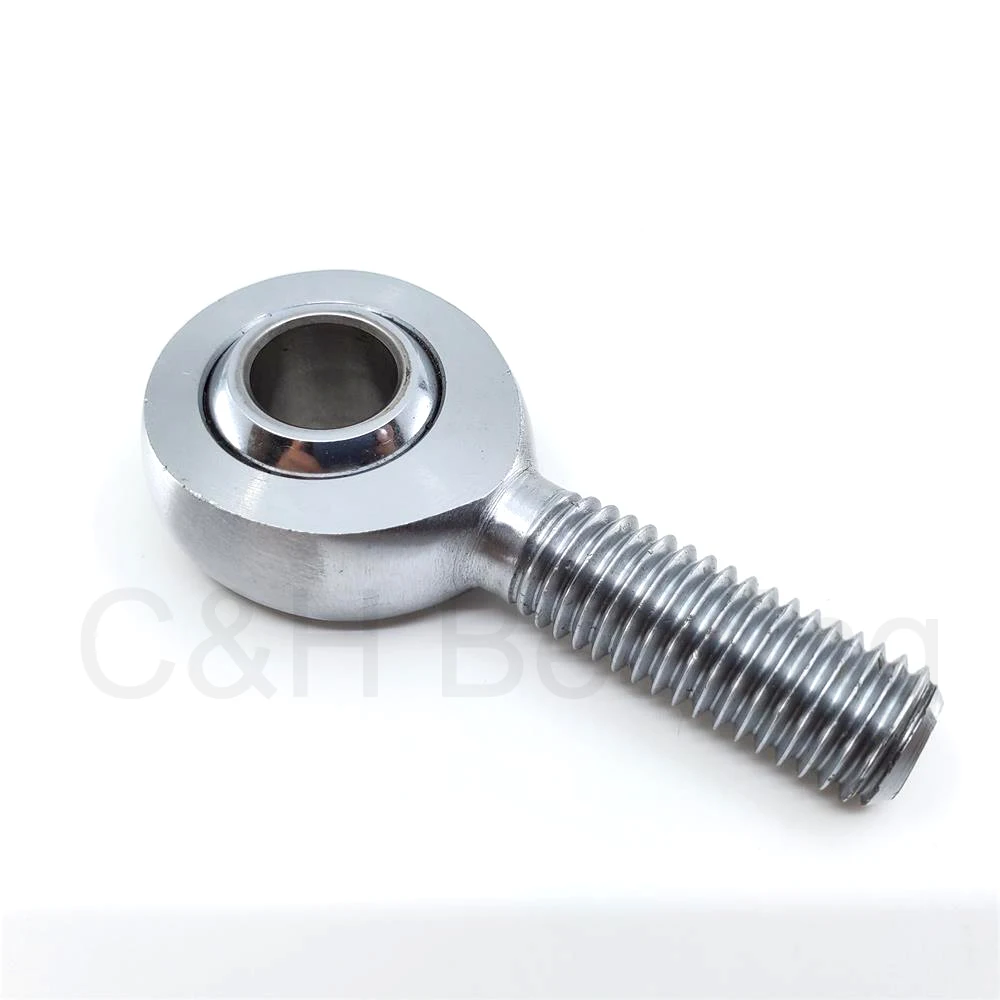

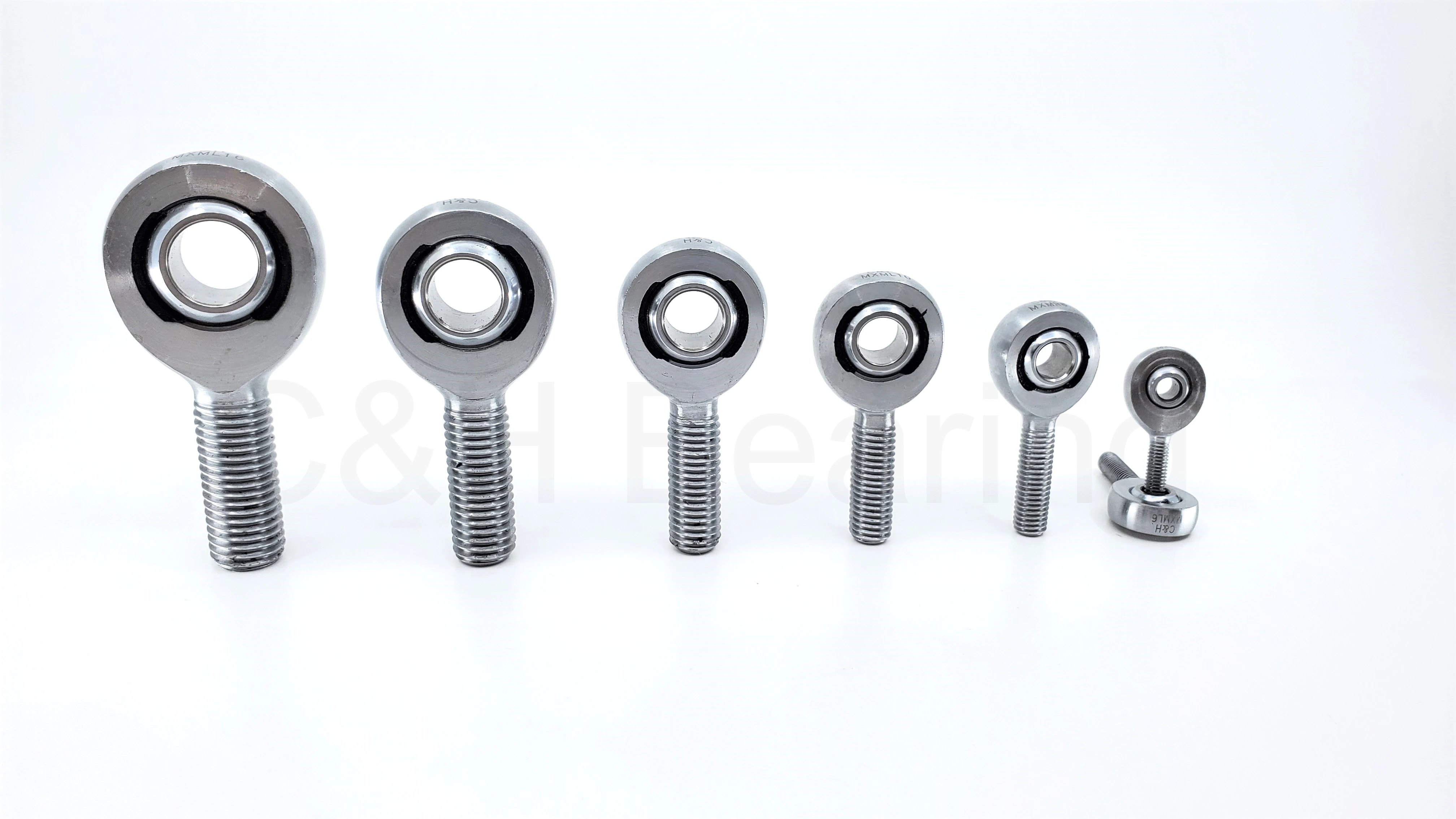

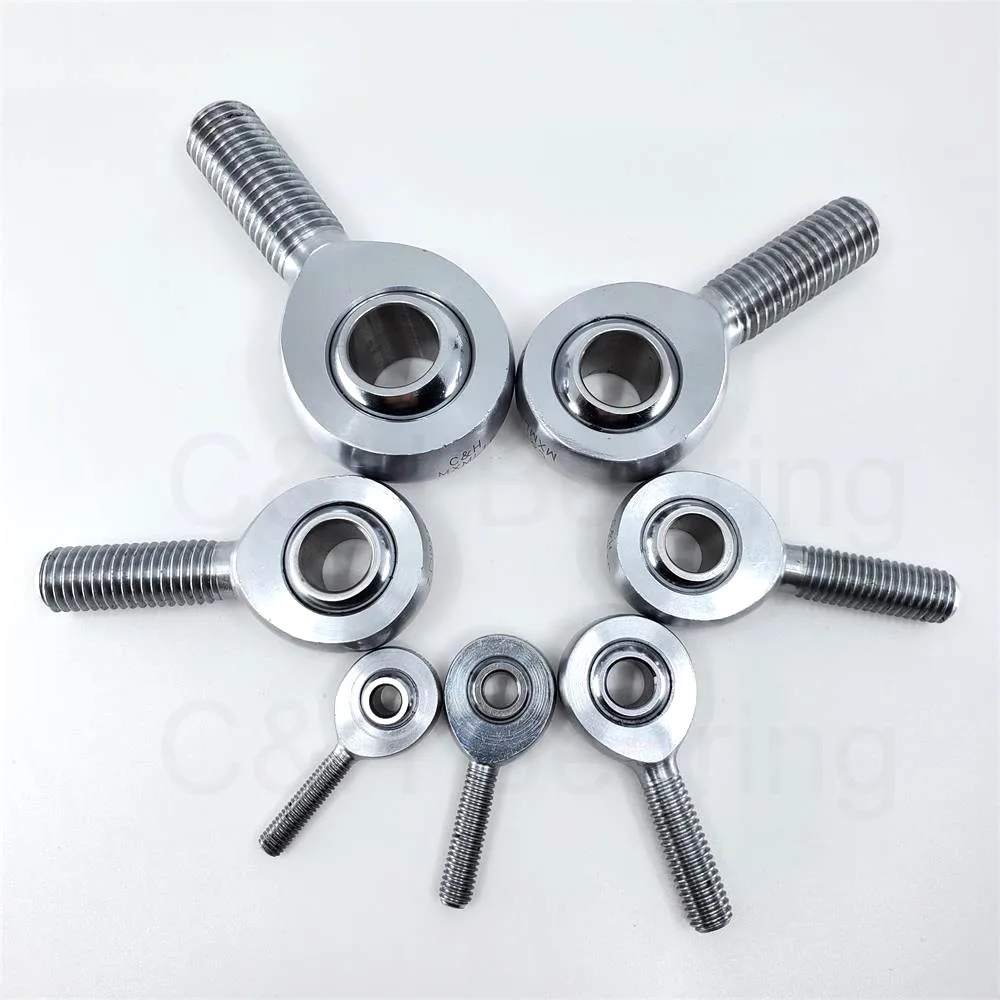

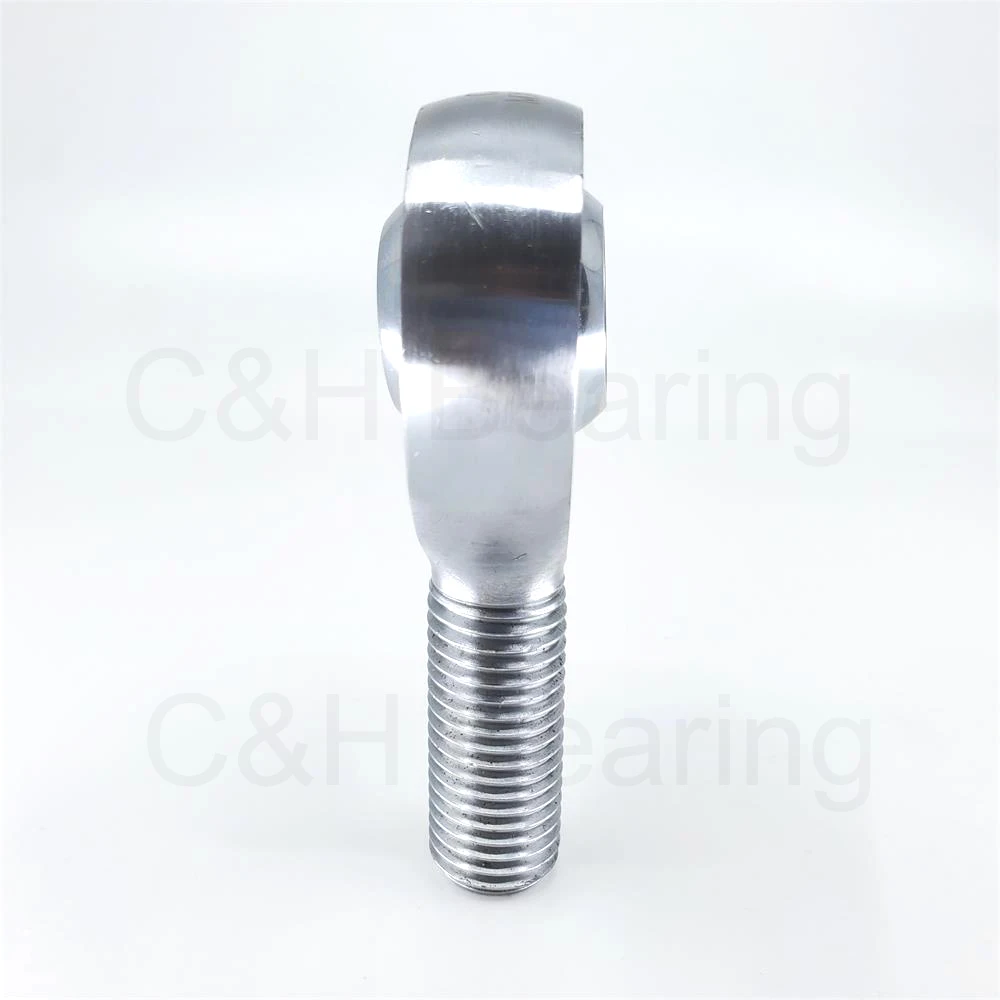

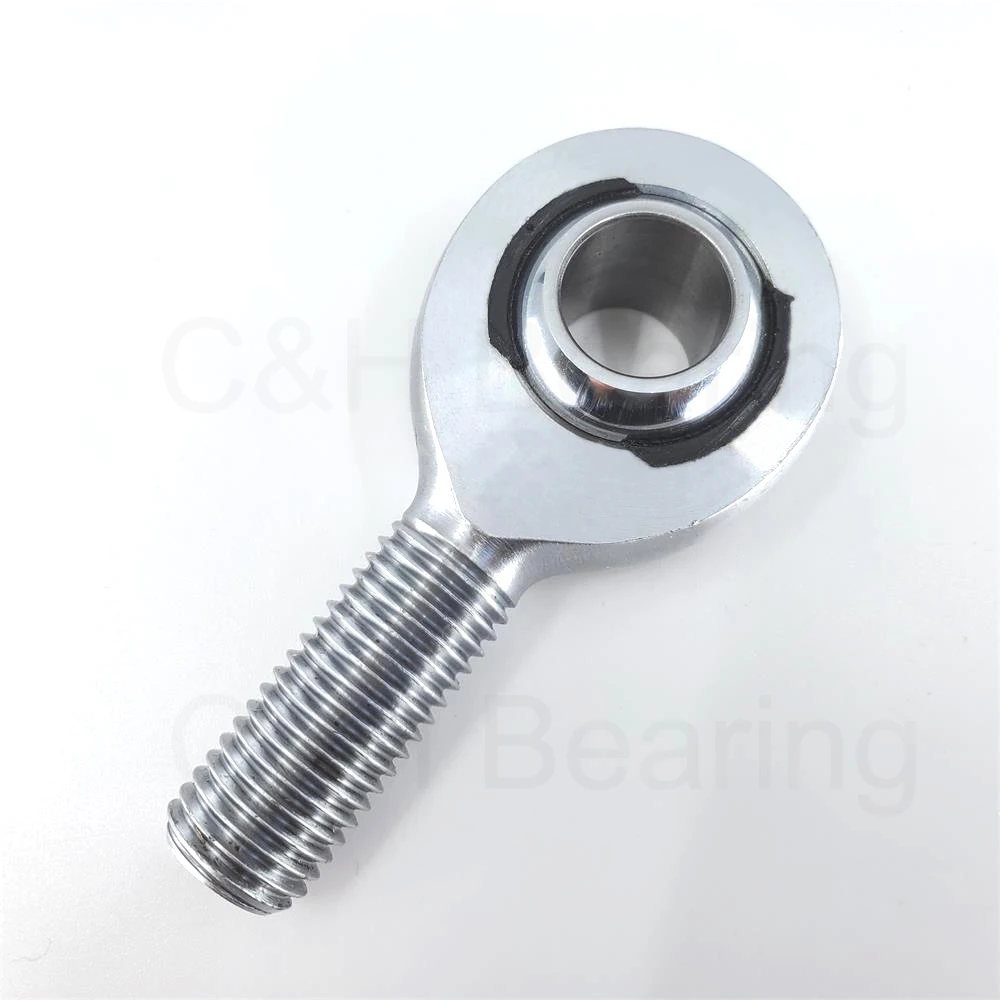

Male Thread Metric Loader Slot Rod Ends Bearing for Racing Car MXML8 M8x1.25

Product Overview

Description

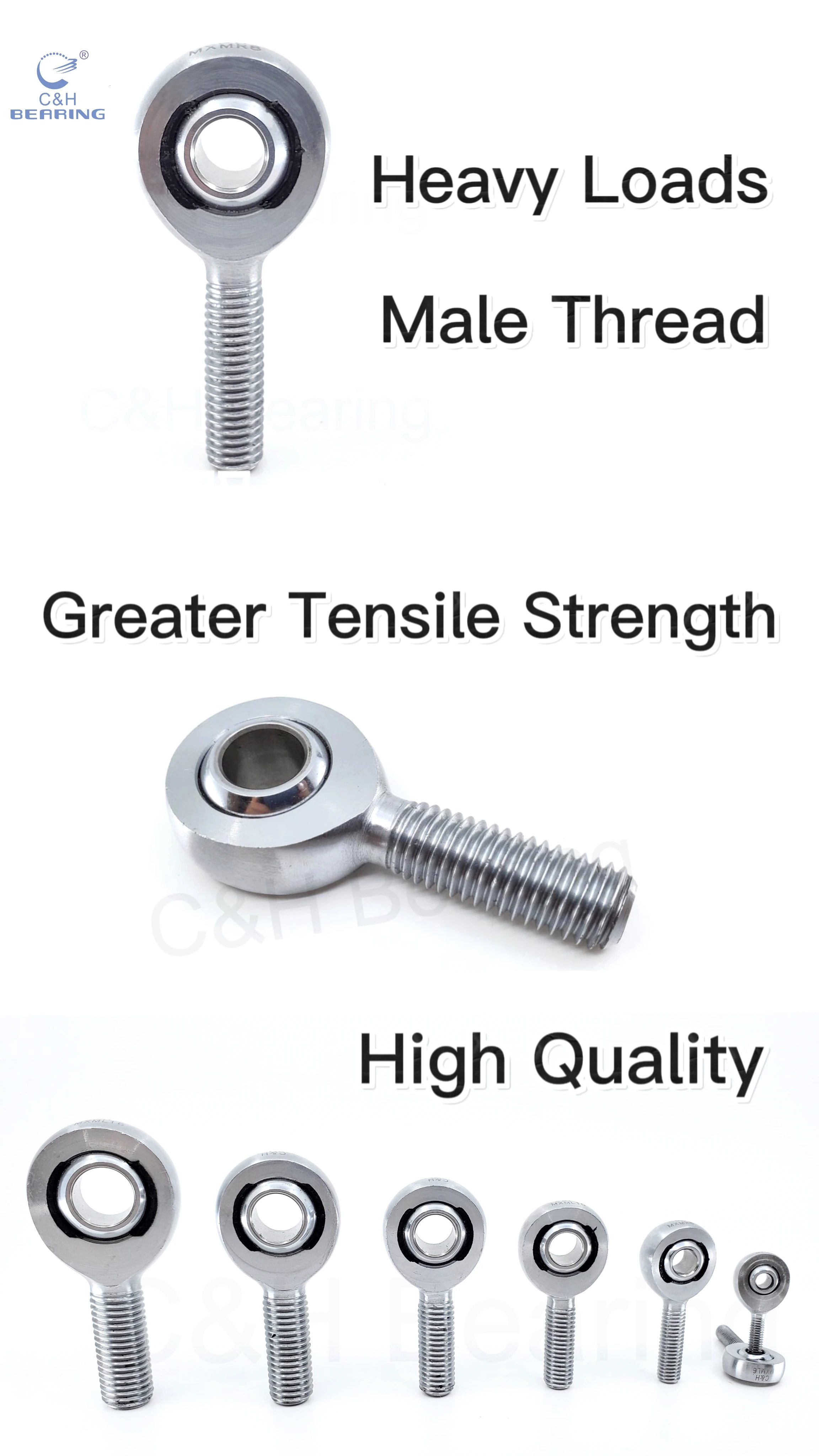

MXMR MXML Alloy Steel Self-Lubricating Race Right & Left Hand Male Thread

Features  • Metal to Metal support for heavy Shock Loads. • Increased Cross-sectional Thickness for Greater Tensile Strength • Ball: GCr15 steel, heat treated,hard chrome plated, ground and polished • Body: steel alloy, heat treated , protective coated for corrosion, resistance • Race: nylone or equivalent

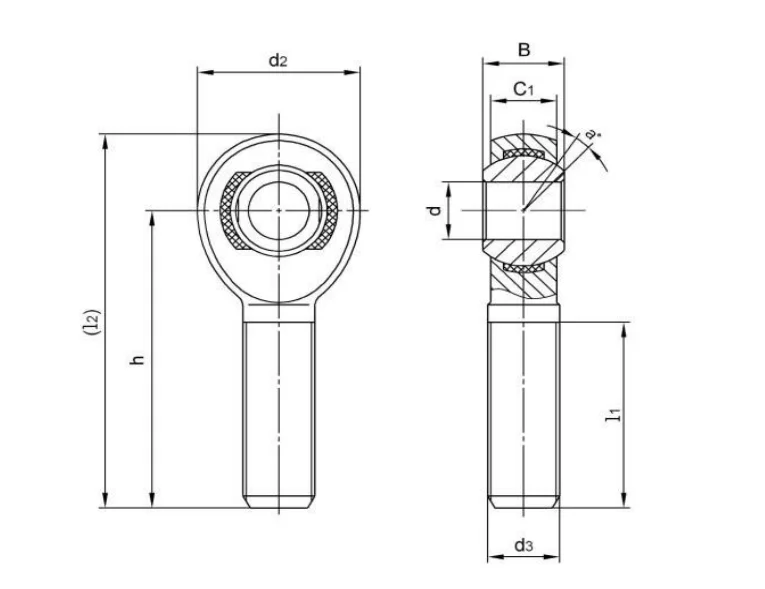

Reft hand	Light hand	d +0.065 -0.012	B +0.00 -0.13	C1 ±0.12	d2 ±0.38	d3 Thread  6H	h ±0.40	L1 +1.50 -0.75	L2	Load Ratings	Weight (kg)
MXMR5	MXML5	5	8	6	18	M5 X 0.8	33	19	42	12848	0.016
MXMR6	MXML6	6	9	6.75	20	M6 X 1.0	36	21	46	18186	0.021
MXMR8	MXML8	8	12	9	24	M8 X 1.25	42	25	54	33114	0.038
MXMR10	MXML10	10	14	10.5	28	M10 X 1.5	48	28	62	52476	0.059
MXMR12	MXML12	12	16	12	32	M12 X 1.75	54	32	70	68147	0.085
MXMR14	MXML14	14	19	13.5	36	M14 X 2.0	60	36	78	90386	0.140
MXMR16	MXML16	16	21	15	42	M16 X 2.0	66	37	87	97714	0.210



A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks

Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers

Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders

Stick and bucket cylinders for hydraulic excavators

Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
