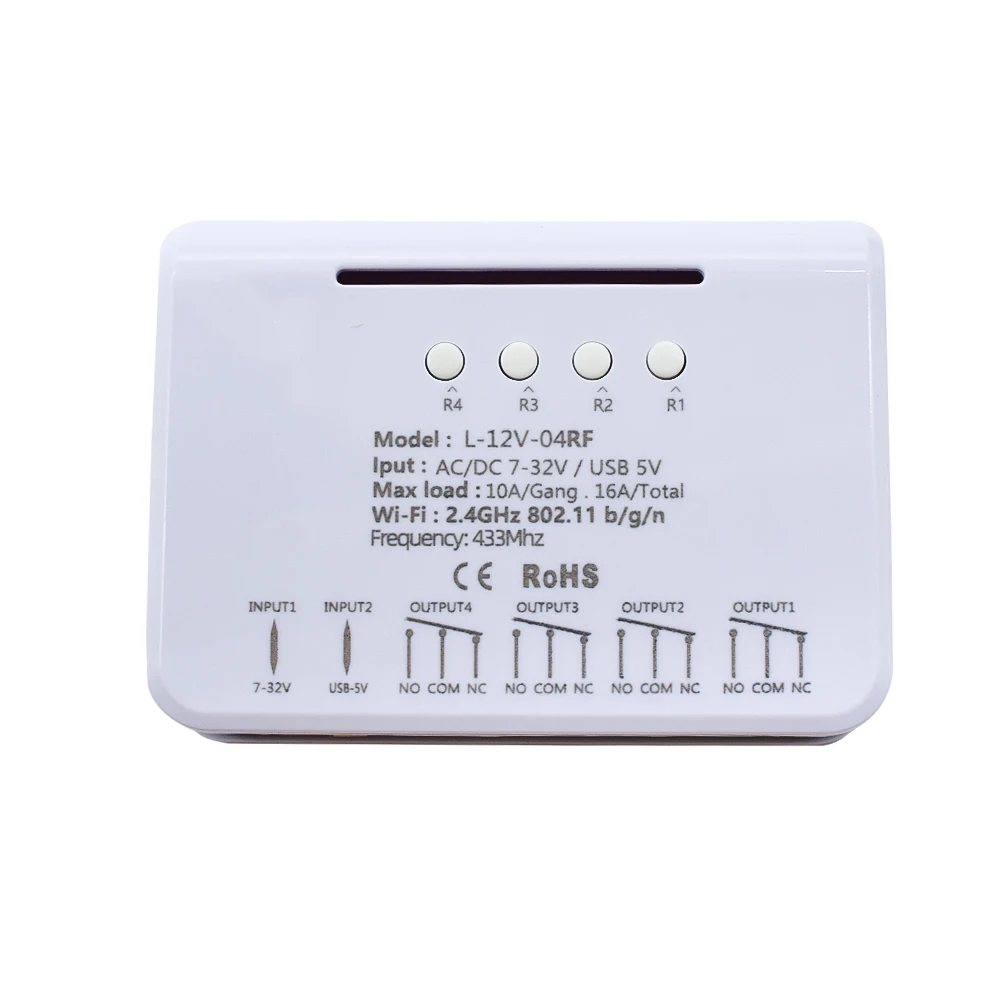

4CH EWelink Smart Wireless Switch 7 32V 12V 24V WiFi2.4G USB 5V Relay Module RF Smart Home APP Remote Control
- Category: >>>
- Supplier: Shenzhen Scimagic Development Technology Co. Ltd.
Share on (1600765161017):
Product Overview
Description
Overview:
*Inching Mode
*Self-locking Mode
*Interlock Mode
This wireless switch is a low-cost, affordable device that allows users to remote turn on/off connected appliance of different
types and brands via app EWeLink from anywhere anytime in the world, and by setting timing schedules for your appliances, you can
maintain an carefree life. It supports inching /self-locking mode. In self-locking mode, customers can remotely turn on/off
connected devices immediately. When in inching mode, customers can have two wiring ways to select: Turn on 1s and then auto-off,
Turn off 1s and then auto-on.
*Self-locking Mode
*Interlock Mode
This wireless switch is a low-cost, affordable device that allows users to remote turn on/off connected appliance of different
types and brands via app EWeLink from anywhere anytime in the world, and by setting timing schedules for your appliances, you can
maintain an carefree life. It supports inching /self-locking mode. In self-locking mode, customers can remotely turn on/off
connected devices immediately. When in inching mode, customers can have two wiring ways to select: Turn on 1s and then auto-off,
Turn off 1s and then auto-on.

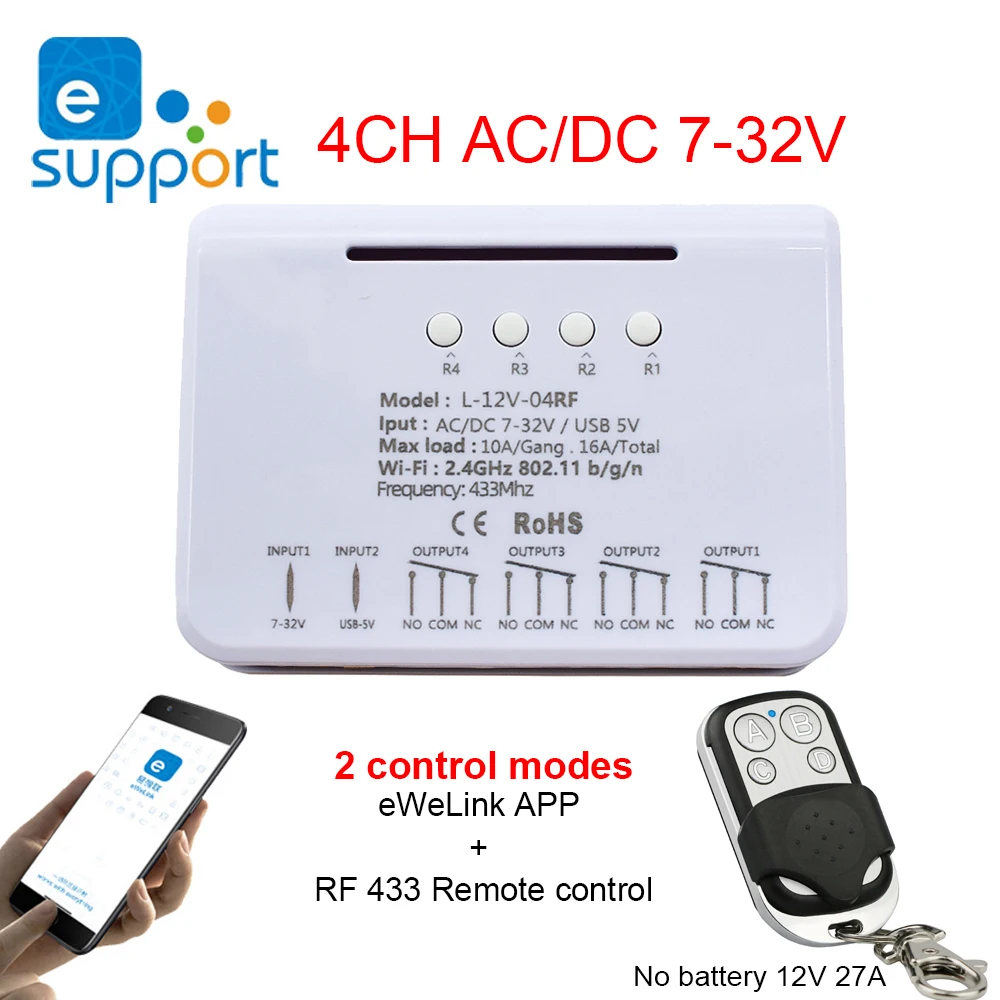

Features:Mobile Phone WIFI Remote Control +RF Remote Control
*Supports you to turn on or off 4 connected lights independently
*Supports Timer & Schedule
*Supports Share with families
*Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
*Supports status tracking: device status timely provided to the EWeLink.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric
curtain, etc.
*Supports max 8 enabled scheduled/countdown/loop timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, for Google Home/Nest, IFTTT
*Supports Timer & Schedule
*Supports Share with families
*Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
*Supports status tracking: device status timely provided to the EWeLink.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric
curtain, etc.
*Supports max 8 enabled scheduled/countdown/loop timers for each device.
*Voice Control: Compatible perfectly with "Amazon" Alexa, for Google Home/Nest, IFTTT
Specifications:
LEDs: 3 LEDs(indicate working mode, wifi status, relay on/off status respectively)
Supports to control different voltage ranges
USB port power supply more convenient
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥ one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching /self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: EWeLink on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Supports to control different voltage ranges
USB port power supply more convenient
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: ≥ one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Working mode: inching /self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: EWeLink on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Note:
The smart receiver module of the package [4ch DC7-32V WIFI RF] and [4ch AC85-250 WIFI RF] has RF function, but without RF remote
control. If you need a RF remote control, you can buy [RF remote control]
control. If you need a RF remote control, you can buy [RF remote control]
Product Description
Specification
item | value |
Certification | ce |
Place of Origin | China |
Brand Name | Scimagic |
Model Number | Smart switch Module |
Color | White |
Style | Wireless |
Control Channels | 4 Channels |
Type 1 | APP control |
APP | EWelink |
Type 2 | APP and RF remote control |
Frequency | 433MHz |
Name | Wifi wireless Switch Module |
Packing & Delivery
1x wifi module
1x RF Remote control
1x Manual
1x Manual
Company Introduction
Our factory ShenZhen Scimagic Development Technology Co. Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system ,wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator).
We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request .
We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request .
We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
Certifications
Packing & Delivery
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, 1000 piece production time needs 1 weeks for order quantity more than.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Please confirm the frequency first: 315mhz 433mhz or 868mhz
Then please confirm the chip: rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 etc. Fixed code :SC2260 , SC2262, etc.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Please confirm the frequency first: 315mhz 433mhz or 868mhz
Then please confirm the chip: rolling code : HCS301, HCS300, HCS200 etc.
Learning code: PT2240, EV1527 etc. Fixed code :SC2260 , SC2262, etc.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on Remote control and receiver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
