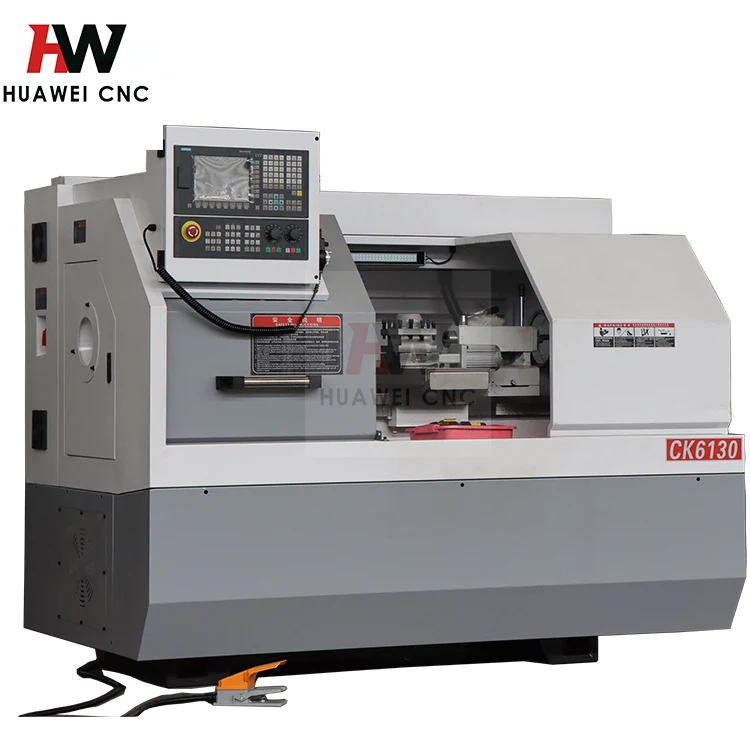

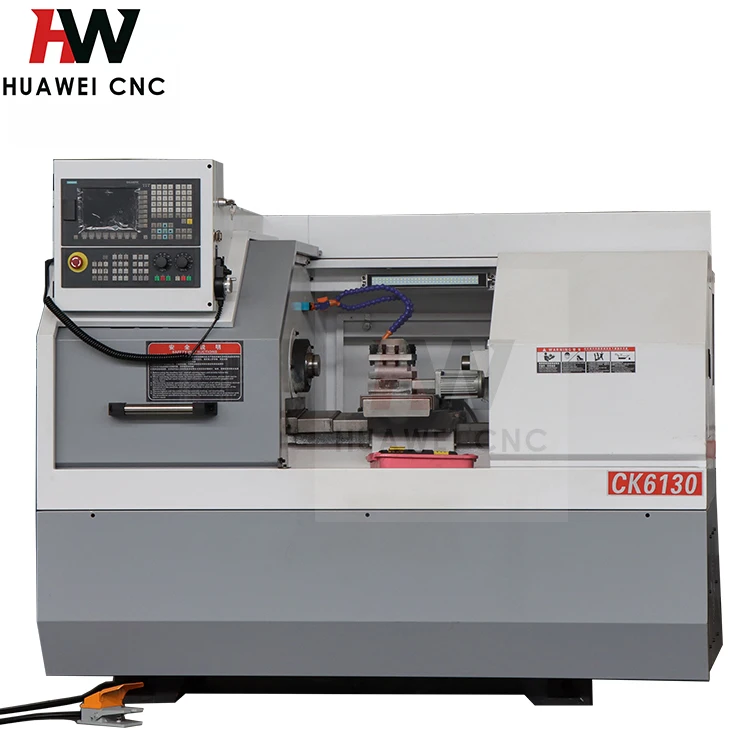

cnc lathe machine turkey ck6136 CK6130 gsk lathe machine
- Category: >>>
- Supplier: Shandong Huawei Intelligent Equipment Co. Ltd.
Share on (1600765176548):
Product Overview
Description
Product Description

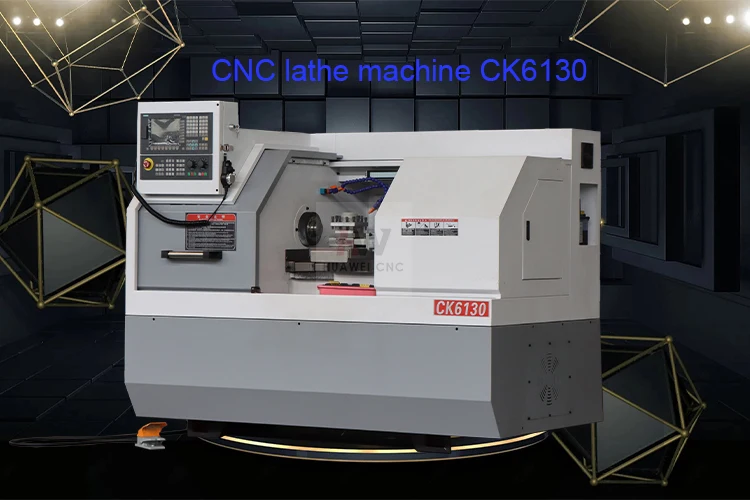

CK6130 automatic cnc lathe alimentador de barras mini cnc lathe
Main Features
1.CK6130 lathe machine can be permanently memory coordinates after power offer,you do not need worry if people moved the position
2.Machine often caused alarms because of these widgets,CK0640 can set soft limit,so that can save machine maintenance time and
cost
3.High precision,CK0640 use Absolute servo encoder is 17 bits
4.It is suitbale for Mass production for small workpiece, High efficiency, high precision
1.CK6130 lathe machine can be permanently memory coordinates after power offer,you do not need worry if people moved the position
2.Machine often caused alarms because of these widgets,CK0640 can set soft limit,so that can save machine maintenance time and
cost
3.High precision,CK0640 use Absolute servo encoder is 17 bits
4.It is suitbale for Mass production for small workpiece, High efficiency, high precision
The machine parameters
Model | CK6130 |
Max. Processing length | 450mm |
maximum machining length | Chuck 290/ collet 400 |
X/Z axis Maximum stroke | 300/450 mm |
X/Z axis minimum displacement unit | 0.01mm |
Spindle hole diameter | 48mm |
Spindle Drawn tube diameter | 40mm |
Chuck size | 160mm |
Spindle axis series | stepless |
Spindle speed | 150-2500 RPM |
Main motor power | 4 KW |
X/Z axis feed power | 1/1 |
X/Z axis fast moving speed | 8/10 |
Cutter bar size | 16*16 |
Repeat positioning accuracy | ≤0.004 |
Tail seat type | Have one |
Diameter of tailstock sleeve | 50mm |
Tail sleeve stroke | 110 mm |
taper of bore | MT 4 |
Net weight | 1000 kg |
Overall size (L *w*h) | 1700X1070X1600mm |
Standard configuration:
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 4/6-station electric turret.
5). Automatic bar feeder, Chip conveyor.
1) System:GSK928TD-L, servo motor and drive.
2) Pneumatic collet.
3) Gang type tool post.
4) Cooling system.
5) Lighten system.
6) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, GUNT.
2). Hydraulic chuck, Pneumatic chuck .
3). Hydraulic tailstock, Pneumatic tailstock.
4). 4/6-station electric turret.
5). Automatic bar feeder, Chip conveyor.
