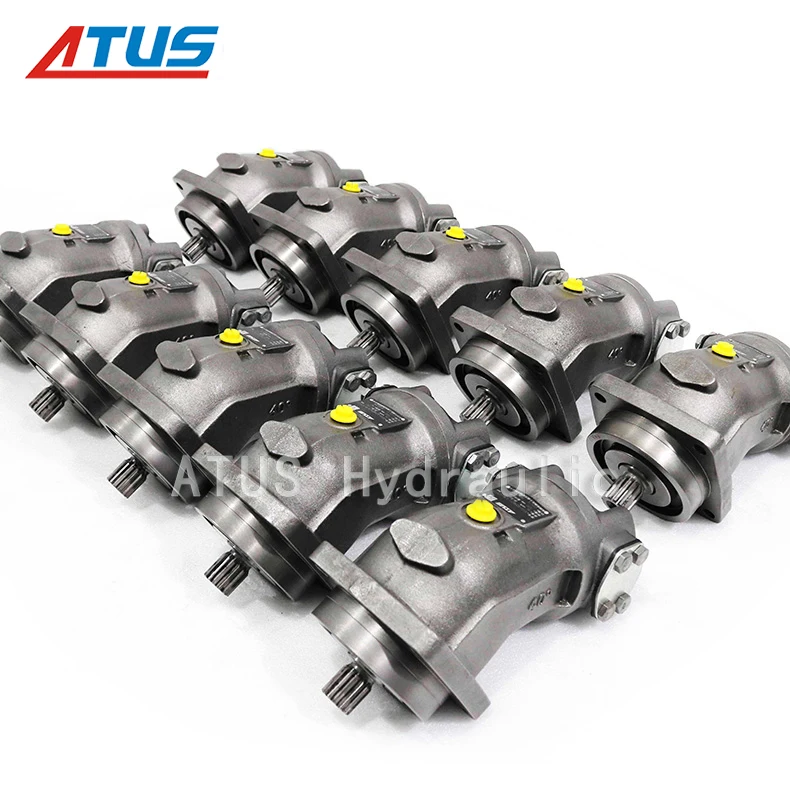

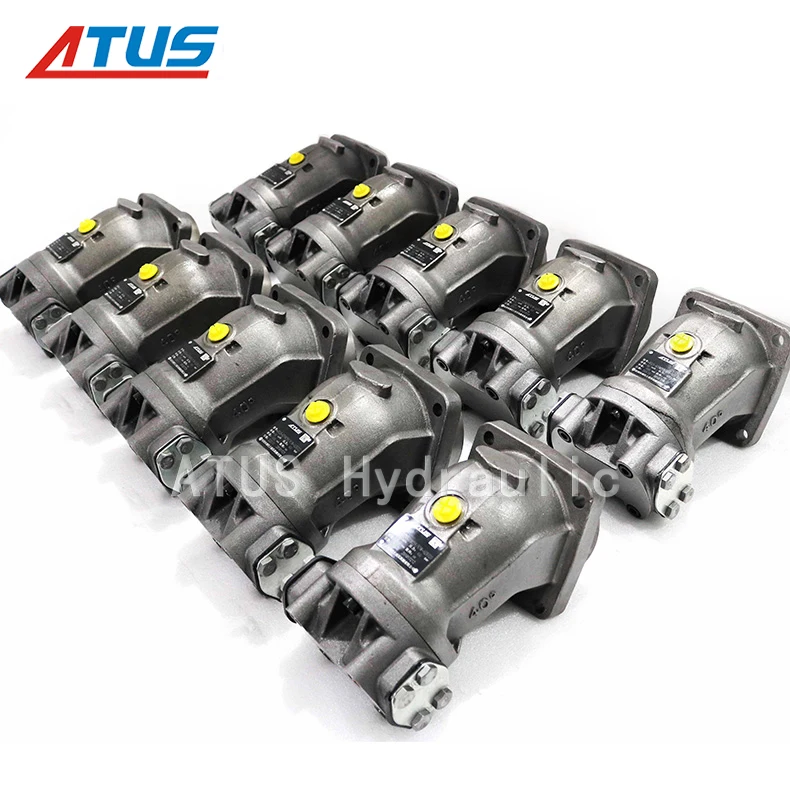

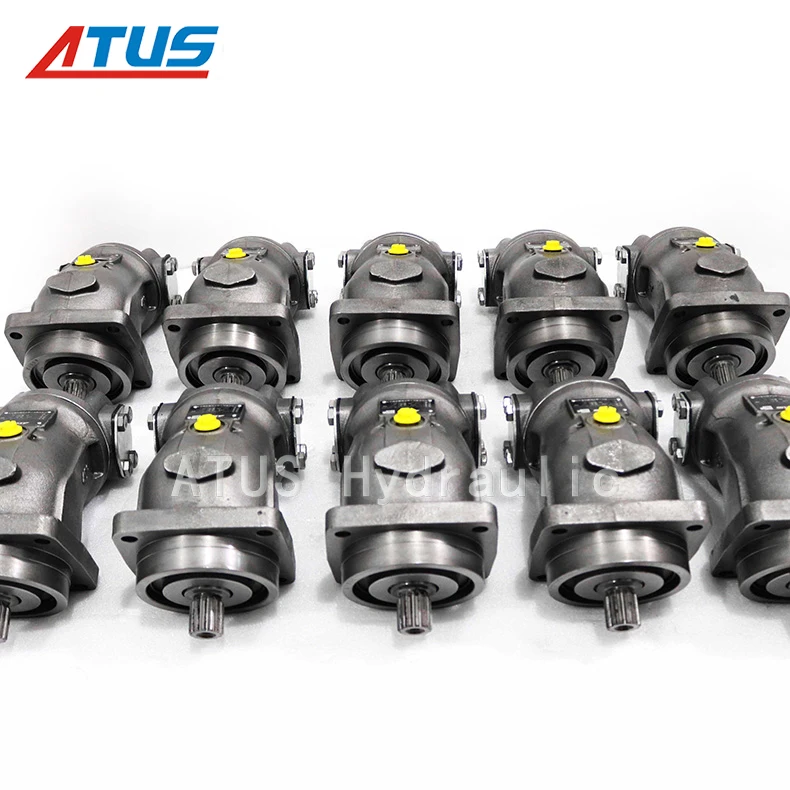

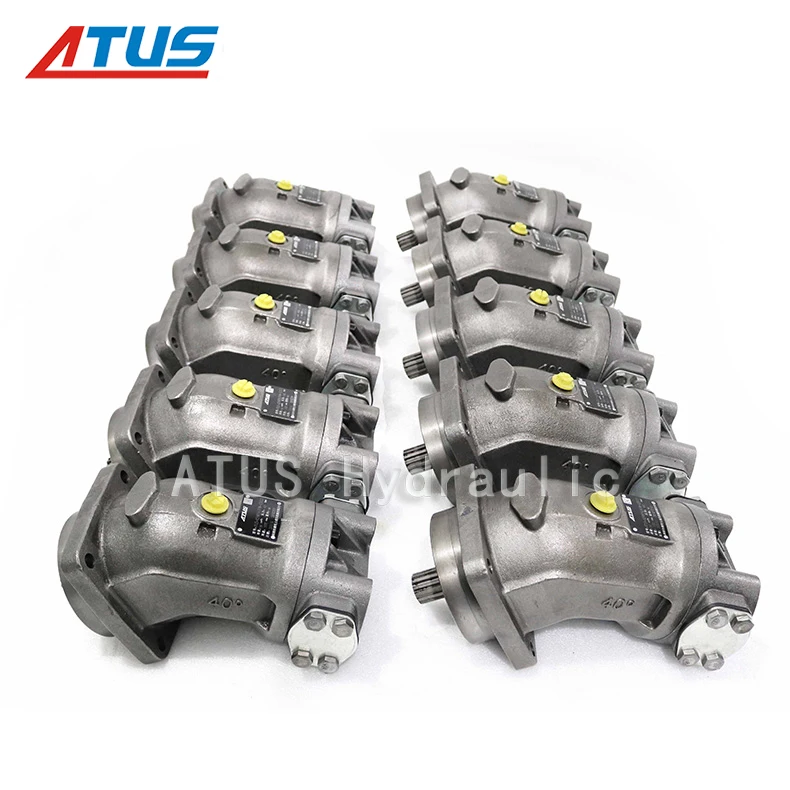

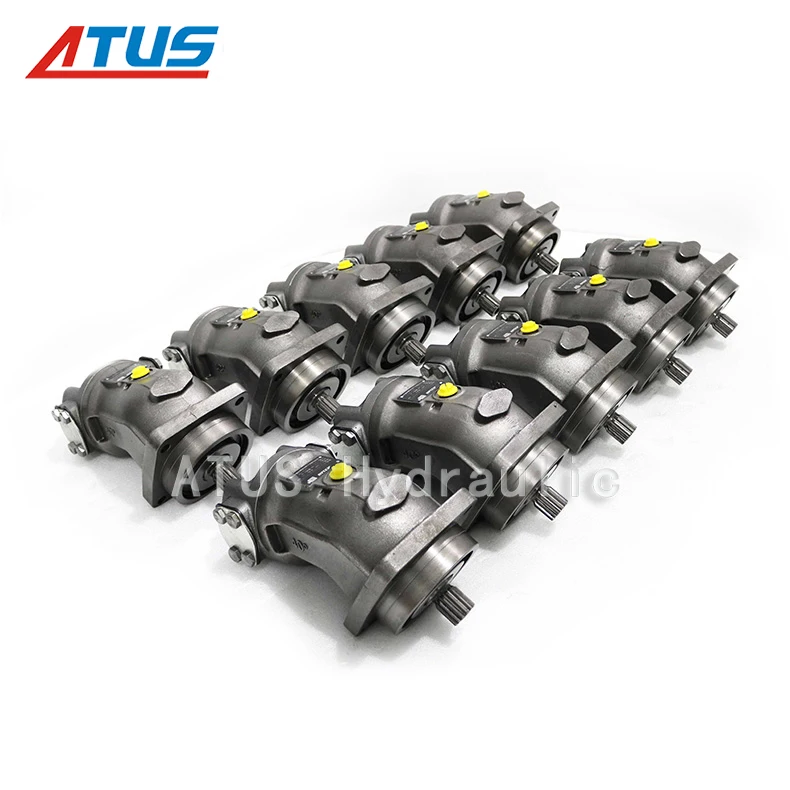

German Marine plunger motor A2FM180 REXROTH hydraulic motor a2fm hydraulic motor for water well drilling rig
- Category: >>>
- Supplier: Shenzhen Aotuoshi Hydraulic Machinery Co. Ltd.
Share on (1600765201971):
Product Overview
Description
Product Overview
Axial Piston Fixed motor
– Fixed motor with axial tapered piston rotary group of bent axis design, for hydrostatic drives in open and closed circuits
– For use in mobile and stationary application areas
– The output speed is dependent on the flow of the pump and the displacement of the motor.
– The output torque increases with the pressure differential between the high and low pressure sides and with increasing displacement.
– Careful selection of the displacements offered, permit sizes to be matched to practically every application
– For use in mobile and stationary application areas
– The output speed is dependent on the flow of the pump and the displacement of the motor.
– The output torque increases with the pressure differential between the high and low pressure sides and with increasing displacement.
– Careful selection of the displacements offered, permit sizes to be matched to practically every application
FEATURES AT A GLANCE
Sizes Nominal pressure/Peak pressure
5 315/350 bar
10 to 200 400/450 bar
250 to 1000 350/400 bar
Open and closed circuits
5 315/350 bar
10 to 200 400/450 bar
250 to 1000 350/400 bar
Open and closed circuits
Left elevation
Front elevation

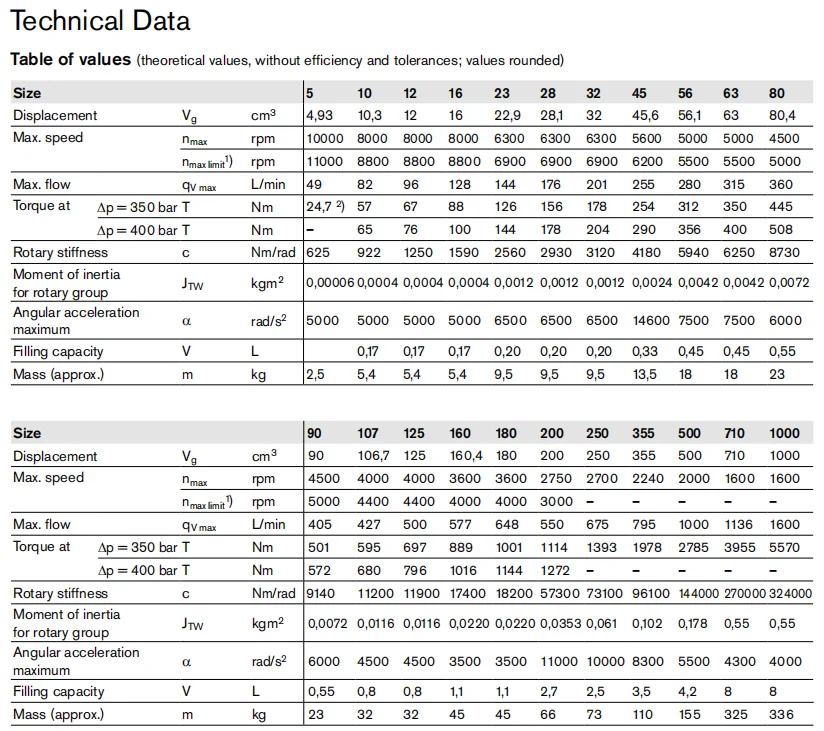

PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Shaft end:Splined shaft;Parallel keyed shaft
oil drain
Optional oil inlet and outlet: threaded installation, flange installation;
SALES AND SERVICE NETWORK
Successful Project
Rotate the motor high -speed in the logo machine
Screw rig hydraulic motor
Vibration Tritting Hammer Vibration Motor
SIMILAR PRODUCTS
FAQ
Q: What is our main application? A: 1. Manufacture hydraulic pumps and motors, Reducers. We are factory.
2. Hydraulic spare parts and maintenance.
3. Construction Machinery.
4. Brand pumps&motors replacement.
5. Hydraulic System.
Q: What is the payment terms?
A: Full order: 50% as deposit (50% down payment), the 50% balance payment before shipment.
Small order or sample order: 100% full payment in advance.
Q: Can I mark my own brand on the pumps?
A: Yes, all products accept mark your brand and code.
Q: What is our mainly international market?
A: Eastern Asia 5%, Western Europe 10%, Northern Europe 5%, Southern Europe 10%, South Asia 10%, Domestic Market 60%.
Q: How long production quality guarantee?
A: We provide 12 months quality guarantee for all our hydraulic pumps and motors.
2. Hydraulic spare parts and maintenance.
3. Construction Machinery.
4. Brand pumps&motors replacement.
5. Hydraulic System.
Q: What is the payment terms?
A: Full order: 50% as deposit (50% down payment), the 50% balance payment before shipment.
Small order or sample order: 100% full payment in advance.
Q: Can I mark my own brand on the pumps?
A: Yes, all products accept mark your brand and code.
Q: What is our mainly international market?
A: Eastern Asia 5%, Western Europe 10%, Northern Europe 5%, Southern Europe 10%, South Asia 10%, Domestic Market 60%.
Q: How long production quality guarantee?
A: We provide 12 months quality guarantee for all our hydraulic pumps and motors.
A2FM180/61 -VBBXX0-S | A2FM180/61W-VAB100 *GO2EU* |
A2FM180/61-PBB027D | A2FM180/61W-VAB100-S |
A2FM180/61-VABXX0-S | A2FM180/61W-VAB100D |
A2FM180/61-VBBXX0-S | A2FM180/61W-VAB180 |
A2FM180/61L-VAB010-S | A2FM180/61W-VAB181-K |
A2FM180/61R-VBBXX0-S | A2FM180/61W-VAB190J |
A2FM180/61R-VZB010-S | A2FM180/61W-VAB191J-K |
A2FM180/61W-NAB010D | A2FM180/61W-VBB010 |
A2FM180/61W-NAB027D | A2FM180/61W-VBB010D |
A2FM180/61W-NAB040 | A2FM180/61W-VBB020 |
A2FM180/61W-PAB010-K | A2FM180/61W-VBB020-S |
A2FM180/61W-PAB010-S | A2FM180/61W-VBB020D |
A2FM180/61W-PAB016 | A2FM180/61W-VBB027 |
A2FM180/61W-PAB026 | A2FM180/61W-VBB027F |
A2FM180/61W-PAB02X-S | A2FM180/61W-VBB027F-K |
A2FM180/61W-PAB181-SK | A2FM180/61W-VBB030 |
A2FM180/61W-PBB010D | A2FM180/61W-VBB040 |
A2FM180/61W-PBB026 | A2FM180/61W-VBB100 |
A2FM180/61W-PXB181-SK | A2FM180/61W-VBB100H |
A2FM180/61W-VAB010 | A2FM180/61W-VBB100H-S |
A2FM180/61W-VAB010 *GO2EU* | A2FM180/61W-VBB190J |
A2FM180/61W-VAB010-S | A2FM180/61W-VBB191J |
A2FM180/61W-VAB010D | A2FM180/61W-VBB192J-K |
A2FM180/61W-VAB010F | A2FM180/61W-VSB010-S |
A2FM180/61W-VAB010J | A2FM180/61W-VSB027-S |
A2FM180/61W-VAB020 | A2FM180/61W-VSB027D-S |
A2FM180/61W-VAB020 *GO2EU* | A2FM180/61W-VSB180J-S |
A2FM180/61W-VAB020-S | A2FM180/61W-VSB181J-SK |
A2FM180/61W-VAB020D | A2FM180/61W-VSB190J-S |
A2FM180/61W-VAB020F | A2FM180/61W-VSB191J-SK |
A2FM180/61W-VAB020F-K | A2FM180/61W-VXB180-S |
A2FM180/61W-VAB027 | A2FM180/61W-VXB181-SK |
A2FM180/61W-VAB027-S | A2FM180/61W-VXXXX0-S |
A2FM180/61W-VAB027D | A2FM180/61W-VZB010 |
A2FM180/61W-VAB027D-S | A2FM180/61W-XAB027F-S |
A2FM180/61W-VAB027F-S | A2FM180/61W-XAB027F-SK |
A2FM180/61W-VAB02X-S | A2FM180/61W-XBX010-S |
A2FM180/61W-VAB030 | A2FM180/61W-XBX020-S |
A2FM180/61W-VAB040-S | A2FM180/61W-XBX040-S |
A2FM180/61W-VAB100 |
