Advanced design air cooler condenser for meat bone meal
- Category: >>>
- Supplier: Hebei Chengzhu Machinery Group Co. Ltd.
Share on (1600765283923):
Product Overview
Description

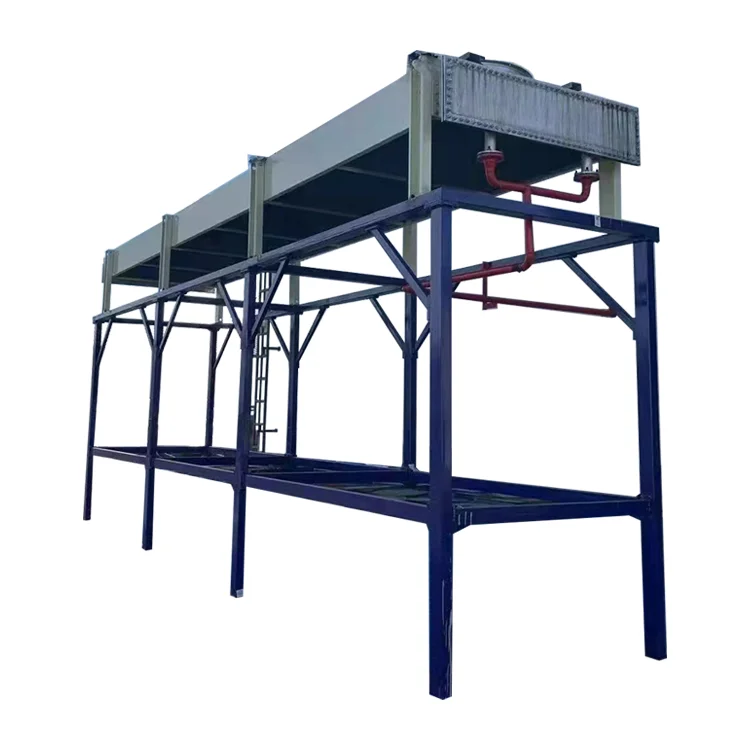

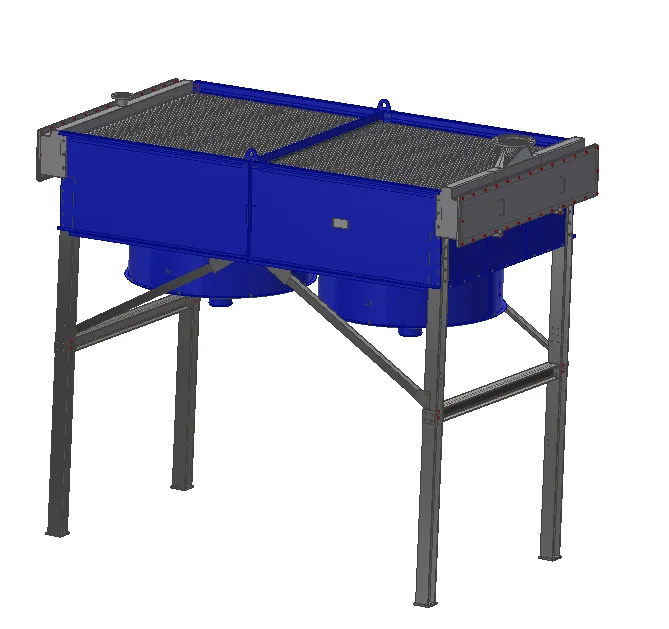

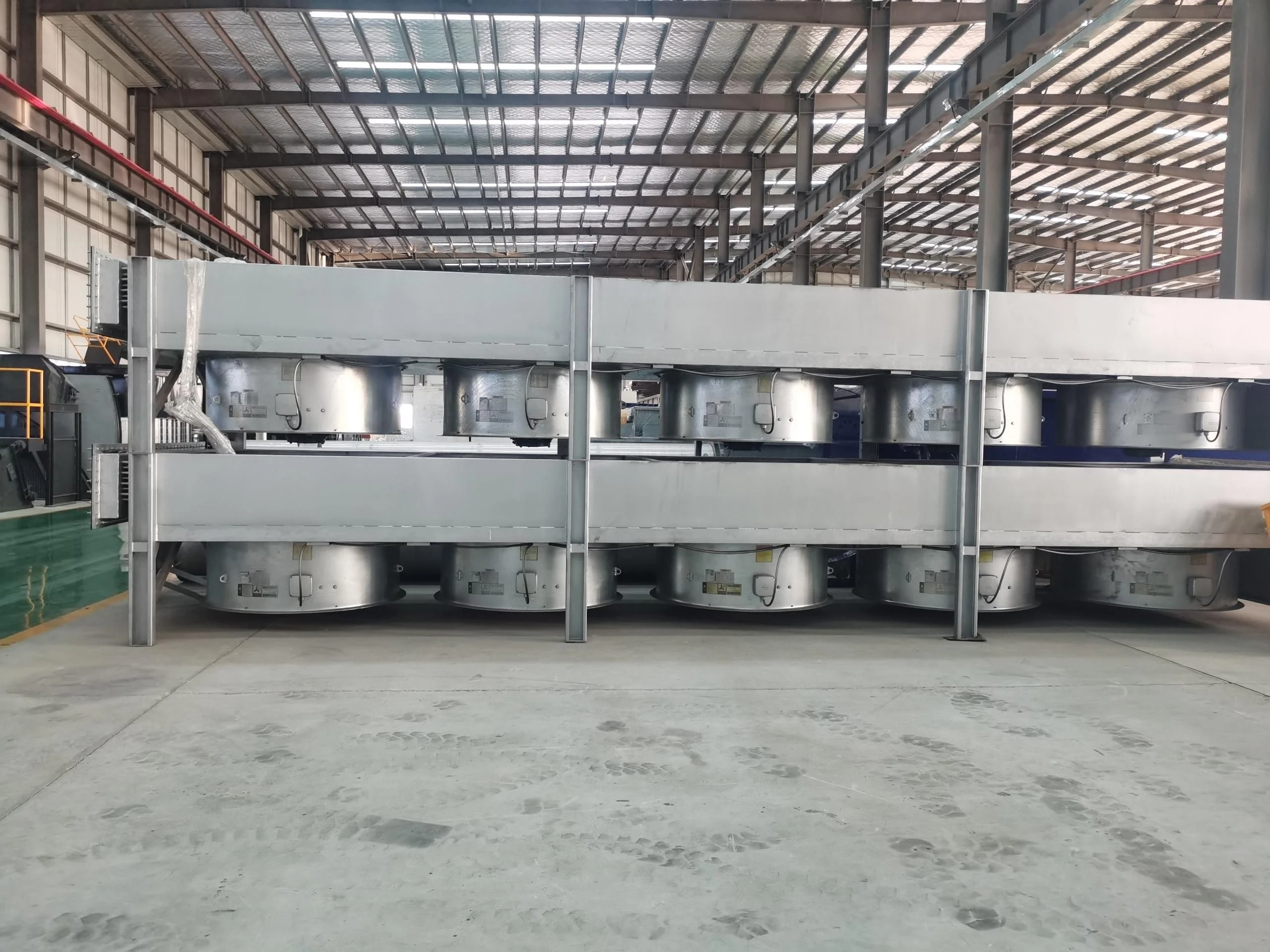

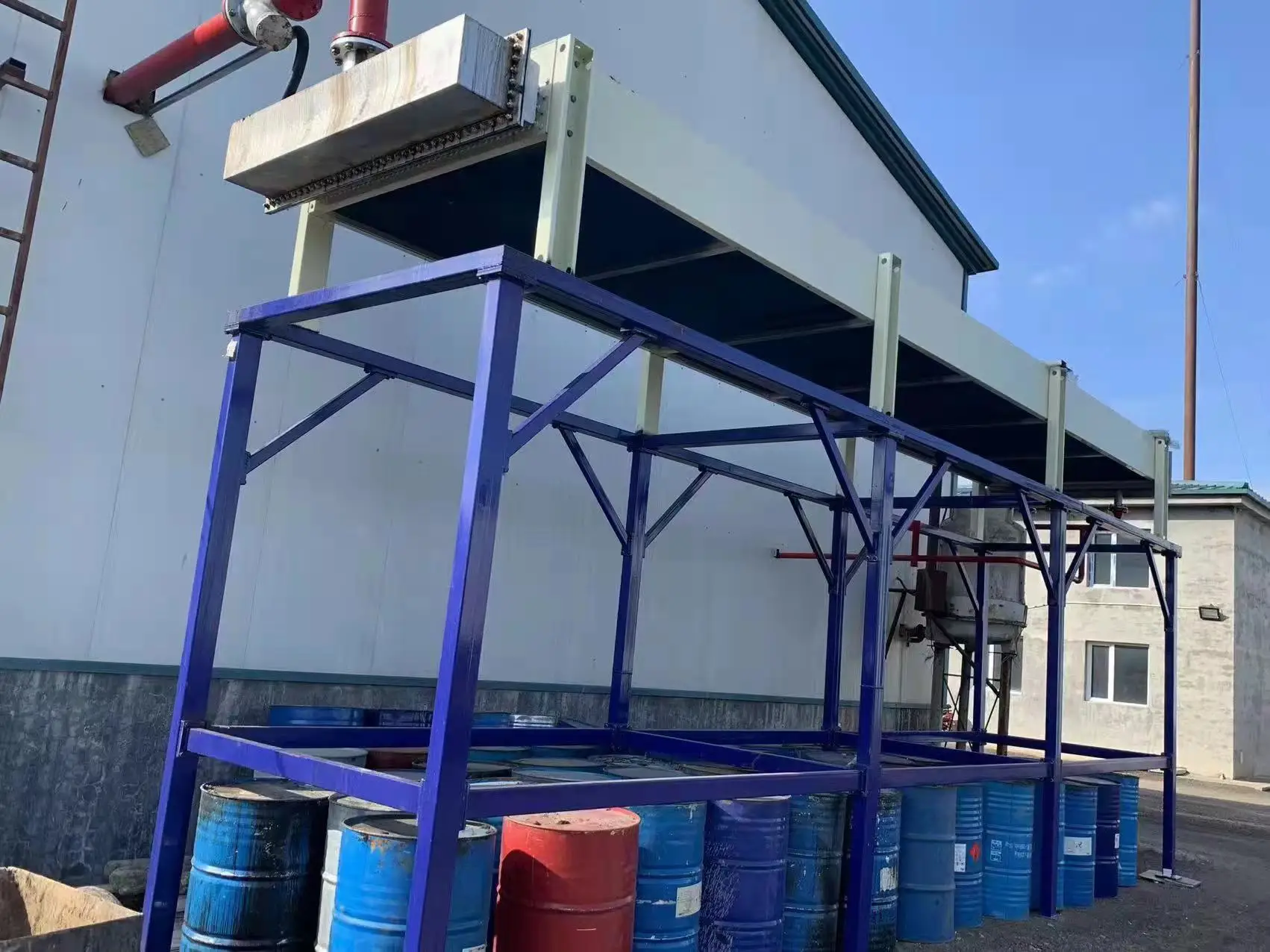

Air cooler condenser
Product Description
Application

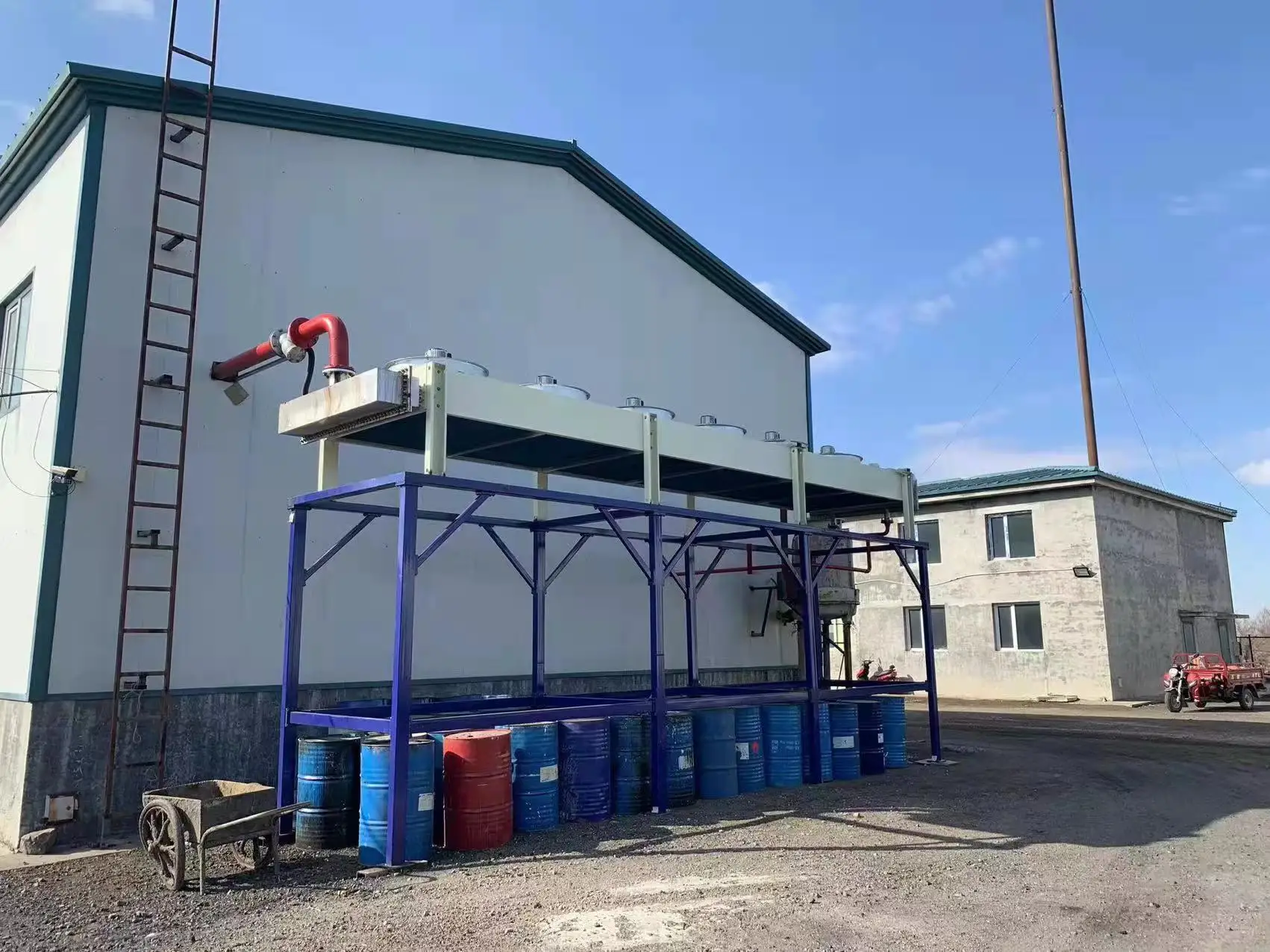

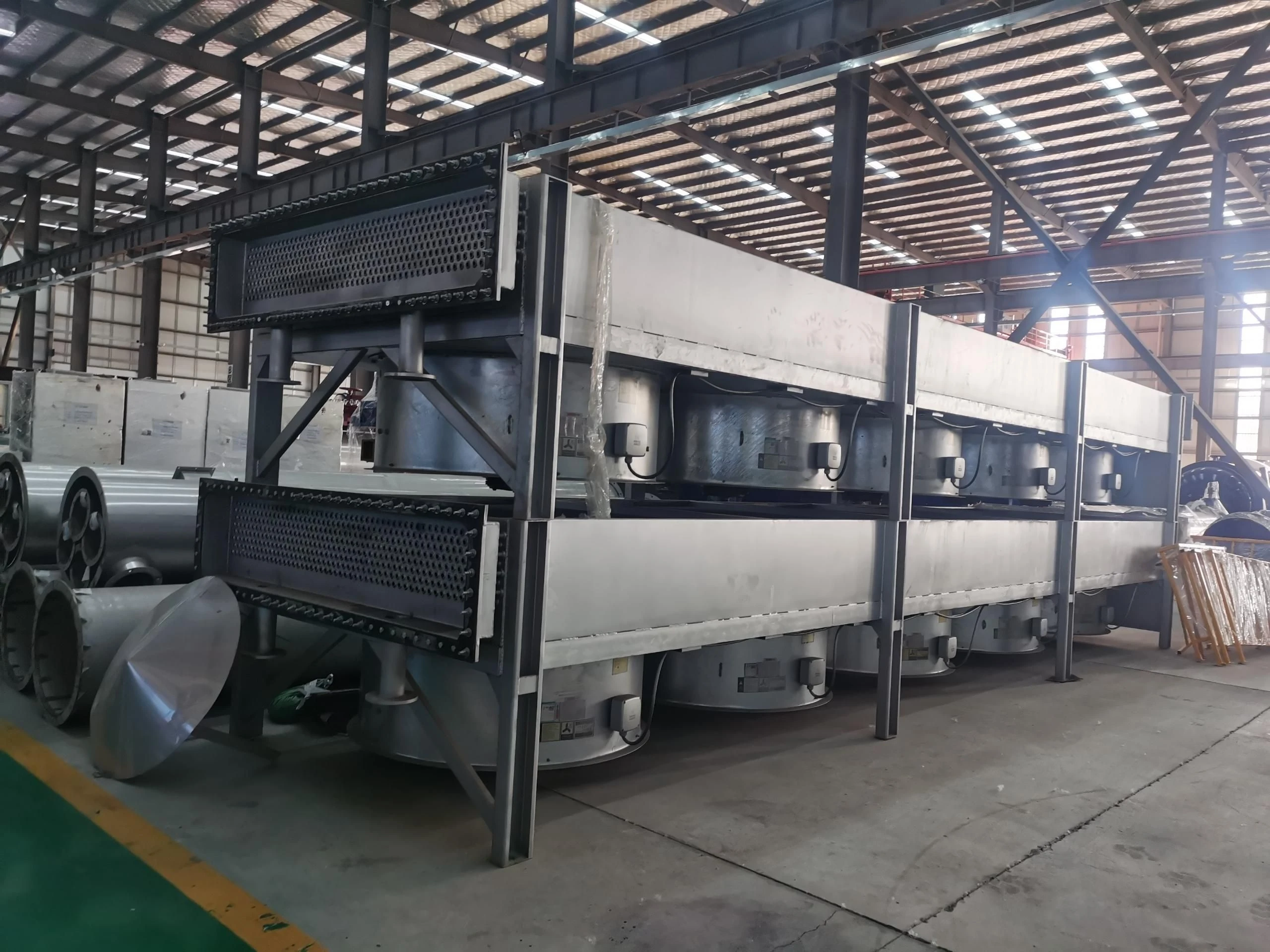

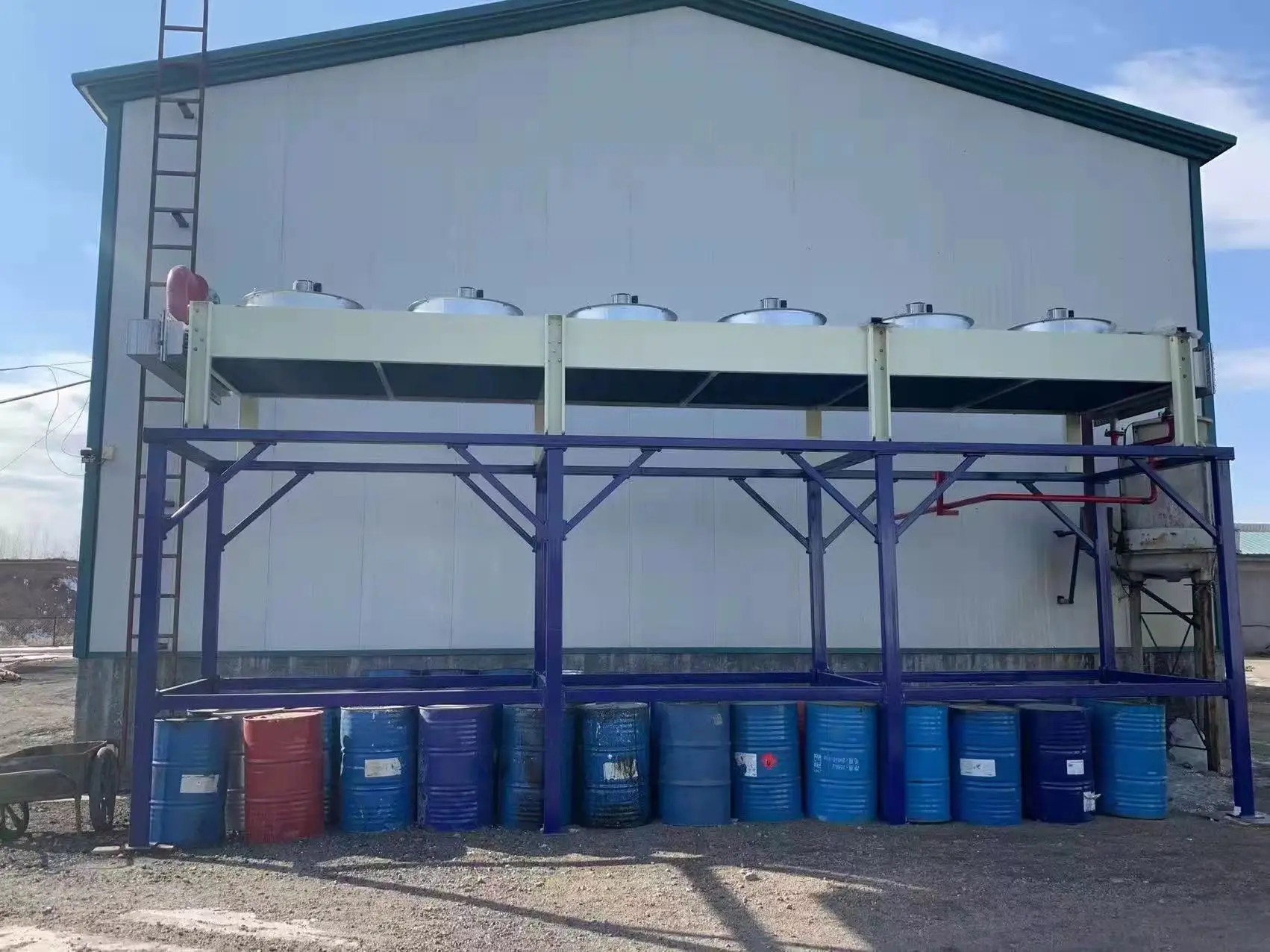

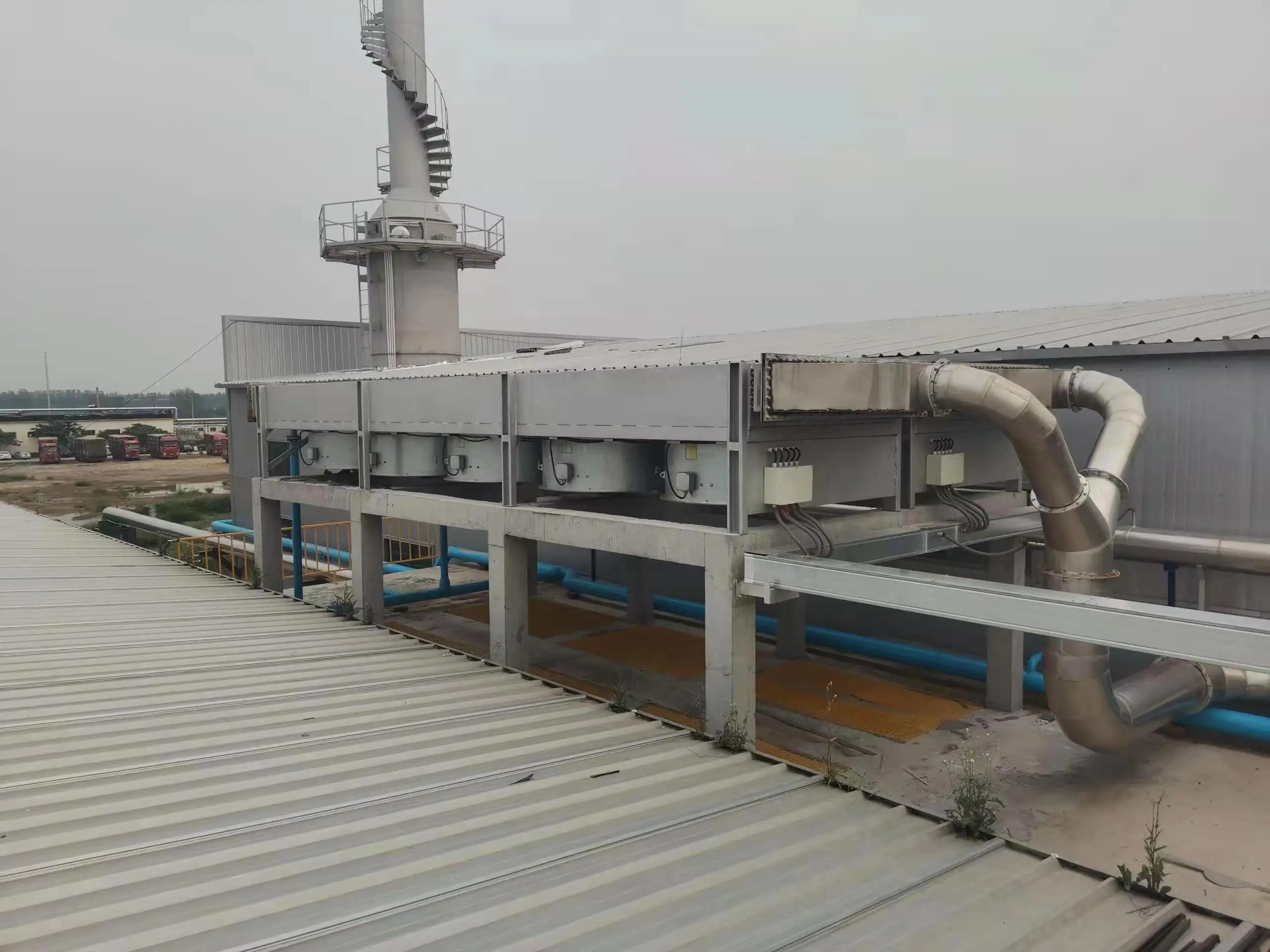

Air cooled condenser is designed for condenseing the processing vapours emitted from cooking or drying of fish or meat by products.
Equipment details:
Design principles
Safety: strictly according to national standards (gb150-2011 < pressure vessel manufacturing standard >)
Energy-saving: pipeline optimization design, temperature, pressure, time rational utilization, energy conservation and efficiency.
Advanced: introduce the German harmless treatment technology, realize the target of harmless treatment and resource utilization.
Environmental protection: the treatment process is sealed, exhaust gas recovery, multilevel processing;Less waste water, no germs, easy to handle.
Automation: computer PLC plus touch screen control, whole-process monitoring, automatic control.
The whole line were consists of material buffer bin, conveyor, cooker dryer ,grinding ,packing and odor treatment system.
1.poultry waste reception section
1, The material silo
Function: for the reception and storage of poultry waste,dead animal.
2, The middle is pre-crushing machine
Function:for chopping of whole animal carcasses and large pieces with aim of 50mm size pieces(easily transported)
3, The botton is a material pump.
Function:transport the material to cooker.

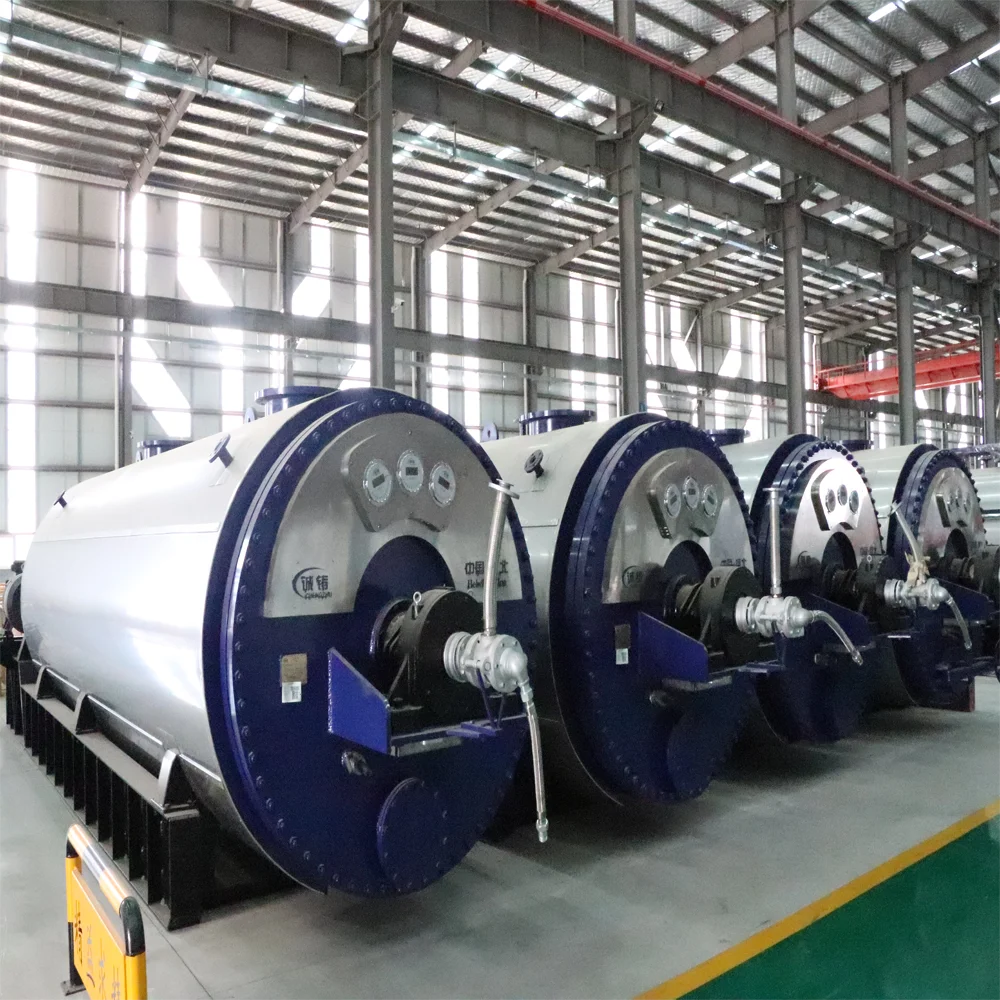

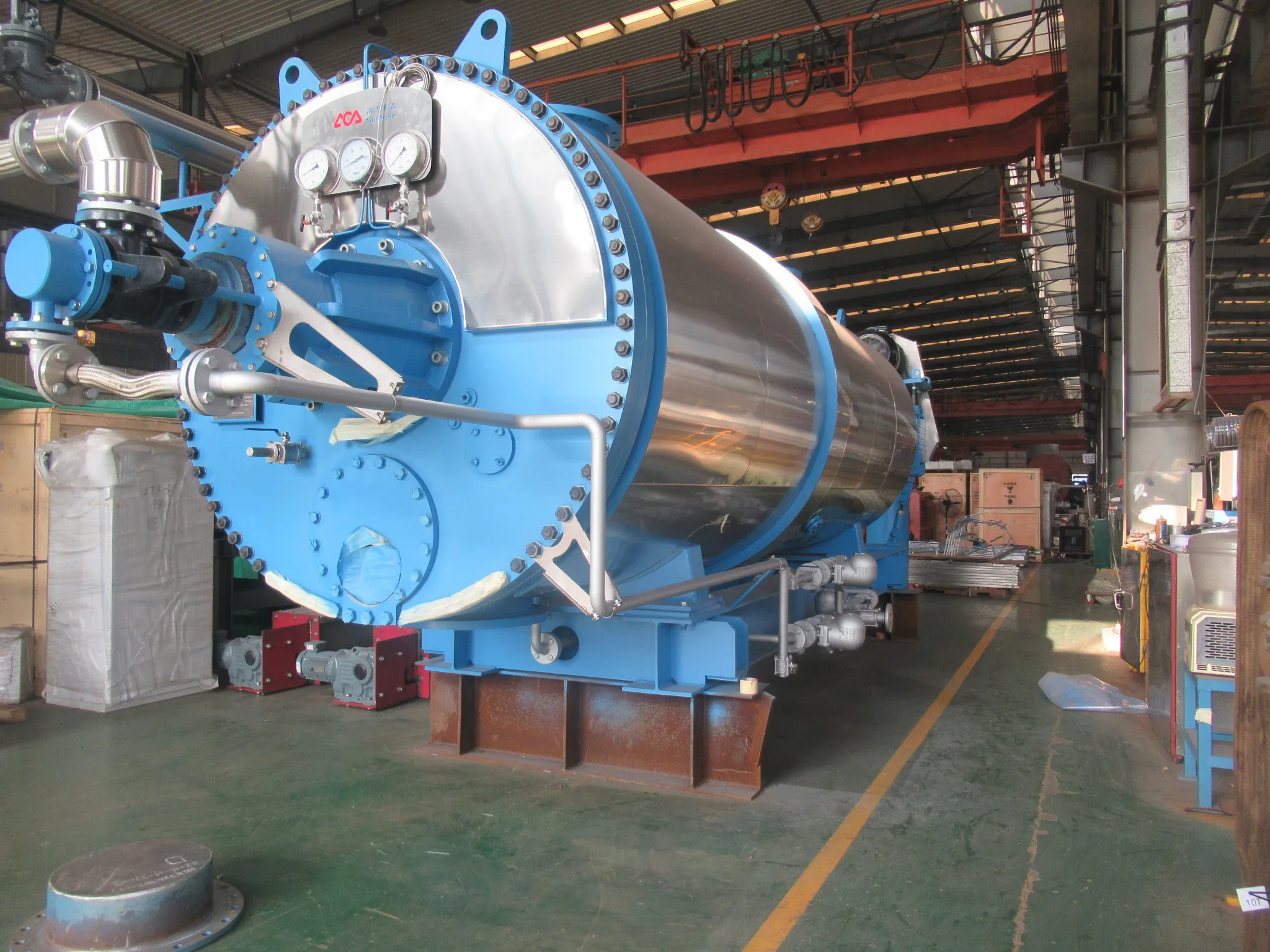

2. Cooker and dryer section
Fuction: Waste of raw material (feathers,animal fur,sick livestock,animal carcasses)through tghe process of high temperature and pressure to achieve the effect of sterilization and break down.
Features:Big capacity of each batch,the efficiency of sterilization is completely and safe. It has the fuction of break, cook, sterilization and drying.

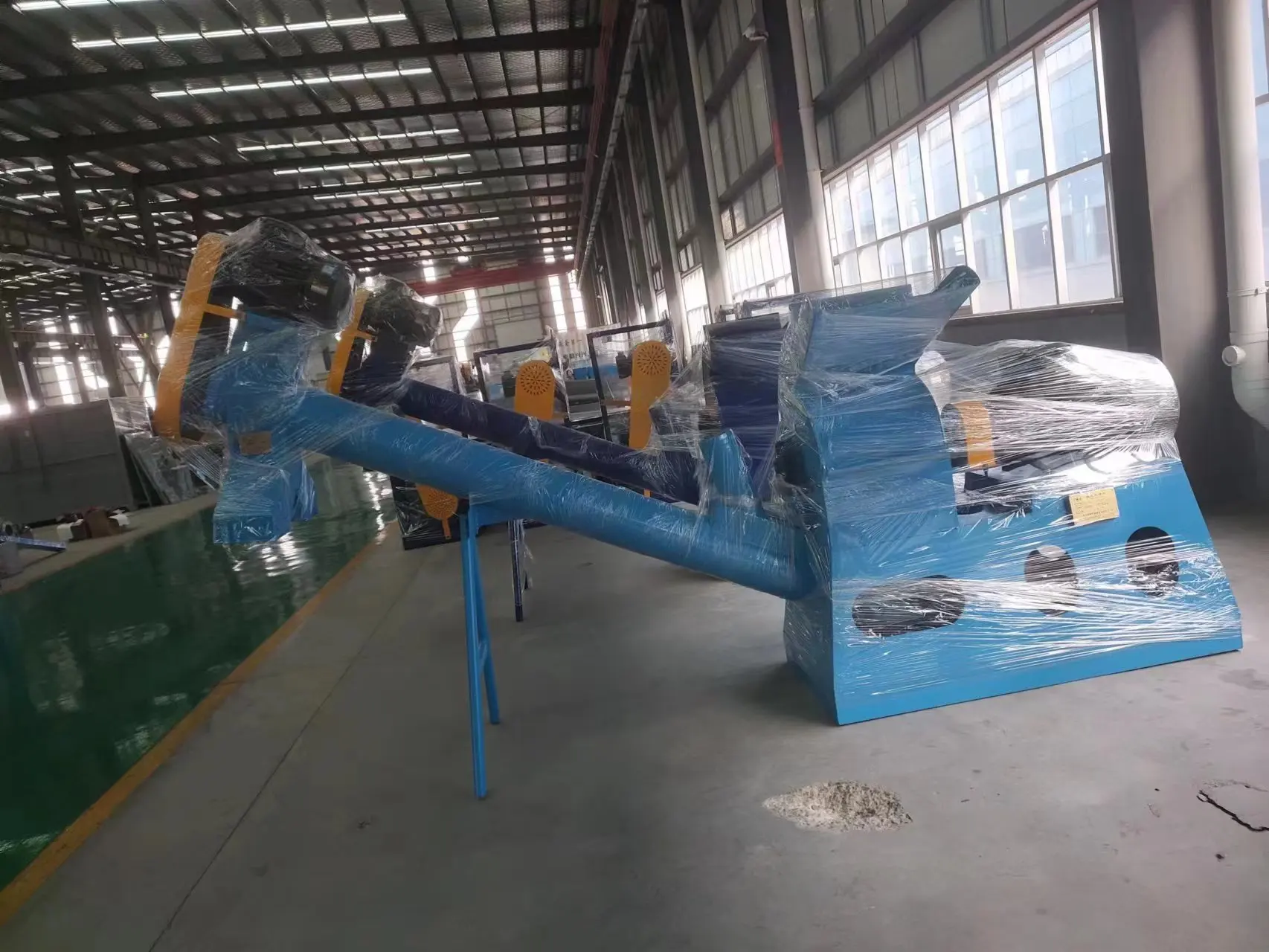

3. Meal section
Fuction:To reduce the size of meal .
Features:1.Unique crushing chamber to improve the grinding efficiency.
2.Special rotor desgn program, and the hammer sieve gap, which can meet different granularity.
4.Packing section
Automatic paking the meal
5. Odor treatment section
To seperate solids and liquids entrained in the process vapoures from cooking/drying equipment, by washing of gasses collected from several process points.
Final products:

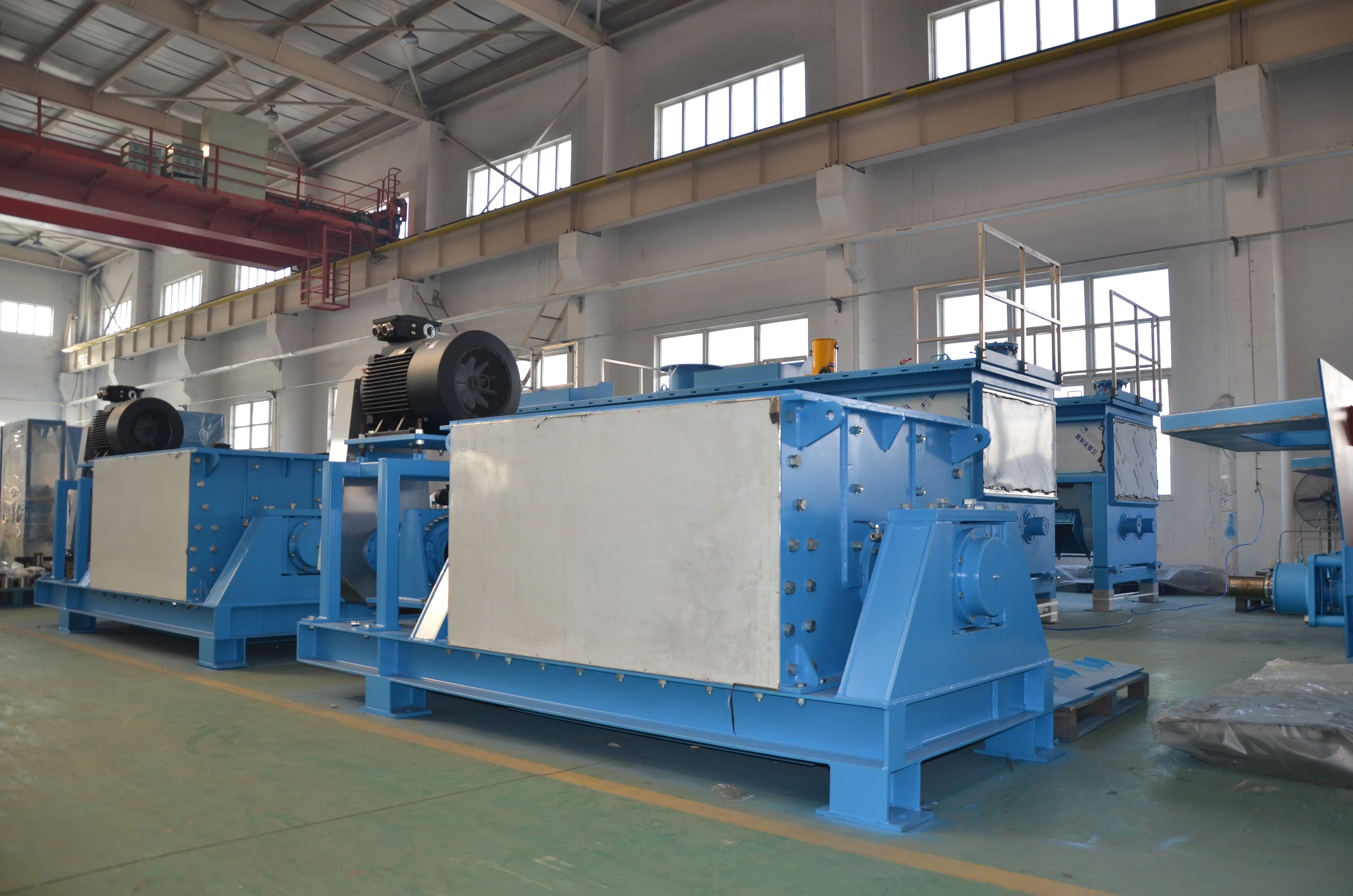

Detailed Images
Disease in pigs harmless equipment meets GB16548-2006 the disease in animals and plant disease biological safety of animal products processing procedures "requirement, can completely destroy the prescribed standards of major animal epidemic pathogenic microbes, for anthrax, foot and mouth disease, swine fever and other pathological changes of animal disease flesh body and cutting waste, glands of harmless handling, to eliminate and control of major animal epidemics, and comprehensively improve the quality of animal epidemic prevention, to prevent the disease in pigs products into the market, listed to ensure product quality and safety of live pigs, to ensure the safety of meat food, safeguard people's health, will play a positive role.Animal harmless processing equipment: this equipment is manufactured, tested and accepted according to gb150-1998 steel pressure vessel, and is subject to supervision of the safety technical supervision regulation of pressure vessel.This series of equipment is suitable for the harmless treatment of pig and disease pig products in pig slaughtering factory (field), and it is installed in the harmless treatment workshop.By cooking and cooking the pig and the pig products under high temperature, the pathogen can be completely destroyed, and the oil and bone powder can be extracted from it.
If you need more information, please contact us
We can customize for you of the right solution, according to your needs.
Process Flow:
Crusher ----> Cooker ----> Dryer ----> Defatting ----> Cooling ----> Milling ----> Packing
Our product feature:
1. Connect the steam boiler equipment with no other energy consumption.Vertical wet mechanism can match the secondary oil/water separation equipment
2, this series of products in accordance with the national standard design and manufacture of boiler and pressure vessel, corrosion resistance, pressure good performance.
3, this series product is equipped with safety valve, pressure controller device such as a secure and safe and reliable products
4, this series product is heated area is large, fast heat booster, greatly shorten the processing time is 5 innocuity, this series of products to save energy, 6 daily operation cost is low, the series of products structure is simple.
Notes:
We can design a turnkey production line for our customers,the line including many machines, customer also can choose the one they need depend on their production and the founds,so no matter what requriements you have,we will try our best to meet with you
Company Information
Hebei Chengzhu Machinery Group Co., Ltd was founded in 1990, we specialized in contracting the project of poultry and livestock waste rending plant and slaughterhouse waste, after 20 years development and growth, we have become the company with technology research and development, processing design, product manufacturing, installation and training.
we have the first-class professional technical team and advanced production equipment. Over the years, the company adheres to the concept of sustainable development, "the suberb technology, sophosticated equipment quality, fine service", which won the majority of user acceptance and praise >>CLICK MORE
Our Services
Pre-sale Service:
Your inquiry related to equipment or price will be replied within 24 hours.
Well-trained and experienced staff will answer all your inquiries in English of course.
We accept OEM&ODM projects.
We have strong R&D team here to help.
Your business relationship will be confidentional to any third party
After-sale Service:
1 year warranty period, please don't hesitate to contact us if you have any question with the equipment
