Raspberry Pi Stack HAT stacks up to 5 HATs at once 2x20 pin Header I/O Expansion Board for Raspberry Pi
Overview

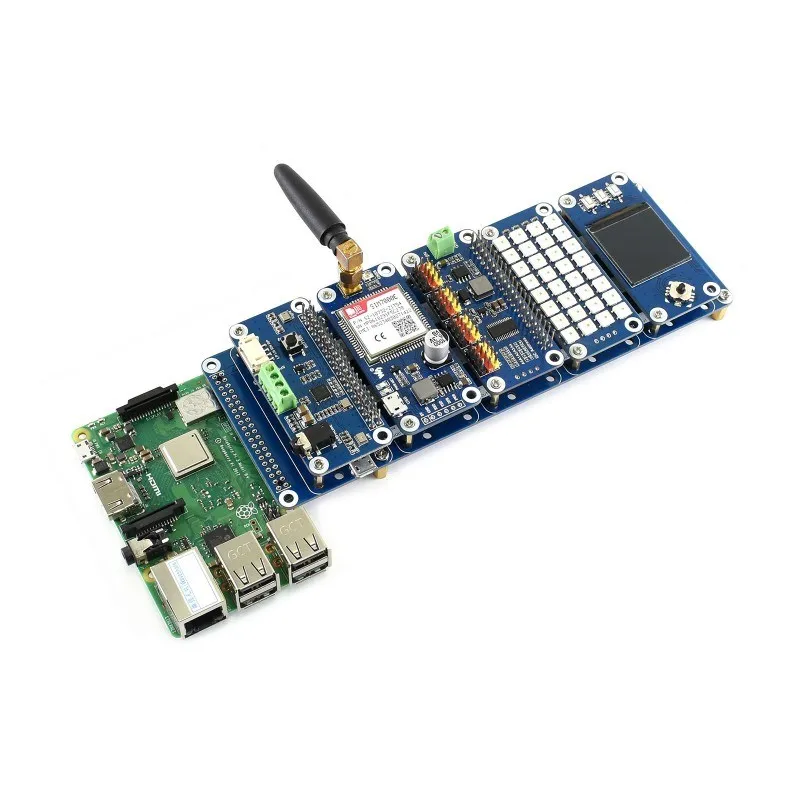

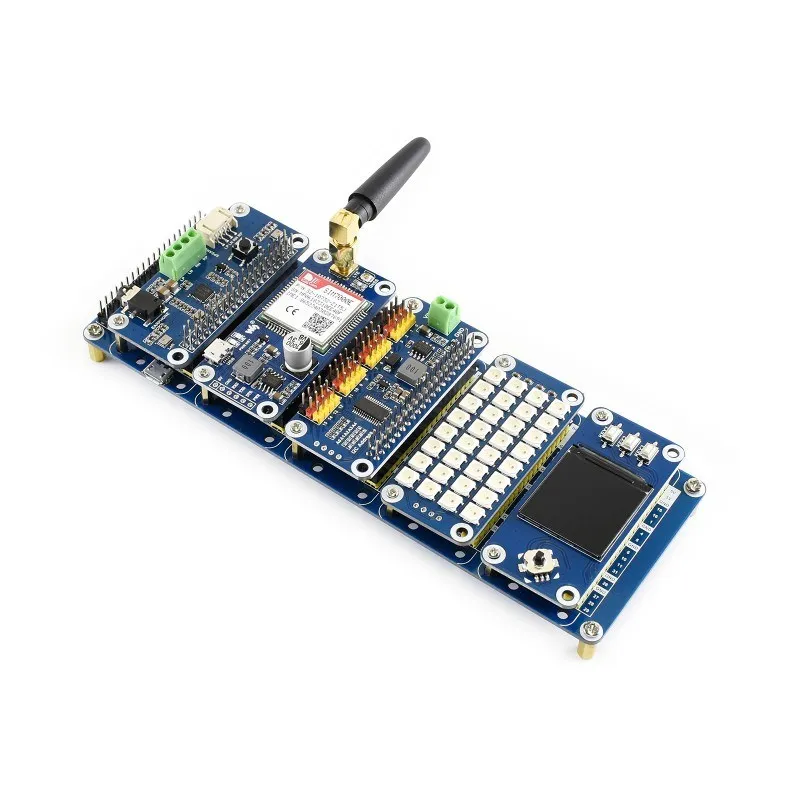

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.
This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.
Features
* Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable

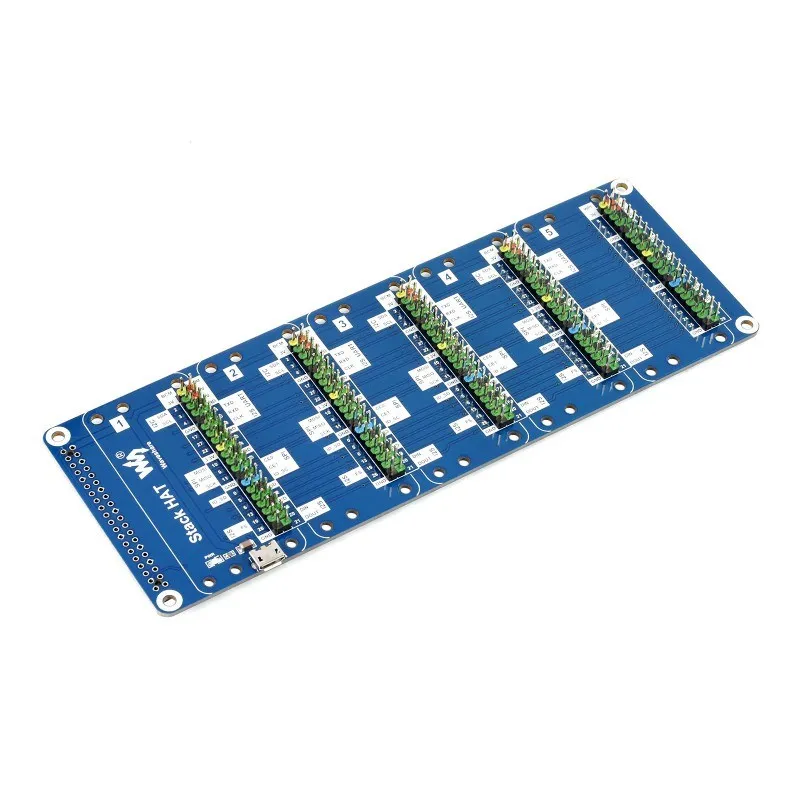

* 5 sets of 2x20 pinheaders, connect multi HATs together
* USB external power port, provides enough power supply for multi HATs
* Clear and descriptive pin labels for easy use

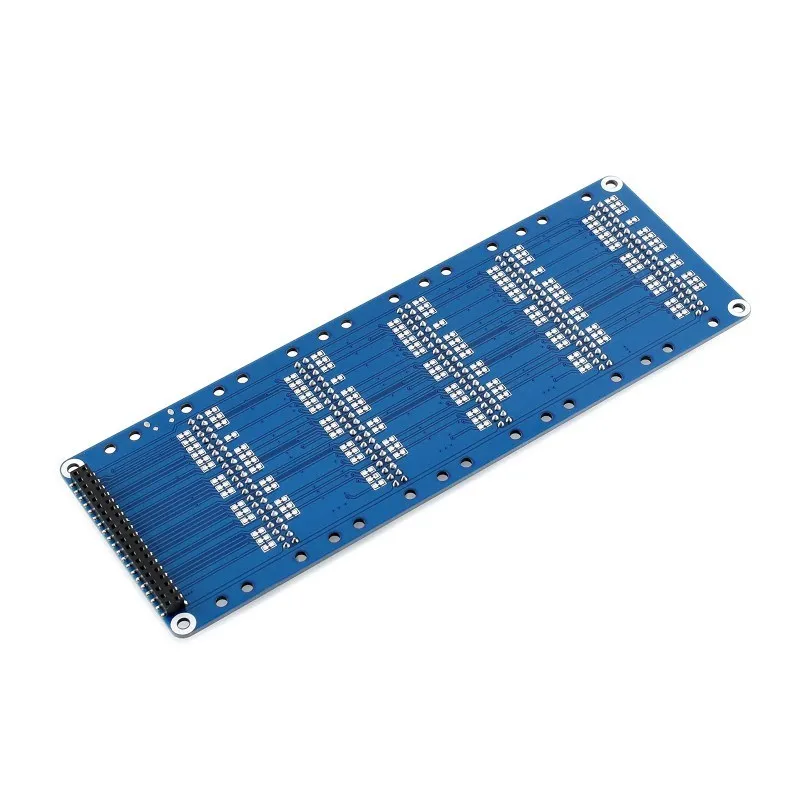

* Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts
Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.
* Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
* 5 sets of 2x20 pinheaders, connect multi HATs together
* USB external power port, provides enough power supply for multi HATs
* Clear and descriptive pin labels for easy use
* Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts
Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.
Specifications

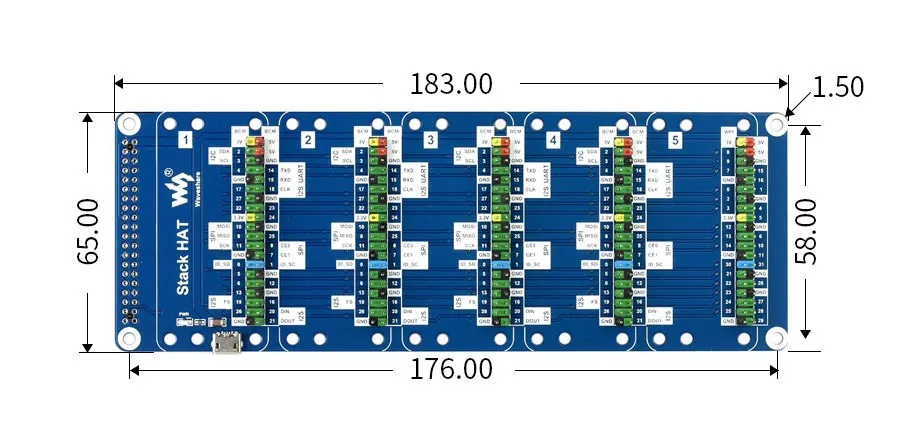

* Dimension: 183mm × 65mm
* Mounting hole size: 3mm
Dimension
* Dimension: 183mm × 65mm
* Mounting hole size: 3mm
Dimension
Development Resources
Wiki : www.waveshare.com/wiki/Stack_HAT
Weight: 0.083 kg

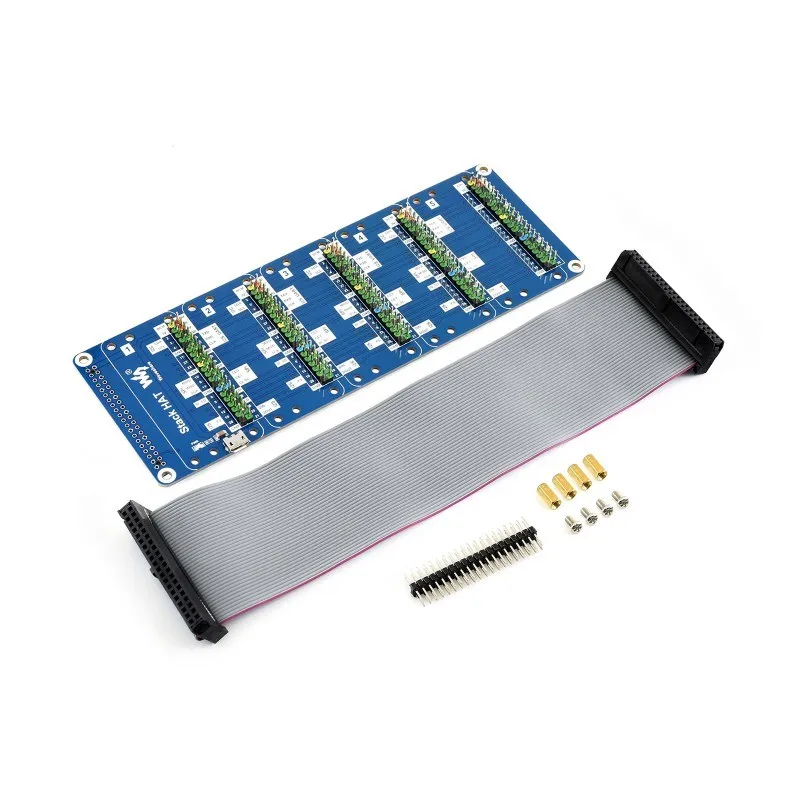

1. Stack HAT x1
2. Ribbon cable 40PIN x1
3. 2x20 male pinheader x1
4. RPi screws pack (4pcs) x1
Wiki : www.waveshare.com/wiki/Stack_HAT
Weight: 0.083 kg
1. Stack HAT x1
2. Ribbon cable 40PIN x1
3. 2x20 male pinheader x1
4. RPi screws pack (4pcs) x1
